Why Does Square Tube Wrinkle When Bending? Causes, Case Study & Solutions
Wrinkling on the inner radius of a square or rectangular tube is one of the most common — and most frustrating — defects encountered during tube bending. It not only compromises the appearance of the finished part but can also weaken structural integrity, leading to rejected workpieces and costly rework.
In this article, we break down why square tube wrinkles during bending, walk through a real case study involving a 90x90x3mm square tube, and share practical solutions — drawing on Nanjing BLMA Machinery's 38+ years of experience manufacturing CNC pipe and tube bending machines.
What Does Tube Wrinkling Look Like?
Wrinkling typically appears as a series of small ripples or folds along the inner (compression) side of the bend, where the material is being compressed rather than stretched. On square and rectangular tubes, this defect is often more visible and more severe than on round tubes, because flat surfaces amplify even minor buckling.
(Insert image here: photo of the wrinkled/deformed 90x90x3mm square tube)

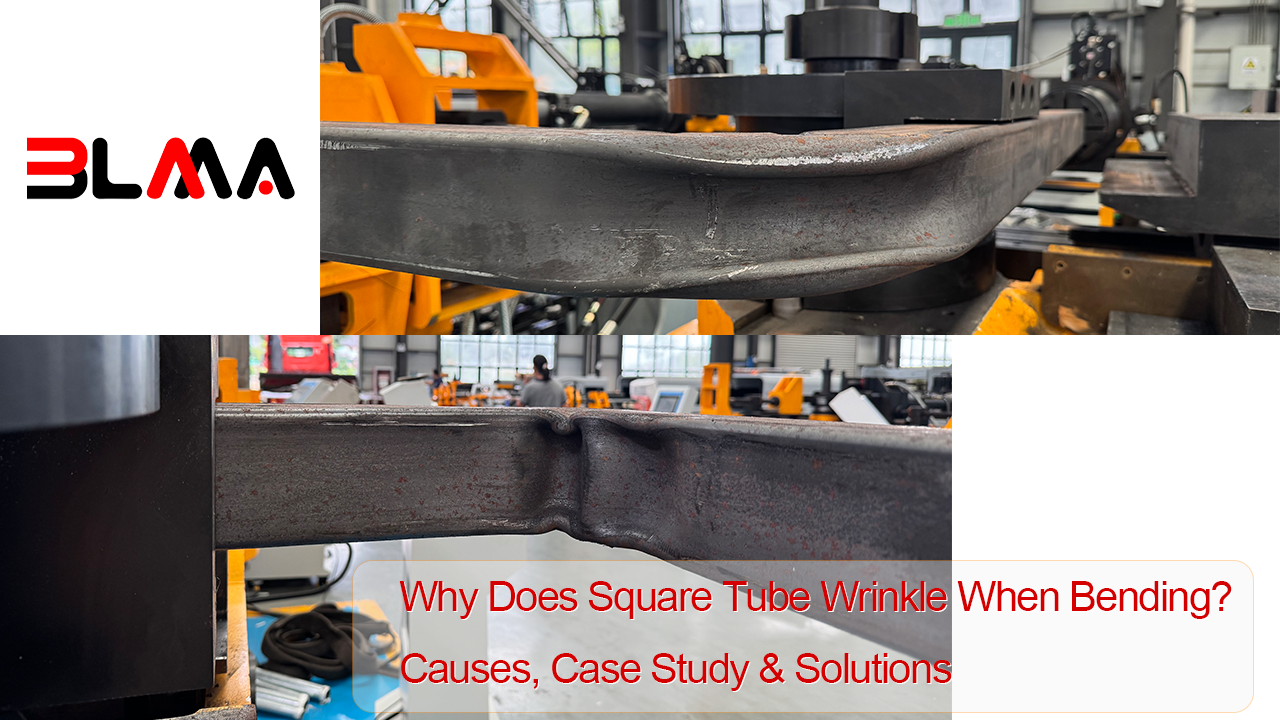

As shown in the image above, the compression zone of a 90x90x3mm square tube has folded inward, creating visible ridges along the bend. This is a textbook example of wall buckling caused by insufficient support during the bending process.
Common Causes of Square Tube Wrinkling During Bending
1. Lack of Proper Mandrel Support When bending thin-walled square or rectangular tubes, the inner wall is under compressive stress. Without a mandrel — or with an incorrectly sized/positioned mandrel — the tube wall has nothing to support it internally, causing it to buckle and wrinkle. This is especially critical for medium wall thickness tubes like 90x90x3mm, where the wall is relatively thin compared to the tube's width.
2. Incorrect Bend Radius-to-Wall Thickness Ratio Tight bend radii relative to wall thickness dramatically increase the risk of wrinkling. As a general rule, the tighter the radius, the more critical proper tooling and support become.
3. Worn or Mismatched Tooling Using a bend die, clamp die, or wiper die that doesn't precisely match the tube's cross-section allows material to shift and buckle during bending instead of flowing smoothly through the bend.
4. Excessive Feed Speed / Bending Speed Bending too fast doesn't give the material enough time to deform plastically and evenly. This uneven deformation often shows up as wrinkling on thin-walled sections.
5. Insufficient Clamping Pressure If the clamp die doesn't hold the tube firmly enough, the material can slip during the bend, creating uneven wall thickness and wrinkles on the compression side.
6. Machine Rigidity and Control Precision Not all bending machines apply mandrel position, clamping pressure, and bend speed with the same consistency. Machines with servo-controlled, CNC-synchronized axes maintain far tighter tolerances throughout the bend cycle than manual or semi-automatic equipment — which matters most on medium-wall square tube like this case.
Case Study: Diagnosing Wrinkling on a 90x90x3mm Square Tube
In this case, a customer was bending 90x90x3mm square steel tube and experiencing consistent wrinkling on the compression side of the bend. After reviewing the process, BLMA's technical team identified three contributing factors:
The mandrel being used was undersized for the tube's internal dimensions, leaving a gap that allowed the wall to collapse inward
The bend radius selected was near the minimum recommended radius for this wall thickness, leaving very little margin for error
Clamping pressure was set too low, allowing slight material slippage during the bend cycle
The customer's process was rebuilt on a BLMA DW130CNC-2A1S CNC pipe bending machine, using a form-fitted mandrel matched precisely to the 90x90x3mm profile and re-calibrated clamping pressure. With the mandrel gap eliminated and clamping force corrected, the wrinkling defect was fully eliminated in subsequent production runs.
How the DW130CNC-2A1S Helps Prevent Square Tube Wrinkling
The DW130CNC-2A1S is a heavy-duty CNC mandrel pipe bending machine built for large-diameter and thick-walled tube, with single-layer (1-stack) tooling, servo-controlled positioning, and a feeding length of up to 4500mm. Within its capacity range — comparable to round tube up to 130mm OD / 8mm WT — the machine is engineered for exactly this type of demanding application: precision bending where wall consistency and repeatability matter, including square, rectangular, and round profiles such as 90x90x3mm tube.
✅ Servo-Controlled Mandrel Positioning The mandrel position is servo-controlled and synchronized with the bend cycle, keeping internal support consistent through the full bend — critical for preventing wall collapse on profiles like 90x90x3mm square tube.
✅ Robust Structural Design for Thick-Walled, Heavy-Duty Tube The machine bed is built from welded steel plate, shot-peened and high-temperature tempered to resist deformation — providing the rigidity needed to maintain consistent clamping and bending accuracy under heavy loads.
✅ Stable, Repeatable Clamping Pressure Clamping force is set and repeated precisely for every cycle, eliminating the material slippage that leads to uneven wall thickness and wrinkling.
✅ High-Precision Servo Motors and Drives (Yaskawa/Mitsubishi) Japanese servo motors and drives deliver precise, repeatable control over bend speed and positioning, allowing square tube to deform evenly through each cycle rather than buckling under a rushed or inconsistent bend.
How to Prevent Square Tube Wrinkling: Practical Solutions
✅ Use a Properly Sized Mandrel Match the mandrel diameter and ball configuration precisely to the tube's internal dimensions and wall thickness. For square/rectangular tubes, a form-fitted mandrel designed for that specific profile is critical.
✅ Select the Correct Bend Radius Whenever possible, avoid bending at the absolute minimum radius for a given wall thickness. Adding even a slightly larger radius can significantly reduce wrinkling risk.
✅ Inspect and Maintain Tooling Regularly Worn dies are a leading cause of inconsistent bending results. Regular tooling inspection and replacement schedules help maintain consistent quality.
✅ Optimize Bending Speed Slower, more controlled bending speeds — especially on thin-walled or tight-radius bends — allow the material to deform more evenly.
✅ Increase Clamping Pressure Where Needed Ensure clamp dies are applying sufficient, even pressure to prevent material slippage during the bend cycle.
✅ Use a CNC Machine with Servo-Controlled Mandrel and Clamping For applications with tight tolerances or heavy-duty tube, a CNC pipe bender with programmable, repeatable mandrel and clamp control — like the DW130CNC-2A1S — removes much of the variability that causes wrinkling on manual or semi-automatic equipment.
Frequently Asked Questions
Q: Why does my square tube wrinkle but round tube doesn't, using the same machine? A: Square and rectangular tubes have flat walls that buckle more visibly under compression than round tubes, which distribute compressive stress more evenly around their circumference. This makes proper mandrel support even more critical for square tube bending.
Q: Can wrinkling be fixed after the tube is bent? A: In most cases, no — wrinkling is a structural deformation of the tube wall and cannot be reliably corrected after bending. Prevention through proper tooling, mandrel selection, and process settings is the only reliable solution.
Q: What's the minimum bend radius to avoid wrinkling on a 90x90x3mm square tube? A: This depends on the specific application, but as a general guideline, a bend radius of at least 2–3 times the tube's width significantly reduces wrinkling risk for medium wall thickness square tube. For critical applications, consult your machine manufacturer for tube-specific recommendations.
Q: Does the type of bending machine affect wrinkling risk? A: Yes. CNC mandrel bending machines with precise clamping and mandrel control — such as the DW130CNC-2A1S — significantly reduce wrinkling risk compared to manual or non-mandrel bending methods, especially for square tube bending where wall support is critical.
Q: What tube capacity does the DW130CNC-2A1S handle? A: The DW130CNC-2A1S is rated for round tube up to 130mm OD / 8mm wall thickness, with a center line bending radius up to R500mm and feeding length up to 4500mm. For square, rectangular, and oval profiles — including 90x90x3mm square tube — the machine uses dedicated tooling and mandrels matched to the profile shape.
Final Thoughts
Square tube wrinkling during bending is almost always preventable with the right combination of tooling, mandrel support, and process parameters. If you're experiencing consistent wrinkling issues on profiles like 90x90x3mm square tube, it's worth reviewing mandrel sizing, bend radius selection, and clamping pressure as a starting point — and evaluating whether your current equipment can maintain consistent control across every bend cycle.
Nanjing BLMA Machinery has specialized in CNC pipe and tube bending equipment since 1987, serving automotive, furniture, HVAC, medical, and structural steel manufacturers worldwide. If you're dealing with a wrinkling issue on your production line, reach out to our technical team — we're happy to review your process and recommend the right mandrel, tooling, or machine configuration, including the DW130CNC-2A1S, for your application.
