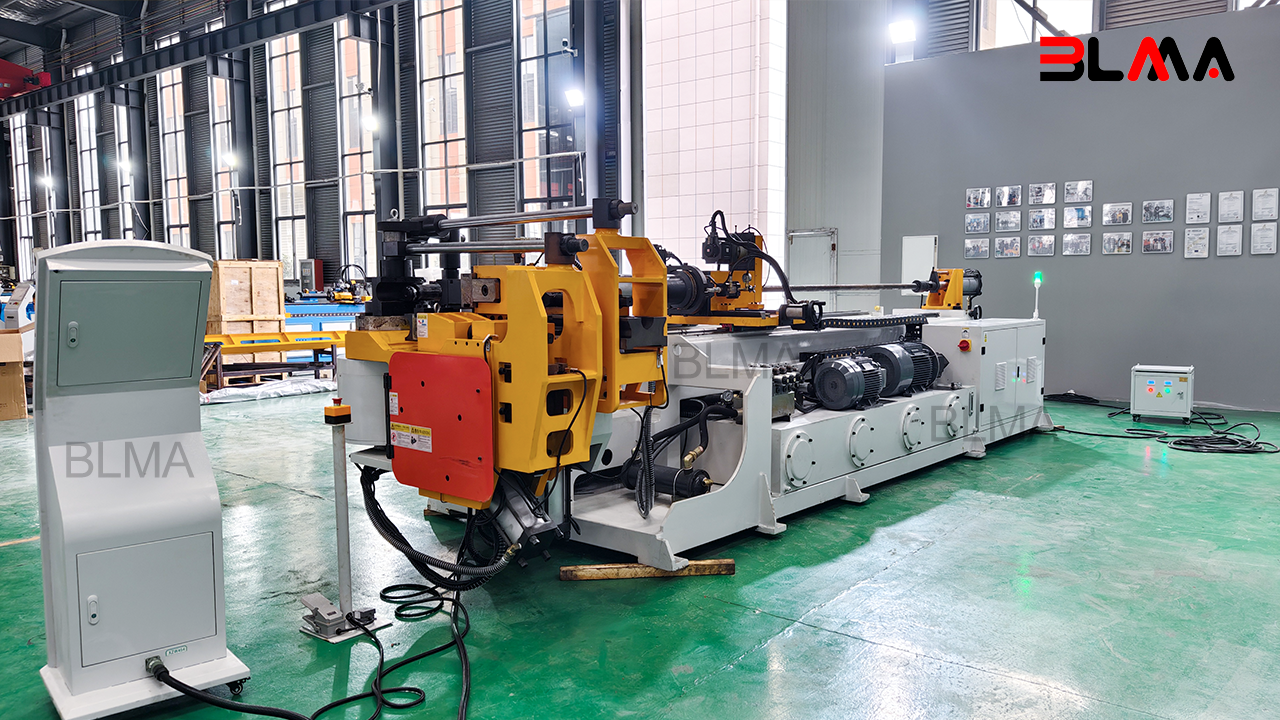

How Does a Hydraulic Tube Bending Machine Work?

Hydraulic tube bending machines are widely used in industrial manufacturing because they combine high bending force, stable performance, and excellent repeatability. Whether producing automotive exhaust systems, furniture frames, construction equipment, or industrial piping, understanding how a hydraulic tube bending machine works helps manufacturers choose the right equipment and improve production efficiency.

Unlike manual tube benders, hydraulic machines use hydraulic pressure to generate the force required to bend metal tubes accurately while minimizing deformation.

The Basic Working Principle

The core principle is simple.

A hydraulic pump generates oil pressure, which drives one or more hydraulic cylinders. These cylinders apply controlled force to the bending mechanism, allowing the tube to be formed around the bend die.

Throughout the bending cycle, the machine synchronizes several movements, including feeding, clamping, rotating, and bending, to produce the required tube geometry.

Modern CNC hydraulic tube bending machines perform these operations automatically with high precision.

Main Components of a Hydraulic Tube Bending Machine

A hydraulic tube bender consists of several key systems working together.

Hydraulic Power Unit

The hydraulic power unit supplies pressurized hydraulic oil to the machine. Stable oil pressure ensures smooth and consistent bending performance.

Bend Die

The bend die determines the bend radius (CLR) and forms the outside shape of the bend. Different tube diameters require different bend dies.

Clamp Die

The clamp die securely holds the tube against the bend die throughout the bending process, preventing slippage and ensuring dimensional accuracy.

Pressure Die

The pressure die supports the tube as it moves around the bend die. Proper pressure adjustment helps reduce flattening and surface marks.

Mandrel

For tight-radius or thin-wall tubes, a mandrel is inserted inside the tube to support the internal diameter and prevent wrinkles, collapse, or excessive deformation.

Servo Feeding System

Servo motors accurately feed the tube to the programmed position before each bend. Precise feed length directly affects part accuracy.

Rotation System

Between bends, the machine rotates the tube to the programmed angle, allowing complex three-dimensional tube shapes to be produced automatically.

Step-by-Step Tube Bending Process

A hydraulic tube bending machine typically follows these steps.

Step 1 – Tube Loading

The operator loads the tube into the machine and positions it against the tooling.

Step 2 – Clamping

The clamp die securely locks the tube while the pressure die provides side support.

Step 3 – Feeding

Servo-controlled feeding moves the tube to the programmed position according to the CNC program.

Step 4 – Rotation

If multiple bends are required, the tube rotates to the correct angle before bending.

Step 5 – Bending

The hydraulic cylinder drives the bend arm, rotating the tube around the bend die until the programmed bend angle is reached.

Step 6 – Repeat Cycle

The machine repeats feeding, rotation, and bending until all programmed bends are completed.

Step 7 – Finished Part

After the final bend, the finished tube is unloaded and inspected before moving to the next production process.

CNC Control Improves Precision

Modern hydraulic tube bending machines are equipped with CNC control systems that automatically calculate and execute:

• Feed Length (Y)

• Rotation Angle (B)

• Bend Angle (C)

By programming the YBC values, manufacturers can produce highly repeatable parts while reducing operator error and improving production efficiency.

Advantages of Hydraulic Tube Bending Technology

Hydraulic tube bending remains one of the most reliable manufacturing solutions because it offers:

• High bending force

• Excellent repeatability

• Stable operation

• Suitable for large tube diameters

• Lower investment cost than all-electric machines

• Proven reliability for continuous industrial production

For many factories, hydraulic technology provides the ideal balance between performance and operating cost.

Typical Applications

Hydraulic tube bending machines are commonly used for manufacturing:

• Automotive exhaust systems

• Vehicle chassis

• Furniture frames

• Agricultural machinery

• Construction equipment

• Shipbuilding

• Oil & Gas piping

• Heat exchanger tubing

• Fitness equipment

• Industrial pipelines

Why Choose BLMA Hydraulic Tube Bending Machines?

BLMA hydraulic tube bending machines combine advanced hydraulic technology with precision CNC control to provide stable and efficient production.

Our machines feature:

• Multi-axis CNC control

• Servo feeding and rotation

• High-rigidity machine structure

• Custom tooling solutions

• Mandrel and boost bending technology

• Global technical support

• Reliable after-sales service

Whether you manufacture simple tubes or highly complex multi-bend components, BLMA offers tube bending solutions designed for long-term productivity.

Conclusion

A hydraulic tube bending machine works by combining hydraulic power, precision tooling, and intelligent CNC control to produce accurate, repeatable tube bends. Understanding its working principle helps manufacturers choose the right equipment, optimize production, and improve product quality.
