How to Bend Thick-Wall Tubes Without Deformation

Introduction

Thick-wall tubes are widely used in industries such as construction machinery, oil & gas, shipbuilding, commercial vehicles, and heavy equipment manufacturing. Although thicker tube walls generally reduce the risk of wrinkling compared with thin-wall tubes, they require significantly higher bending force and machine rigidity.

Without the proper equipment and bending process, manufacturers may experience tube flattening, inaccurate bend angles, excessive springback, surface marks, or dimensional inconsistency. Producing high-quality thick-wall bends requires more than simply increasing machine power—it requires the right combination of machine design, tooling, and CNC control.

This guide explains the key factors that help achieve accurate thick-wall tube bending with minimal deformation.

Why Thick-Wall Tubes Are More Difficult to Bend

As wall thickness increases, the material offers greater resistance during bending. Higher bending loads place more stress on the machine frame, tooling, and drive system.

If the equipment lacks sufficient rigidity or clamping force, bending quality can quickly deteriorate, especially during continuous production.

Choose a High-Rigidity Tube Bending Machine

Machine rigidity is one of the most important factors in thick-wall tube bending.

A reinforced machine frame minimizes structural deflection under heavy loads, allowing the bend angle and centerline radius (CLR) to remain consistent throughout production.

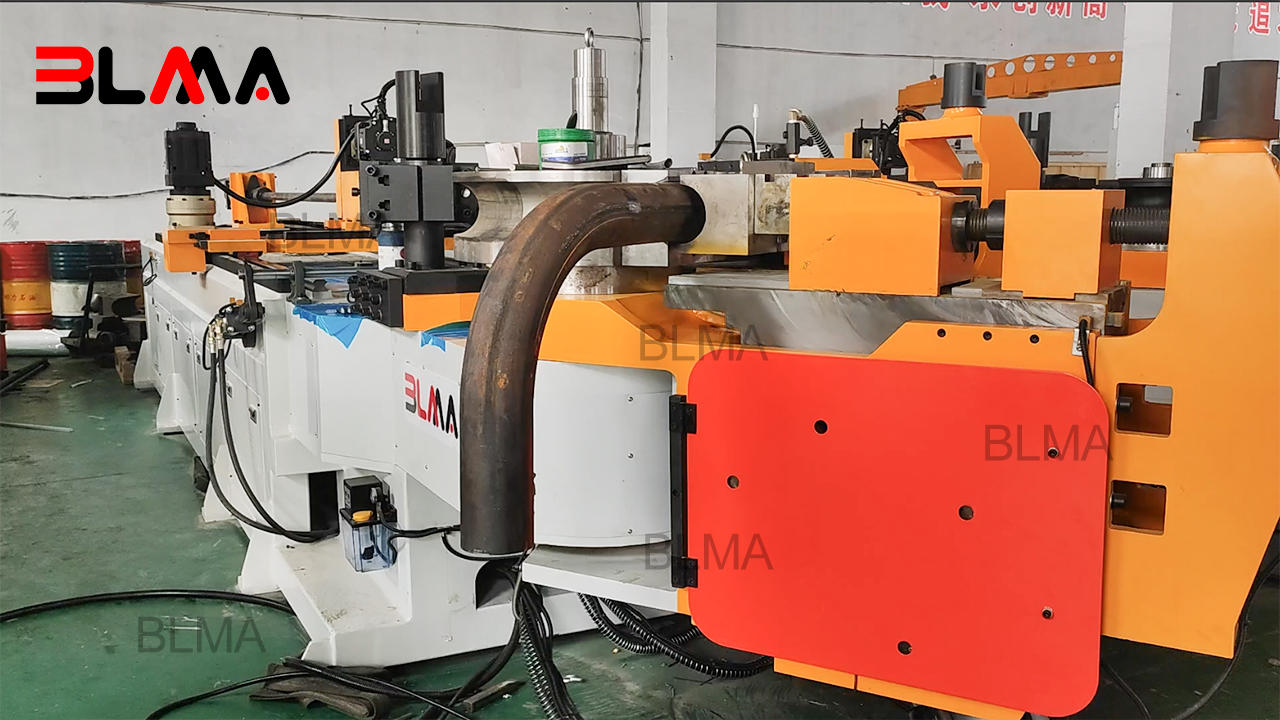

Heavy Duty CNC Tube Bending Machines are specifically designed for these demanding applications.

Use the Correct Tooling

Tooling directly affects bending quality.

High-quality bend dies, clamp dies, pressure dies, mandrels, and wiper dies should be precision machined and heat treated to withstand higher bending forces while maintaining accurate tube positioning.

Customized tooling is often recommended for large-diameter or high-strength materials.

Select the Proper Bending Parameters

Optimizing the bending process is just as important as selecting the right machine.

Factors that should be properly adjusted include:

• Bend speed

• Clamping pressure

• Pressure die assistance

• Feed length

• Rotation angle

• Springback compensation

Modern CNC controllers automatically manage these parameters to improve repeatability and reduce operator error.

Control Springback

Thick-wall and high-strength materials usually produce greater springback after bending.

Advanced CNC systems compensate for this by automatically adjusting the programmed bend angle, helping achieve the desired final geometry without repeated trial bending.

Match the Machine to the Material

Different materials require different bending strategies.

For example:

• Carbon steel requires high bending force.

• Stainless steel produces greater springback.

• High-strength alloys place additional stress on tooling and machine components.

Selecting the proper machine configuration and tooling for each material improves both bending quality and tool life.

Benefits of CNC Heavy Duty Tube Bending

Using a Heavy Duty CNC Tube Bending Machine provides several advantages when processing thick-wall tubes:

• Higher bending accuracy

• Reduced tube deformation

• Better dimensional consistency

• Stable production quality

• Longer tooling life

• Lower material waste

• Improved production efficiency

These benefits are especially valuable for manufacturers producing safety-critical or high-value components.

Frequently Asked Questions

Do thick-wall tubes require a mandrel?

Not always. Whether a mandrel is required depends on the tube diameter, wall thickness, bend radius (CLR), and quality requirements.

Does thicker material eliminate springback?

No. Thick-wall tubes can still experience significant springback, especially when made from stainless steel or high-strength alloys.

Can standard tube benders process thick-wall tubes?

Some can handle moderate wall thicknesses, but demanding applications generally require a Heavy Duty Tube Bending Machine.

What causes deformation during thick-wall tube bending?

Common causes include insufficient machine rigidity, improper tooling, incorrect bending parameters, inadequate clamping force, and poor process control.

Can CNC improve thick-wall tube bending quality?

Yes. CNC systems provide accurate control of the bending sequence and automatically compensate for springback, resulting in higher precision and repeatability.

Conclusion

Successfully bending thick-wall tubes without deformation requires more than a powerful machine. Machine rigidity, precision tooling, optimized bending parameters, and advanced CNC control all play essential roles in achieving high-quality results.

BLMA Heavy Duty Tube Bending Machines are engineered to handle demanding thick-wall tube applications with outstanding accuracy, stability, and reliability. Whether processing carbon steel, stainless steel, or other high-strength materials, BLMA provides customized tube bending solutions that help manufacturers improve product quality, reduce waste, and maximize production efficiency.
