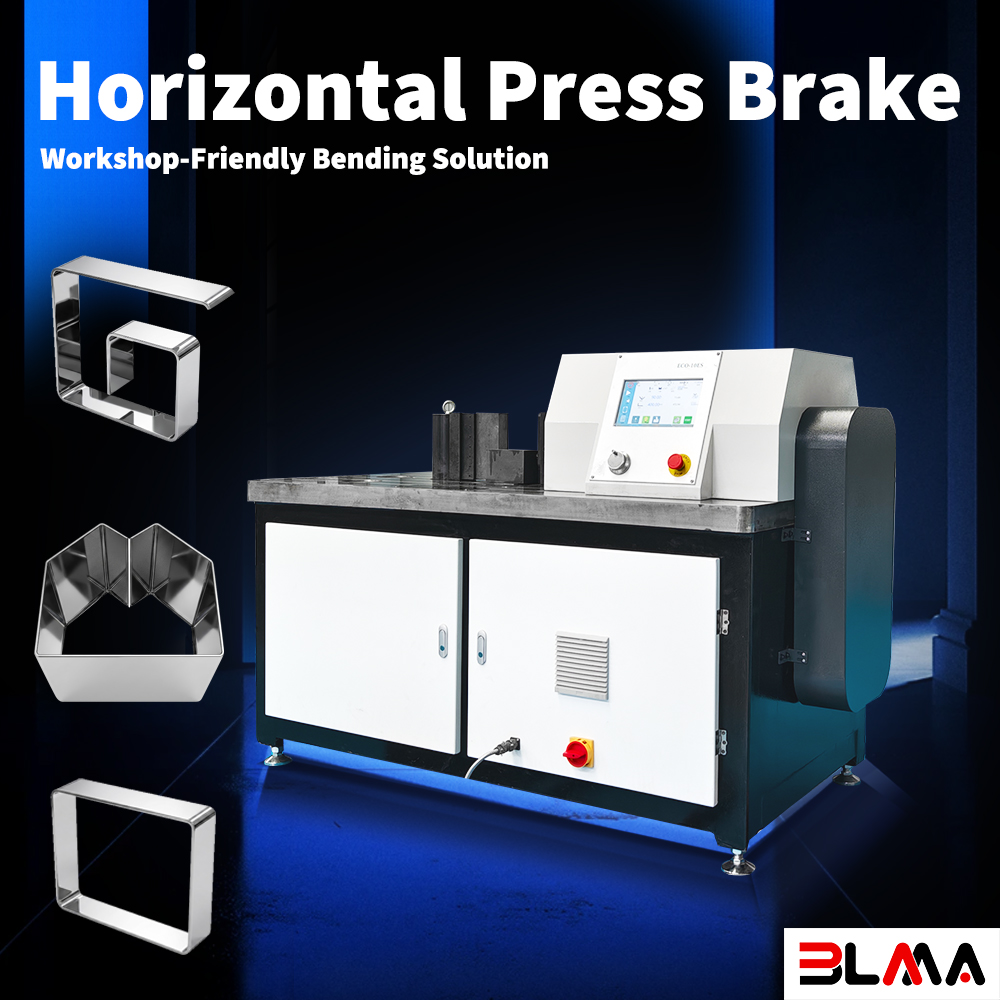

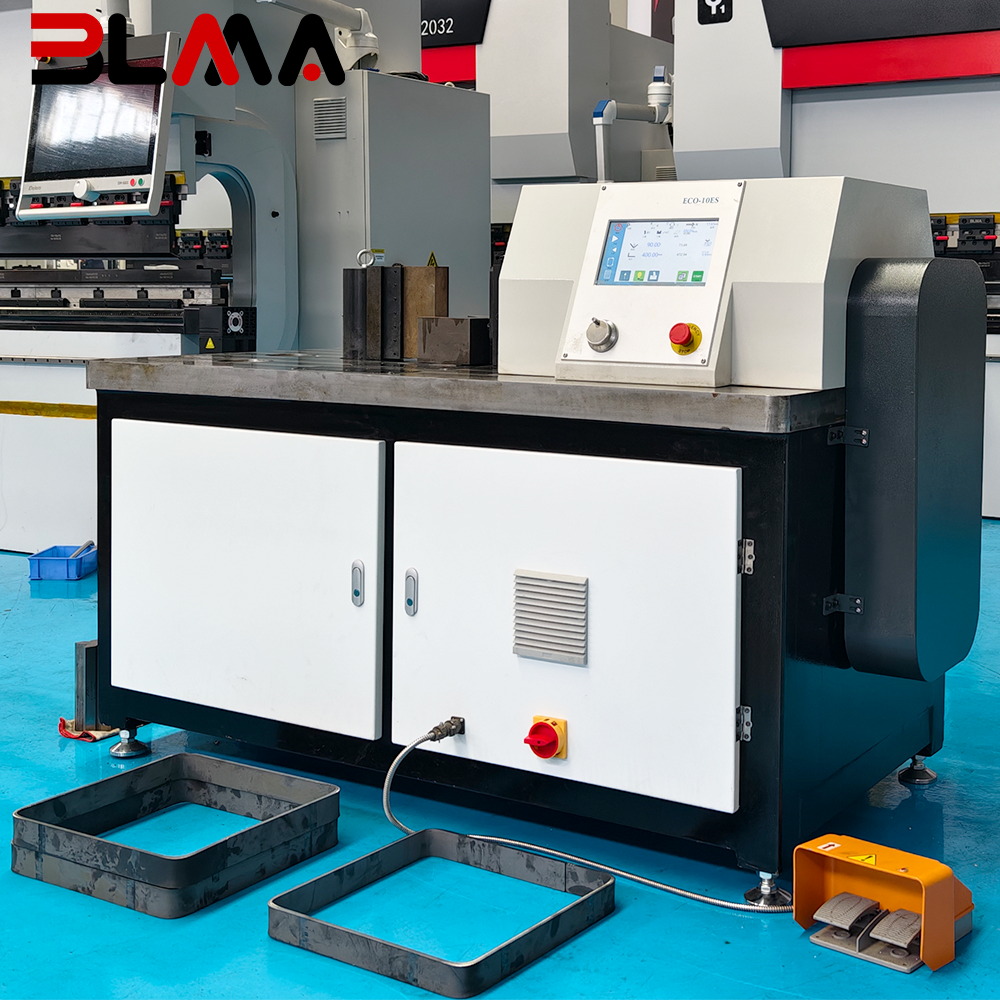

HPP10040 Hydraulic Horizontal Press Brake for Heavy Duty Metal Forming

Designed for professional metal fabrication workshops and industrial manufacturers, the HPP10040 Hydraulic Horizontal Press Brake combines power, flexibility and efficiency in a compact footprint. Its hydraulic drive system ensures smooth operation and consistent forming quality, while the modular tooling design allows a wide range of bending, punching, straightening and shaping applications.

The HPP10040 is widely used in steel structure fabrication, construction machinery, agricultural equipment, electrical cabinet production, transportation equipment manufacturing and general metalworking industries. Whether producing brackets, frames, supports, channels or customized metal components, this hydraulic horizontal bending machine delivers outstanding productivity and precision.

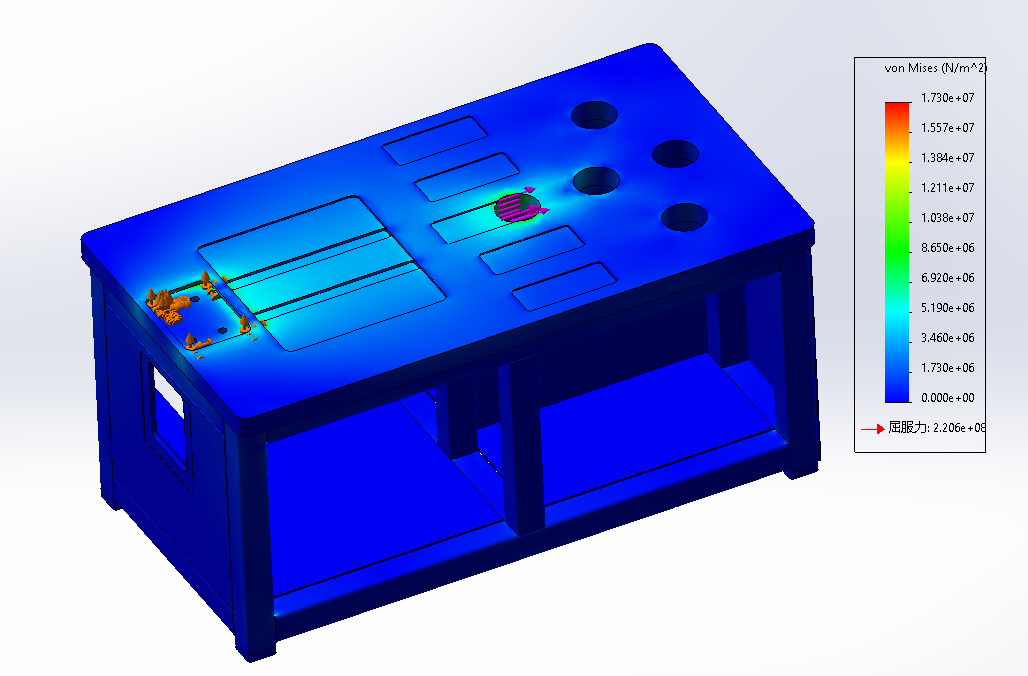

Finite Element Analysis (FEA)

BLMA uses Finite Element Analysis (FEA) technology to optimize the machine frame before production. By simulating actual working conditions, engineers can analyze stress and deformation, ensuring maximum rigidity and stability.

This engineering process helps reduce frame deformation, improve bending accuracy, and extend machine service life. The result is a stronger, more reliable machine capable of maintaining high precision during long-term production.

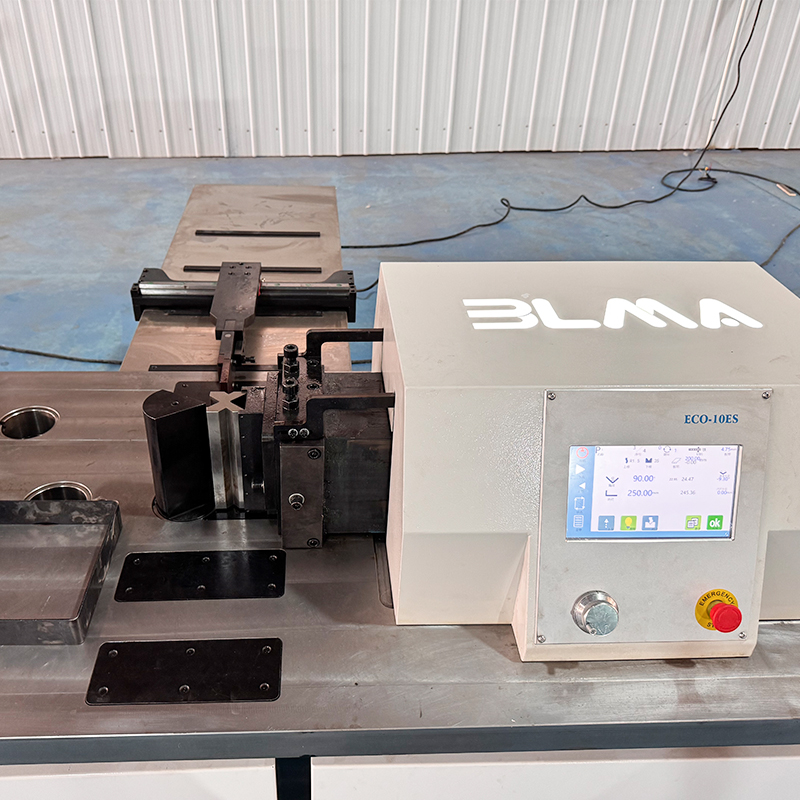

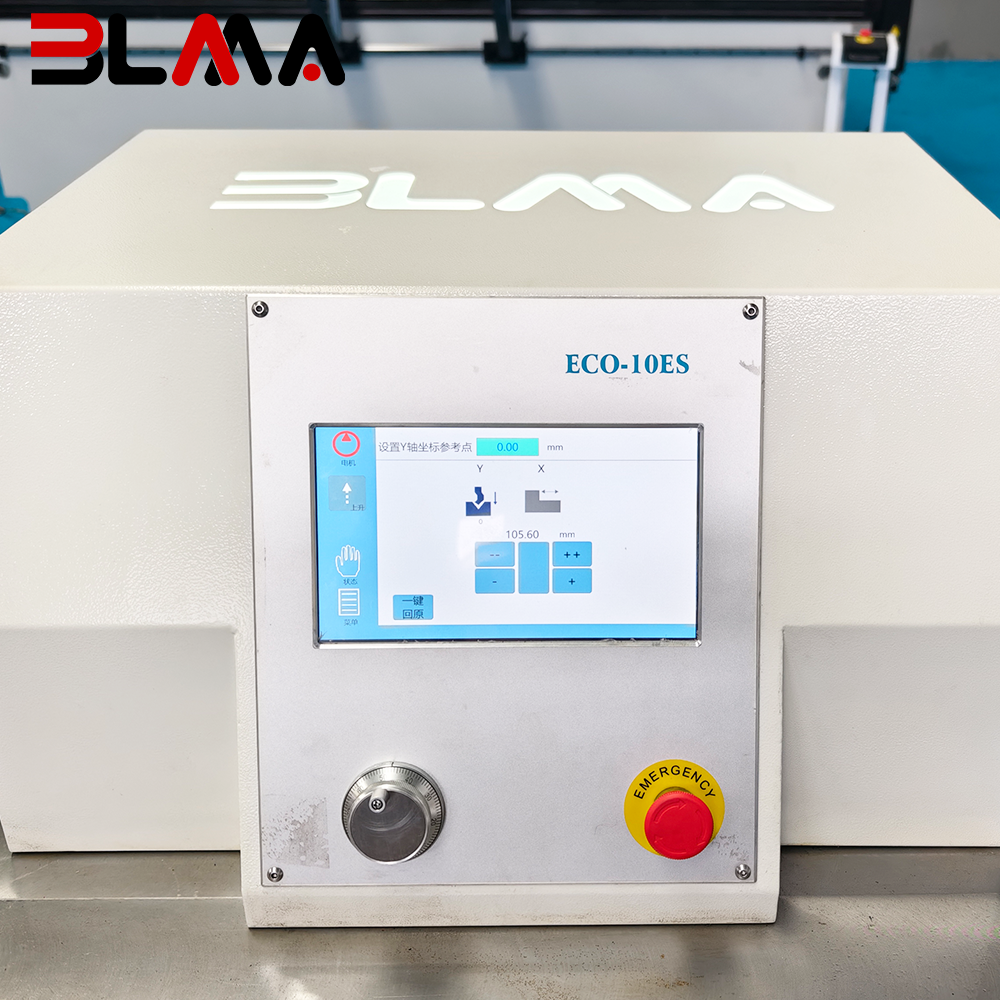

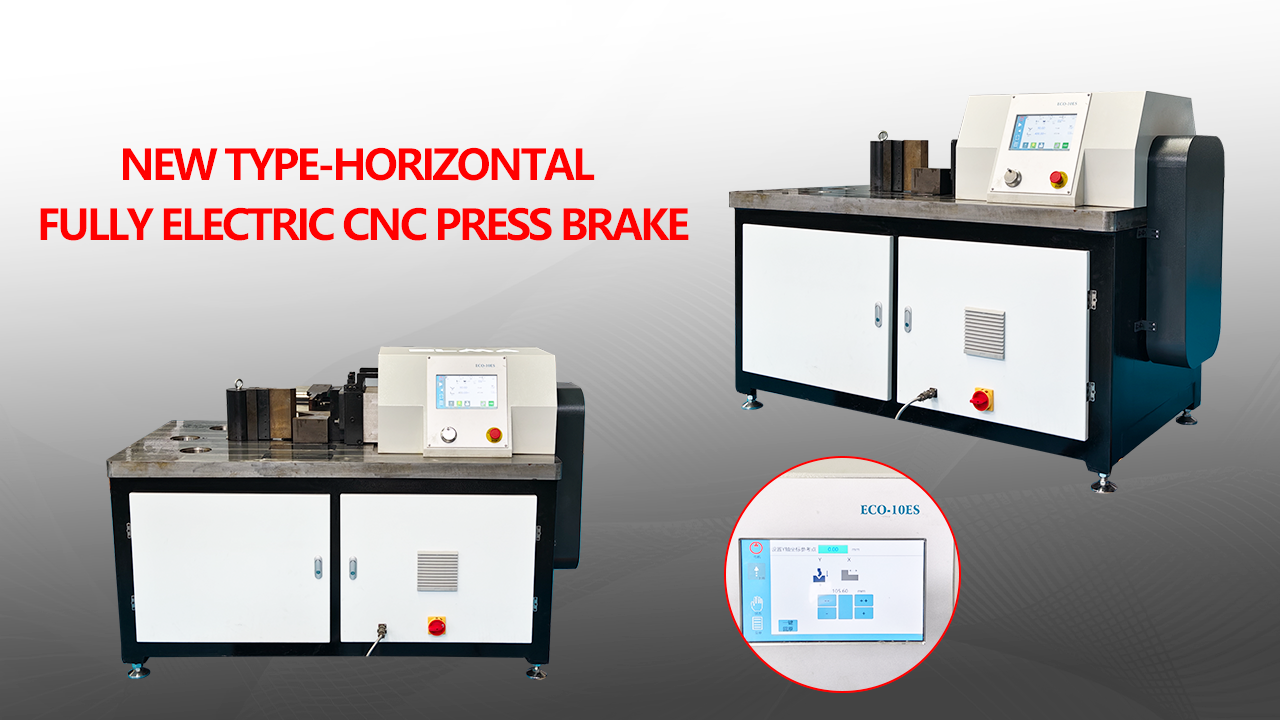

ECO-10ES CNC Control System

The ECO-10ES CNC Control System provides easy operation, precise control, and stable performance for BLMA Horizontal Press Brakes. The touchscreen interface allows operators to quickly set bending angles, stroke positions, and production parameters.

Combined with advanced servo technology, the system ensures accurate positioning, consistent bending quality, and improved production efficiency.

Key Benefits

✔ User-Friendly Touchscreen
✔ High Precision Control
✔ Fast and Stable Operation
✔ Easy Programming
✔ Improved Production Efficiency

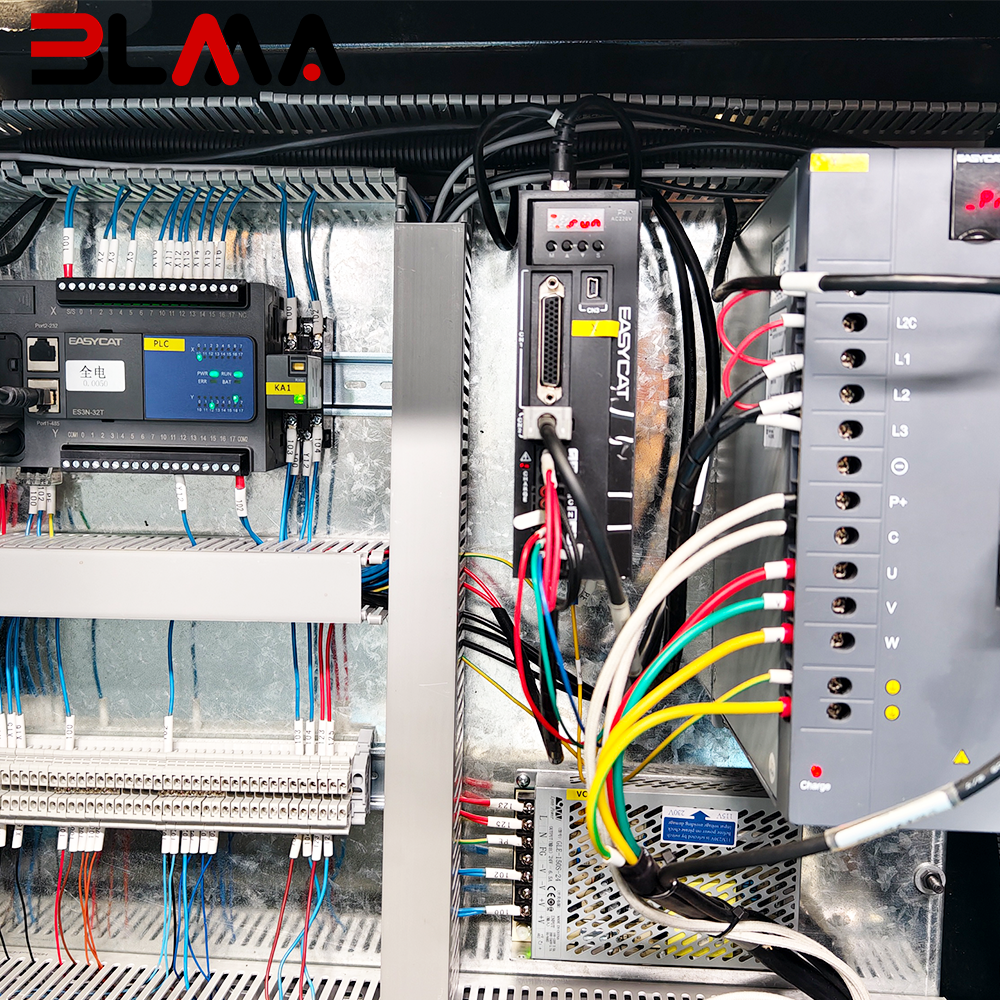

Premium Electrical Components

The BLMA Horizontal Press Brake Electrical System is built with high-quality electrical components, servo drives, and industrial control modules to ensure stable operation and reliable performance.

The organized electrical cabinet design improves signal transmission, reduces downtime, and simplifies maintenance. Combined with advanced servo technology, it provides precise control, fast response, and consistent bending accuracy.

Key Benefits

✔ Industrial-Grade Electrical Components
✔ Stable and Reliable Performance
✔ High-Precision Servo Drive Control
✔ Easy Maintenance and Troubleshooting
✔ Long Service Life
✔ Improved Bending Accuracy

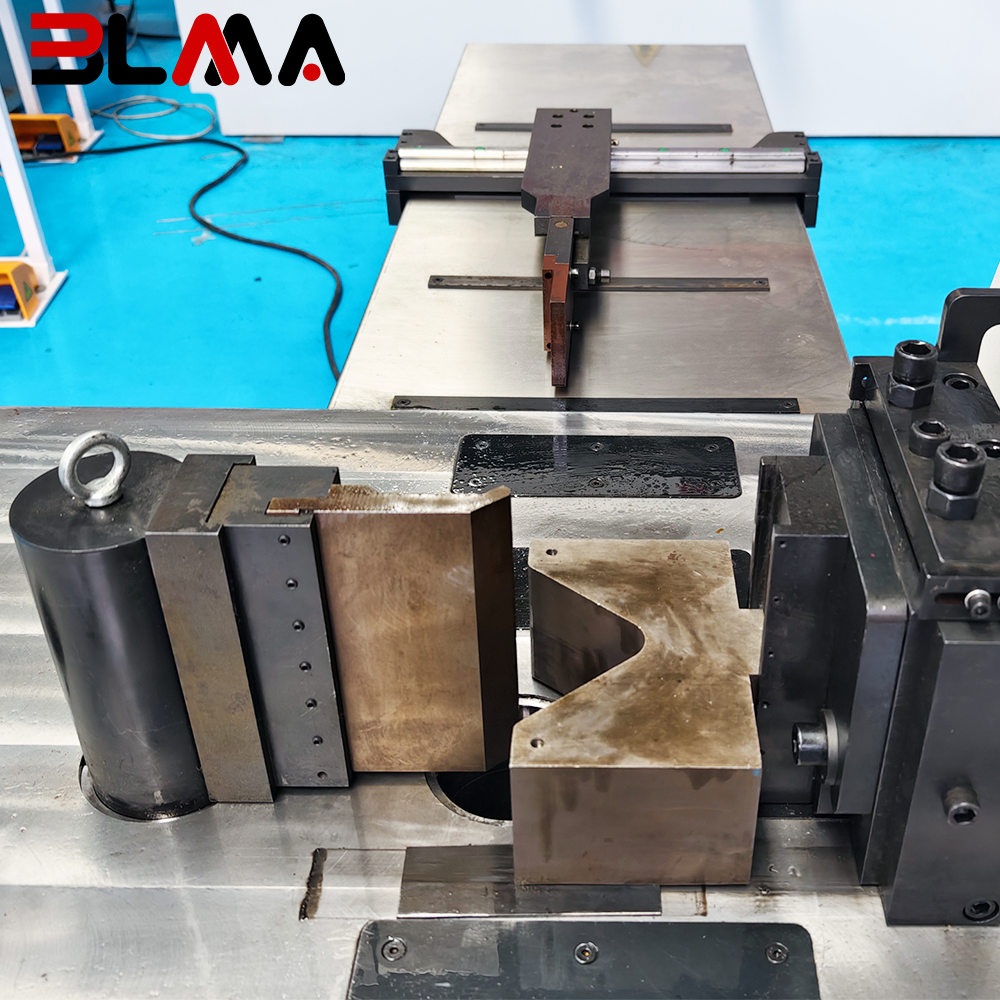

Precision Tooling System

The Tooling System is the key component that determines bending accuracy and forming quality. BLMA uses high-strength, precision-machined tooling to ensure stable performance and long service life.

Different tooling solutions can be customized for profile bending, flat bar forming, tube shaping, bracket manufacturing, and special metal forming applications, providing maximum flexibility for different production needs.

Key Benefits

✔ High-Precision Forming
✔ Durable Tool Steel Construction
✔ Custom Tooling Available
✔ Fast Tool Change Design
✔ Consistent Bending Results
✔ Suitable for Various Metal Forming Applications

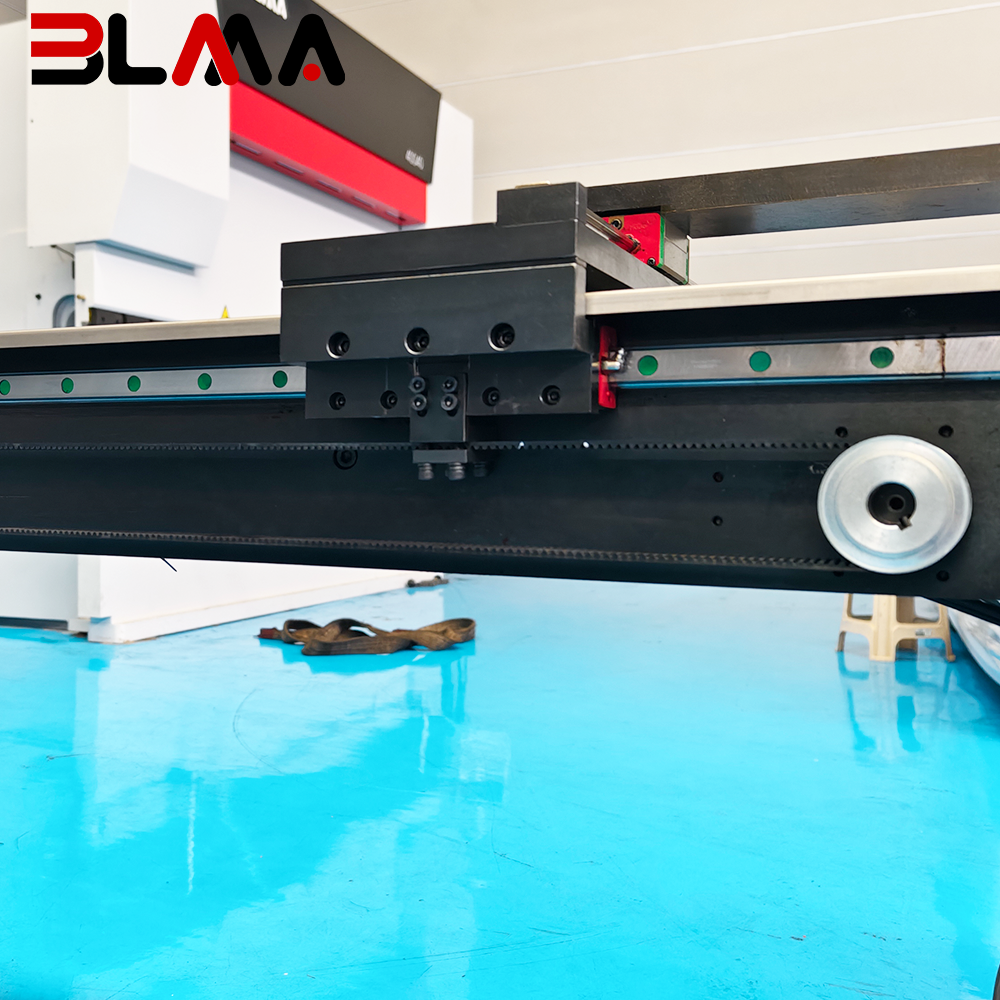

High-Precision Linear Guide System

The Linear Guide System ensures smooth movement, accurate positioning, and stable operation of the BLMA Horizontal Press Brake. Equipped with precision guide rails and a servo-driven transmission system, it delivers high repeatability and consistent bending accuracy.

Designed for long-term industrial use, the guide system reduces friction, improves motion stability, and enhances overall machine performance.

Key Benefits

✔ High Positioning Accuracy
✔ Smooth and Stable Movement
✔ Reduced Wear and Maintenance
✔ Long Service Life
✔ Improved Bending Consistency
✔ Optimized for Servo Control Systems

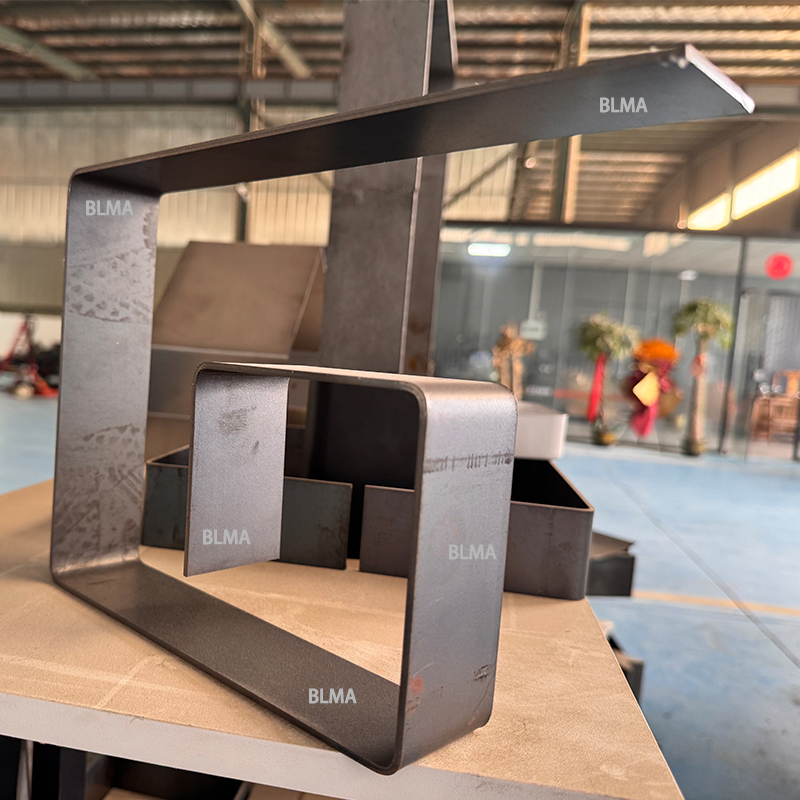

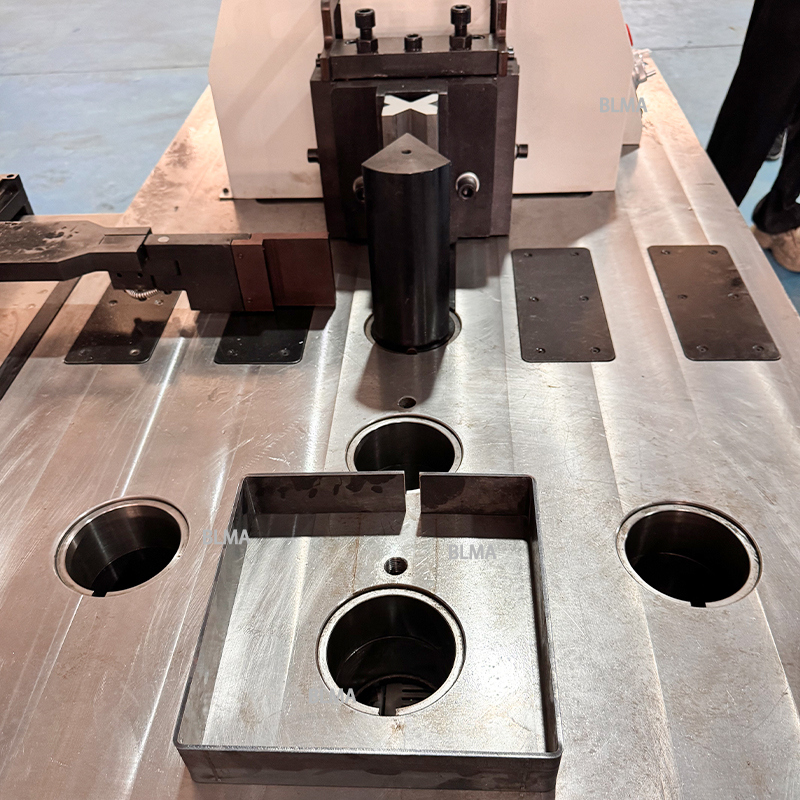

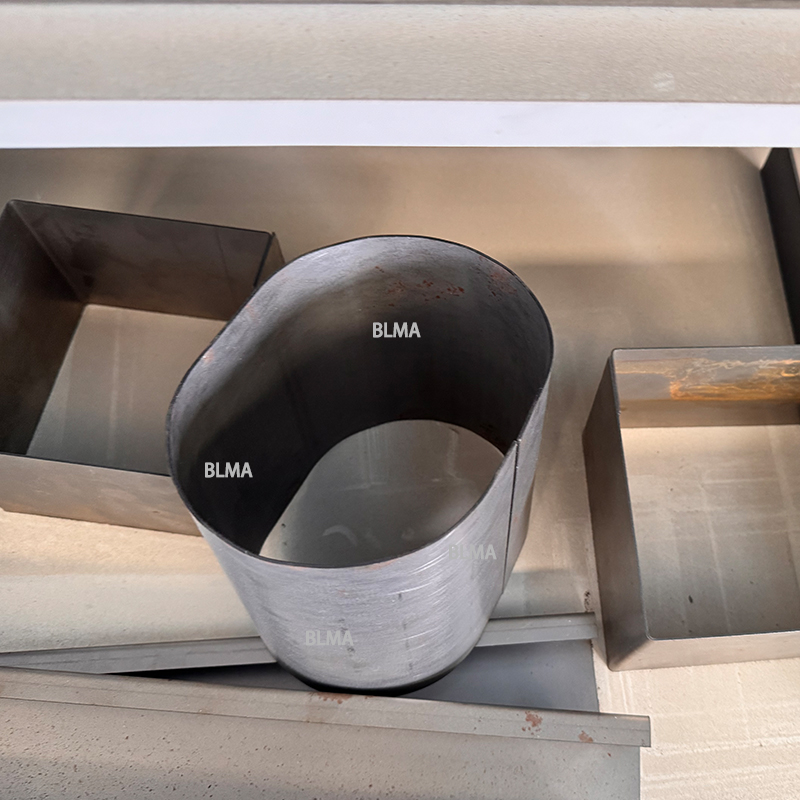

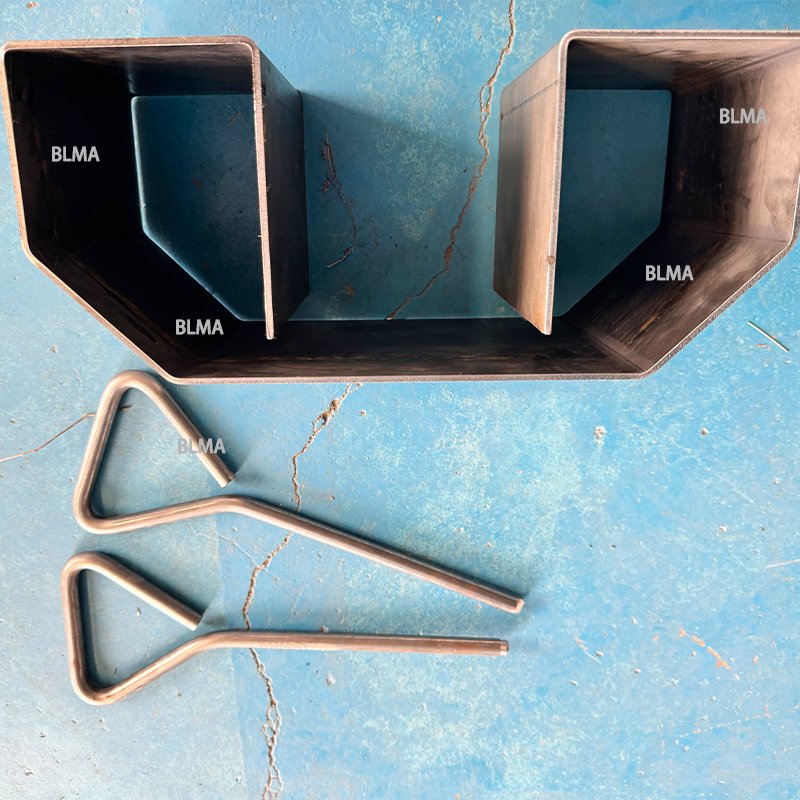

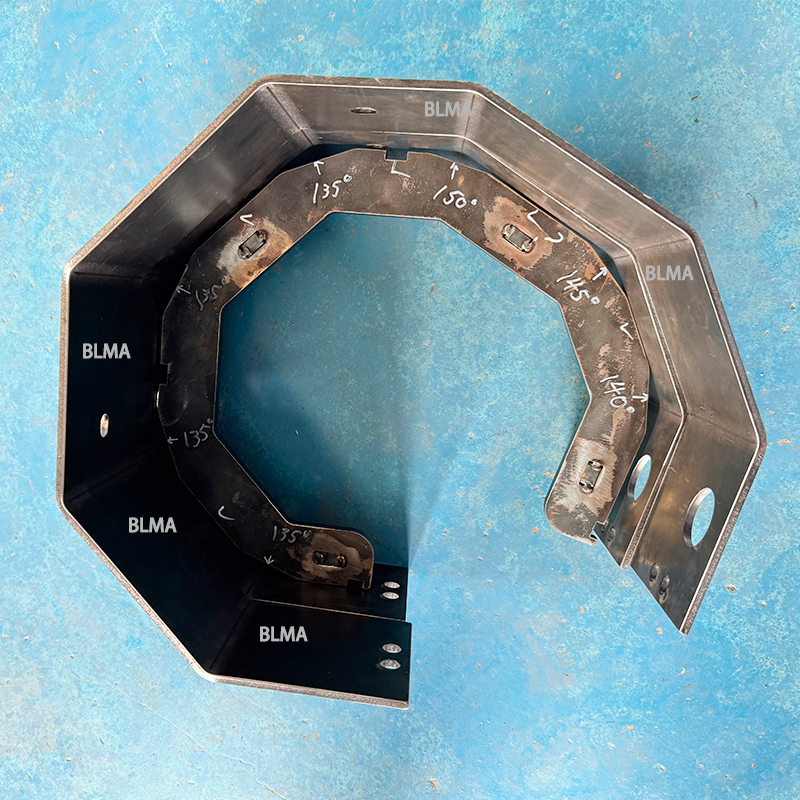

Typical Workpieces & Applications

The BLMA Horizontal Press Brake is a versatile metal forming machine capable of producing a wide range of workpieces through customized tooling. It is ideal for bending, forming, flattening, shaping, and profile processing applications.

The machine can process flat bars, square tubes, rectangular tubes, round tubes, profiles, brackets, frames, handles, hooks, box structures, and custom metal components. Its flexible tooling design makes it suitable for both simple and complex forming operations.

Widely used in industries such as metal furniture, automotive parts, construction hardware, electrical cabinets, shelving systems, agricultural equipment, fitness equipment, and industrial fabrication, the BLMA Horizontal Press Brake provides an efficient and cost-effective solution for custom metal forming.

Key Applications

✔ Handles & Hooks
✔ Furniture Frames & Components
✔ Metal Brackets & Supports
✔ Box & Container Forming
✔ Square & Rectangular Tube Forming
✔ Construction & Architectural Parts
✔ Shelving & Storage Systems
✔ Automotive & Industrial Components
✔ Custom Metal Fabrication
