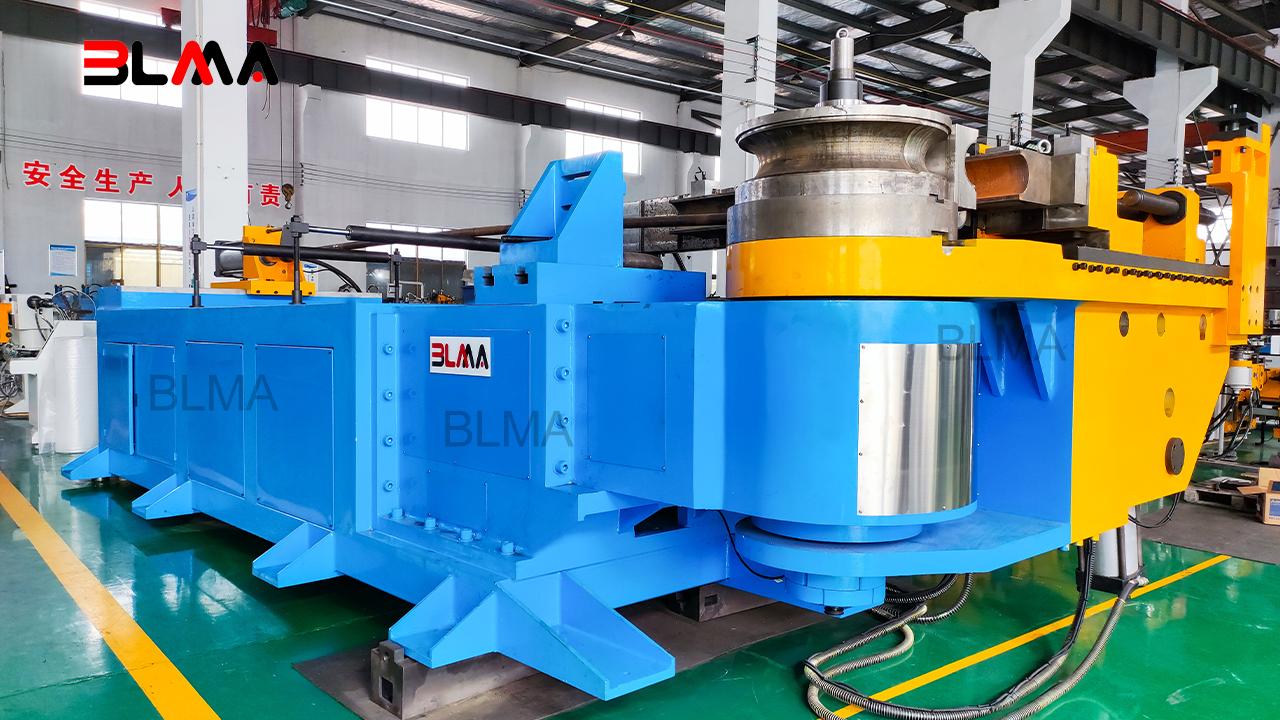

A Hydraulic Tube Bending Machine is an industrial tube forming machine that uses hydraulic power to generate strong and stable bending force for shaping metal tubes.
Compared with electric tube bending machines, hydraulic tube benders are especially suitable for applications requiring higher bending force, larger tube capacity and heavy-duty operation.
Hydraulic tube bending machines are widely used for processing:
During the bending process, the hydraulic system controls the bending force, clamping pressure and machine movement to ensure stable tube forming and consistent production quality.
With strong power, reliable performance and proven technology, hydraulic tube bending machines remain an ideal solution for industries such as automotive components, construction machinery, industrial equipment and metal fabrication.
How Does a Hydraulic Tube Bending Machine Work?
A hydraulic tube bending machine uses hydraulic power to control the bending process and provide stable forming force for different tube applications.
The main working process includes:
Tube Loading & Clamping The tube is positioned inside the bending tooling and securely clamped to ensure stable processing.
Hydraulic Bending Force The hydraulic system generates powerful bending force to form tubes with consistent angles and shapes.
Controlled Tube Forming The pressure die and tooling system support the tube during bending, helping reduce deformation and improve bending quality.
Finished Tube Output After bending, the finished tube is released for inspection or the next production process.
With a powerful hydraulic system and professional tooling design, BLMA hydraulic tube bending machines provide reliable solutions for manufacturers requiring stable and heavy-duty tube forming.
Main Components of Hydraulic Tube Bending Machine
A hydraulic tube bending machine consists of several key systems that work together to ensure stable bending performance, high reliability and consistent production quality.
Hydraulic Motor
The hydraulic motor is the power source of the hydraulic system, providing the energy required for the tube bending process.
A high-performance hydraulic motor ensures:
Stable hydraulic power output Strong bending force Reliable operation during continuous production Better performance for large diameter and thick wall tubes
BLMA hydraulic tube bending machines use a reliable hydraulic power system to provide consistent force and stable bending performance.
Hydraulic Valve System
The hydraulic valve system controls the direction, pressure and flow of hydraulic oil during machine operation.
A precise hydraulic valve system helps achieve:
Smooth machine movement Stable pressure control Accurate bending operation Improved production consistency
The hydraulic valve plays an important role in maintaining bending stability and repeatability during long-term operation.
Hydraulic Cylinder
The hydraulic cylinder converts hydraulic pressure into mechanical movement, driving the bending, clamping and other machine actions.
High-quality hydraulic cylinders provide:
Strong pushing force Stable movement Long service life Reliable performance under heavy-duty conditions
For large and thick tubes, a powerful hydraulic cylinder ensures sufficient bending force and stable tube forming.
Advantages of Hydraulic Tube Bending Machine
Hydraulic tube bending machines provide strong bending force, stable performance and reliable operation for demanding industrial applications.
High Bending Force
The hydraulic system delivers powerful force for processing large diameter and thick wall tubes with excellent forming capability.
Stable Performance
Stable hydraulic pressure helps maintain consistent bending angles, reduce tube deformation and improve production repeatability.
Heavy-Duty Capability
Designed for continuous industrial production, hydraulic tube bending machines offer durability and reliable performance in challenging working environments.
BLMA hydraulic tube bending machines are a proven solution for manufacturers requiring powerful, stable and efficient tube forming.
Hydraulic Tube Bending Machine Applications
Hydraulic tube bending machines are widely used in industries that require strong forming capability and reliable tube processing performance.
Common applications include:
Automotive Components Used for manufacturing exhaust systems, chassis parts and structural tube components.
Construction Machinery Suitable for heavy-duty tube frames, hydraulic pipes and machine structures.
Industrial Equipment Ideal for producing tubes used in machinery, equipment frames and industrial systems.
Metal Fabrication Provides reliable tube bending solutions for customized tube structures and various fabrication projects.
BLMA hydraulic tube bending machines help manufacturers process different tube materials and sizes with stable quality and efficient production.

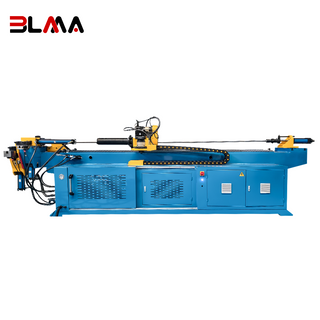

Hydraulic Tube Bending Machine Models
BLMA offers a range of hydraulic tube bending machines designed for different tube sizes, materials and industrial applications.
Our hydraulic tube benders provide reliable solutions for:
Small to large diameter tube bending Carbon steel and stainless steel tube processing Industrial and heavy-duty tube forming
Available models can be selected according to:
✅ Maximum tube diameter ✅ Tube wall thickness ✅ Required bending radius ✅ Production requirements
With flexible configurations and customized tooling options, BLMA hydraulic tube bending machines can meet various manufacturing needs.
DW130CNC-4A1S Hydraulic Tube Bending Machine video
Why Choose Hydraulic Tube Bending Machine?
For manufacturers working with large diameter tubes, thick wall materials and heavy-duty applications, a hydraulic tube bending machine provides the power and stability required for reliable production.
While electric tube bending machines offer excellent energy efficiency and clean operation, hydraulic tube benders remain an ideal choice when high bending force and strong forming capability are the primary requirements.
High Bending Force for Difficult Tube Applications
The biggest advantage of a hydraulic tube bending machine is its powerful hydraulic drive system.
Hydraulic power provides:
Higher bending torque for demanding tube sizes Strong clamping force to prevent tube movement Stable forming pressure during the bending process Reliable performance when processing thick wall tubes
This makes hydraulic tube benders suitable for materials that require greater forming force, including carbon steel, stainless steel and heavy structural tubes.
Designed for Heavy-Duty Continuous Production
Hydraulic tube bending machines are widely used in industries where machines must operate reliably for long production cycles.
With a robust mechanical structure and proven hydraulic technology, BLMA hydraulic tube benders provide:
Long service life Stable production performance Reduced risk of deformation during heavy bending Consistent bending quality in repeated production Better Solution for Large Diameter and Thick Wall Tubes
When tube diameter increases or wall thickness becomes greater, the required bending force also increases.
Hydraulic tube bending machines are especially suitable for:
Large diameter tubes Heavy structural components Industrial equipment frames Machinery pipelines Thick wall metal tubes
By combining hydraulic power with proper tooling design, BLMA helps manufacturers achieve accurate and stable tube forming even under demanding conditions.
Reliable Technology for Industrial Manufacturing
Hydraulic systems have been widely used in metal forming equipment for decades due to their durability and reliability.
For manufacturers who prioritize power, stability and production capability, hydraulic tube bending machines remain a practical and proven solution.
Not sure which tube bending machine is right for your application?
Simply send us your tube drawing, material specifications, tube dimensions, bend radius, and production requirements. BLMA engineers will provide a FREE machine recommendation, tooling proposal, and bending feasibility analysis tailored to your project.
✓ Free Engineering Consultation
✓ Machine Selection Recommendation
✓ Tooling & Mandrel Proposal
✓ Fast Response Within 24 Hours
Let BLMA help you find the most efficient and cost-effective tube bending solution for your business.
