Main Components of a Hydraulic Tube Bending Machine Explained

A hydraulic tube bending machine is more than a powerful bending device—it is a complete system in which hydraulic, mechanical, and control components work together to produce accurate and repeatable bends.

Understanding the main components helps manufacturers improve machine performance, reduce downtime, simplify maintenance, and select the right equipment for long-term production.

This guide explains the key parts of a hydraulic tube bending machine and how each component contributes to reliable tube bending.

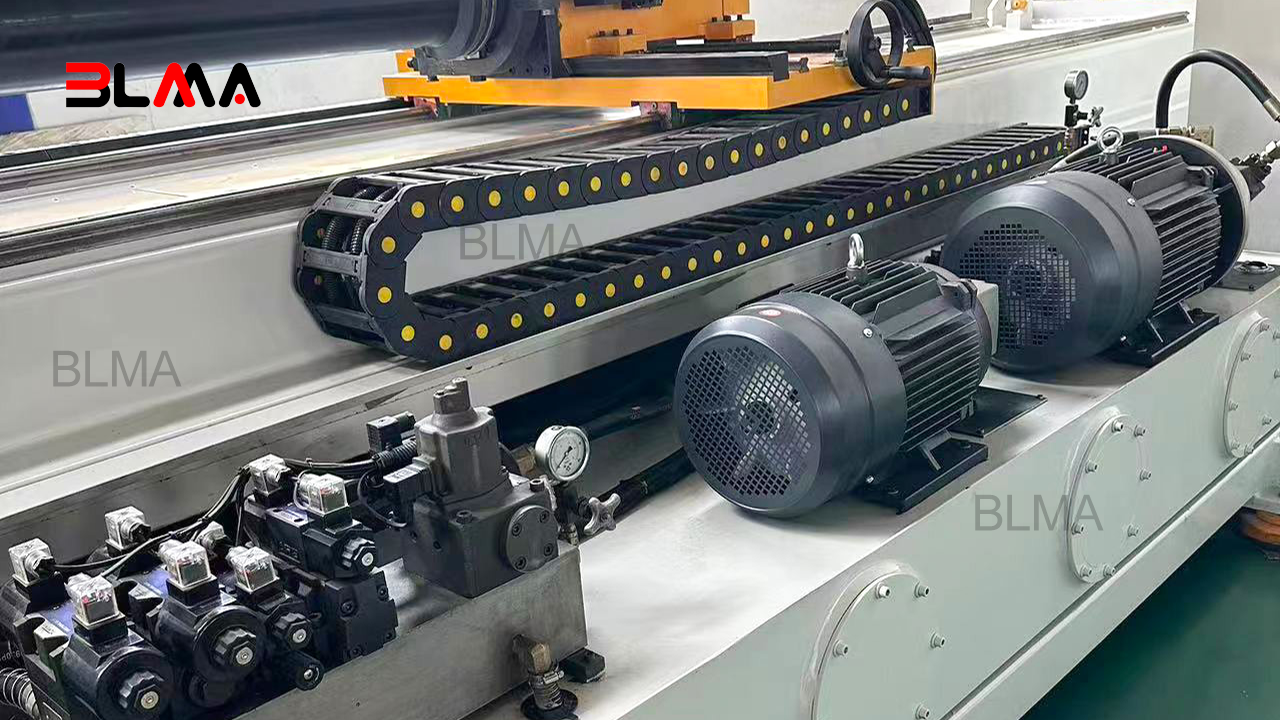

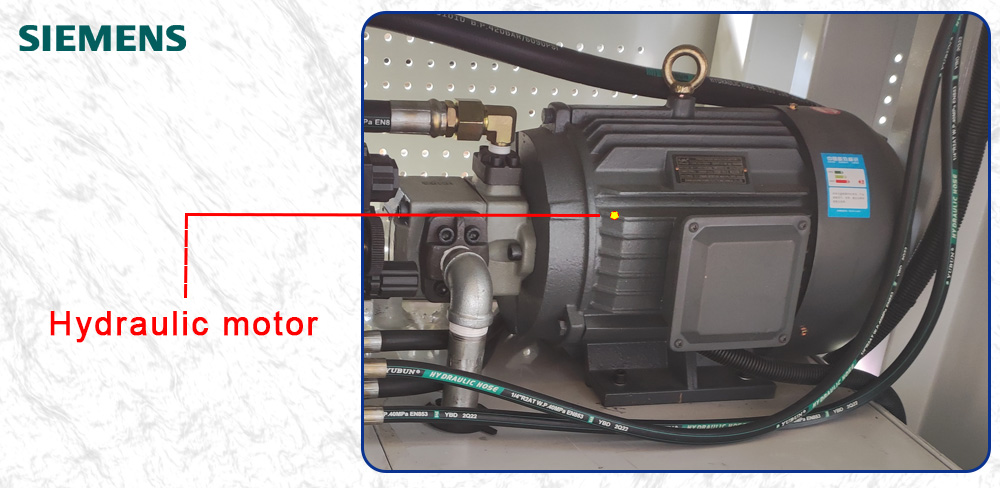

Hydraulic Power Unit

The hydraulic power unit is the heart of the machine. It generates the hydraulic pressure required to drive every bending movement.

A typical hydraulic power unit includes:

• Hydraulic pump

• Electric motor

• Oil tank

• Filters

• Pressure gauges

• Cooling system

Stable hydraulic pressure ensures smooth machine movement, consistent bending force, and reliable production throughout long operating hours.

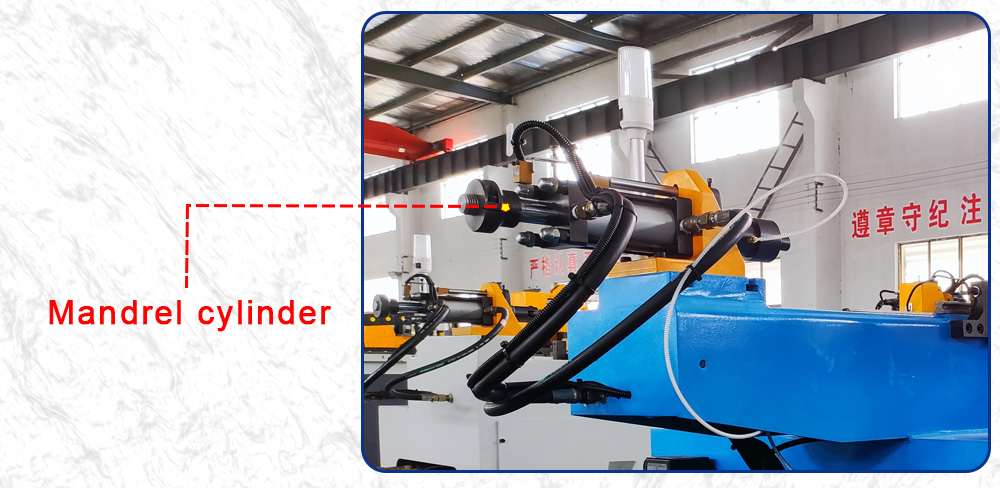

Hydraulic Cylinder

Hydraulic cylinders convert oil pressure into mechanical force.

Depending on the machine design, hydraulic cylinders may control:

• Bending motion

• Clamp movement

• Pressure die movement

• Boost function

• Auxiliary mechanisms

High-quality cylinders provide stable force output, precise positioning, and long service life while minimizing oil leakage and maintenance requirements.

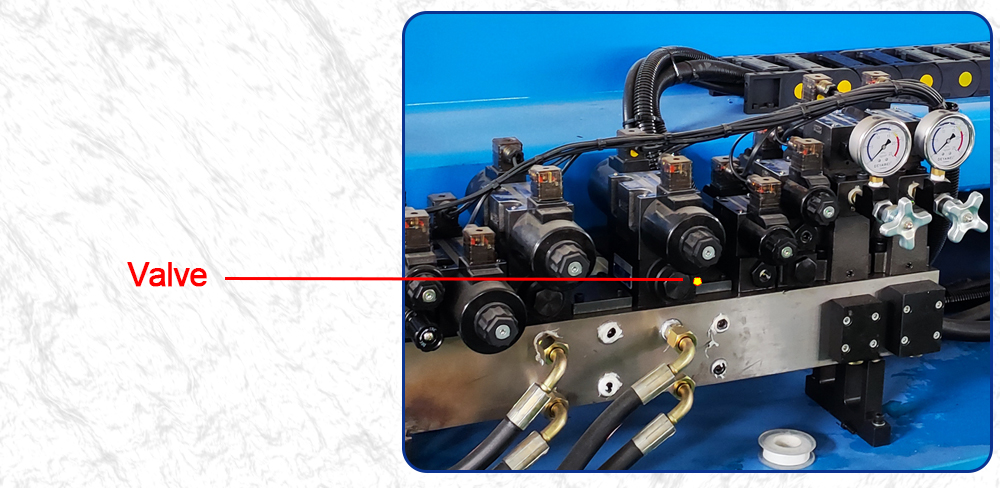

Hydraulic Valves

Hydraulic valves regulate the direction, flow rate, and pressure of hydraulic oil throughout the system.

Their main functions include:

• Controlling movement speed

• Maintaining system pressure

• Switching hydraulic circuits

• Protecting the system from overload

Proper valve performance is essential for achieving smooth, repeatable tube bending cycles.

Hydraulic Oil Tank

The oil tank stores hydraulic oil and helps maintain system stability.

In addition to supplying oil, the tank allows air bubbles to escape and helps dissipate heat generated during continuous operation.

Keeping the oil clean and at the correct level significantly extends the life of pumps, valves, and cylinders.

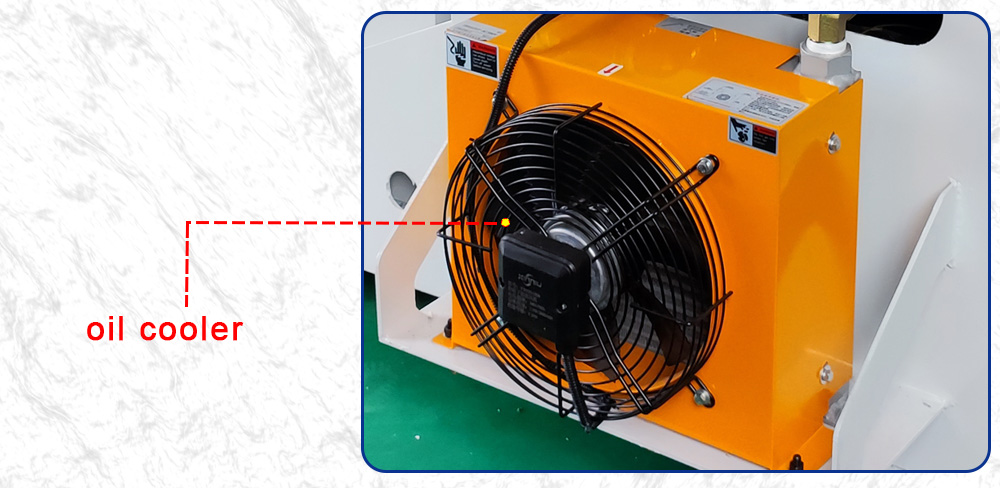

Cooling System

Hydraulic oil naturally heats up during continuous production.

A cooling system helps maintain the proper oil temperature by preventing overheating, reducing viscosity changes, and improving system reliability.

Stable oil temperature also contributes to more consistent bending accuracy during long production runs.

Hydraulic Filters

Even small contaminants can damage hydraulic components.

High-quality filters remove metal particles, dust, and other impurities from the hydraulic oil before they circulate through the system.

Regular filter replacement helps protect pumps, valves, seals, and cylinders while reducing maintenance costs.

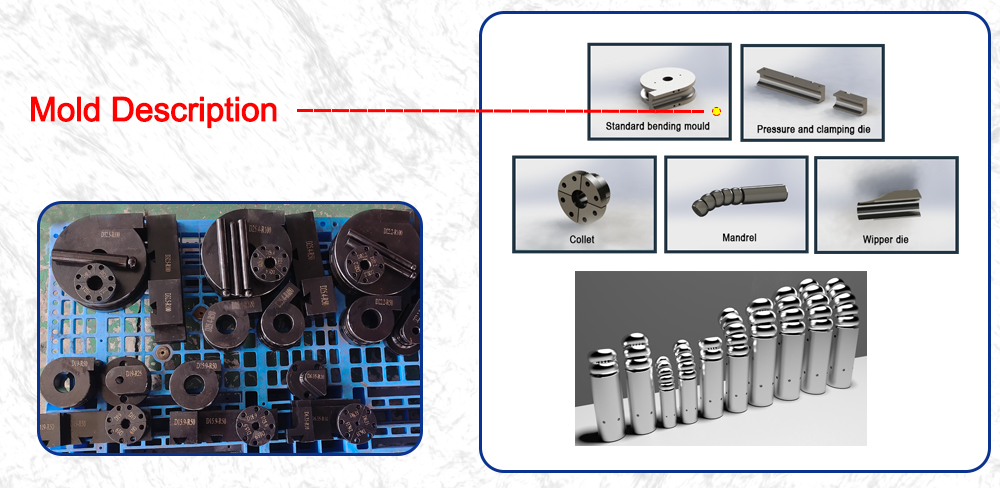

Tube Bending Tooling

Although not part of the hydraulic circuit itself, the tooling is critical to overall bending quality.

Typical tooling includes:

• Bend Die

• Clamp Die

• Pressure Die

• Wiper Die

• Mandrel

These components work together with the hydraulic system to minimize wrinkles, flattening, and springback while ensuring accurate bend geometry.

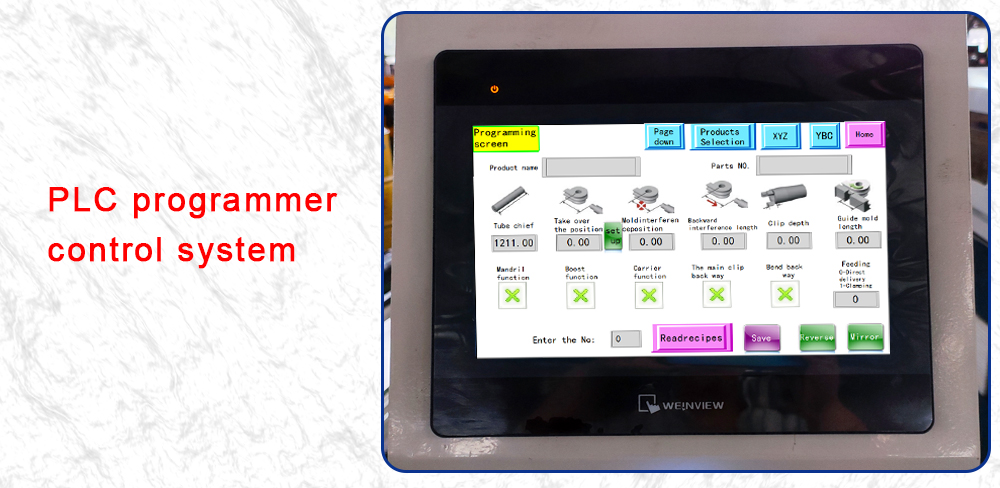

CNC Control System

Modern hydraulic tube bending machines combine hydraulic power with CNC automation.

The CNC controller coordinates:

• Tube feeding

• Tube rotation

• Bending angle

• Hydraulic motion

• Multi-axis synchronization

This combination enables manufacturers to produce complex multi-bend parts with excellent repeatability.

Why High-Quality Components Matter

The performance of a hydraulic tube bending machine depends on the quality of every major component.

A well-designed hydraulic system offers:

• Stable bending pressure

• Smooth machine movement

• Longer equipment lifespan

• Lower maintenance costs

• Improved production efficiency

• Consistent bending accuracy

Choosing reliable hydraulic components reduces unexpected downtime and ensures stable operation over many years.

Why Choose BLMA Hydraulic Tube Bending Machines?

BLMA designs hydraulic tube bending machines using carefully selected components to ensure reliability and long-term performance.

Our machines feature:

• High-quality hydraulic systems

• Precision hydraulic cylinders

• Stable hydraulic valves

• Efficient cooling systems

• Durable bending tooling

• Intelligent CNC control

• Professional technical support

Every machine is engineered to deliver consistent performance in demanding industrial tube bending applications.

Conclusion

A hydraulic tube bending machine relies on multiple components working together as a complete system. From the hydraulic power unit and cylinders to the valves, filters, cooling system, tooling, and CNC controller, each part plays an essential role in producing accurate, efficient, and reliable tube bends.

Understanding these components helps manufacturers maximize machine performance, improve maintenance planning, and achieve better bending results over the long term.
