How Springback Affects Press Brake Bending Accuracy: Causes, Calculation, and Compensation Methods

Introduction

In modern sheet metal fabrication, achieving high bending accuracy is one of the most important goals in CNC press brake operations. However, one unavoidable physical phenomenon continues to challenge manufacturers worldwide:

How to Calculate Press Brake Tonnage

Springback.

Springback occurs when metal partially returns toward its original shape after bending pressure is released. Even with advanced CNC press brake technology, springback can significantly affect bending angles, dimensional consistency, assembly quality, and production efficiency.

For manufacturers working with stainless steel, aluminum, or high-strength materials, understanding and controlling springback is essential for precision bending.

This guide explains:

• What springback is

• Why springback occurs

• How different materials affect springback

• How V-die opening influences springback

• Common springback calculation methods

• Effective compensation techniques used in modern CNC press brakes

What Is Springback in Press Brake Bending?

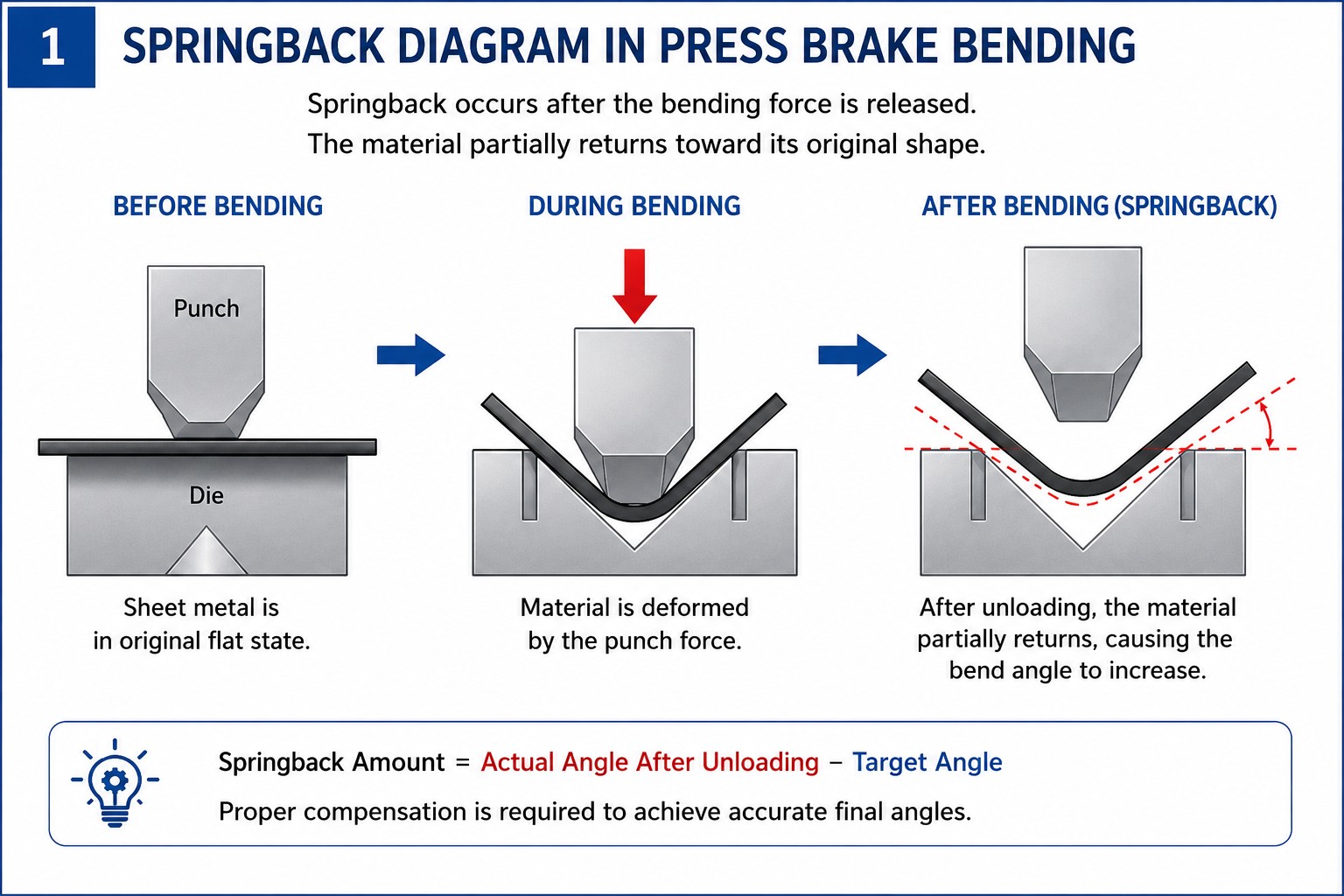

Springback is the elastic recovery of metal after the bending force is removed.

During the bending process, the press brake applies force that plastically deforms the material. However, part of the deformation remains elastic. Once the punch retracts, the material attempts to recover slightly, causing the bend angle to open.

For example:

• A programmed 90° bend may result in:

  • 92°

  • 93°

  • or even higher

depending on the material and bending conditions.

This deviation directly affects:

• Part dimensional accuracy

• Assembly precision

• Welding alignment

• Product appearance

• Repeatability in mass production

Why Does Springback Occur?

Springback is mainly caused by the elastic properties of metal materials.

When a sheet is bent:

• The inner layer compresses

• The outer layer stretches

• The center neutral axis remains relatively stable

After unloading:

• Elastic stress attempts to restore the material shape

• The bending angle partially opens

The higher the elastic recovery, the larger the springback.

Main Factors Affecting Springback

Several important factors influence springback in CNC press brake bending operations.

1. Material Type

Different metals have different elastic modulus and yield strength values.

Generally:

For example:

• Stainless steel usually produces more springback than carbon steel

• Aluminum alloys often require larger compensation angles

• High-strength steel can be difficult to control without advanced CNC correction systems

2. Material Thickness

Thicker materials usually experience less springback because they have higher resistance to elastic recovery.

Thin sheets tend to spring back more easily.

Example:

• 1 mm stainless steel → larger springback

• 10 mm carbon steel → smaller springback

3. Bending Radius

Larger inside bending radii increase springback.

Why?

Because large-radius bending creates less plastic deformation and more elastic deformation.

Small-radius bends generally reduce springback.

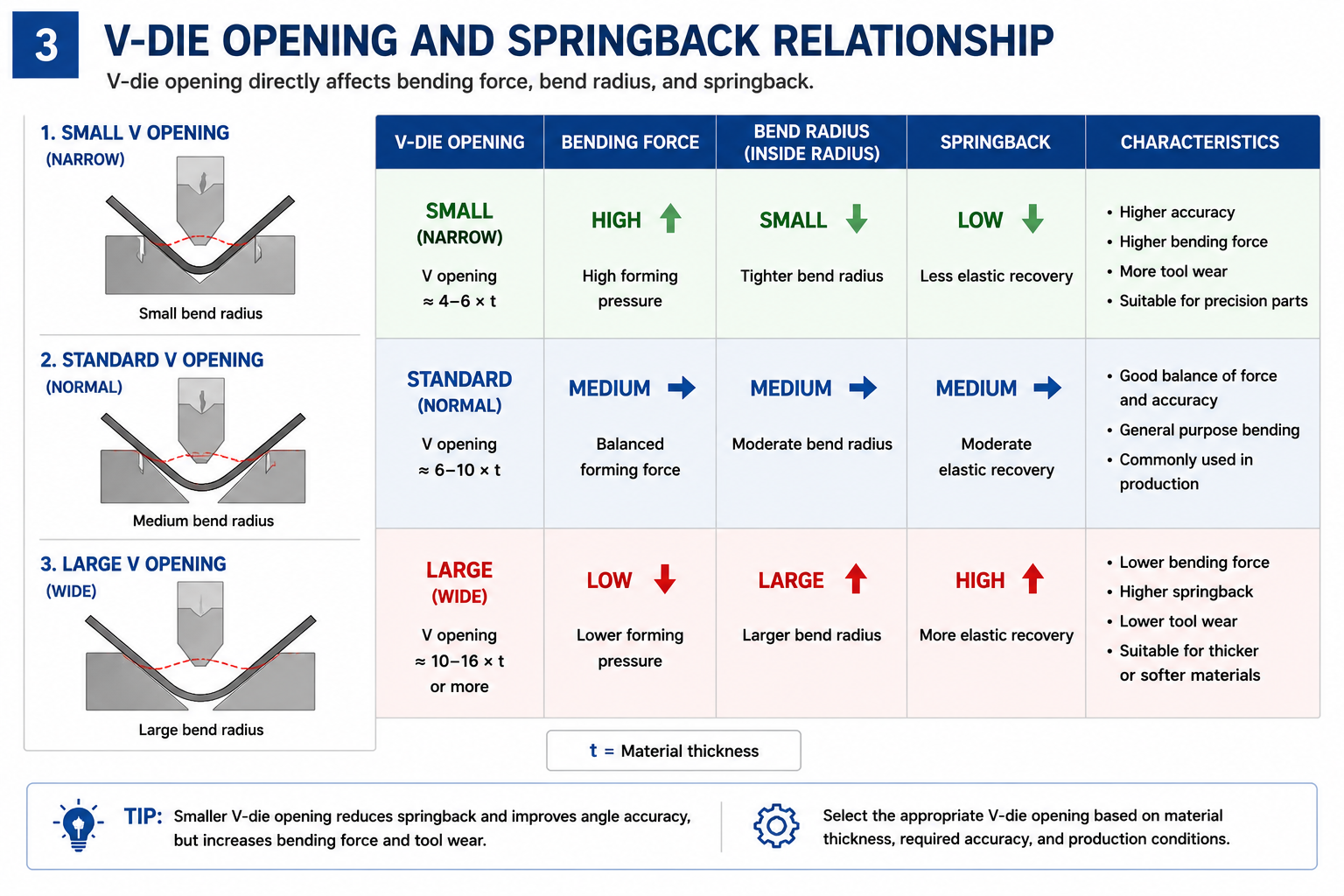

4. V-Die Opening

V-die opening has a major influence on bending accuracy.

A larger V-opening:

• reduces bending force

• increases bending radius

• increases springback

A smaller V-opening:

• increases forming pressure

• reduces springback

• improves angle stability

This is why proper die selection is critical in precision CNC bending.

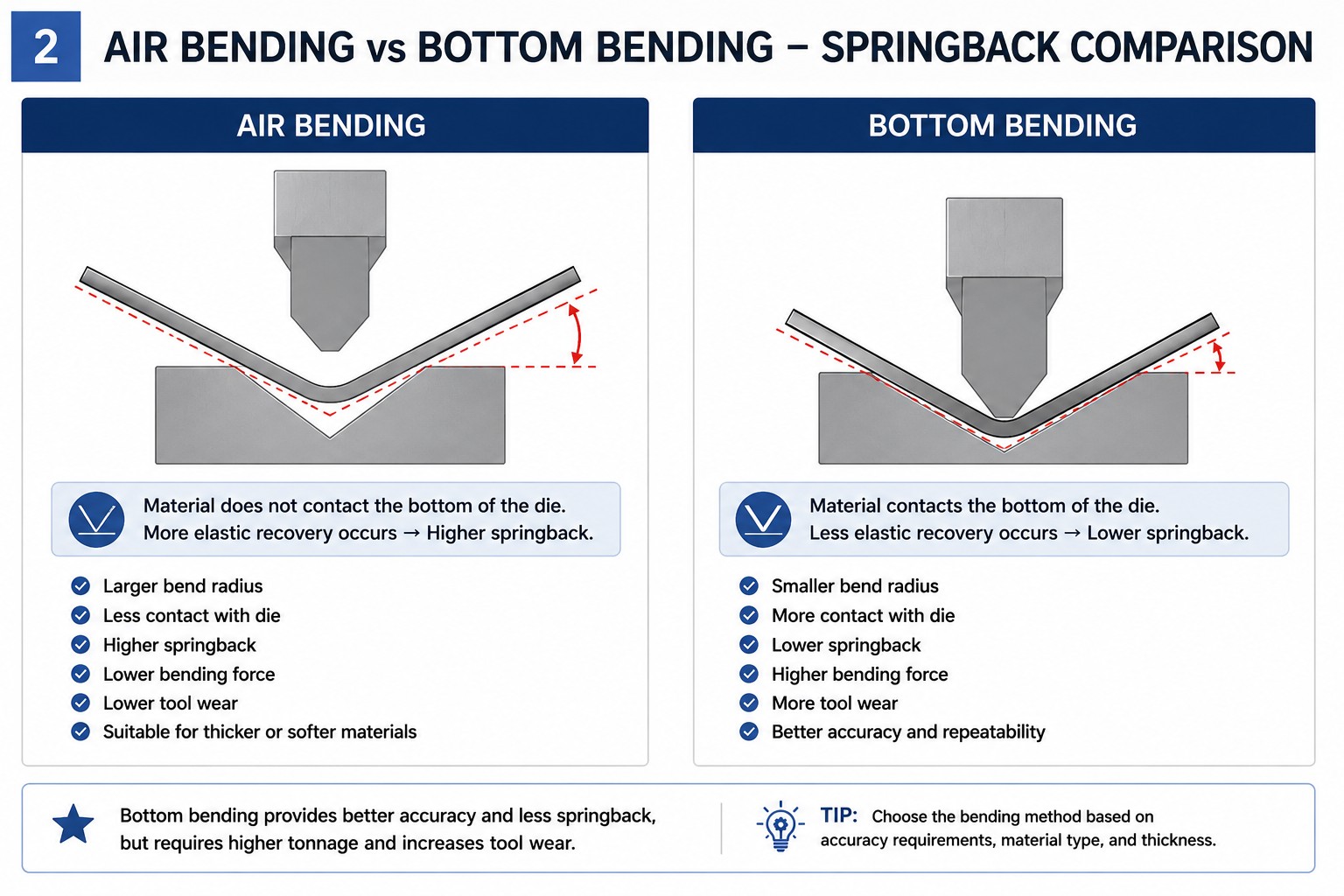

5. Bending Method

Different bending processes produce different springback behavior.

Air Bending

• Most flexible

• Lowest tonnage

• Highest springback

Bottom Bending

• Higher accuracy

• Reduced springback

• Higher tonnage requirement

Coining

• Extremely high pressure

• Minimal springback

• Best angle consistency

However, coining significantly increases tooling wear and machine load.

Typical Springback Values for Common Materials

The following values are approximate references in industrial production.

Actual values depend on:

• thickness

• tooling

• bending radius

• grain direction

• machine accuracy

How to Calculate Springback

Springback prediction is one of the most important tasks in precision bending.

A simplified industrial estimation formula is:

Springback Factor Formula

[
K = \frac{Final\ Angle}{Tool\ Angle}
]

Where:

• K = springback coefficient

• Final Angle = actual angle after unloading

• Tool Angle = punch angle during bending

Example Calculation

Target angle:

• 90°

Expected springback:

• 2°

Required punch angle:

• 88°

The CNC press brake must overbend the material slightly to achieve the final target angle.

Common Springback Compensation Methods

Modern manufacturers use several methods to reduce or compensate for springback.

1. Overbending

The most common solution.

The CNC controller intentionally bends beyond the target angle.

Example:

• Desired final angle: 90°

• Programmed angle: 88°

After springback:

• Final angle returns close to 90°

2. Bottom Bending

Bottom bending forces the material deeper into the die.

Advantages:

• Improved consistency

• Reduced springback

• Better repeatability

Disadvantages:

• Higher tonnage

• Increased tooling wear

3. Coining

Coining applies extremely high pressure to permanently deform the material structure.

Benefits:

• Minimal springback

• Very high precision

Limitations:

• High energy consumption

• Expensive tooling

• Reduced tooling life

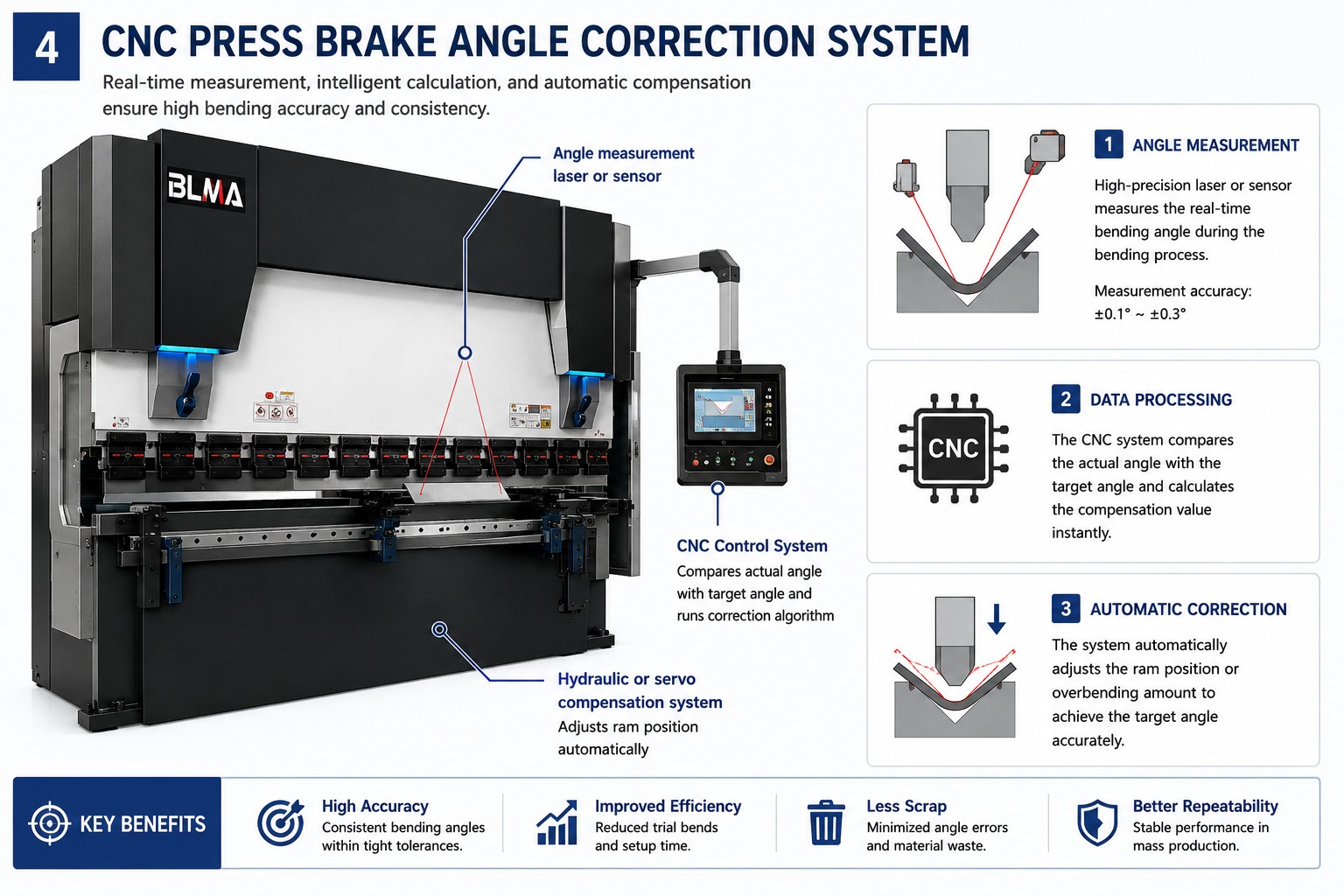

4. CNC Angle Measurement Systems

Modern CNC press brakes often include:

• laser angle measurement

• real-time correction

• automatic angle compensation

These systems monitor bending angles during operation and automatically adjust ram depth.

This significantly improves precision for:

• stainless steel

• aluminum

• high-strength steel

  https://youtu.be/sn-DwRyAzTM?si=n13tLHw8ReD9hgos

5. Crowning Systems

Large workpieces may suffer from table deflection during bending.

Crowning systems compensate for machine deformation to maintain consistent bending angles across the entire workpiece length.

Without crowning:

• center angles may differ from edge angles

Modern CNC crowning systems greatly improve bending consistency.

AI and Smart Compensation Technology

Industry 4.0 technologies are transforming modern press brake operations.

Advanced CNC press brakes now use:

• AI-based angle prediction

• adaptive bending systems

• sensor feedback

• automatic compensation algorithms

These technologies help manufacturers:

• reduce setup time

• improve first-pass accuracy

• reduce scrap rates

• improve automation efficiency

AI-based springback compensation is becoming increasingly important in smart manufacturing environments.

Press Brake Tooling Guide

Common Springback Problems in Production

Manufacturers frequently encounter:

Inconsistent Angles

Caused by:

• material variation

• incorrect tooling

• unstable hydraulic pressure

Excessive Springback in Stainless Steel

Often caused by:

• large V-opening

• insufficient overbending

• incorrect punch radius

Angle Variation Along Bend Length

Usually related to:

• crowning issues

• machine deflection

• uneven material thickness

Best Practices for Reducing Springback

To improve bending accuracy:

Choose proper tooling

Correct punch and die selection is essential.

Optimize V-die opening

Avoid excessively large V-openings.

Use accurate material data

Different suppliers may produce different springback behavior.

Apply CNC compensation systems

Modern controllers significantly improve repeatability.

Maintain stable machine calibration

Backgauge and ram calibration directly affect accuracy.

Future Trends in Springback Control

Future CNC press brakes will increasingly use:

• AI-driven compensation

• digital twin simulation

• automatic material recognition

• cloud-based production optimization

• adaptive servo systems

These technologies will further improve:

• bending precision

• automation capability

• production consistency

Conclusion

Springback is one of the most important factors affecting CNC press brake bending accuracy.

Understanding how material properties, tooling selection, V-die opening, bending methods, and machine technology influence springback is essential for modern metal fabrication.

By using proper compensation methods such as:

• overbending

• bottom bending

• crowning systems

• CNC angle correction

• AI-based adaptive control

manufacturers can achieve:

• higher precision

• lower scrap rates

• improved efficiency

• more consistent production quality

As smart manufacturing technologies continue to evolve, springback control will become increasingly automated, intelligent, and precise in next-generation CNC press brake systems.

Frequently Asked Questions (FAQ)

Why does stainless steel have more springback?

Because stainless steel has higher yield strength and stronger elastic recovery than mild steel.

Does V-die opening affect springback?

Yes. Larger V-die openings usually increase springback because they reduce forming pressure and increase bending radius.

Which bending method produces the least springback?

Coining produces the least springback because it permanently compresses the material structure under extremely high pressure.

Can CNC press brakes automatically compensate for springback?

Yes. Modern CNC press brakes often use laser measurement systems and automatic angle correction technology to compensate for springback in real time.

Is springback higher in aluminum than steel?

Generally yes. Aluminum typically produces greater springback because of its elastic properties and lower modulus compared to steel.
