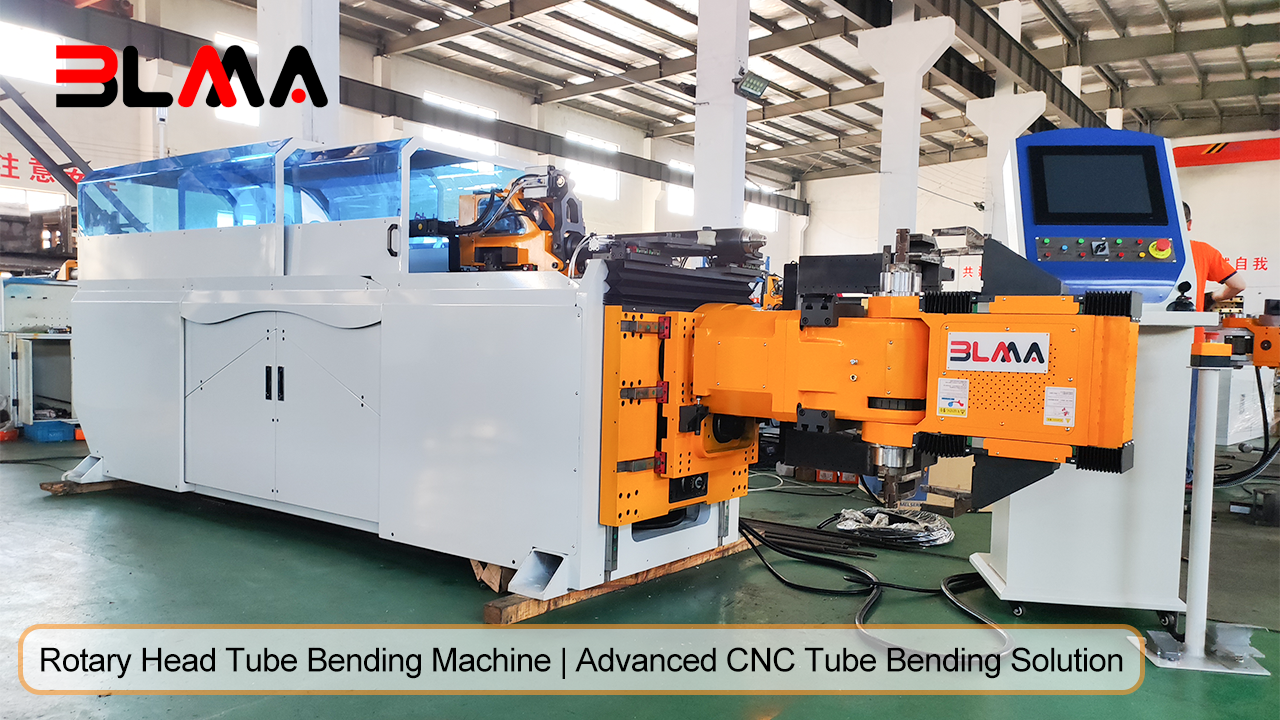

Advanced Tube Bending Solution for Complex 3D Tube Forming
The Rotary Head Tube Bending Machine is an advanced CNC tube bending solution designed for manufacturers requiring complex three-dimensional tube forming, multiple bending directions, and high production flexibility.
Unlike conventional tube bending machines with a fixed bending head, the rotary head design allows the bending head to rotate during the bending process, providing greater flexibility for complicated tube geometries and reducing interference between the tube, tooling, and machine structure.
This technology enables efficient production of automotive structural tubes, chassis components, exhaust systems, roll cages, and other complex tubular parts that require multiple bends, different bending planes, and tight space requirements.
With high rigidity, precise servo control, and intelligent CNC programming, BLMA Rotary Head Tube Bending Machines deliver excellent bending accuracy, repeatability, and production efficiency for modern tube fabrication industries.
Rotary Head Tube Bending Machine Overview
Advanced Tube Bending Solution for Complex 3D Tube Forming
A Rotary Head Tube Bending Machine is an advanced CNC tube bending solution designed for manufacturers producing complex three-dimensional tube components with multiple bending directions and complicated geometries.
Unlike conventional tube bending machines with a fixed bending head, the rotary head design allows the bending head to rotate according to the tube forming requirements. This additional flexibility helps reduce interference between the tube, tooling, and machine structure, making it easier to produce complex tube shapes with fewer repositioning operations.
BLMA Rotary Head Tube Bending Machine is developed for high-demand applications where traditional tube bending solutions may have limitations, especially for automotive structural tubes, vehicle chassis components, roll cages, exhaust systems, and industrial tubular structures.
By combining rotary head technology, CNC control, and advanced tube forming capability, this machine provides manufacturers with a more flexible solution for complex tube production, improving production efficiency and expanding bending possibilities.
What Is a Rotary Head Tube Bending Machine?
A Rotary Head Tube Bending Machine is a specialized tube bending system that uses a rotating bending head to change the bending direction during the tube forming process.
In a traditional tube bending machine, the bending head remains fixed, and the tube needs to be positioned and moved around the bending tools to complete different bending operations. For simple tube shapes, this structure works well. However, when producing complex 3D tube components with multiple bending planes, different directions, or limited forming space, traditional designs may face limitations caused by tube interference and machine movement restrictions.
The rotary head design provides additional flexibility by allowing the bending head to rotate according to the programmed bending requirements. This enables smoother production of complicated tube geometries while reducing the need for manual adjustment or additional repositioning.
Rotary Head Tube Bending Machines are especially suitable for manufacturers who need to produce advanced tubular components with complex spatial structures, where flexibility and forming capability are more important than simple bending operations.
Why Rotary Head Technology Is Needed for Complex Tube Bending
As tube components become more complex, manufacturers need solutions for multi-directional bending, multiple bending planes, and complicated 3D tube shapes.
Traditional tube bending machines may face limitations when producing complex parts due to tube interference and limited bending flexibility.
Rotary Head Tube Bending Technology allows the bending head to rotate during the bending process, providing more flexibility and making complex tube forming easier.
Key Advantages:
Flexible Bending Direction The rotating bending head allows the machine to handle different bending directions more efficiently.
Reduced Tube Interference The rotary design provides more working space and reduces possible collisions between the tube, tooling, and machine.
Better 3D Tube Forming Capability It is ideal for complex tubular components requiring multiple bending planes and advanced shapes.
Key Advantages of Rotary Head Tube Bending Machine
The Rotary Head Tube Bending Machine provides greater flexibility for manufacturers producing complex tube components. Its unique rotating bending head design helps improve forming capability and simplifies the production of complicated tube geometries.
Flexible Tube Forming Capability
The rotary head allows the bending direction to be adjusted during the process, making it easier to produce multi-directional and three-dimensional tube shapes.
Reduced Risk of Tube Interference
The rotating bending head creates more space during bending operations, helping to reduce interference between the tube, tooling, and machine structure.
Better Performance for Complex Tube Shapes
It is ideal for components requiring multiple bending planes, different bending directions, and complicated spatial designs.
Improved Production Efficiency
By reducing repositioning operations and simplifying complex bending processes, rotary head technology helps manufacturers achieve more efficient tube production.
Rotary Head Tube Bending Machine vs Conventional Tube Bending Machine
When producing simple tube shapes, conventional tube bending machines can meet most manufacturing requirements. However, for complex three-dimensional tube components, rotary head technology provides greater flexibility and forming capability.
Rotary Head Tube Bending Machine Conventional Tube Bending Machine Bending flexibility High flexibility for different bending directions Limited by fixed bending head design Complex 3D tube forming Suitable for multi-plane and complex tube shapes More difficult for complicated geometries Tube interference Reduced risk during complex bending operations Higher possibility of interference Production process Fewer repositioning operations May require additional adjustments Application range Advanced tube components with complex structures Mainly standard tube bending applications
The rotary head design provides manufacturers with a more flexible solution when producing complex tubular components that require multiple bending directions and advanced spatial forming.
Tube Types and Shapes Suitable for Rotary Head Tube Bending
Rotary Head Tube Bending Machines are especially suitable for complex tube components that require flexible forming capability.
Typical tube shapes include:
Multi-Plane Tube Components Tubes requiring bending in different planes and directions.
Complex 3D Tube Structures Components with complicated spatial shapes and limited installation space.
Multiple Bend Tube Parts Tubes with several bends and different bending angles in one component.
Tight Routing Tube Designs Applications where the tube path is restricted and requires flexible bending solutions.
The rotary head technology provides manufacturers with more possibilities for producing complex tubular parts that are difficult to manufacture with conventional bending systems.
How to Choose a Rotary Head Tube Bending Machine?
Choosing the right Rotary Head Tube Bending Machine depends on the complexity of your tube components and production requirements.
A rotary head tube bender is a suitable choice when your products require:
Complex 3D Tube Shapes For components with multiple bending directions, different planes, and complicated geometries.
Limited Installation Space When the tube design requires tight routing and traditional bending methods may cause interference.
Multiple Bending Directions When one tube component needs different bending orientations without frequent repositioning.
High Production Flexibility For manufacturers producing various complex tube parts and requiring a flexible bending solution.
Before selecting a machine, manufacturers should consider tube material, tube size, bending requirements, production volume, and part complexity.
BLMA provides customized rotary head tube bending solutions based on different tube forming requirements.
DW32CNC-11A6S Rotating Headpipe bending machine video
Why Choose BLMA for Precision Tube Bending Solutions
Selecting the right tube bending partner is just as important as choosing the right machine. High-precision tube bending requires more than advanced equipment—it demands engineering expertise, precision manufacturing, application experience, and reliable technical support throughout the entire production process.
At BLMA, we focus on delivering complete tube bending solutions rather than simply supplying machines. By combining rigid machine construction, precision tooling, intelligent CNC technology, and application-specific engineering, we help manufacturers achieve consistent tube bending accuracy, higher productivity, and long-term production reliability.
Whether your application involves automotive components, aerospace tubing, furniture frames, HVAC systems, medical equipment, or industrial machinery, BLMA provides customized solutions designed to meet demanding accuracy and repeatability requirements.
Not sure which tube bending machine is right for your application?
Simply send us your tube drawing, material specifications, tube dimensions, bend radius, and production requirements. BLMA engineers will provide a FREE machine recommendation, tooling proposal, and bending feasibility analysis tailored to your project.
✓ Free Engineering Consultation
✓ Machine Selection Recommendation
✓ Tooling & Mandrel Proposal
✓ Fast Response Within 24 Hours
Let BLMA help you find the most efficient and cost-effective tube bending solution for your business.
