Introduction

Tight radius tube bending is one of the most demanding processes in modern metal fabrication. When the bend radius becomes equal to or close to the tube diameter, material deformation increases significantly.

Many standard machines can complete normal bends, but only advanced CNC tube bending machines can maintain stability, accuracy, and surface quality in tight-radius production.

BLMA provides professional CNC tube bending solutions for manufacturers requiring high-performance 1D and small-radius tube bending.

For more technical insights, read our guide on
1D Radius Tube Bending Challenges and Solutions

https://www.blmamachinery.com/1D-Tube-Bending-How-CNC-Tube-Bending-Machines-Achieve-Tight-Radius-Bending-id05373265.html

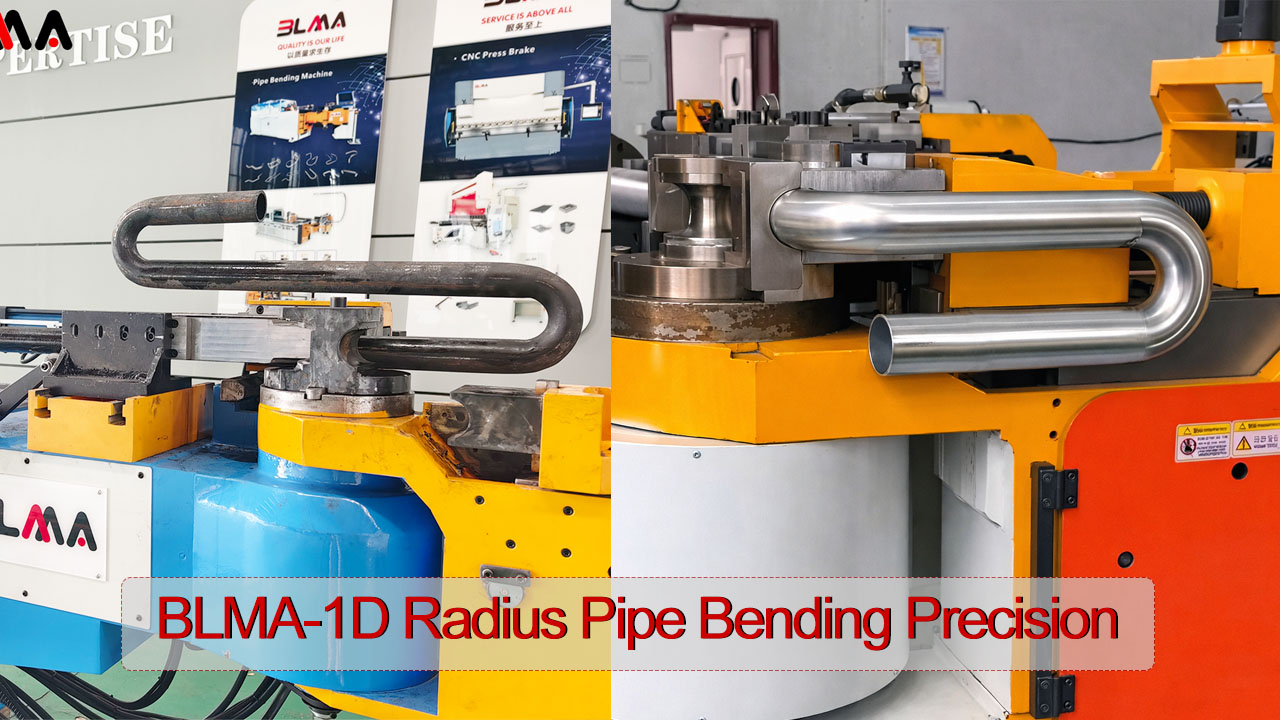

What Is Tight Radius Tube Bending?

Tight radius bending usually refers to a bend radius close to the outside diameter of the tube.

Examples:

• 75mm tube with 75mm centerline radius

• 115mm tube with 115mm centerline radius

This type of bending is widely used in:

• Automotive exhaust systems

• Furniture frames

• Construction structures

• Fitness equipment

• Industrial piping

• Handrails and stainless steel products

Common Problems in Tight Radius Tube Bending

When radius becomes smaller, the tube experiences high compression and tension forces.

Wrinkling

Inner wall compression can create folds and wrinkles.

Flattening

The round profile may become oval.

Wall Thinning

The outside wall stretches and becomes thinner.

Cracking

Poor material flow may cause fractures.

Springback

Finished bend angles may differ from programmed settings.

These problems often result in scrap parts and unstable production.

How BLMA CNC Tube Bending Machines Solve These Challenges

BLMA machines are designed for demanding tube bending applications with high repeatability.

Mandrel Support System

Maintains tube shape during tight bending.

Precision Wiper Die Control

Reduces inner wall wrinkling.

Servo Booster Assistance

Improves material feeding during bending.

Multi-Axis CNC Synchronization

Ensures smooth coordination between clamp die, pressure die, bend arm, and booster.

Strong Machine Structure

Heavy-duty frame design provides stable bending performance.

Recommended BLMA Models

DW75CNC-2A1S CNC Tube Bending Machine

Suitable for medium-size tube bending with excellent precision and tight radius capability.

https://youtu.be/RAEr9GQEfRg

See full specifications of our
DW75CNC-2A1S Tube Bending Machine

https://www.blmamachinery.com/2026-BLMA-DW75CNC-3A1S-CNC-Pipe-Bending-Machine-with-Custom-Slim-Bending-Head-pd550945048.html

DW115CNC-2A1S CNC Tube Bending Machine

Designed for large-diameter heavy-duty tube bending applications.

https://youtu.be/CIGNRpFsOBs

Why Choose BLMA?

• More than 20 years manufacturing experience

• Global export service

• Custom tooling support

• Reliable CNC control system

• High repeat bending accuracy

• Fast technical response

Industries We Serve

BLMA tight radius tube bending machines are widely used in:

• Automotive manufacturing

• Furniture production

• Construction engineering

• Fitness equipment

• Aerospace support parts

• Industrial pipeline fabrication

Request a Solution

Need a professional solution for tight radius tube bending?

Contact BLMA today with your tube diameter, wall thickness, material type, and bending radius. Our engineers will recommend the right CNC tube bending machine for your production.
