What Is a Hydraulic Tube Bending Machine?

A hydraulic tube bending machine is an industrial machine designed to bend metal tubes and pipes accurately by using hydraulic force. It is widely used across manufacturing industries because it combines powerful bending capacity, stable performance, and cost-effective operation.

Compared with manual or mechanical tube benders, hydraulic tube bending machines can easily bend larger diameters, thicker wall tubes, and high-strength materials while maintaining excellent repeatability.

Today, hydraulic tube benders are commonly found in automotive production, furniture manufacturing, construction equipment, HVAC systems, shipbuilding, agricultural machinery, and many other industries where precise tube forming is required.

How Does a Hydraulic Tube Bending Machine Work?

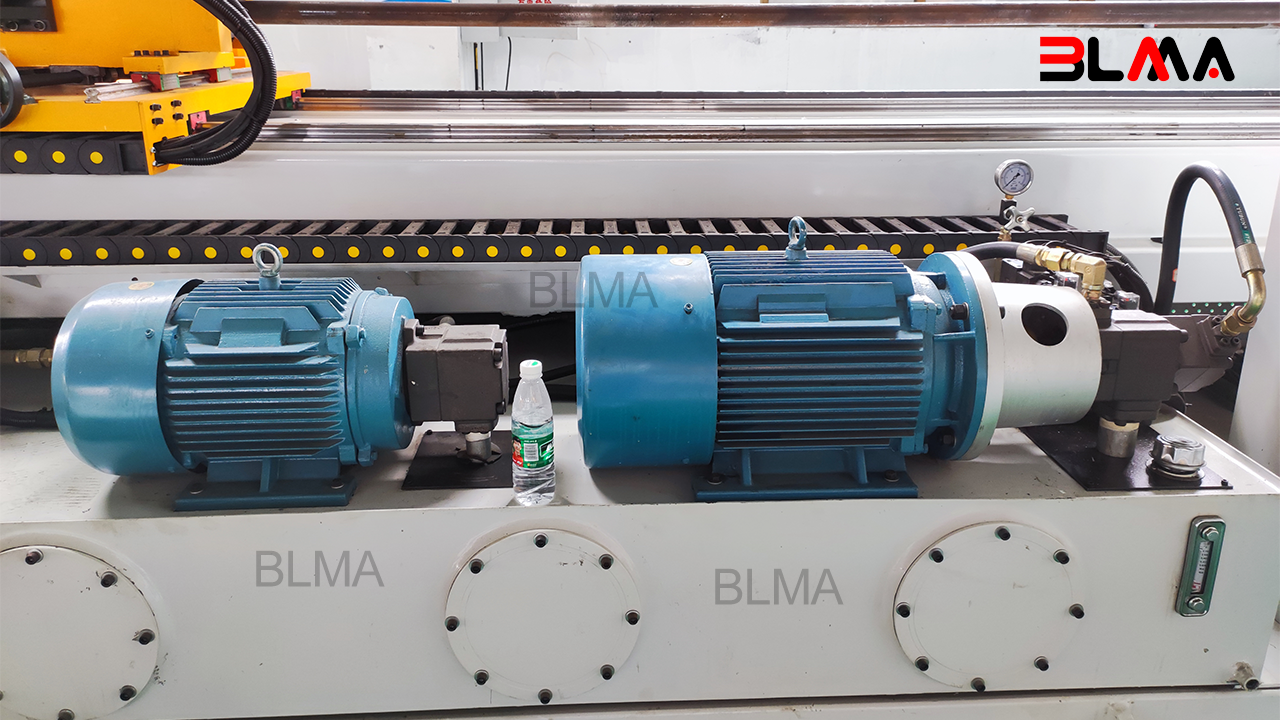

A hydraulic tube bending machine generates bending force through a hydraulic cylinder powered by a hydraulic pump.

During the bending process, several machine components work together:

• Hydraulic cylinder provides the bending force.

• Clamp die securely holds the tube.

• Pressure die supports the material during bending.

• Bend die determines the bending radius.

• Mandrel prevents tube collapse for tight-radius bends.

• Servo-controlled feeding and rotation ensure positioning accuracy.

Modern hydraulic CNC tube bending machines can automatically complete multiple bends within a single production cycle, greatly improving production efficiency.

Advantages of Hydraulic Tube Bending Machines

Hydraulic tube bending machines remain one of the most popular solutions because they offer an excellent balance between performance and investment cost.

Key advantages include:

• High bending force for thick-wall tubes

• Suitable for large-diameter pipe bending

• Stable and reliable hydraulic system

• Lower equipment investment than full-electric machines

• Easy maintenance with mature hydraulic technology

• Long service life for continuous industrial production

For many manufacturers, hydraulic machines provide the ideal combination of productivity and affordability.

Materials That Can Be Bent

Hydraulic tube bending machines are suitable for a wide variety of metal materials, including:

• Carbon Steel

• Stainless Steel

• Aluminum

• Copper

• Brass

• Alloy Steel

• Titanium (depending on machine configuration)

Different tooling, mandrels, lubrication systems, and bending parameters can be selected according to each material.

Typical Applications

Hydraulic tube bending machines are used to manufacture products in numerous industries, such as:

• Automotive exhaust systems

• Vehicle chassis

• Roll cages

• Furniture frames

• Fitness equipment

• Bicycle frames

• Construction machinery

• Agricultural equipment

• HVAC tubing

• Shipbuilding

• Oil & Gas pipelines

• Industrial equipment

Their flexibility makes them one of the most widely used tube forming solutions worldwide.

Hydraulic vs Manual Tube Bending

Although manual tube benders are suitable for simple jobs and low production volumes, hydraulic machines provide significant advantages:

• Higher production efficiency

• Better bending consistency

• Larger tube capacity

• Improved bending accuracy

• Reduced operator effort

• Better repeatability for mass production

For manufacturers producing hundreds or thousands of parts, hydraulic tube bending machines deliver substantial improvements in productivity.

How to Choose the Right Hydraulic Tube Bending Machine

Before selecting a hydraulic tube bender, manufacturers should evaluate:

• Tube diameter range

• Wall thickness

• Material type

• Minimum bending radius (CLR)

• Number of bends per part

• Annual production volume

• Automation requirements

• Available factory space

Choosing the correct machine configuration ensures higher efficiency and lower production costs.

Why Choose BLMA Hydraulic Tube Bending Machines?

BLMA designs and manufactures hydraulic tube bending machines for customers worldwide.

Our solutions provide:

• NC and CNC control options

• Multi-axis automatic bending

• Servo-controlled feeding and rotation

• Custom tooling design

• Mandrel and boost bending technology

• Stable hydraulic systems

• Global technical support

• Professional installation and training

Whether your application involves simple bends or complex multi-radius components, BLMA offers reliable tube bending solutions tailored to your production requirements.

Conclusion

Hydraulic tube bending machines continue to be one of the most reliable and versatile solutions for industrial tube fabrication. With powerful hydraulic force, flexible configurations, and excellent cost performance, they remain the preferred choice for manufacturers across a wide range of industries.

Selecting the right hydraulic tube bending machine can improve product quality, reduce production costs, and increase manufacturing efficiency for years to come.
