Why Heavy Duty Tube Benders Need Stronger Tooling

Introduction

A high-performance Heavy Duty Tube Bending Machine is only as reliable as the tooling it uses. While machine rigidity and CNC control are essential, the tooling directly contacts the tube and bears the highest mechanical loads during the bending process.

When bending large-diameter, thick-wall, or high-strength tubes, standard tooling may wear quickly, lose accuracy, or fail under heavy loads. That's why heavy-duty tube bending requires tooling specifically designed to withstand higher pressure while maintaining precise tube positioning throughout the entire bending cycle.

Heavy-Duty Applications Generate Higher Bending Forces

Compared with standard tube bending, heavy-duty applications place significantly greater stress on every tooling component.

During bending, the tooling must resist:

• Higher clamping pressure

• Greater bending torque

• Increased friction

• Stronger material springback

• Continuous production loads

Without sufficient strength, tooling wear increases rapidly, leading to inconsistent bending quality and higher production costs.

Precision Tooling Improves Bending Accuracy

The accuracy of a tube bend depends heavily on the quality of the tooling.

Precision-machined tooling helps maintain:

• Accurate bend angles

• Stable tube positioning

• Consistent centerline radius (CLR)

• Reduced tube deformation

• Excellent repeatability

Even the most advanced CNC system cannot compensate for poorly manufactured tooling.

Heat Treatment Extends Tool Life

Heavy-duty tooling is commonly manufactured from high-strength alloy steel and undergoes professional heat treatment.

Heat treatment improves:

• Wear resistance

• Surface hardness

• Fatigue strength

• Dimensional stability

• Long-term durability

This significantly increases tooling life, especially in high-volume industrial production.

Every Tool Has an Important Role

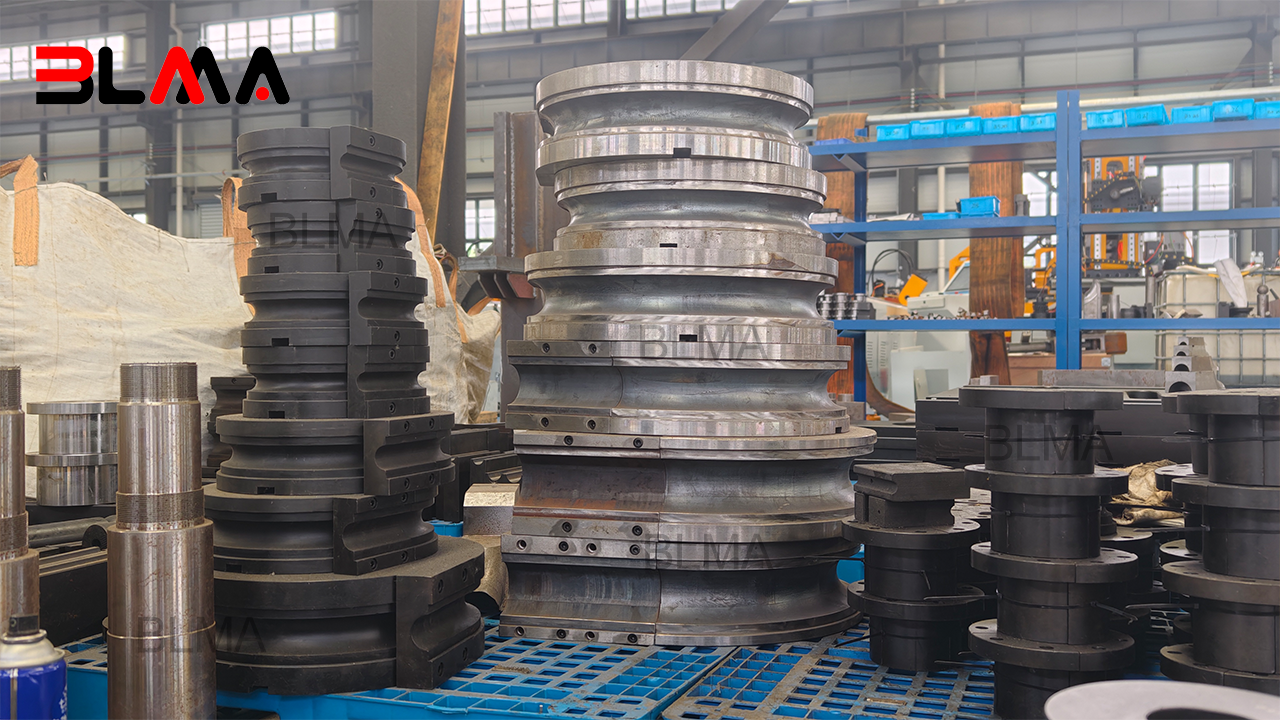

A complete heavy-duty tube bending tooling system includes several precision components working together.

Bend Die

Forms the required bend radius and supports the tube throughout the bending process.

Clamp Die

Securely grips the tube to prevent movement during bending.

Pressure Die

Supports the outside of the tube while controlling material flow.

Mandrel

Reduces wrinkling and helps maintain the tube's internal shape when required.

Wiper Die

Minimizes wrinkles on the inside radius, particularly when bending difficult materials or tight radii.

Customized Tooling Delivers Better Results

Every tube has unique specifications.

Factors such as:

• Tube diameter

• Wall thickness

• Material

• Bend radius (CLR)

• Surface finish requirements

all influence tooling design.

Customized tooling ensures the machine performs at its full potential while improving product quality and reducing setup time.

Why BLMA Manufactures Precision Tooling

BLMA designs and manufactures precision tube bending tooling to match each customer's application.

Our tooling features:

• High-strength alloy steel

• Precision CNC machining

• Professional heat treatment

• Precision grinding

• Customized designs

• Excellent interchangeability

• Long service life

Combined with BLMA Heavy Duty Tube Bending Machines, these tooling solutions provide reliable performance for demanding industrial applications.

Frequently Asked Questions

Why can't standard tooling be used for heavy-duty tube bending?

Standard tooling is not designed to withstand the higher loads generated by large-diameter, thick-wall, or high-strength tubes and may wear quickly or reduce bending accuracy.

Does tooling affect bending accuracy?

Yes. Tooling quality directly influences bend angle, tube positioning, repeatability, and overall product quality.

Why is heat treatment important?

Heat treatment increases hardness and wear resistance, allowing tooling to maintain accuracy over long production cycles.

Is customized tooling necessary?

For many heavy-duty applications, customized tooling provides better tube support, improved bending quality, and longer tooling life.

Can tooling be used on different machines?

Some tooling designs are interchangeable, while others are customized for specific machine models and production requirements.

Conclusion

Heavy-duty tube bending demands more than a powerful machine—it also requires tooling capable of handling higher forces while maintaining precision over thousands of production cycles.

By combining high-quality alloy steel, precision CNC machining, professional heat treatment, and customized engineering, BLMA tooling helps manufacturers achieve higher bending accuracy, longer tool life, reduced downtime, and more consistent production quality.

For demanding heavy-duty tube bending applications, investing in the right tooling is just as important as choosing the right machine.
