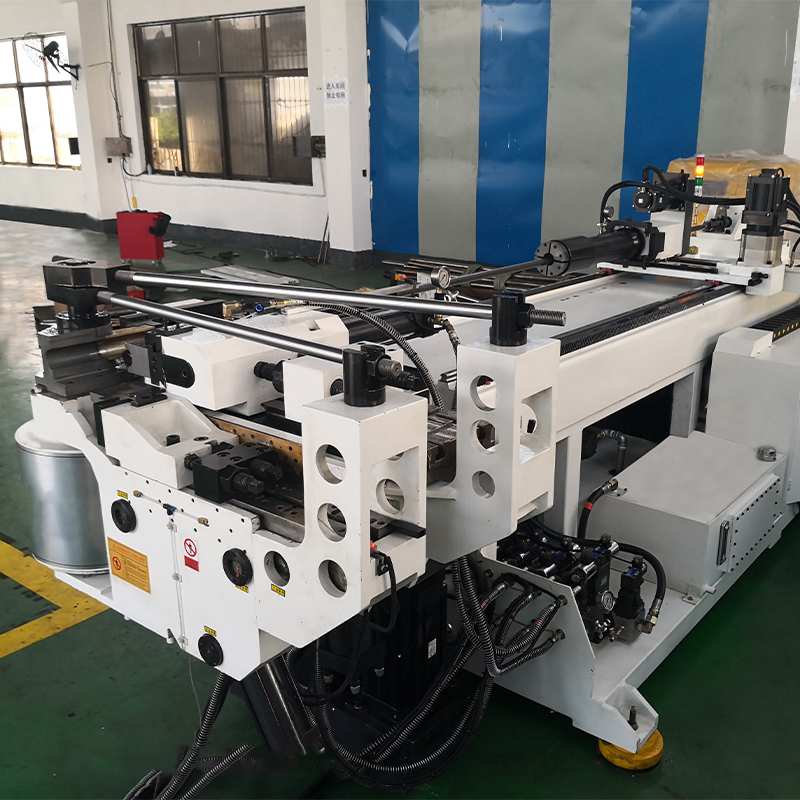

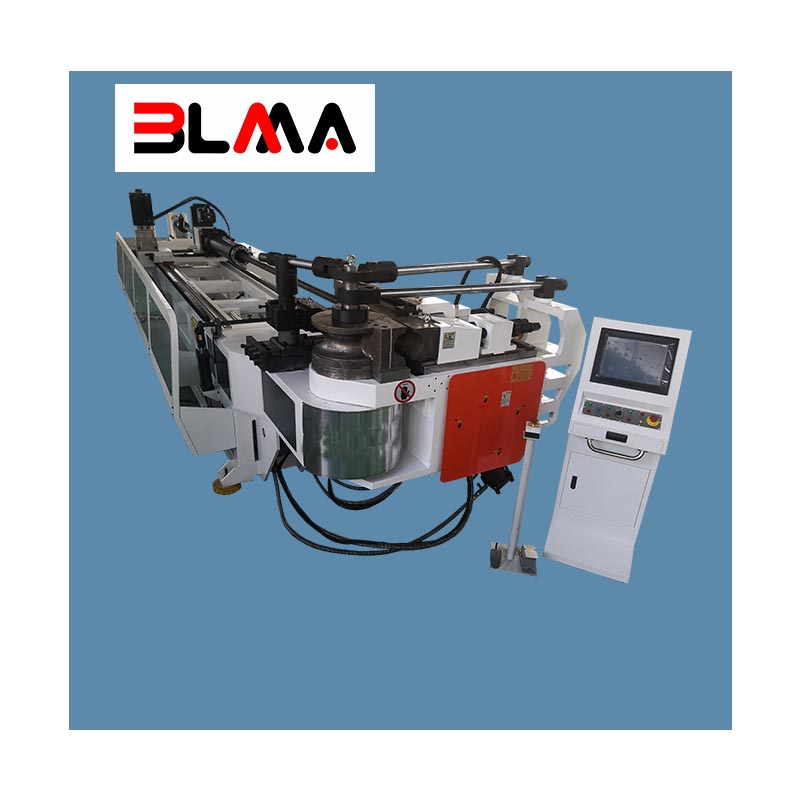

DW89CNC-3A-1S
T/T, L/C, D/P, Western Union, MoneyGram
Jiangsu, China
Can be customized
Shanghai
20 days after deposit confirmed
Description
As one of the world's leading tube/pipe bending machine manufacturers, BLMA offers CNC automatic pipe bending machines which are designed for both general and precision bending applications in a wide variety of industries, such as HVAC, aerospace, automotive, and furniture. BLMA has experienced sales, service, and support staff that can offer positive application solutions for today’s metal fabricator.

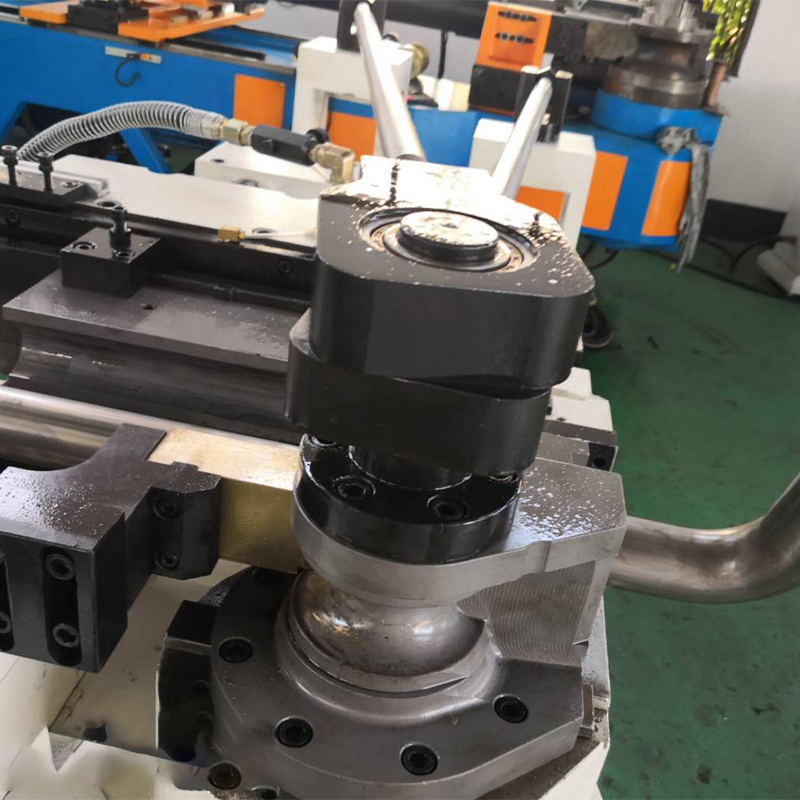

Bend die
Clamp die
Pressure die
Wiper die
Mandrel

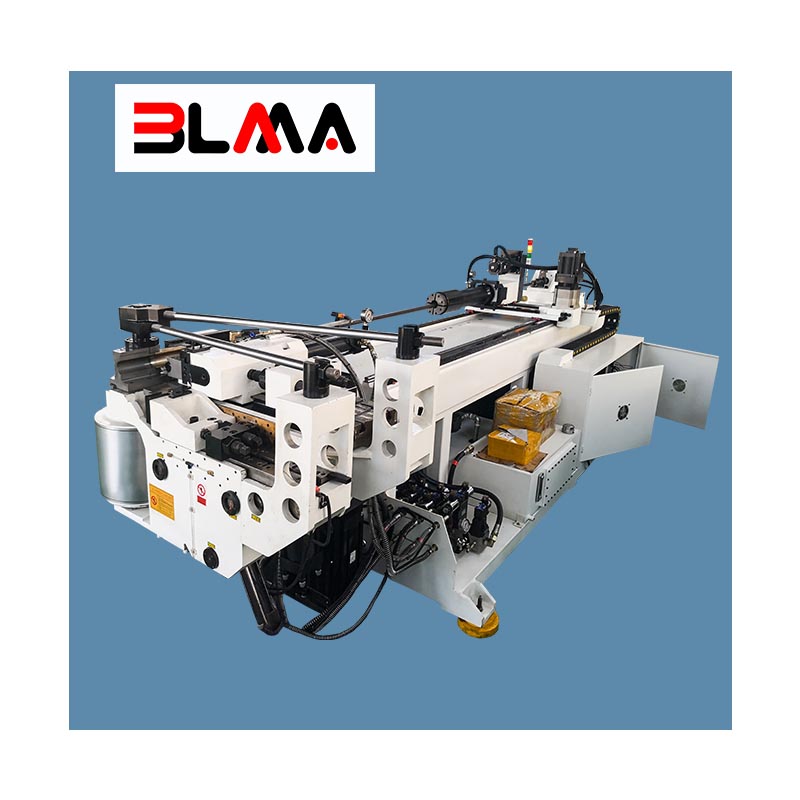

●Fully automatic and CNC pipe bending machine
●Equipped with 3 servo motor programmable axis
●Feeding: servo motor drive; Rotation: servo motor drive
●Bending: hydraulic and encoder control; Servomotor with reducer.
●Imported hydraulic system and PLC(standard) unit or IPC(optional).
●Automatic lubrication system for moving areas.
●The self-diagnostic system, detecting the error immediately.
●Multiple groups pipe-bending information storage.
●Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
●Touch screen and human/machine interface control provide user-friendly operations.
Name | Brand |
PLC | Japan Mitsubishi |
Touch screen | Taiwan Winview |
Servo motor | Japan Yaskawa/Mitsubishi |
Servo driver | Japan Yaskawa/Mitsubishi |
Reducer | Taiwan RV/Xingxing |
Main electrics | France Schneider |
Hydraulic motor | Taiwan Yuanbang |
Valves | Taiwan Seven Ocean |
Vane pump | Taiwan Kaida |
Sealing element | Taiwan Dingji |
Rack | Germany Atlanta |
Linear guideway | Taiwan Hiwin |
Mitsubishi Servo Motor
It is with 3 axis, which has 3 servo motors. The Bending, feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.
Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.
Electrics
Schneider, France brand

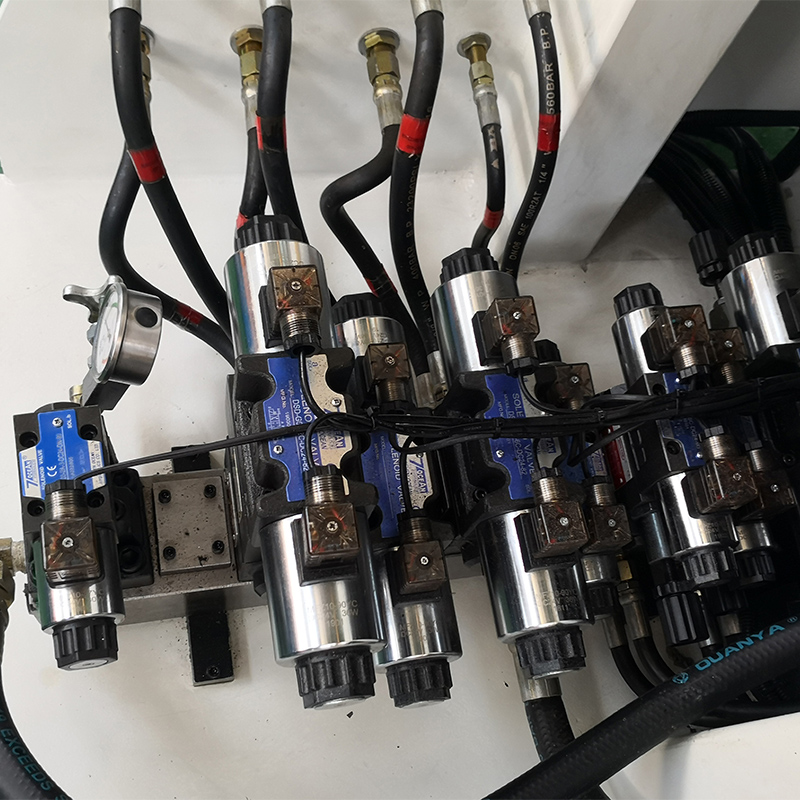

Valve
7 Ocean, Taiwan brand
Air Cooler
Ensure the stability of the machine for a long time

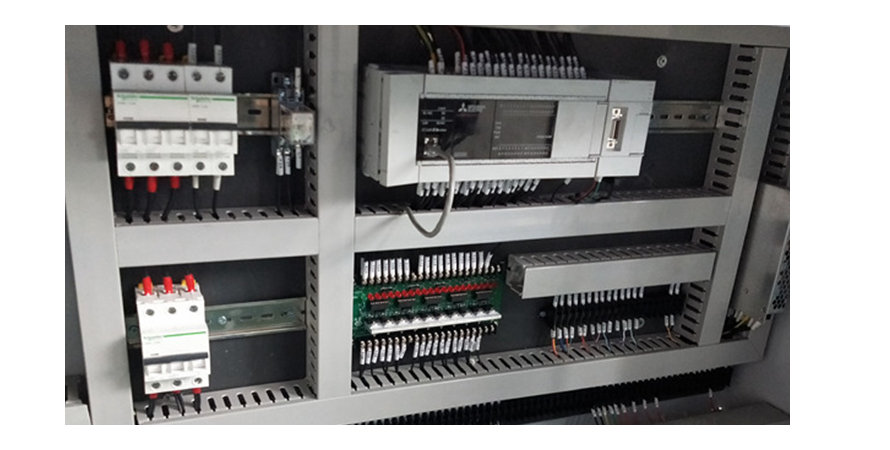

PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference
BLMA is a professional cnc tube bender manufacturers and cnc bending machine manufacturers, offering cnc pipe bender for sale and pipe tube bending machine.
Parameters
Main specification | DW89CNC-3A-1S | |
Max bending capacity | φ89mm x 8mm | |
Max bending radius (1) | R360mm | |
Min bending radius | According to pipe diameter | |
Max bending degree | 0-190° | |
Max feeding length (2) | 3100mm | |
Feeding method | Direct feeding/clamping feeding | |
Working speed | Bending speed | Max 30°/s |
Rotary speed | Max 160°/s | |
Feeding speed | Max 800mm/s | |
Accuracy | Bending speed | 0.1° |
Rotary speed | 0.1° | |
Feeding speed | 0.1mm | |
Information inputting method | Working value (Y, B, C) | |
Bending method | Servo | |
Bending servo motor power | 15kw | |
Rotary servo motor power | 1.5kw | |
Feeding servo motor power | 2kw | |
Max storage unit (3) | 1000 groups | |
Max oil pressure | 14Mpa | |
Machine weight | 5500kg | |
Machine size | 5650 x 1350 x 1450mm | |
Note: (1) (2) (3) Extendable | ||
