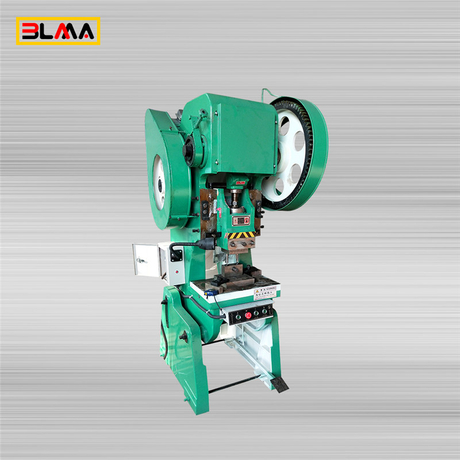

J23-16T Power Press Machine Metal Punching Machine
Description
Intergrally forged frame, never deformation.
Adopts crankshaft-type structure, the crankshaft is made by 45# forged steel, significantly improving the crankshaft service life.
All copper tile is used reduce the operation friction and wear to improve the machine service life.
Forged steel gear with good wear-resistant property and longer service life.
Brake belt is made by 16Mn material and equipped with friction block for providing reliable and controllable brake force, and with good hydraulic transmission and cooling capacity to avoid hydraulic failure and recession caused by overheat.
Manually adjusts the die height of mechanical punch, scale display
Use France Schneider electrics to ensure the machine service life.
Use Germany Siemens motor to ensure the operation reliability.
Controlling the electromagnet and machine by pedal switch, which is easy operated.
Both-hands operation buttons to ensure the operators' safety.
Manual centralized lubrication. Simple and easy operation.
Optional Components
Optional
Equipped with left and right safety guard to ensure the operator's safety.
Parameters
Item | Unit | 16T | |
Norminal capacity | KN | 160 | |
Norminal pressure stroke | mm | 5 | |
Slide stroke | mm | 60 | |
Slide stroke times | Times/min | 140 | |
Max closing height | mm | 170 | |
Die height adjustment | mm | 40 | |
Distance between slider center and machine | mm | 160 | |
Workbench size | Front and back | mm | 300 |
Left and right | mm | 480 | |
Diameter of blank-holding hole | Front and back | mm | 110 |
Left and right | mm | 220 | |
Dimater | mm | 160 | |
Pole distance | mm | 220 | |
Slider underside bore | Front and back | mm | 180 |
Left and right | mm | 200 | |
Size of die handel bore | Dimameter | mm | 35 |
Depth | mm | 60 | |
Pad thickness | mm | 50 | |
Body tilting angle | ° | 30 | |
Motor power | KW | 1.5 | |
Dimension | Front and back | mm | 1130 |
Left and right | mm | 750 | |
Height | mm | 1890 | |
