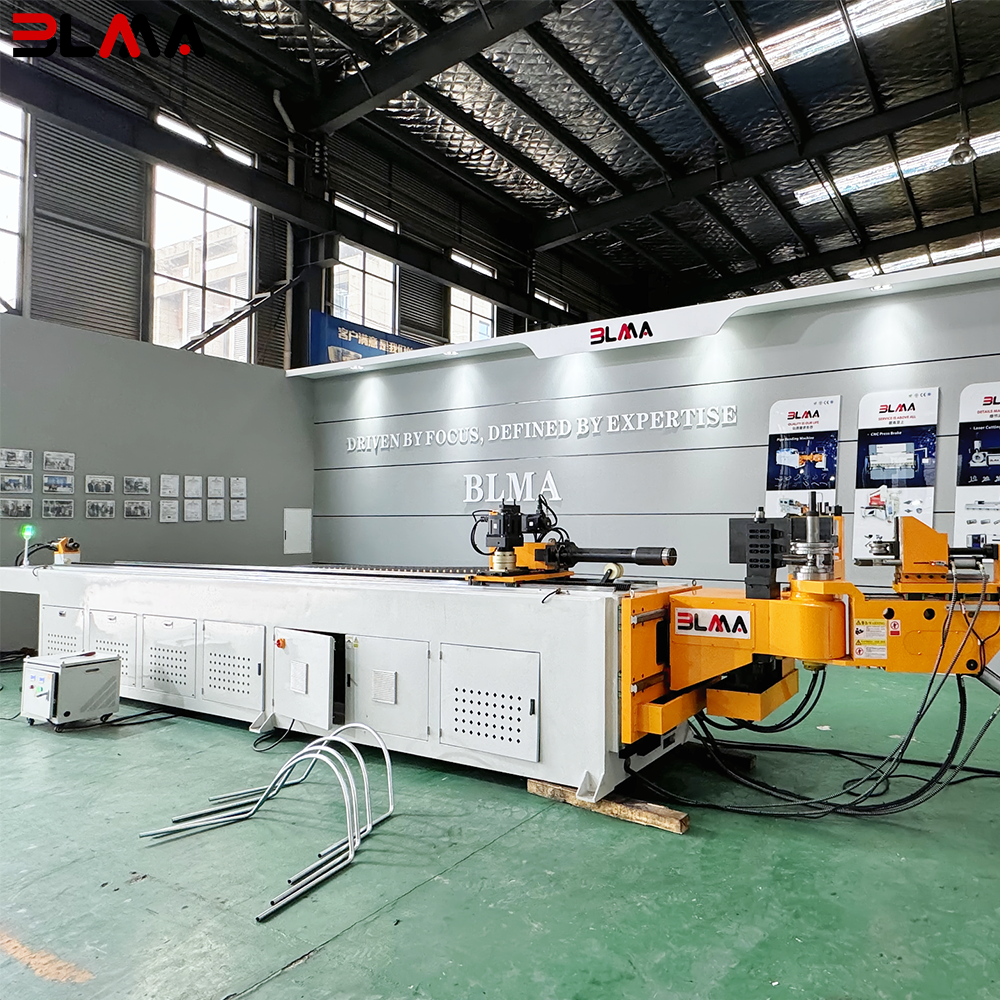

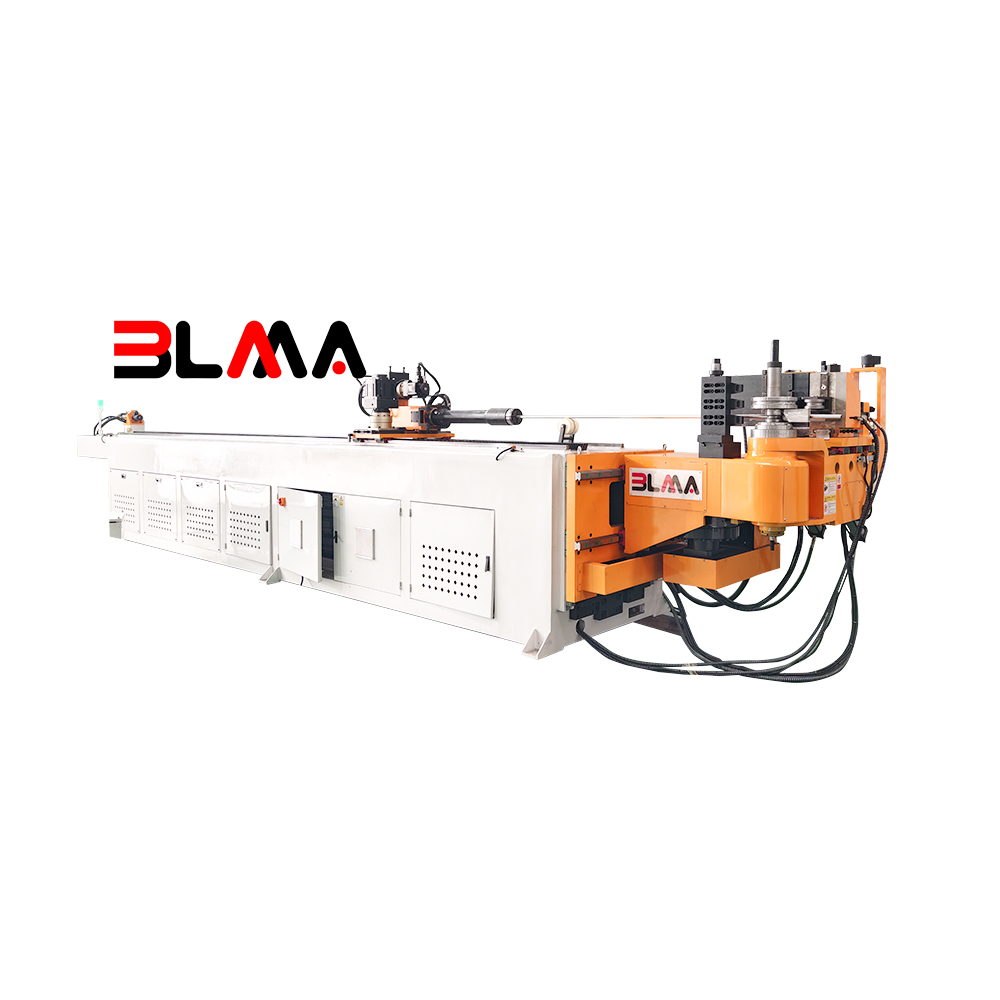

2026-BLMA-DW75CNC-5AMSV | 5-Axis Servo CNC Pipe Bending Machine for Complex Tubes

Types of Tube Bending Machine

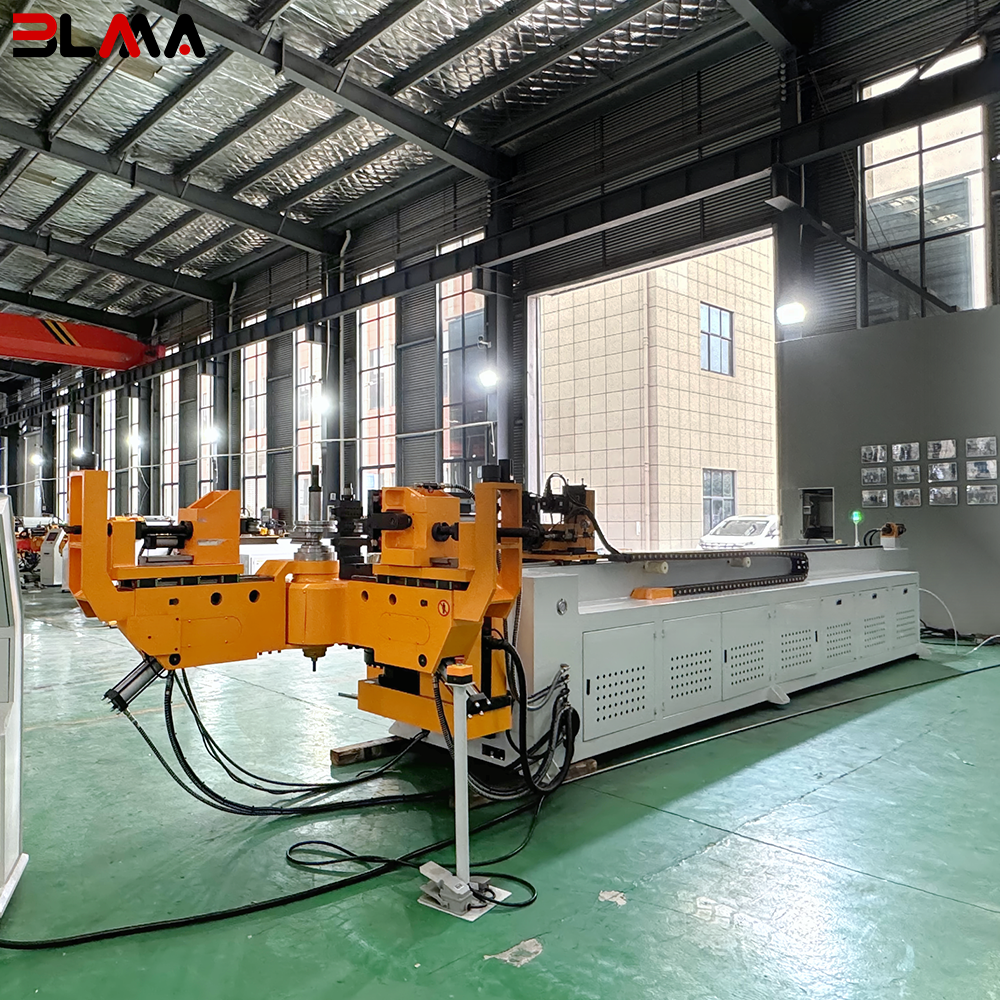

The DW75CNC-5AMSV CNC pipe bending machine features advanced 5-axis servo control, enabling precise bending, feeding, rotation, and auxiliary movements for complex pipe geometries. It delivers excellent repeatability and stable performance when processing steel, stainless steel, and aluminum pipes.

This model is widely used in automotive components, construction machinery, steel structures, fitness equipment, furniture manufacturing, and HVAC systems, where high bending accuracy and consistency are critical. The rigid machine structure and high-quality hydraulic and electrical components ensure long-term reliability in continuous production.

With an intuitive CNC control system, operators can easily program bending angles, radii, and multi-bend sequences, significantly improving production efficiency while reducing setup time. Optional tooling, mandrels, and customized configurations are available to meet different pipe specifications and production requirements.

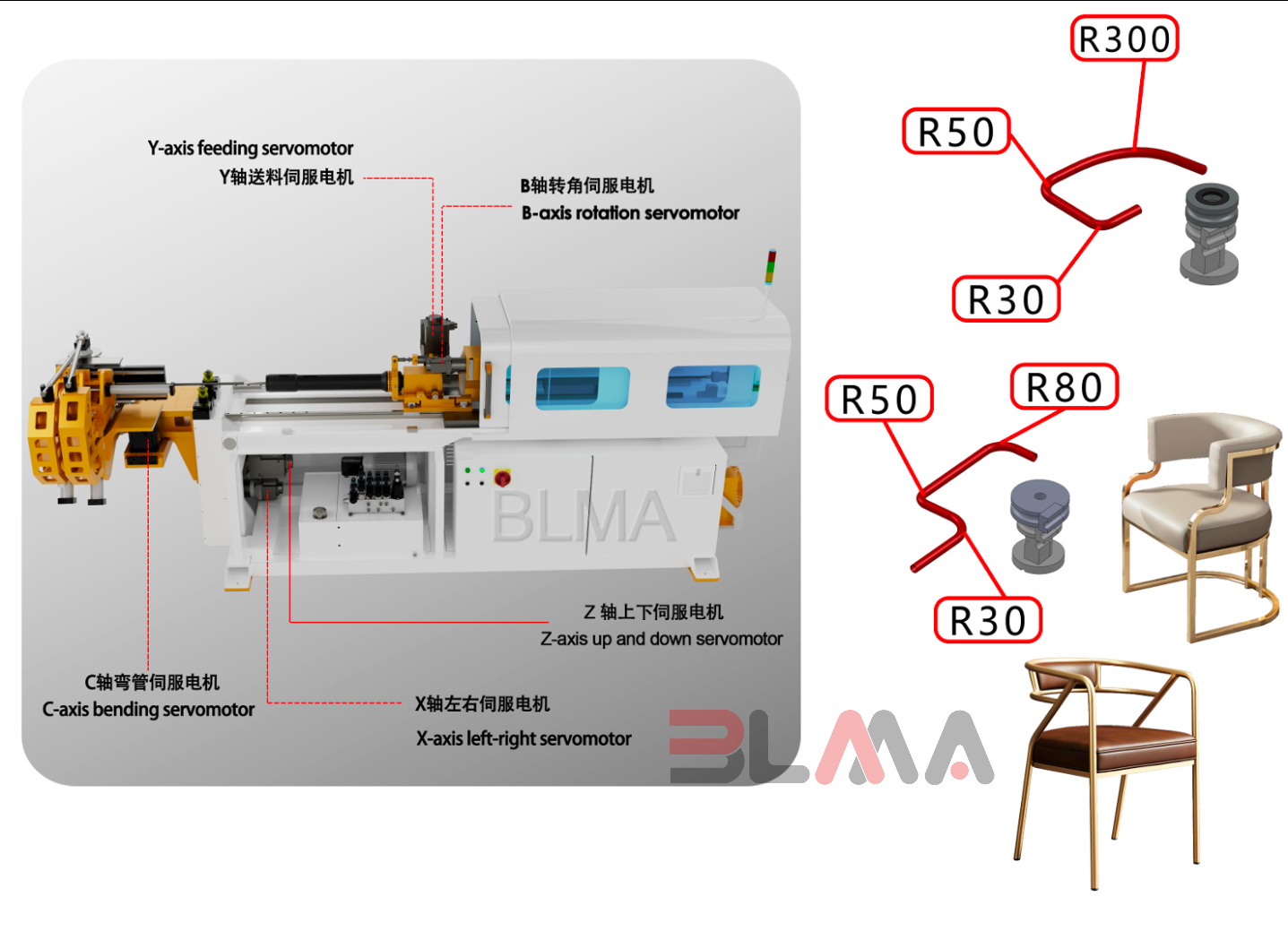

Analytical diagram：

BLMA’s multi-layer CNC automatic pipe benders, equipped with multiple tooling levels, offer a reliable solution for bending complex and detailed parts. These versatile machines are capable of handling pipes in various shapes and sizes—whether round, oval, rectangular, or more. They also feature a push bending function, allowing for the creation of larger bend radii with ease.

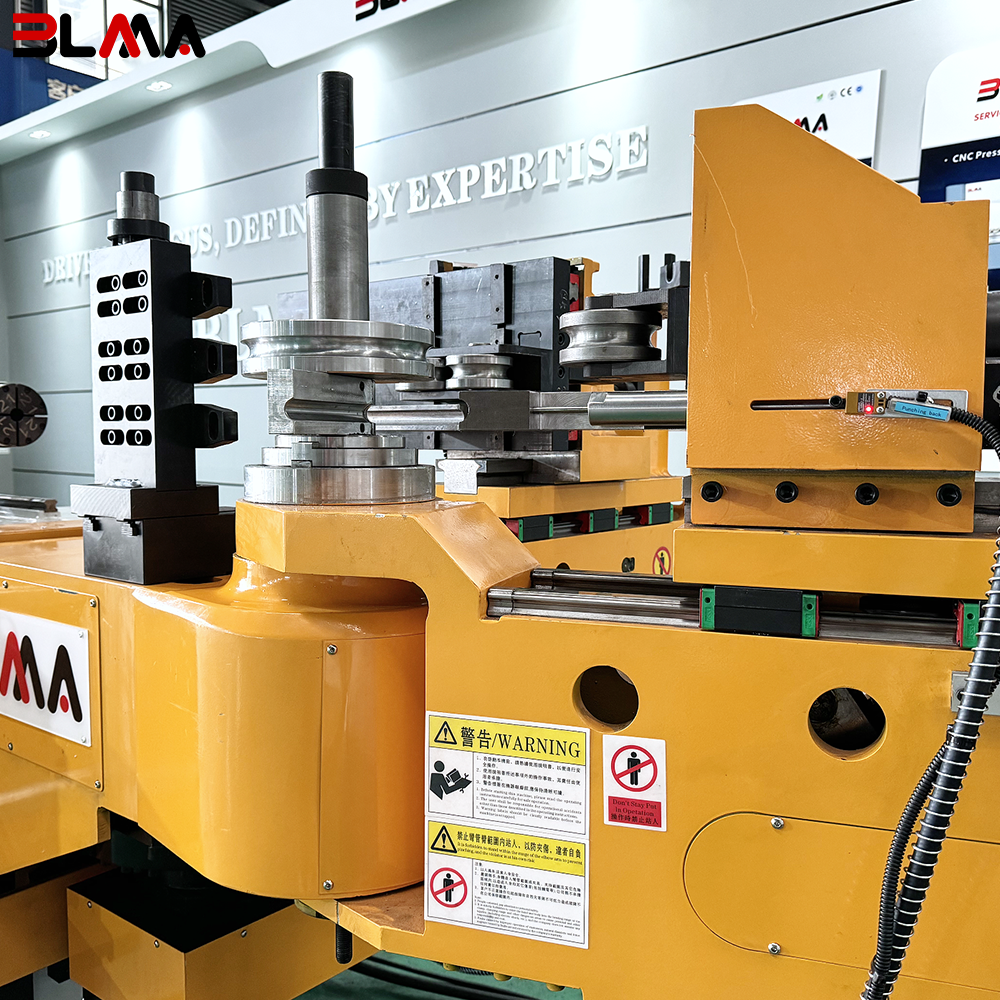

BLMA manufactures its own molds for profile and tube bending machines, known for their high precision and extended lifespan. The tooling for a pipe bending machine consists of a set of tools: clamping dies, mandrels, and rollers. Mandrels and wipers are used to maintain the shape of the pipe during bending, improving bend quality and preventing wrinkling and corrugation at the bend point.

The IPC-based PLC control system, paired with advanced software, enables precise control over bending parameters such as bend angle and processing speed. This ensures exceptional accuracy and consistency in every operation. Featuring built-in memory, the controller can store multiple bending programs, making it perfect for mass production of different products with high repeatability.

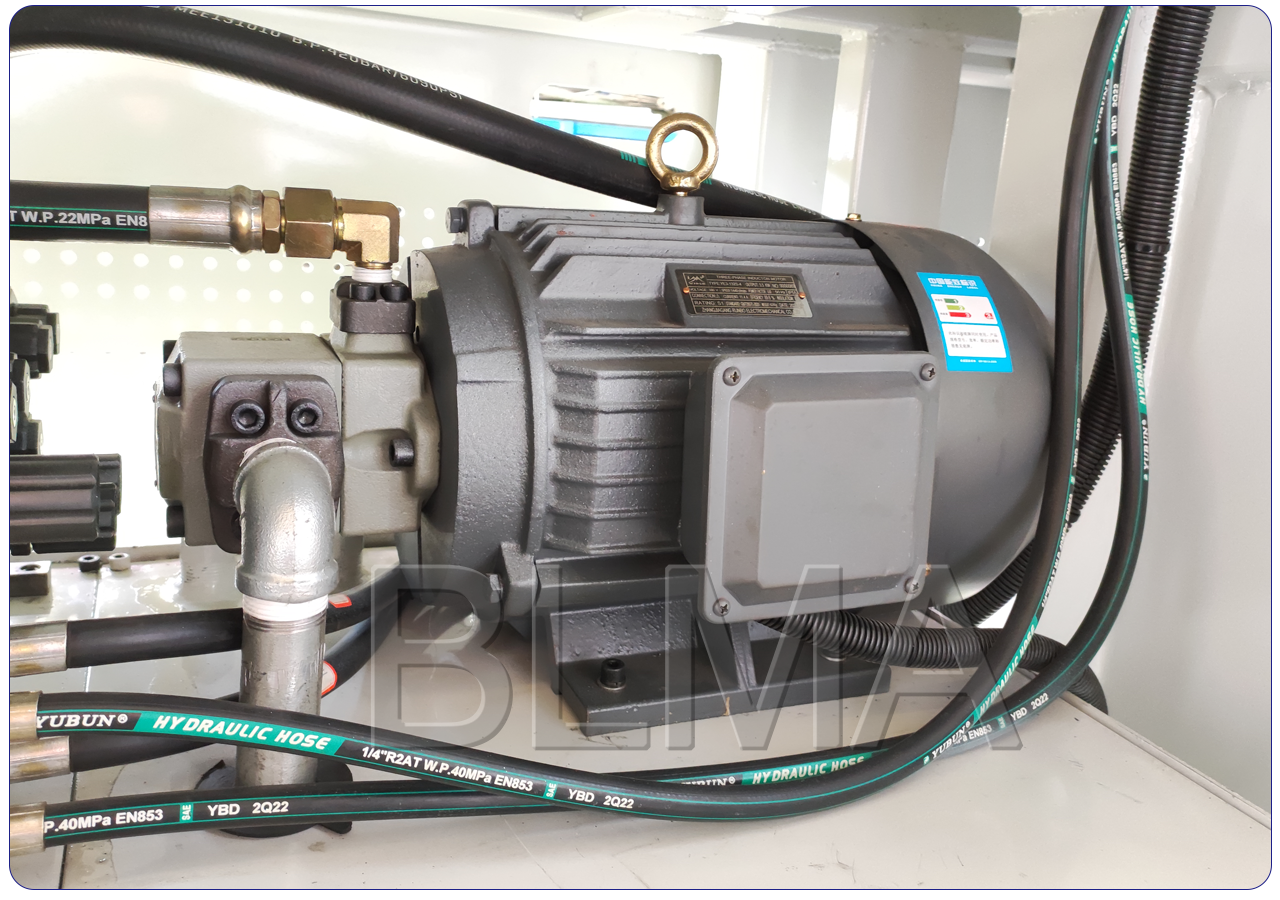

The main motor, available from SIEMENS or optionally from Taiwan’s Yuanbang, offers a highly efficient and dependable solution for tube bending machines. Known for its high performance and cost-effectiveness, this motor ensures stable and powerful operation, even under heavy loads.

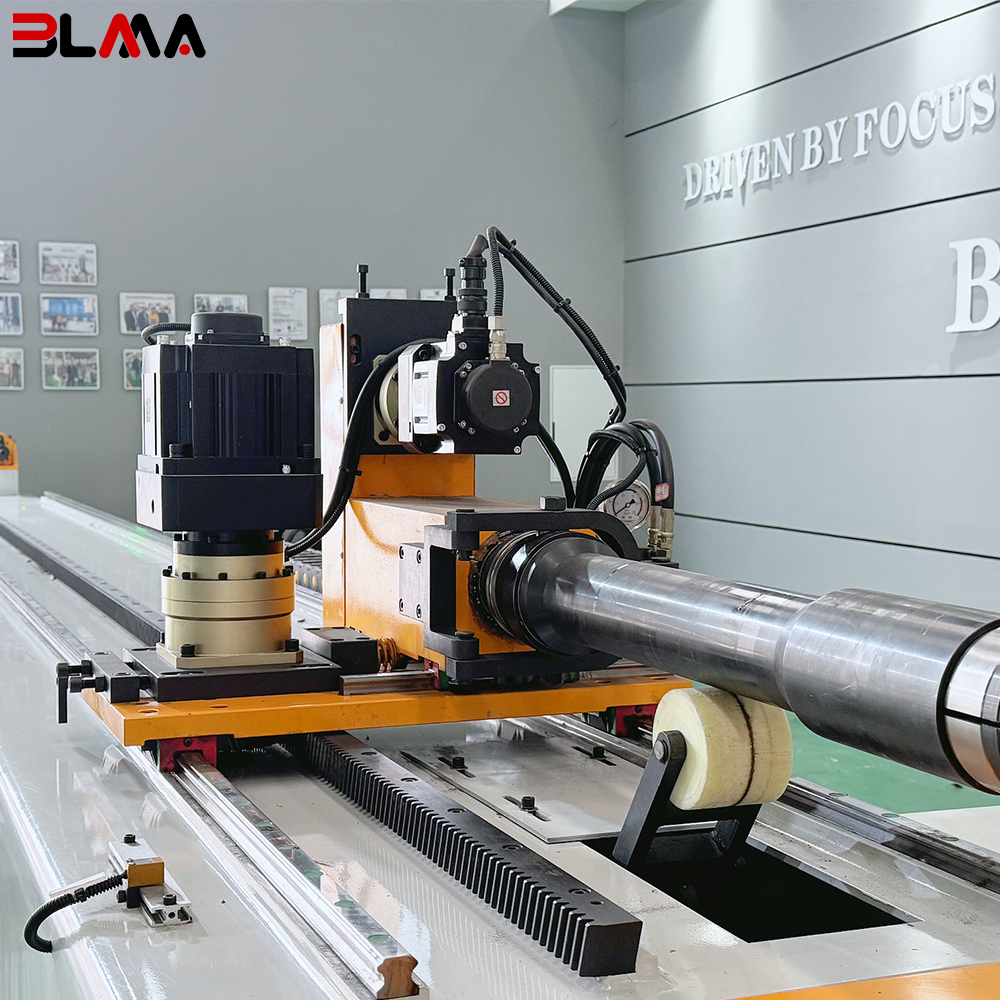

The servo motor in the pipe bender ensures highly accurate and efficient bending performance. The pipe feeder mechanism provides a continuous and precise feed of material into the processing area, while also rotating the material as needed. This efficient feeding system reduces the need for manual labor, enhances the machine’s production capacity, and helps minimize errors and defects in the finished products.

The servo drive in an automatic tube bending machine delivers precise control and optimal performance by transforming electrical signals into accurate mechanical actions. It ensures smooth and accurate bending of pipes with varying diameters and materials, playing a key role in achieving high precision during manufacturing processes.

BLMA pipe benders use electrical components exclusively sourced from top international brands renowned for their reliability and precision. This ensures high-quality performance and longevity in industrial applications. The electrical components are protected against overloads, short circuits, and other potential issues, which prevents emergency situations and extends the equipment’s lifespan.

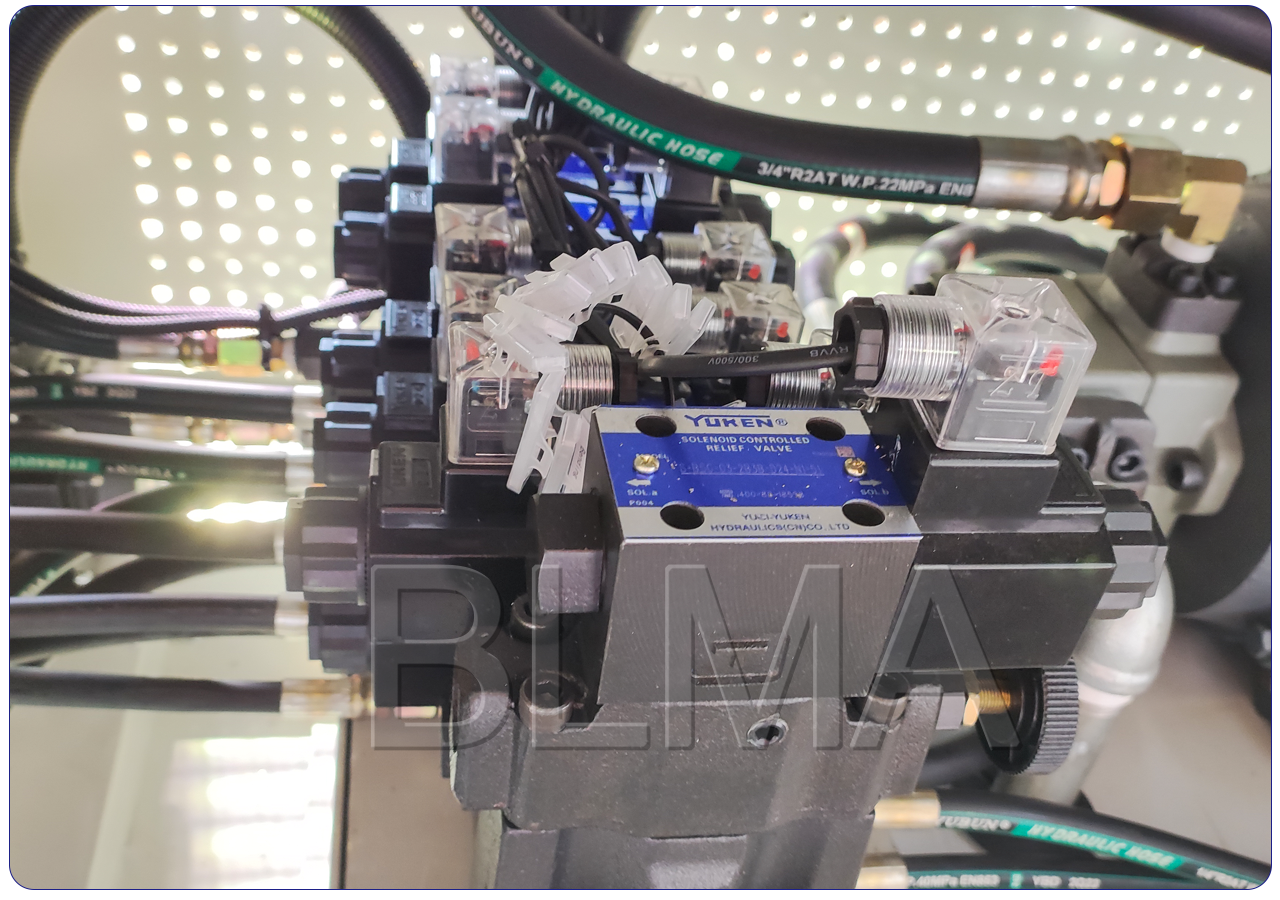

The valve system from Yuken JAPAN consists of high-quality components designed to control flow and pressure in hydraulic systems. Thanks to the use of premium materials and stringent quality control, these valves are highly wear-resistant and capable of withstanding heavy loads.

BLMA CNC pipe bending machines feature the linear guide from Hiwin TAIWAN. This guide rail is made from high-strength materials, guaranteeing its durability and wear resistance even under intensive use. A special coating and precise mechanical processing minimize friction and wear, providing accurate and smooth movement of the carriage along the rails.

We attend global machinery exhibitions each year to showcase our pipe bending machines. These events help us connect with industry leaders and potential customers. Our machines are designed for construction, automotive, and manufacturing, offering precision and reliability. Visit our booth to see how we can improve your production.

Main equipment design and manufacturing standards：

We are proud to have received numerous certifications and licenses for the quality of our machines, including CE and ISO 9001. These certifications reflect our commitment to delivering high-quality, reliable, and safe products to our customers.

BLMA has grown to become one of China’s largest manufacturers of CNC machines. Since our establishment, we have been dedicated to producing high-quality sheet metal and pipe processing equipment. Our commitment to innovation and excellence has earned us a global reputation for delivering advanced technology and exceptional machine performance. As a leading global manufacturer of machinery for the metal processing industry, BLMA is proud to serve a diverse range of markets around the world.

Our pipe bending machine factory is equipped with advanced production equipment to ensure top quality and precision. We use CNC technology, automated assembly lines, and specialized testing systems to manufacture our machines. Our facility features high-performance bending machines, hydraulic presses, and laser cutting tools, all designed to meet the needs of the modern metalworking industry. This allows us to produce efficient, durable, and accurate pipe bending solutions for various applications.

Each year, we take part in several specialized machinery exhibitions to showcase our latest products. We also welcome clients from around the world to visit our factory, where they can see our production process and experience the quality of our machines firsthand. These visits help build strong relationships and long-term partnerships with customers globally.

Customer Visit & On-Site Inspection

Our customers visit the BLMA factory to inspect the production process and machine quality in person. From structure to performance testing, every detail is checked on-site to ensure each machine meets real production requirements before delivery.

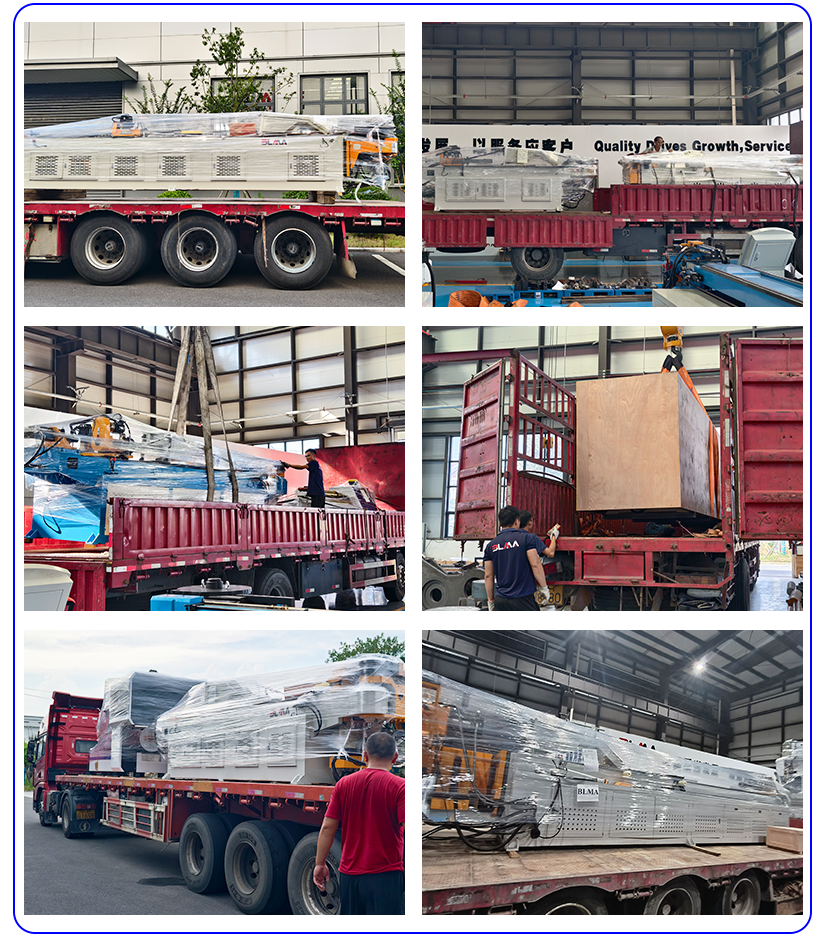

Machine Ready for Shipment

The machine has been fully assembled, tested, and approved for shipment. Careful inspection and secure packing ensure stable performance and safe delivery to the customer.

Quality guarantee and after-sales service:

1) Our machine is easy to operate,manual operation and teaching video sent out together with the machine.

2).We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT or by sea freely.

3).Our factory provide the service for the customer forever, if the customer need our operation help,

can contact us by Skype, Email and Telephone at any time, we provide 24 hours on
