CNC Sheet Metal Fiber Laser Cutter Cutting Machine

CNC Sheet Metal Fiber Laser Cutter Cutting Machine is a kind of CNC laser metal cutting equipment with high quality, high speed, high precision, and high efficiency. It is suitable for all kinds of metal cutting which will be your good metalworking partner. CNC Sheet Metal Fiber Laser Cutter Cutting Machine is an affordable, easy-to-use, and versatile tool that is used for high-speed cutting of metal plates and pipes. It can help you begin a new startup venture or increase the profits of your well-established company.

  • BL-3015FC
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Blue-white,can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

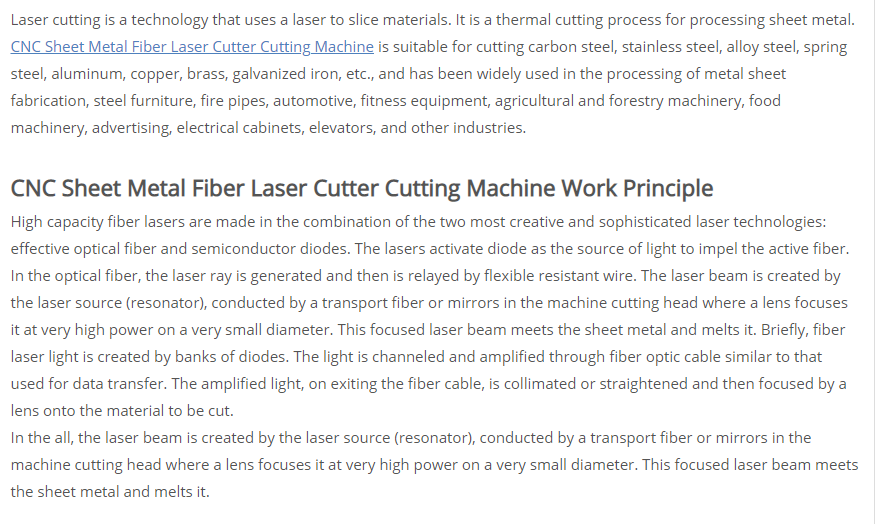

Laser cutting is a technology that uses a laser to slice materials. It is a thermal cutting process for processing sheet metal. CNC Sheet Metal Fiber Laser Cutter Cutting Machine is suitable for cutting carbon steel, stainless steel, alloy steel, spring steel, aluminum, copper, brass, galvanized iron, etc., and has been widely used in the processing of metal sheet fabrication, steel furniture, fire pipes, automotive, fitness equipment, agricultural and forestry machinery, food machinery, advertising, electrical cabinets, elevators, and other industries.


CNC Sheet Metal Fiber Laser Cutter Cutting Machine Work Principle

High capacity fiber lasers are made in the combination of the two most creative and sophisticated laser technologies: effective optical fiber and semiconductor diodes. The lasers activate diode as the source of light to impel the active fiber. In the optical fiber, the laser ray is generated and then is relayed by flexible resistant wire. The laser beam is created by the laser source (resonator), conducted by a transport fiber or mirrors in the machine cutting head where a lens focuses it at very high power on a very small diameter. This focused laser beam meets the sheet metal and melts it. Briefly, fiber laser light is created by banks of diodes. The light is channeled and amplified through fiber optic cable similar to that used for data transfer. The amplified light, on exiting the fiber cable, is collimated or straightened and then focused by a lens onto the material to be cut.

In the all, the laser beam is created by the laser source (resonator), conducted by a transport fiber or mirrors in the machine cutting head where a lens focuses it at very high power on a very small diameter. This focused laser beam meets the sheet metal and melts it.

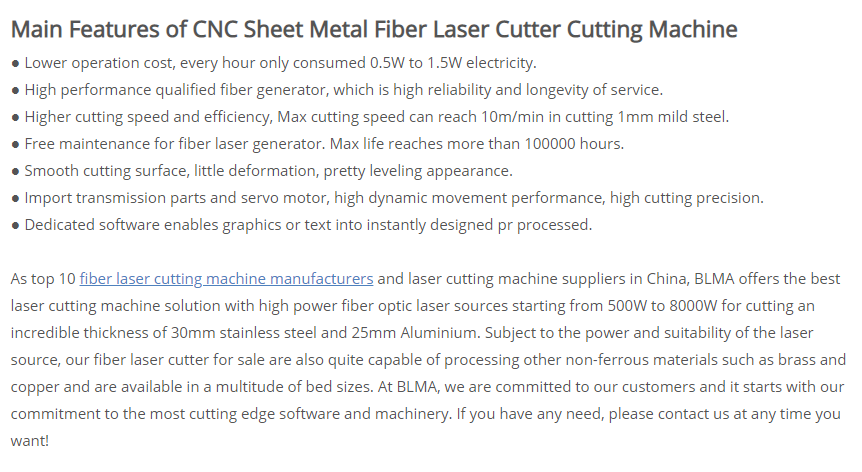

Main Features of CNC Sheet Metal Fiber Laser Cutter Cutting Machine

● Lower operation cost, every hour only consumed 0.5W to 1.5W electricity.

● High performance qualified fiber generator, which is high reliability and longevity of service.

● Higher cutting speed and efficiency, Max cutting speed can reach 10m/min in cutting 1mm mild steel.

● Free maintenance for fiber laser generator. Max life reaches more than 100000 hours.

● Smooth cutting surface, little deformation, pretty leveling appearance.

● Import transmission parts and servo motor, high dynamic movement performance, high cutting precision.

● Dedicated software enables graphics or text into instantly designed pr processed.


As top 10 fiber laser cutting machine manufacturers and laser cutting machine suppliers in China, BLMA offers the best laser cutting machine solution with high power fiber optic laser sources starting from 500W to 8000W for cutting an incredible thickness of 30mm stainless steel and 25mm Aluminium. Subject to the power and suitability of the laser source, our fiber laser cutter for sale are also quite capable of processing other non-ferrous materials such as brass and copper and are available in a multitude of bed sizes. At BLMA, we are committed to our customers and it starts with our commitment to the most cutting edge software and machinery. If you have any need, please contact us at any time you want!


CNC Sheet Metal Fiber Laser Cutter Cutting Machine Details

01-Fiber-laser-cutting-machine


Open worktable

Easy to cut and operate

02-Fiber-laser-cutting-machine

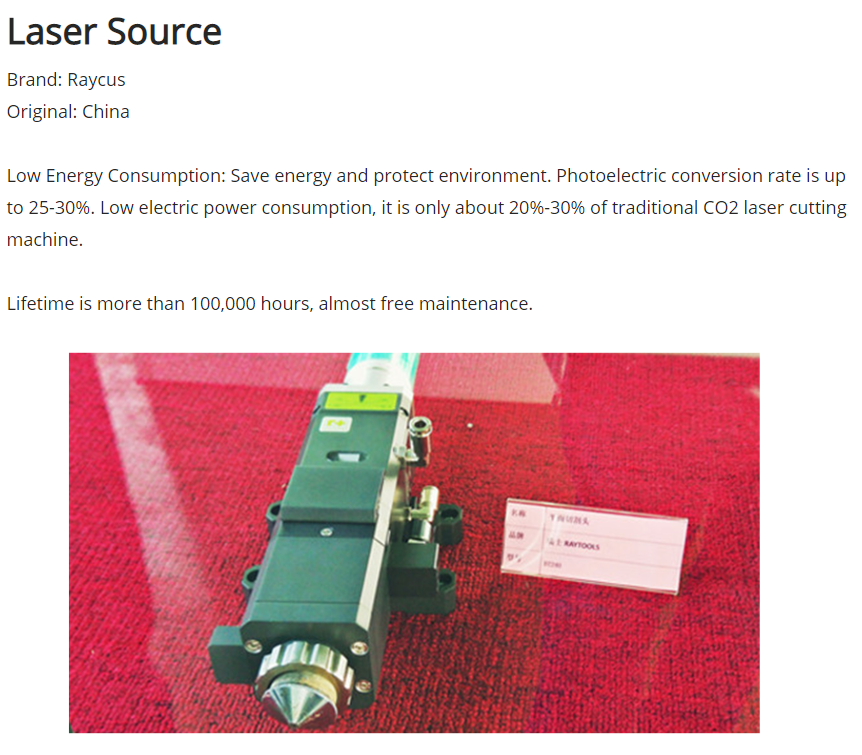

Laser Source
Brand: Raycus
Original: China

Low Energy Consumption: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

Lifetime is more than 100,000 hours, almost free maintenance.

03-Fiber-laser-cutting-machine

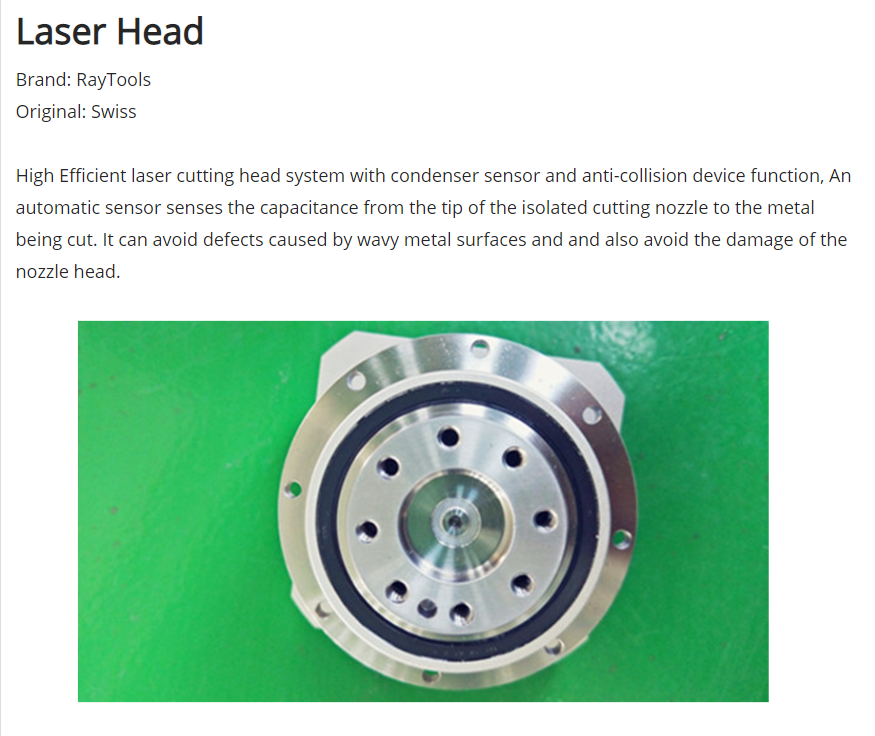

Laser Head
Brand: RayTools
Original: Swiss

High Efficient laser cutting head system with condenser sensor and anti-collision device function, An automatic sensor senses the capacitance from the tip of the isolated cutting nozzle to the metal being cut. It can avoid defects caused by wavy metal surfaces and and also avoid the damage of the nozzle head.

04-Fiber-laser-cutting-machine

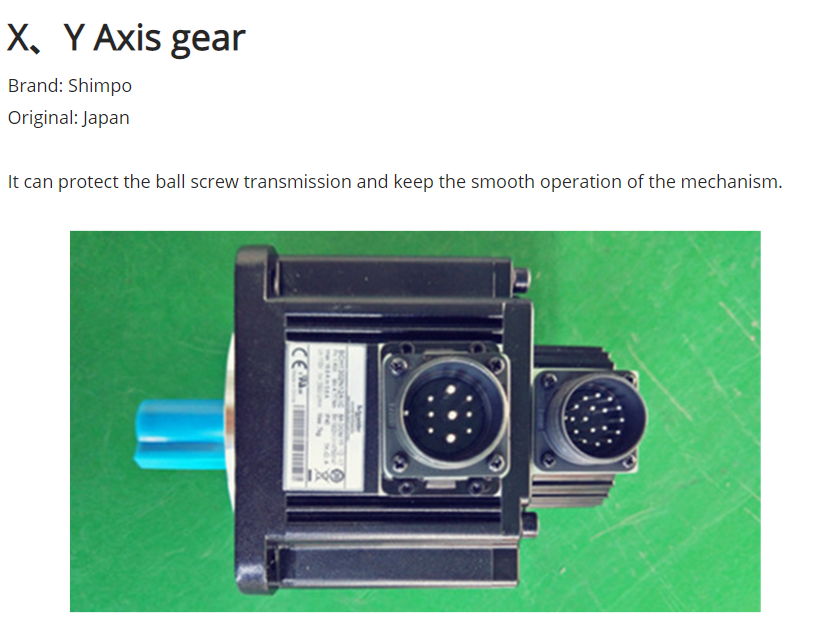

X、Y Axis gear
Brand: Shimpo
Original: Japan

It can protect the ball screw transmission and keep the smooth operation of the mechanism.

05-Fiber-laser-cutting-machine

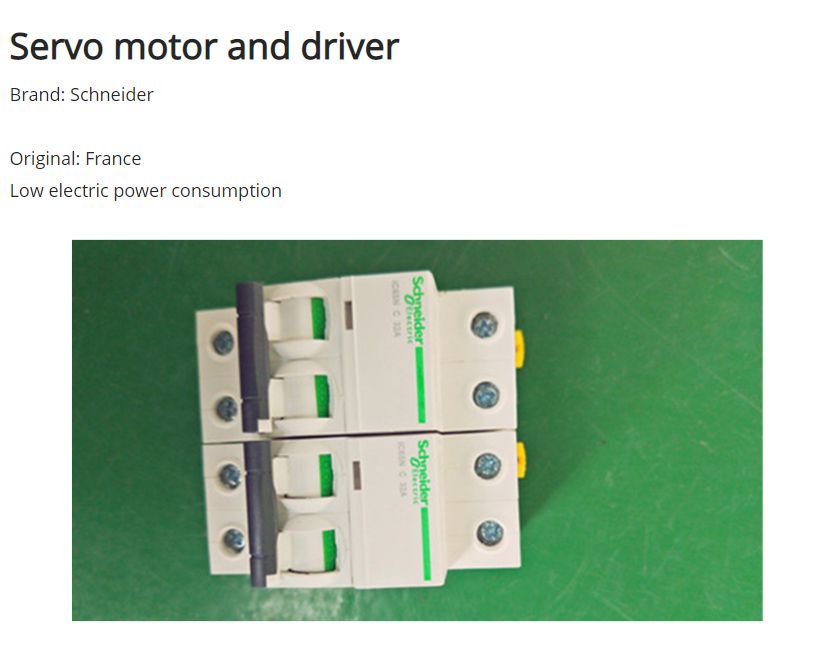

Servo motor and driver
Brand: Schneider

Original: France
Low electric power consumption

06-Fiber-laser-cutting-machine

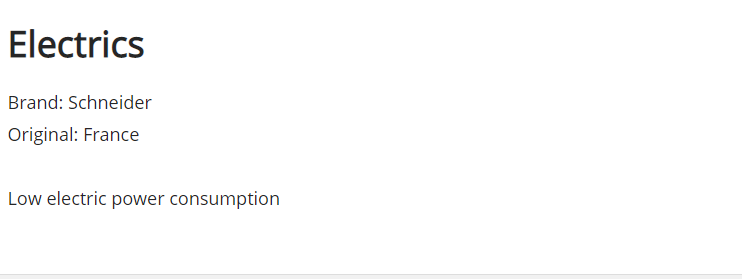

Electrics

Brand: Schneider
Original: France

Low electric power consumption


Parameters

Model


500W

1000W

2000W

3000W

4000W

6000W

8000W

Thickness

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

Carbon steel

1

8-13

15-24

24-30

30-42

40-45

60-80

70-90

2

3-4.5

5-7.5

5.5-8

7-9

8-10

9-12

10-13

3

1.8-3

2.4-4

3.5-4.8

4-6.5

4.5-6.5

4-7

4-7

4

1.3-1.5

2-2.4

2.8-3.5

3.5-4.5

4-5

4.2-5.5

4.7-5.5

5

0.9-1.1

1.8-2

2.5-3

3-3.5

3-4.2

3.5-4.2

3.8-4.5

6

0.6-0.9

1.4-1.6

1.8-2.6

2.5-3.2

3-3.5

3-4

3.3-4.2

8


0.8-1.2

1.2-1.8

1.8-2.6

2-3

2.2-3.2

2.5-3.5

10


0.6-1.0

1.1-1.3

1.4-2

1.5-2.5

1.8-2.5

2.2-2.7

12


0.5-0.8

0.9-1.2

1.2-1.6

1.4-2

1.6-2

1.8-2.1

14



0.7-0.8

0.9-1.4

1-1.6

1.5-1.8

1.7-1.9

16



0.6-0.7

0.8-1.2

0.8-1.2

0.8-1.5

0.9-1.7

18



0.4-0.6

0.7-1

0.8-1.1

0.9-1.2

0.9-1.2

20




0.6-0.8

0.7-1

0.8-1.1

1.0-1.5

22




0.4-0.6

0.6-0.8

0.7-0.9

0.8-1

25





0.3-0.5

0.4-0.6

0.5-0.7

Stainless steel

1

8-13

18-25

24-30

30-42

40-55

60-80

70-90

2

2.4-5

7-12

10-17

18-21

20-30

30-42

40-55

3

0.6-0.8

1.8-2.5

4-6.5

8-12

12-18

18-24

30-38

4


1.2-1.3

3-4.5

6-9

8-12

10-18

18-24

5


0.6-0.7

1.8-2.5

3-5

4-6.5

8-12

12-17

6



1.2-2

3-4.3

4-6.5

6-9

8-14

8



0.7-1

1.5-2

1.8-3

4-5

6-8

10




0.8-1

0.8-1.5

1.8-2.5

3-5

12




0.5-0.8

0.6-1

1.2-1.8

1.8-3

15





0.5-0.8

0.6-0.8

1.2-1.8

20





0.4-0.5

0.5-0.8

0.6-0.7

25






0.4-0.5

0.5-0.6

30







0.4-0.5

Aluminum

1

4-5.5

6-10

20-25

25-40

40-55

55-65

80-90

2

0.7-1.5

2.8-3.6

7-10

10-18

15-25

25-35

35-50

3


0.7-1.5

4-6

7-10

10-15

13-18

21-30

4



2-3

4-5.5

8-10

10-12

13-18

5



1.2-1.8

3-4

5-7

6-10

9-12

6



0.7-1

1.5-2.5

3.5-4

4-6

4.5-8

8




0.7-1

1.5-2.5

2-3

4-6

10




0.5-0.7

1-1.5

1.5-2.1

2.2-3

12





0.7-0.9

0.8-1.4

1.5-2

15





0.5-0.7

0.7-1

1-1.6

20






0.5-0.7

0.7-1

25







0.5-0.7

Brass

1

4-5.5

6-10

14-16

25-35

35-45

50-60

70-85

2

0.5-1

2.8-3.6

4.5-6.5

10-15

10-15

25-30

30-40

3


0.5-1

2.5-3.5

5-8

7-10

12-18

15-24

4



1.5-2

3.5-5

5-8

8-10

9-15

5



1.4-1.6

2.5-3.2

3.5-5

6-7

7-9

6




1.2-2

1.5-2.5

3.5-4.5

4.5-6.5

8




0.7-0.9

0.8-1.5

1.6-2.2

2.4-4

10





0.5-0.8

0.8-1.4

1.5-2.2

12






0.6-0.8

0.8-1.5

16







0.6-0.8
