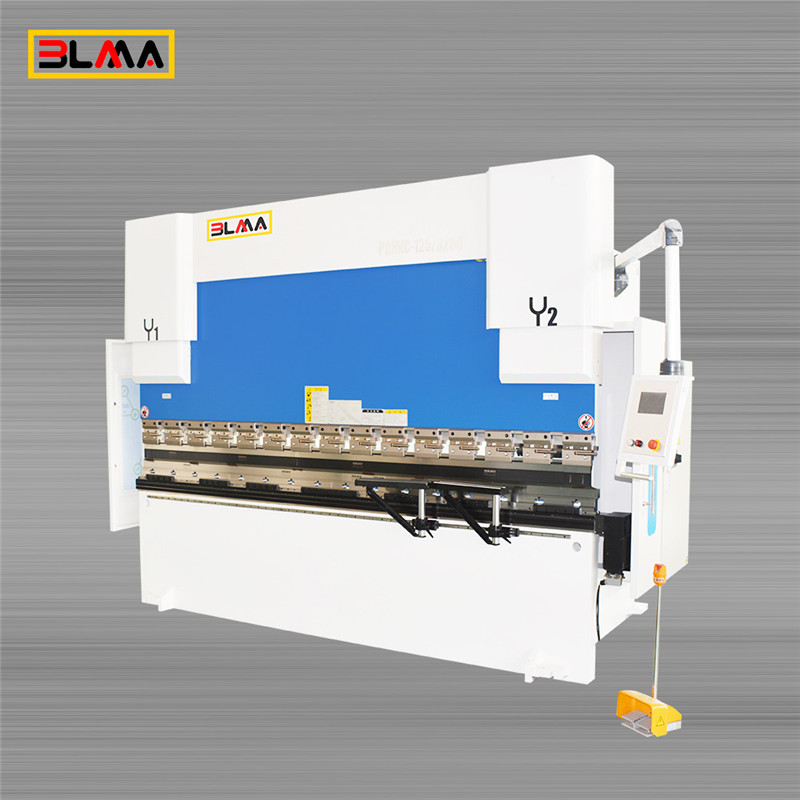

CT8 Controller Sheet Metal Press Brake Mechanical Press Brake

●Open to any operator through simple and intuitive full touch screen programming
●2 Axis CNC Control(X, Y,)
●Quality and productivity increases
●Powerful features for easy operating and better bending
Availability:
  • WE67K DA53T

  • T/T, L/C, D/P, Western Union, MoneyGram

  • Jiangsu, China

  • Can be customized

  • Shanghai

  • 30 days after deposit confirmed

Description

01-CT8


Cybelec CT8 Controller

1. Large, vivid and high-contrast fully touch screen.
2. Simple pages, clear display, large keys.
3. Very simple single bends with EasyBend page.
4. Complete programming allows efficient mass-production of parts with multiple bends.
5. Online help and warning pop-ups make it a very user-friendly software.
6. Available in many languages.
7. Comfortable wireless software updating and data backup using PC or Notebook.


02-CT8


Germany Siemens Motor
Using Siemens motor guarantee the machine service life and improve the machine working stability


03-CT8


Germany Voith Oil Pump
Using Germany Voilth oil pump guarantee low sensitivity to oil pollution, assure of long service life and reduce noise during working

04-CT8


Bosch Rexroth Hydraulic Valve
Germany Bosch Rexroth integrated hydraulic valve block, hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid.

05-CT8


Frane Schneider Electrics
Stable France Schneider electrics, Estun Servo drive to improve the positioning accuracy of X, Y axis

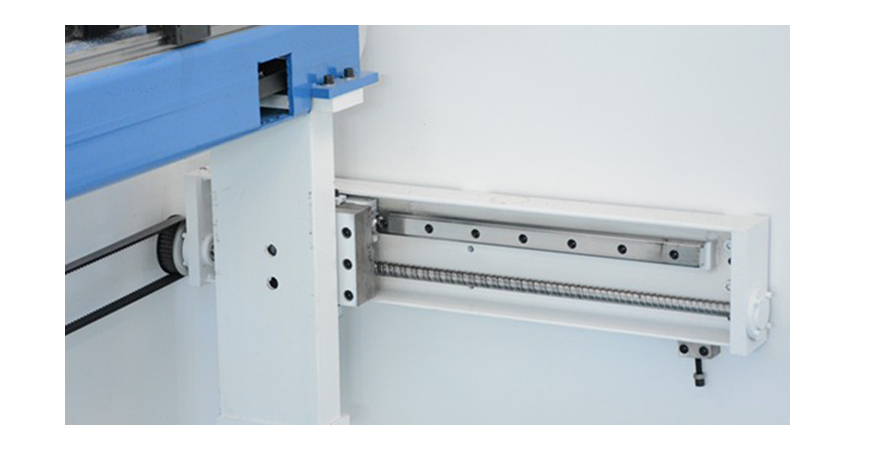

06-CT8


Hiwin Ball Screw and Linear Guide Rall
Using Taiwan Hiwin ball screw and linear guider to improve the machine backguage accurancy


07-CT8


Kacon Pedal Swith
South Korea Kacon pedal switch, improving the service life and operational sensitivity


08-CT8


Germany EMB Tube
Using Germany EMB tube and connectors reduce the odds against welding slag jam into the valves and affect oil flowing


09-CT8


Mechanical Fast Clamps
Using mechanical fast clamp for upper dies, changing dies more convenient and safe

10-CT8


42Crmo Toolings
The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42°, ensuring the die service life


11-CT8


Front Plate Support
Movable front material support on Hiwin linear guider, can move left and right by hand very easy.

12-CT8


Mechanical Crowning
Optional electric mechanical crowing, improving the percision of bending angle and linearity.


Optional Components

Back guage up and down

Hydrualic crowning

Main motor Servo Motor

Italy dsp laser protection

Optional segment die

Motorized stopper fngers Z1 and Z2



Parameters

Type

Norminal force

Bending length

Poles distance

Throat distance

Slider travel

Height of table

Die loading height

Power

Compensation

Axis

Travel

Speed

Dimension
LxWxH

KN

mm

mm

mm

mm

mm

mm

kw



mm

mm/s

mm

63T/2500

630

2500

1900

350

120

800

380

5.5

2

3+1

500

200

3100x1450x2050

80T/3200

800

3200

2600

350

120

800

380

7.5

3

3+1

500

200

3500x1550x2100

100T/3200

1000

3200

2600

400

150

800

420

7.5

3

3+1

500

200

3500x1580x2400

160T/3200

1600

3200

2600

400

170

800

420

11

3

3+1

500

200

3500x1650x2500

200T/3200

2000

3200

2540

400

200

800

420

15

3

3+1

500

200

3500x1680x2550

250T/3200

2500

3200

2540

400

200

800

420

15

3

3+1

500

200

3500x1700x2600

320T/3200

3200

3200

2700

400

200

800

420

15

3

3+1

500

200

3500x1880x2730

400T/4000

4000

4000

3500

400

200

800

420

18.5

4

3+1

500

200

4300x2080x2730

500T/5000

5000

5000

3900

500

320

800

600

22.5

5

3+1

500

200

5400x2525x4600

500T/6000

5000

6000

4900

500

320

800

600

37

6

3+1

500

200

6500x2525x4200

500T/7000

5000

7000

5900

500

320

800

600

37

6

3+1

500

200

7500x2525x4900

600T/5000

6000

5000

3900

500

320

800

600

37

5

3+1

500

200

5500x2450x4500

600T/6000

6000

6000

4900

500

320

800

600

45

6

3+1

500

200

6500x2450x5100

600T/7000

6000

7000

5900

500

320

800

600

45

7

3+1

500

200

7500x2450x5200

800T/6000

8000

6000

4900

600

420

800

600

45

3

3

800

200

6500x2750x5300

800T/7000

8000

7000

5900

600

420

800

600

74

3

3

800

200

7500x2750x5500

800T/8000

8000

8000

5900

600

420

800

600

74

3

3

800

200

8500x2750x5900

1000T/6000

10000

6000

5900

600

420

800

600

74

3

3

800

200

6500x2800x5600

1000T/7000

10000

7000

5900

600

420

800

600

90

3

3

800

200

6500x2800x5800

1000T/8000

10000

8000

6900

600

420

800

600

90

3

3

800

200

6500x2800x6100

1200T/6000

12000

6000

4900

600

420

800

600

90

3

3

800

200

6500x3100x5850

1200T/7000

12000

7000

5900

600

420

800

600

90

3

3

800

200

6500x3100x6550

1200T/8000

12000

8000

6900

600

420

800

600

90

3

3

800

200

8500x3100x7150

1600T/6000

16000

6000

4900

500

320

800

600

110

3

3

800

500

6500x3300x6500

1600T/7000

16000

7000

5900

500

320

800

600

110

3

3

800

500

7500x3300x7000

1600T/8000

16000

8000

6900

500

320

800

600

110

3

3

800

500

8500x3300x8000
