DW110 NC Semi Automatic Metal Pipe Bending Machine
Home » Products » Tube Bending Machine » NC Tube Bending Machine » DW110 NC Semi Automatic Metal Pipe Bending Machine

Product Detail

DW110 NC Semi Automatic Metal Pipe Bending Machine

Share to:

BLMA NC semi-automatic pipe bending machine comes in electric, hydraulic, and electric/hydraulic hybrid configurations and can be utilized in a vast variety of applications. DW110 NC pipe bender has a reputation for dependability and is built to ensure consistent, long-lasting performance. Touch screen controls make running the machine intuitive and ensure speedy and smooth operation. No matter what the demands of the job, a BLMA NC semi-automatic pipe bending machine has the versatility to provide reliable production, quickly and consistently.

  • DW110NC
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

The NC tube bender equipped with an NC control unit with a touch screen Interface. BLMA NC pipe bender combines easy-to-use operation with high tube bending accuracy and cost-effectiveness. It is the practical semi-automatic solution for small to medium productions.

Standard Functions:

• One axis numerical controlled of bending-axis by encoder / hydraulic valves

• Bending angle controlled by micro encoder provides ± 0.1 tolerance

• Programmable logic control system

• Provides 200 programs memory, each program with 20 angles (bends)

• Provides anticipated two steps mandrel retraction

• provides pressure die booster

• Provides pressure die micro-adjustment of backward to protect the ball mandrel.

• provides pressure die repetition

• Bending movement time can be programmable to meet different demands.

• Emergency stop of two safety plates with bending arm for working safety.



Name

Brand

Hydraulic Motor

Taiwan, Yuanbang

Main electrics

Zhengtai,China/Schneider,France

Values

Taiwan Seven Ocean

Control system

Taiwan JieJun

Vane pump

Taiwan, Kaida

Sealings

Taiwan DZ

Oil tube

Jiangsu Kejia

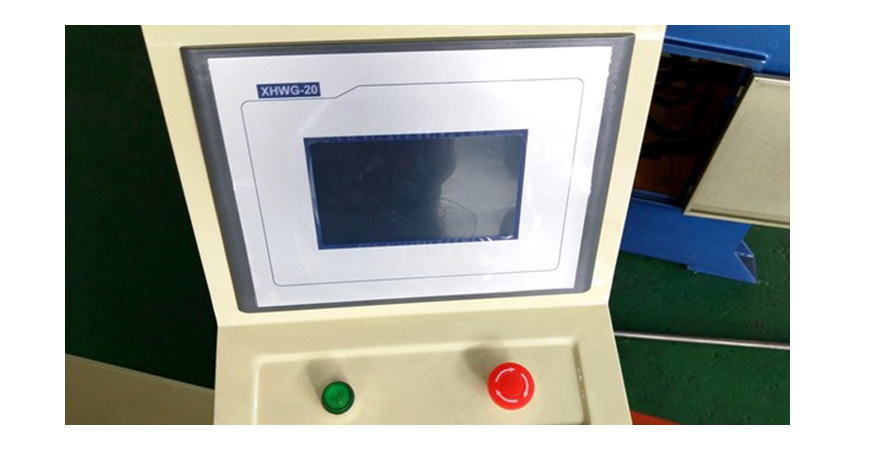

01-110NC


PLC Controller
Easy operating and working fast








02-110NC


Electrics
Schneider, France brand

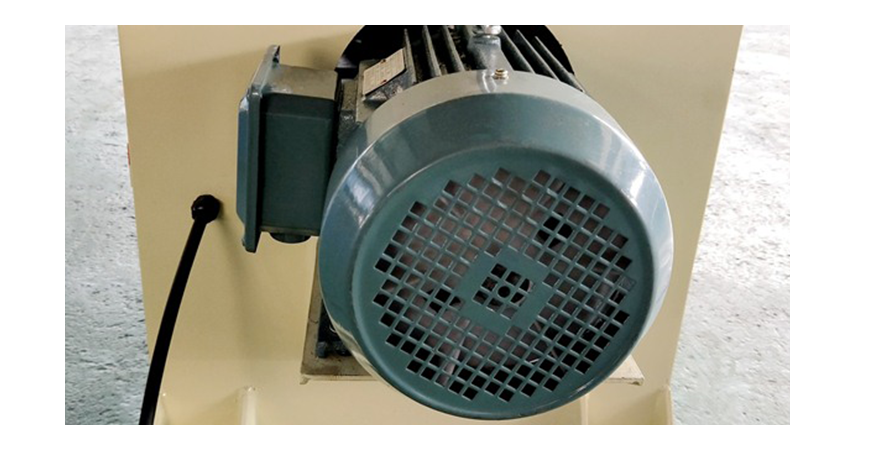

03-110NC


Mortor
Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which can keeps high efficiency and accurate bending angle.

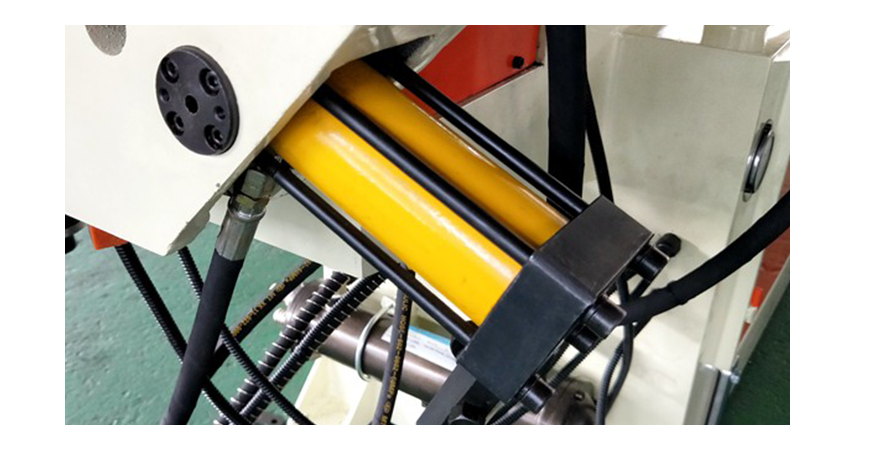

04-110NC



Clamping Hydraulic Oil Tube
Kejia, China famous brand.







05-110NC



Water Cooling System










BLMA is a professional tube bending manufacturers, offering high quality metal pipe bender and pipe tube bending machine.

Parameters

Main specification

DW110NC

Max bending capacity

φ100mm x 8mm

Max bending radius

R500mm

 Bending degree

0-190°

Max effective distance of mandrel

3600mm

Motor power

15Kw

Max hydraulic pressure

14Mpa

Oil tank capability

300L

Measurement

500 x 160 x 120cm

Weight of machine

5000kg

Video

Download

BLMA-NC-pipe-bending-machine
