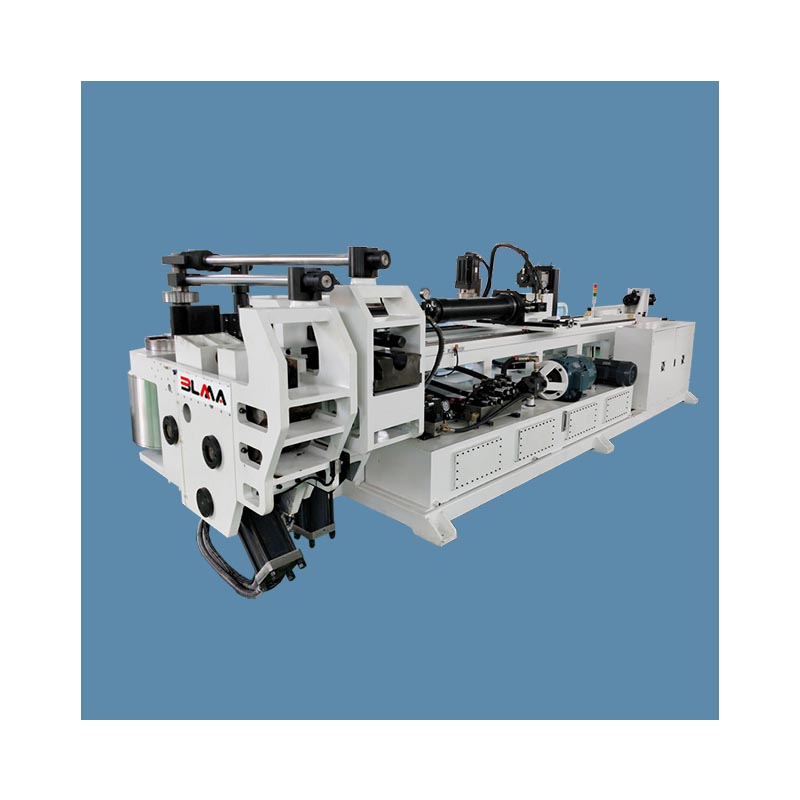

DW130CNC-2A-1S CNC Tube Bender Tube Bending Machine

CNC tube bending machines, commonly called CNC pipe bender, come in a lot of variety. Predominantly, they work electromechanically. Thanks to the latest technological developments, these machines are capable of accelerating production and improving repeatability. At the same time, they are reducing the number of errors in production at every scale. BLMA's tube and pipe bender can be used as stand-alone machines or building blocks to create a fully automated fabrication cell. All tube bending machines for sale can be coupled to autoloaders with weld-seam detectors and unloaders for lean operations.

  • DW130CNC-2A-1S
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

BLMA's CNC tube bending machine is designed for both general and precision bending applications in a wide variety of industries such as HVAC, aerospace, automotive, and furniture. Our sheet metal bending machines will save you money by providing maximum flexibility while offering the latest features and advanced technology.


The Advantages of CNC Tube Bending Machine:

● Reasonable design and simple style provides the best space for bending.

● Numerical control, convenient operation make the settings flexible.

● Using the encoder ensures the bending angle accurate and stable.

● Multiple processing models stored for different processing programs switched flexibly

● Automatically counting and power failure memory function.

● The hydraulic cooling system ensures the equipment long-time work stably under the high temperature

● The main shaft is specially heat treated.

● All parts are tested and assembled with strict quality control to meet the specification of the ISO 9001 standard.

● The tube and pipe bending machine adopting a solenoid valve and an integrated circuit to control individual bending motion separately, which can extend the life of the hydraulic parts.

● CNC pipe bender suitable for various materials such as steel, stainless, aluminum, and copper.



Name

Brand

PLC

Japan Mitsubishi

Touch screen

Taiwan Winview

Servo motor

Japan Yaskawa/Mitsubishi

Servo driver

Japan Yaskawa/Mitsubishi

Reducer

Taiwan RV/Xingxing

Main electrics

France Schneider

Hydraulic motor

Taiwan Yuanbang

Valves

Taiwan Seven Ocean

Vane pump

Taiwan Kaida

Sealing element

Taiwan Dingji

Rack

Germany Atlanta

Linear guideway

Taiwan Hiwin



01-130CNC-2A-1S


Mitsubishi Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.

02-130CNC-2A-1S


Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.

03-130CNC-2A-1S


Electrics
Schneider, France brand

04-130CNC-2A-1S

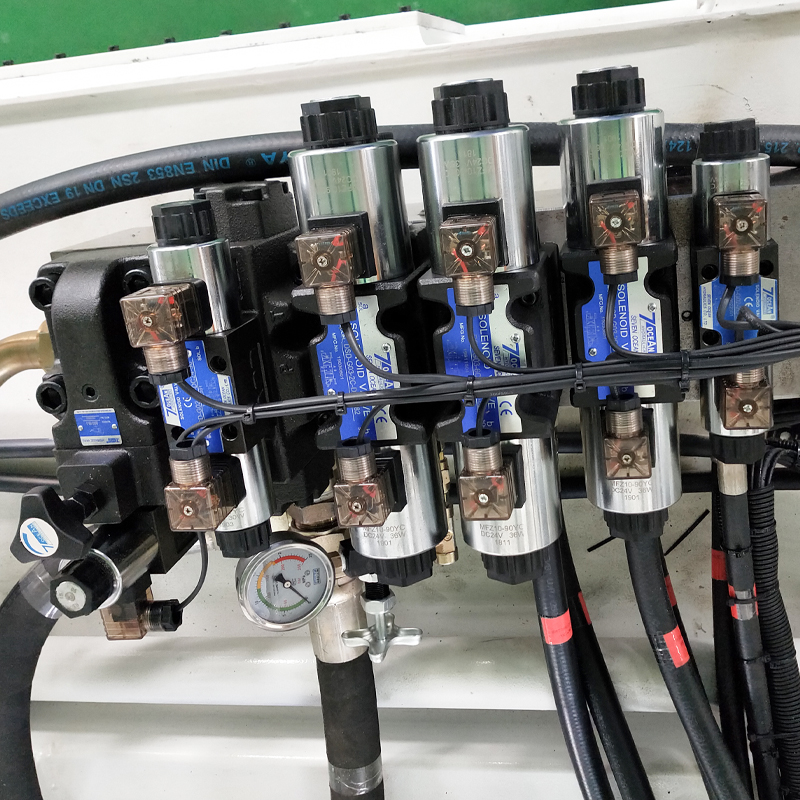

Valve
7 Ocean, Taiwan brand

05-130CNC-2A-1S


Air Cooler
Ensure the stability of the machine for a long time

06-130CNC-2A-1S

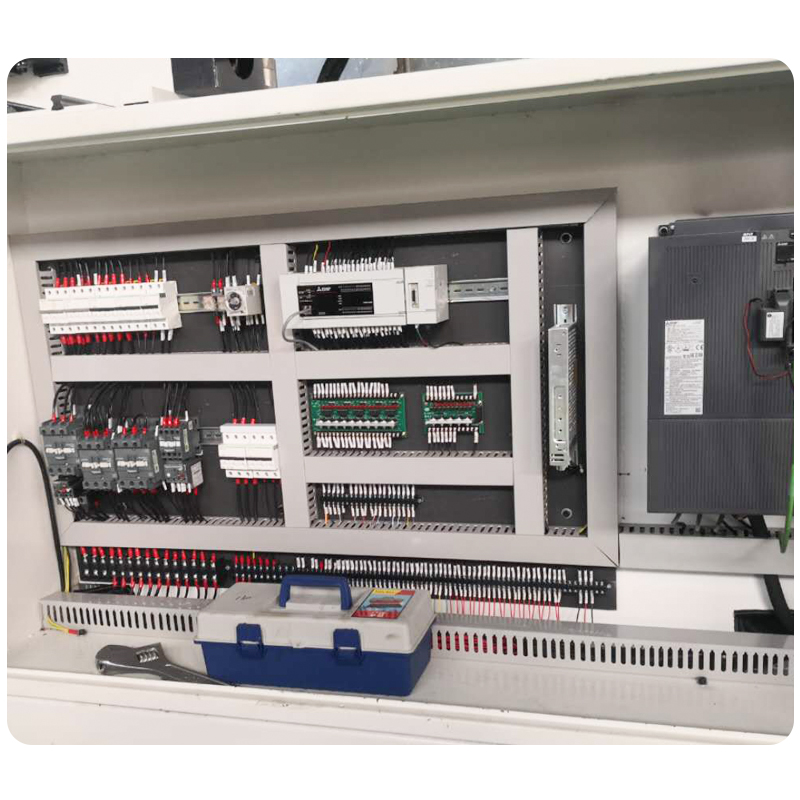

PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference


High quality cnc tube bending machine, cnc tube bender for sale, and low cnc pipe and tube bending machine price are offered by BLMA - cnc tube bending machine manufacturers.

Parameters

Main specification

DW130CNC-2A-1S

Max bending capacity

φ130mm x 10mm

Max bending radius (1)

R550mm

Min bending radius

According to pipe diameter

Max bending degree

0-190°

Max feeding length (2)

3600mm

Feeding method

Direct feeding/clamping feeding

Working speed

Bending speed

Max 25°/s

Rotary speed

Max 160°/s

Feeding speed

Max 800mm/s

Accuracy

Bending speed

0.1°

Rotary speed

0.1°

Feeding speed

0.1mm

Information inputting method

Working value (Y, B, C)

Bending method

Hydraulic

Hydraulic motor power

22kw

Rotary servo motor power

2kw

Feeding servo motor power

3kw

Max storage unit (3)

1000 groups

Max oil pressure

14Mpa

Machine weight

12000kg

Machine size

6630 x 1460 x 1600mm

Note: (1) (2) (3) Extendable
