DW18CNC-3A-1S Electric Pipe Bender Pipe Bending Machine
Home » Products » Tube Bending Machine » CNC Tube Bending Machine » DW18CNC-3A-1S Electric Pipe Bender Pipe Bending Machine

Product Detail

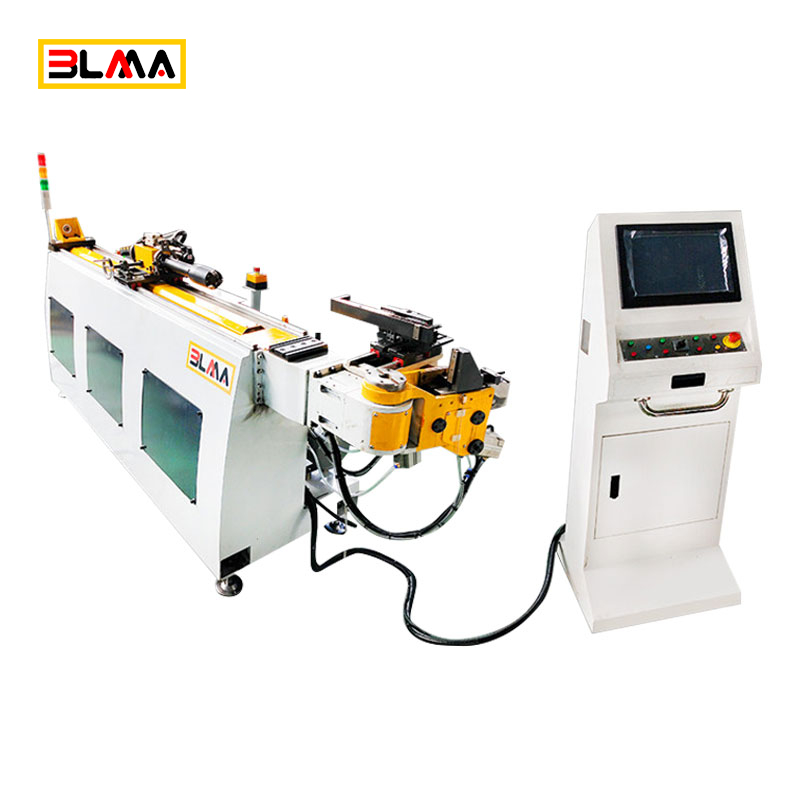

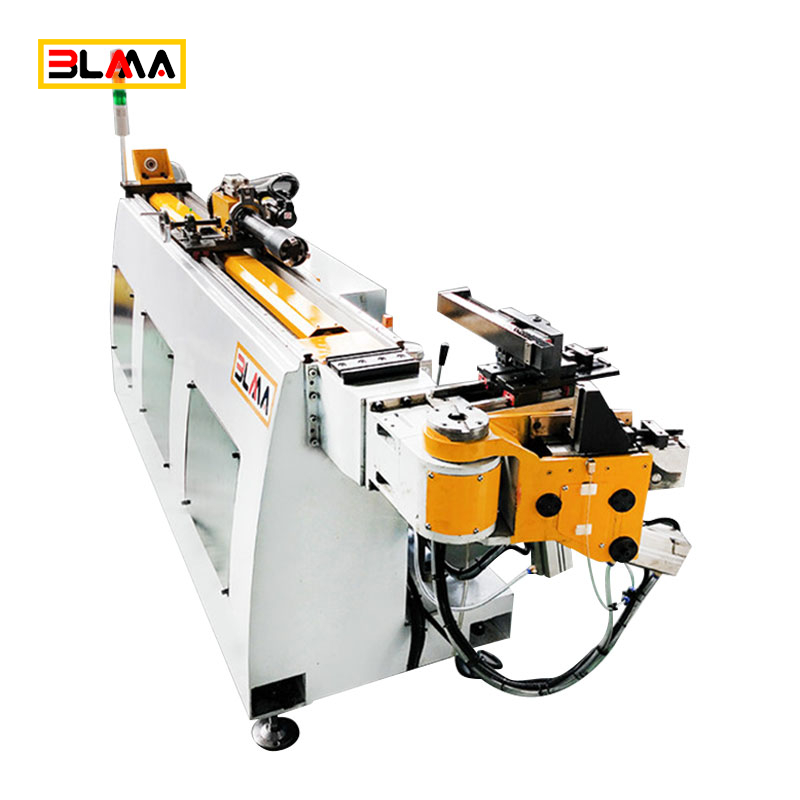

DW18CNC-3A-1S Electric Pipe Bender Pipe Bending Machine

Share to:

●Fully automatic and CNC pipe bending machine
●Equipped 3 with servo motor programmable axis
●Feeding: servo motor drive; Rotation: servo motor drive
●Bending: hydraulic and encoder control; Servomotor with reducer.
●Imported hydraulic system and PLC(standard) unit or IPC(optional).
●Automatic lubrication system for moving areas.
●Self-diagnostic system, detecting the error immediately.
●Multiple groups pipe-bending information storage.
●Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
●Touch screen and human/machine interface control provide user friendly operations.

  • DW18CNC-3A-1S
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

Name

Brand

PLC

Japan Mitsubishi

Touch screen

Taiwan Winview

Servo motor

Japan Yaskawa/Mitsubishi

Servo driver

Japan Yaskawa/Mitsubishi

Reducer

Taiwan RV/Xingxing

Main electrics

France Schneider

Hydraulic motor

Taiwan Yuanbang

Valves

Taiwan Seven Ocean

Vane pump

Taiwan Kaida

Sealing element

Taiwan Dingji

Rack

Germany Atlanta

Linear guideway

Taiwan Hiwin



01-18CNC-3A-1S


Mitsubishi Servo Driver
Corner and feeding is drived by servo motor, high efficiency, accurate bending angle and feeding.
Bending pipes with servo motor power, high precise bending angle and compensation value.

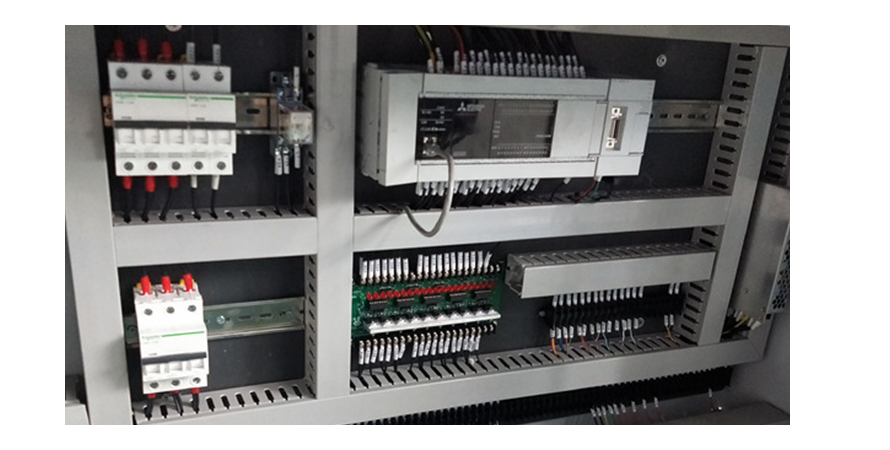

02-18CNC-3A-1S


Electrics
Schneider, France brand








03-18CNC-3A-1S


Valve
Yuken, Taiwan brand








04-18CNC-3A-1S


Pnuematic Drived Bending and Clamping
The bending is fast , with high accuracy and efficiency.








05-18CNC-3A-1S


PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference








Parameters

Main specification

DW18CNC-3A-1S

Max bending capacity

φ18mm x 1.6mm

Max bending radius (1)

R80mm

Min bending radius

According to pipe diameter

Max bending degree

0-190°

Max feeding length (2)

1500mm

Feeding method

Direct feeding/clamping feeding

Working speed

Bending speed

Max 200°/s

Rotary speed

Max 200°/s

Feeding speed

Max 1000mm/s

Accuracy

Bending speed

0.1°

Rotary speed

0.1°

Feeding speed

0.1mm

Information inputting method

Working value (Y, B, C)

Bending method

Servo

Hydraulic motor power

3kw

Bending servo motor power (3 axis)

1kw

Rotary servo motor power

400w

Feeding servo motor power

750w

Max storage unit (3)

1000 groups

Max oil pressure

10Mpa

Machine weight

800kg

Machine size

2760 x 690 x 1000mm

Note: (1) (2) (3) Extendable

Video

Download

BLMA-CNC-pipe-bending-machine-brochure

Send us your inquiry now!

Product Inquire
