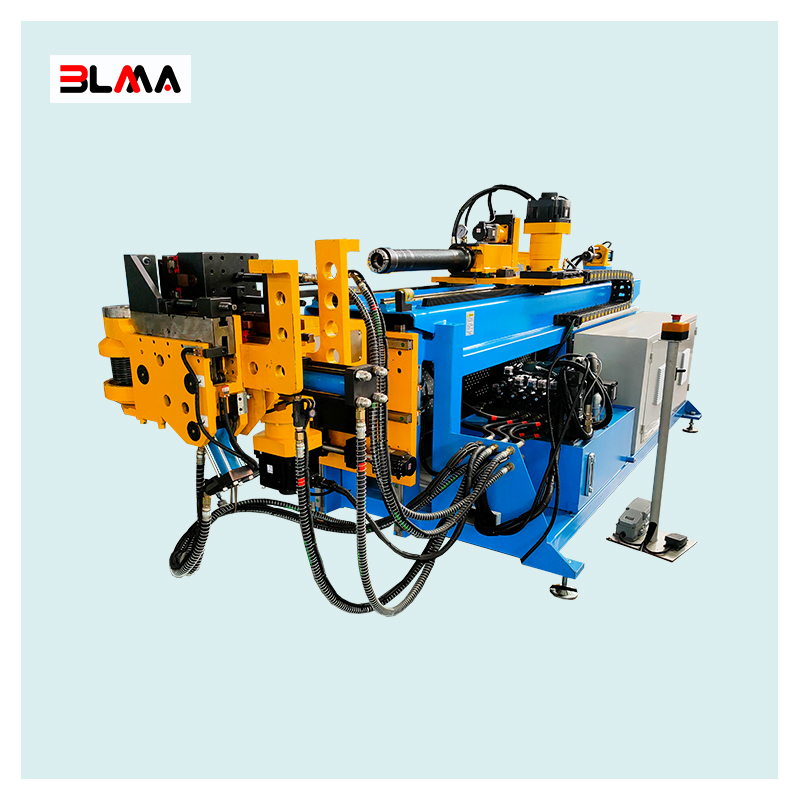

●Fully automatic and CNC pipe bending machine
●Equipped with 5 servo motor programmable axis
●Feeding: servo motor drive; Rotation: servo motor drive
●Bending: hydraulic and encoder control; Servomotor with reducer.
●Imported hydraulic system and PLC(standard) unit or IPC(optional).
●Automatic lubrication system for moving areas.
●Self-diagnostic system, detecting the error immediately.
●Multiple groups pipe-bending information storage.

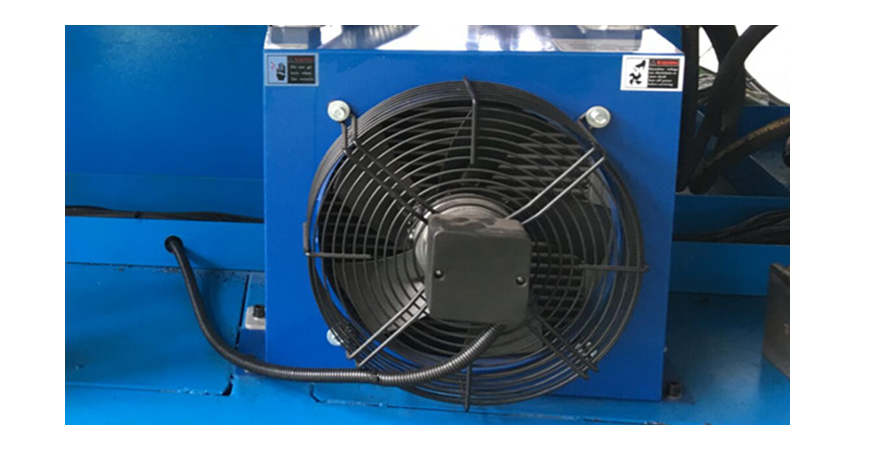

●Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.

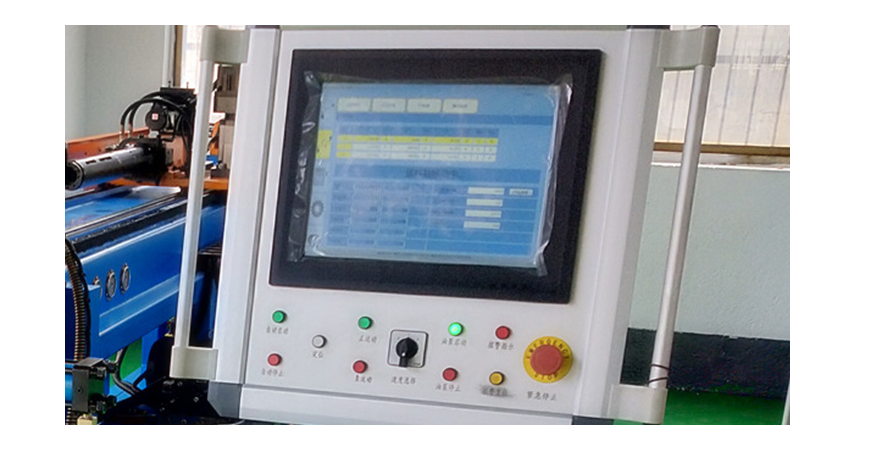

●Touch screen and human/machine interface control provide user friendly operations.
Taiwan Seven Ocean
Mitsubishi Servo Motor

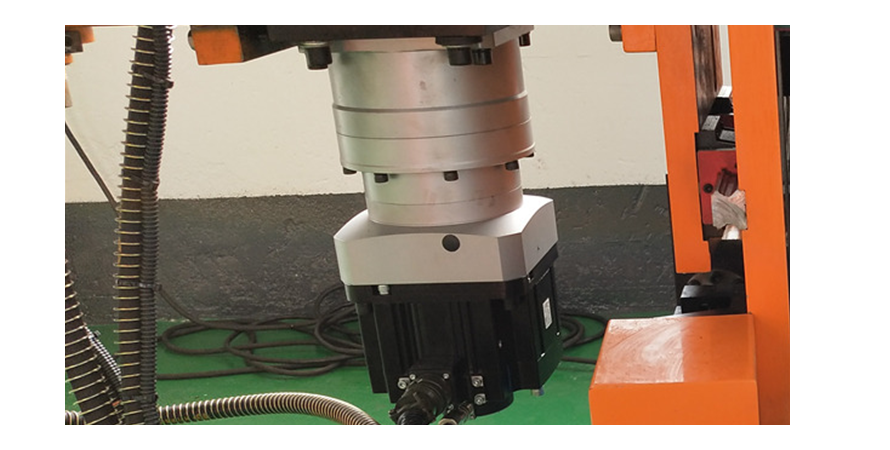

It is with 5 axis, which has 5 servo motors. The Bending, feeding, rotary and moving are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.
Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.
Schneider, France brand
7 Ocean, Taiwan brand
Ensure the stability of the machine for a long time
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference
Max bending capacity
φ38mm x 2mm
Max bending radius (1)
Min bending radius
According to pipe diameter
Max bending degree
Max feeding length (2)
Direct feeding/clamping feeding
Information inputting method
Working value (Y, B, C)
Bending servo motor power
Push bending servo motor power
Rotary servo motor power
Feeding servo motor power
Left and right die moving servo motor power
Up and down die moving servo motor power
Max storage unit (3)
Max oil pressure
3860 x720 x 1230mm
Note: (1) (2) (3) Extendable
