DW50CNC-2A-1S Steel Tube Bender For Sale Tube Bending Machine

Share to:

1. The DW50CNC-2A-1S CNC pipe bending machine features an electric three-roller-wheel structure.
2. It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed workpiece.
3. It can conduct round bending processing for plates, T-shaped materials, and so on.
4. The pipe and tube bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
5. The reversible pedal switch facilitates the operation.

  • DW50CNC-2A-1S
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

CNC tube and pipe bender is tube bending and fabrication equipment that uses three powered rollers in a triangular arrangement. Unlike mandrel bending, the inside of the tube or pipe is not supported. The top roller exerts downward pressure, while the two bottom rollers push up to deform the pipe. This three roller symmetrical bending machinery adopts a vertical or horizontal structure. It is extensively used in petroleum, chemical, shipbuilding, water and electricity, metal structure, machinery manufacturing, etc.


Advantages of Tube and Pipe Bender:

  • DW50CNC-2A-1S pipe tube bender is able to produce angles greater than 180°

  • It can be little to no distance between bends

  • Wide flexibility in part design

  • Produces the most complex parts

  • No bend dies required (saving on tooling costs)

  • Tube roundness and thickness maintained

  • Minimal setup and lead times achieved even for complex projects

  • Ideal for prototypes to large volume production


Capabilities of Tube and Pipe Bender:

Bends up to 1¼" O.D.

Multi-radius bends without additional tooling

Variable-radius bends




Name

Brand

PLC

Japan Mitsubishi

Touch screen

Taiwan Winview

Servo motor

Japan Yaskawa/Mitsubishi

Servo driver

Japan Yaskawa/Mitsubishi

Reducer

Taiwan RV/Xingxing

Main electrics

France Schneider

Hydraulic motor

Taiwan Yuanbang

Valves

Taiwan Seven Ocean

Vane pump

Taiwan Kaida

Sealing element

Taiwan Dingji

Rack

Germany Atlanta

Linear guideway

Taiwan Hiwin

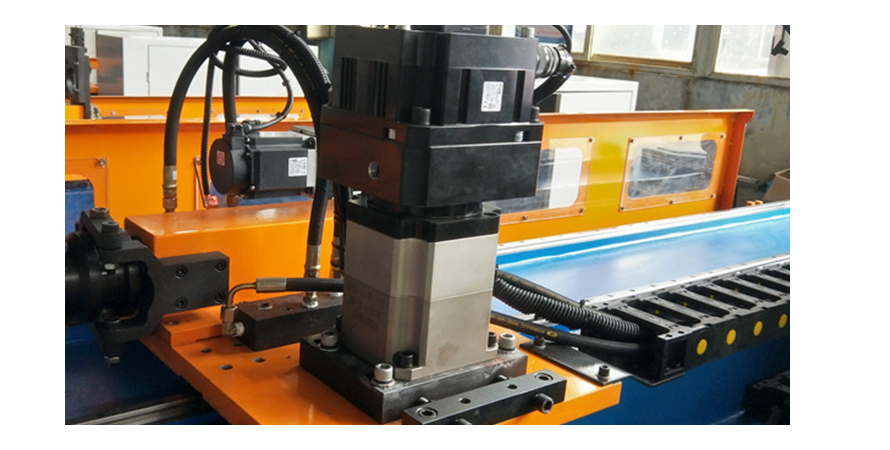

01-50CNC-2A-1S


Mitsubishi Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.

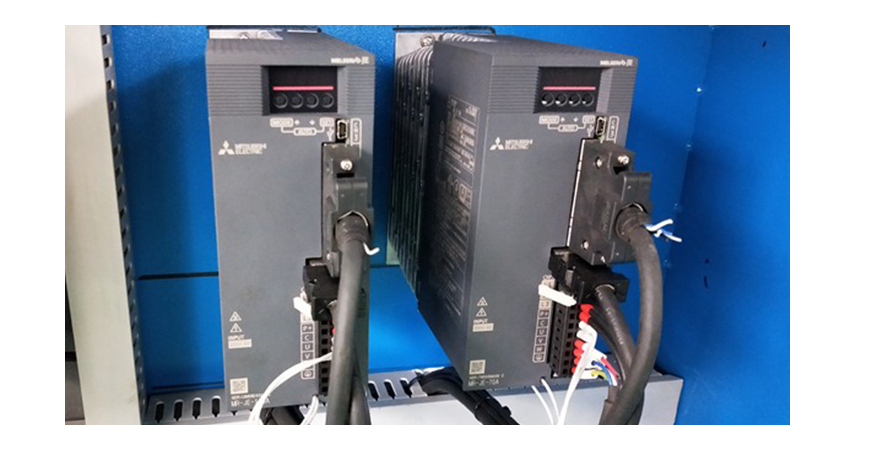

02-50CNC-2A-1S


Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.

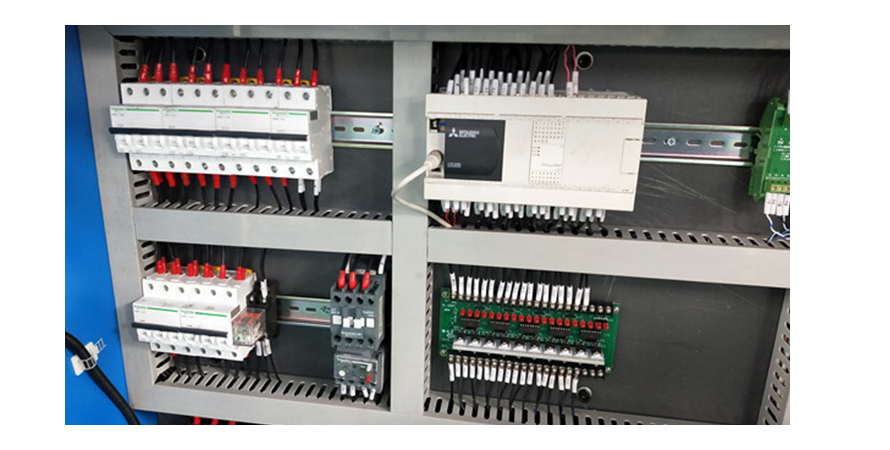

03-50CNC-2A-1S


Electrics
Schneider, France brand

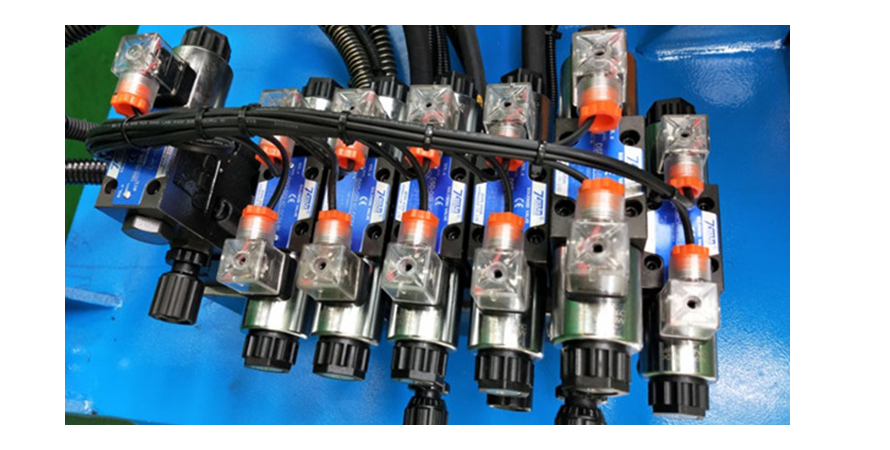

04-50CNC-2A-1S


Valve
7 Ocean, Taiwan brand

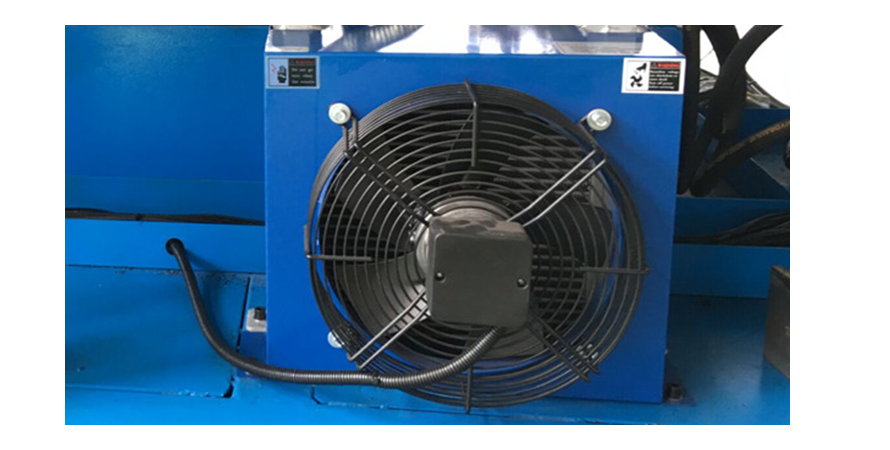

05-50CNC-2A-1S


Air cooler
Ensure the stability of the machine for a long time

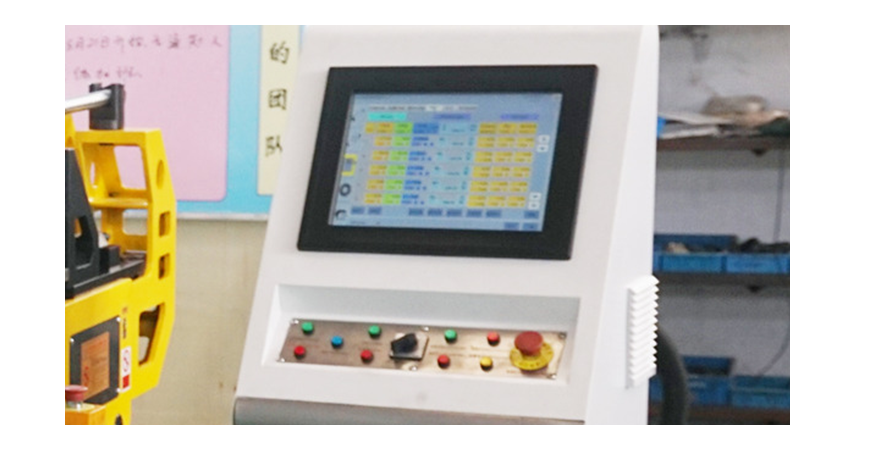

06-50CNC-2A-1S


PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference











BLMA is top 10 cnc tube bending machine manufacturers, providing high quality steel pipe bender and low cnc pipe bending machine price.

Parameters

Main specification

DW50CNC-2A-1S

Max bending capacity

φ50mm x 3mm

Max bending radius (1)

R250mm

Min bending radius

According to pipe diameter

Max bending degree

0-190°

Max feeding length (2)

2600mm

Feeding method

Direct feeding/clamping feeding

Working speed

Bending speed

Max 85°/s

Rotary speed

Max 200°/s

Feeding speed

Max 1000mm/s

Accuracy

Bending speed

0.1°

Rotary speed

0.1°

Feeding speed

0.1mm

Information inputting method

Working value (Y, B, C)

Bending method

Hydraulic

Hydrualic motor power

5.5kw

Rotary servo motor power

0.75kw

Feeding servo motor power

1.5kw

Max storage unit (3)

1000 groups

Max oil pressure

12Mpa

Machine weight

2500kg

Machine size

4900 x 1080 x 1280mm

Note: (1) (2) (3) Extendable
