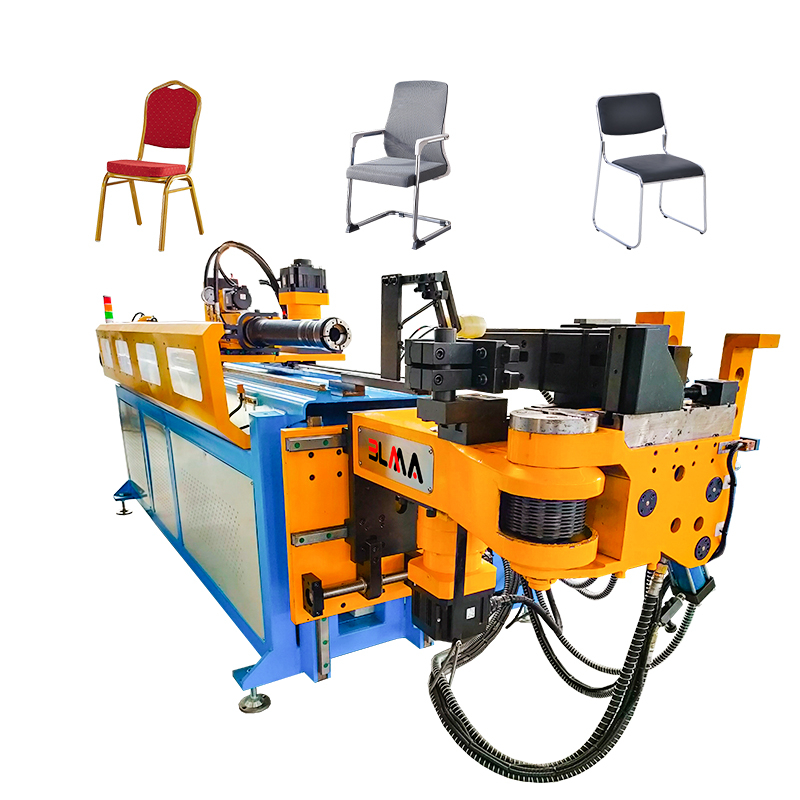

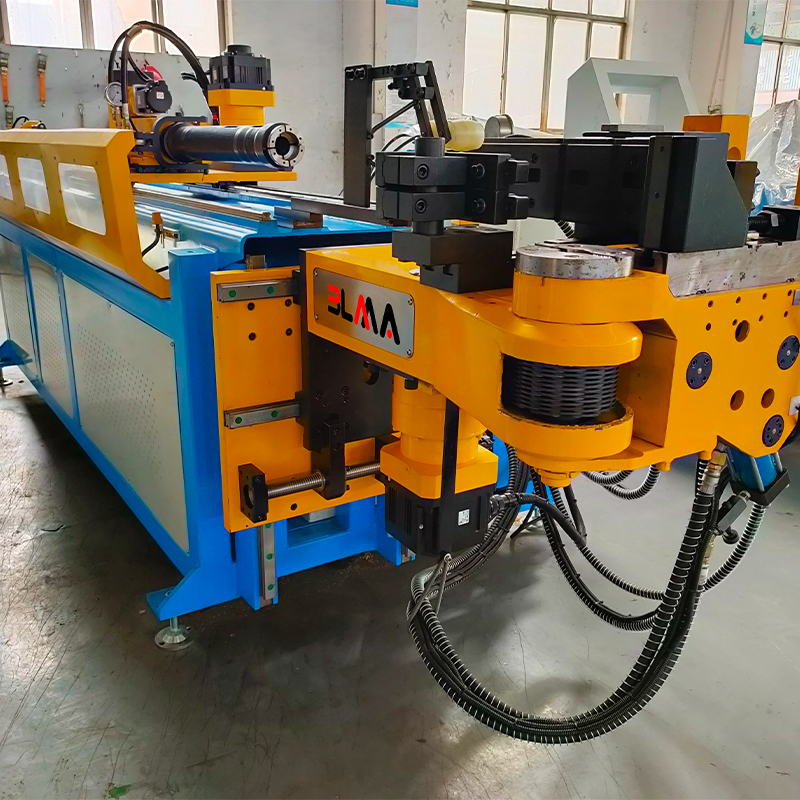

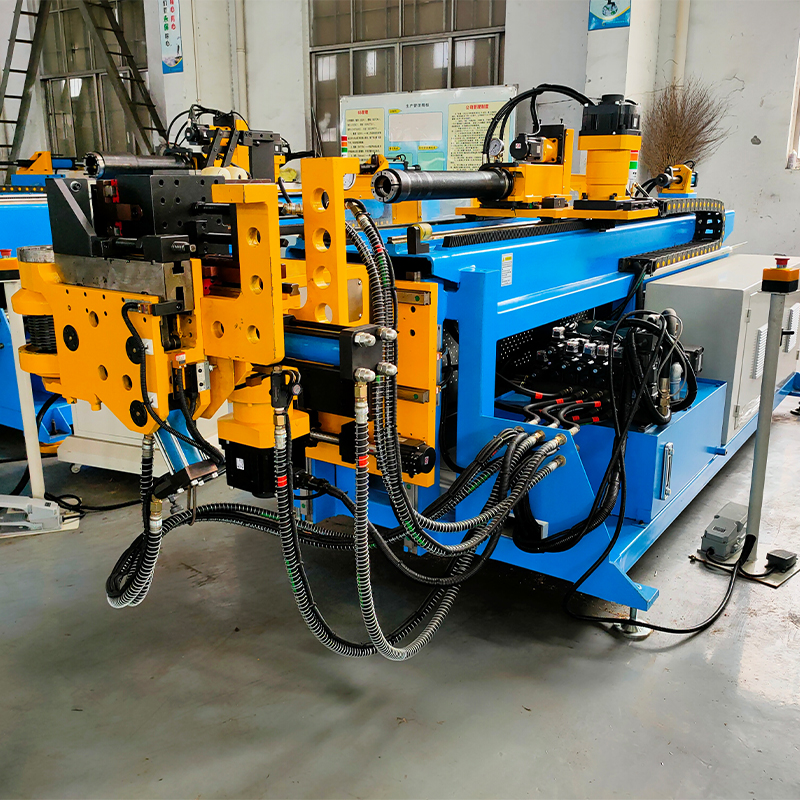

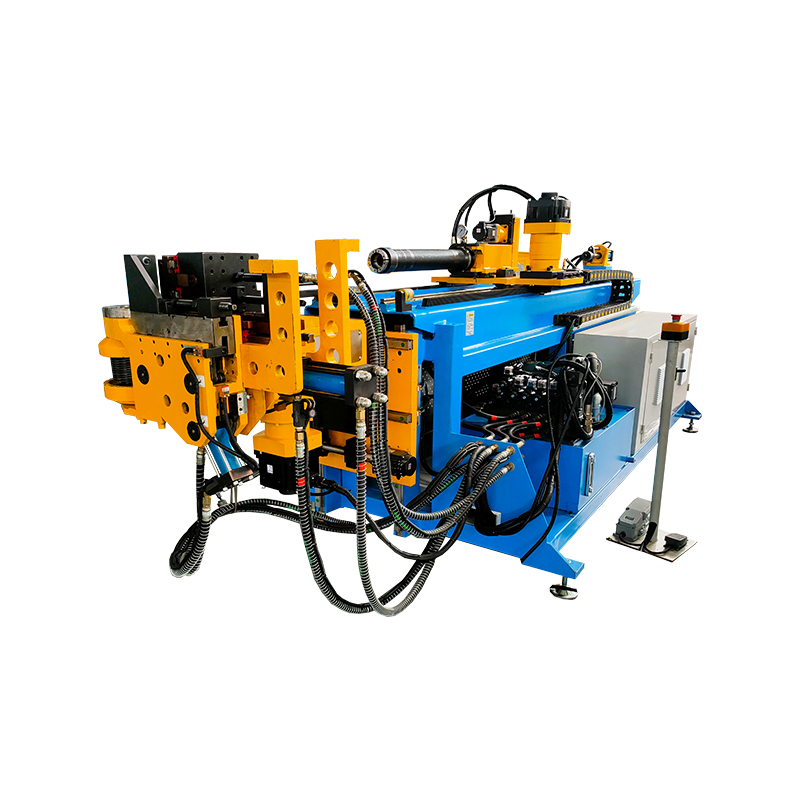

DW50CNC-4A-2SV Metal Stainless Steel CNC Pipe Bender
Home » Products » Tube Bending Machine » CNC Tube Bending Machine » DW50CNC-4A-2SV Metal Stainless Steel CNC Pipe Bender

Product Detail

DW50CNC-4A-2SV Metal Stainless Steel CNC Pipe Bender

Share to:

DW50CNC-4A-2SV CNC pipe bender is a versatile, economical yet powerful universal profile bender that can bend various kinds of profiles into arc workpieces. It is easy to operate and is well suited for bending angle, pipe, tube, aluminum extrusions, and other section bars.

  • DW50CNC-4A-2SV
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

CNC tube benders are BLMA specialty. On this website, you will find the best selection of tube and pipe benders for round or square tubing ranging from the simplest manual or hydraulic bender to full production mandrel bending machines. These tools can be used for a variety of metal fabrication projects such as building roll cages, handrails, furniture, gates, sculptures, or automotive exhaust.

Advantages of CNC Tube Bender for Sale:

  • High-quality results

  • Rigorous quality control

  • Reduced set-up times

  • Reduced scrap

  • The extensive selection of tooling

  • Short lead times


Capabilities of CNC Tube Bender for Sale:

  • Bends pipes and tubes up to 6" O.D.

  • Multi-radius stacking and rolling.

  • Laser spring back and in-process inspection for reduced scrap and increased accuracy.




Name

Brand

PLC

Japan Mitsubishi

Touch screen

Taiwan Winview

Servo motor

Japan Yaskawa/Mitsubishi

Servo driver

Japan Yaskawa/Mitsubishi

Reducer

Taiwan RV/Xingxing

Main electrics

France Schneider

Hydraulic motor

Taiwan Yuanbang

Valves

Taiwan Seven Ocean

Vane pump

Taiwan Kaida

Sealing element

Taiwan Dingji

Rack

Germany Atlanta

Linear guideway

Taiwan Hiwin



01-50CNC-4A-2SV


Mitsubishi Servo Motor
It is with 4 axis, which has 4 servo motors. The Bending, feeding, rotary and moving are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.







02-50CNC-4A-2SV


Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.








03-50CNC-4A-2SV


Electrics
Schneider, France brand








04-50CNC-4A-2SV


Valve
7 Ocean, Taiwan brand








05-50CNC-4A-2SV


Air Cooler
Ensure the stability of the machine for a long time








06-50CNC-4A-2SV


PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference










BLMA is top 10 pipe bending machine manufacturers, offering high quality cnc pipe and tube bending machine and tube and pipe bender.

Parameters

Main specification

DW50CNC-4A-2SV

Max bending capacity

φ50mm x 3mm

Max bending radius (1)

R250mm

Min bending radius

According to pipe diameter

Max bending degree

0-190°

Max feeding length (2)

2600mm

Feeding method

Direct feeding/clamping feeding

Working speed

Bending speed

Max 85°/s

Rotary speed

Max 200°/s

Feeding speed

Max 1000mm/s

Accuracy

Bending speed

0.1°

Rotary speed

0.1°

Feeding speed

0.1mm

Information inputting method

Working value (Y, B, C)

Bending method

Servo

Bending servo motor power

5kw

Push bending servo motor power

3kw

Rotary servo motor power

0.75kw

Feeding servo motor power

1kw

Left and right die moving servo motor power

1kw

Up and down die moving servo motor power

3kw

Max storage unit (3)

1000 groups

Max oil pressure

12Mpa

Machine size

4900 x 1080 x 1280mm

Machine weight

2500kg

Note: (1) (2) (3) Extendable
