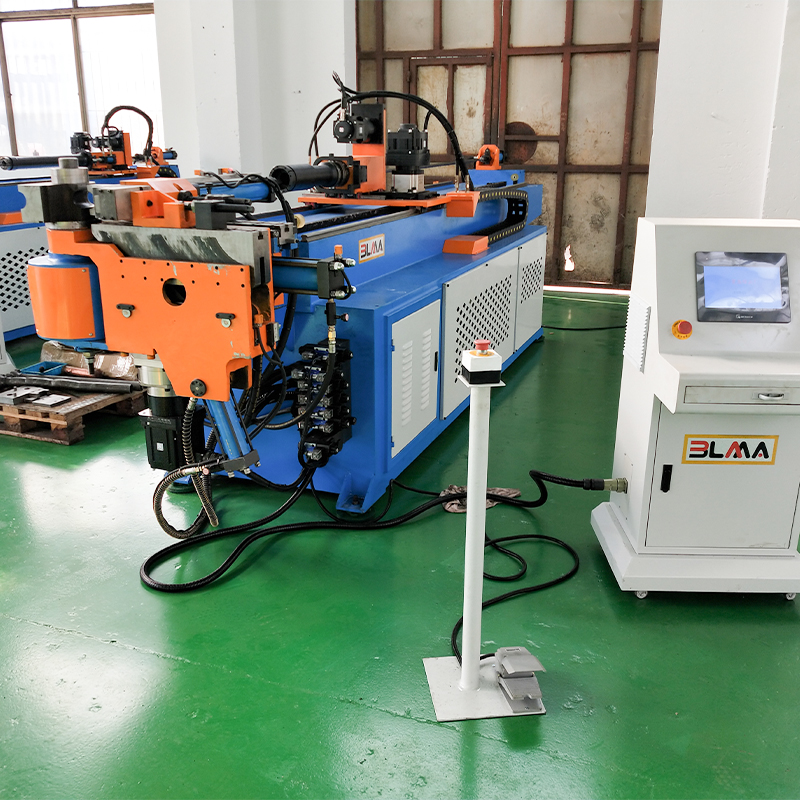

DW63CNC-3A-1S Max 2.5 Inch Pipe Bending Machine For Sale

DW63CNC-3A-1S CNC tube bending machine is designed to drastically minimize the manufacturing cost and provide maximum performance when bending pipes and profiles. It has been manufactured for different profiles such as a flat bar or bar section, T-profile, rolling U-profile, bending angle, bending the solid rod, both square and round types, spiral tube or even to perform square, rectangular or round pipe in different materials: iron, carbon steel, stainless steel, brass, copper, aluminum.

  • DW63CNC-3A-1S
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

BLMA has progressively become one of the world's leading CNC tube bending machine manufacturers, providing one of the biggest ranges of specialized equipment for the tube and pipe bending industry worldwide. We serve the global market with exceptional machinery and tooling for tube and pipe bending, cutting, and end forming purposes – ranging from simple, manual appliances to complex, fully CNC powered systems.

The Main Parts of Pipe and Tube Bending Machines

● Bend Die

The bend die, also known as the bend form or the radius die, is the most important part of a rotary-draw bending machine. The tube clamps to the bend die and the drawing process produce the necessary bend. The selection of die is very important, as the tube’s inside radius depends on it.

● Clamp Die

The clamp die presses the tube onto the bend die. Its main purpose is to prevent the pipe from slipping.

● Pressure Die

The pressure die makes sure the tube follows the bend die’s contour.

● Wiper Die

A wiper die places just after the bend die. The purpose is to avoid the formation of any humps on the inside radius. During the forming process, the material turns plastic during bending. It may result in wrinkles with large deformations. Thus, adding a wiper die just after the bend die helps to smooth the surface.

● Mandrel

In bending steel and aluminum tubes, a mandrel is necessary for more difficult jobs. Bending a small radius, thin tubes or harder materials can result in an unsatisfactory outcome. In those cases, a mandrel can be handy. The mandrel’s objective is keeping the tube from collapsing.




Name

Brand

PLC

Japan Mitsubishi

Touch screen

Taiwan Winview

Servo motor

Japan Yaskawa/Mitsubishi

Servo driver

Japan Yaskawa/Mitsubishi

Reducer

Taiwan RV/Xingxing

Main electrics

France Schneider

Hydraulic motor

Taiwan Yuanbang

Valves

Taiwan Seven Ocean

Vane pump

Taiwan Kaida

Sealing element

Taiwan Dingji

Rack

Germany Atlanta

Linear guideway

Taiwan Hiwin



01-63CNC-3A-1S

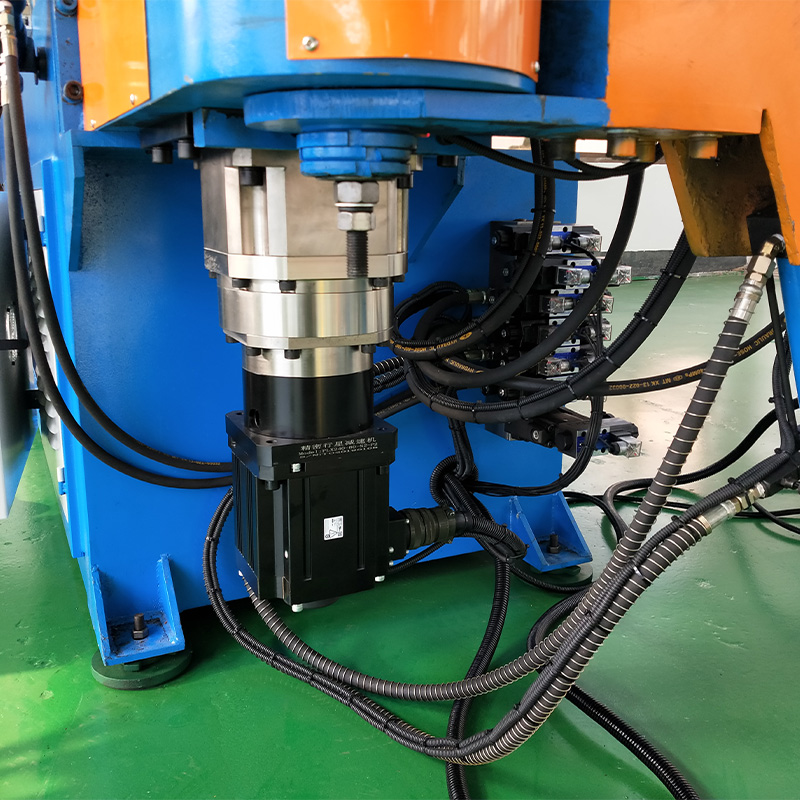

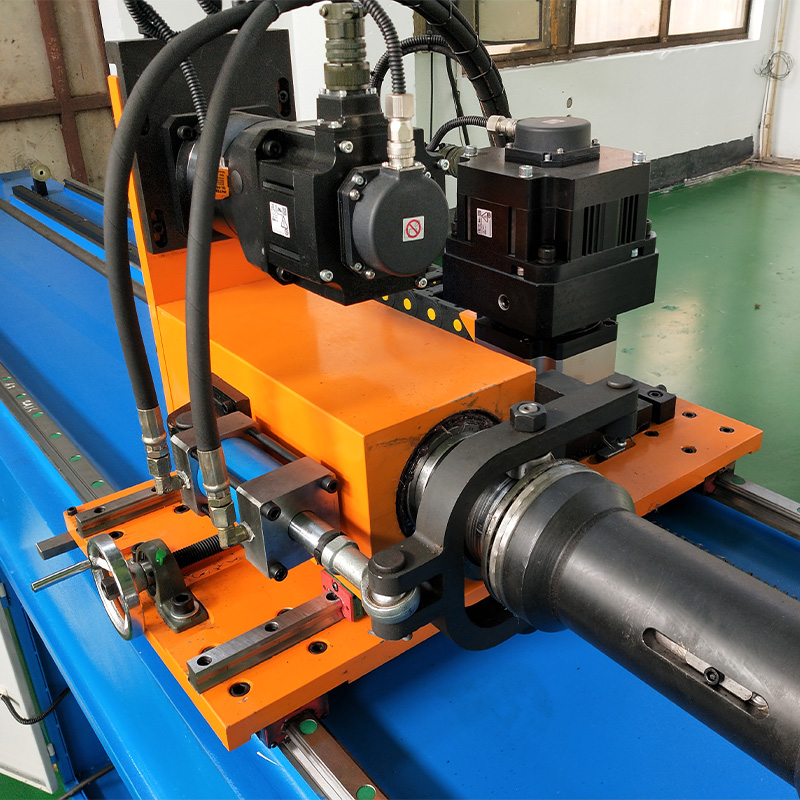

Mitsubishi Servo Motor
It is with 3 axis, which has 3 servo motors. The Bending, feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.

02-63CNC-3A-1S


Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.

03-63CNC-3A-1S


Electrics
Schneider, France brand

04-63CNC-3A-1S

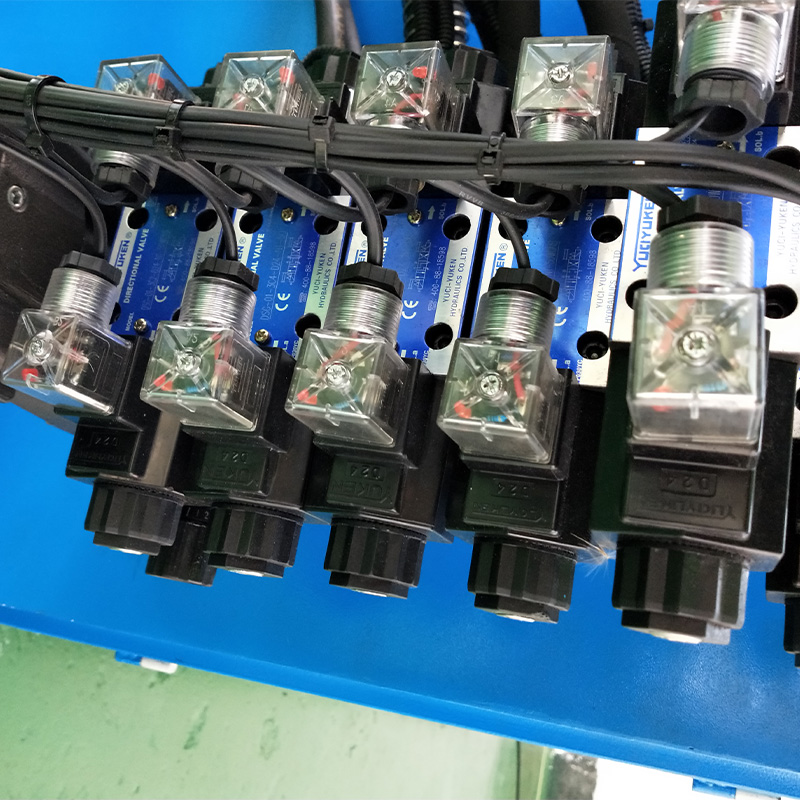

Valve
7 Ocean, Taiwan brand

05-63CNC-3A-1S


Air cooler
Ensure the stability of the machine for a long time

06-63CNC-3A-1S


PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference


BLMA is a professional bending machine manufacturers, offering high quality tube and pipe bending machine for sale and pipe bending equipment.

Parameters

Main specification

DW63CNC-3A-1S

Max bending capacity

φ63mm x 4mm

Max bending radius (1)

R300mm

Min bending radius

According to pipe diameter

Max bending degree

0-190°

Max feeding length (2)

2900mm

Feeding method

Direct feeding/clamping feeding

Working speed

Bending speed

Max 85°/s

Rotary speed

Max 200°/s

Feeding speed

Max 1000mm/s

Accuracy

Bending speed

0.1°

Rotary speed

0.1°

Feeding speed

0.1mm

Information inputting method

Working value (Y, B, C)

Bending method

Servo

Bending servo motor power

7.5kw

Rotary servo motor power

0.75kw

Feeding servo motor power

1kw

Max storage unit (3)

1000 groups

Max oil pressure

12Mpa

Machine weight

3000kg

Machine size

5000 x 1110 x 1300mm

Note: (1) (2) (3) Extendable


Video

Download

BLMA-CNC-pipe-bending-machine-brochure
