Hydraulic Metal Plate Sheet V Grooving Machine

Advantages: conventional machine is clamps hold the sheet metal moving over the working table, so the sheet surface is very easy to be scratched.
Now this machine’s biggest advantage is sheet metal fixed, has no relative motion. the work piece is protected.

  • PGNK-1250x4000
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

Products Application:

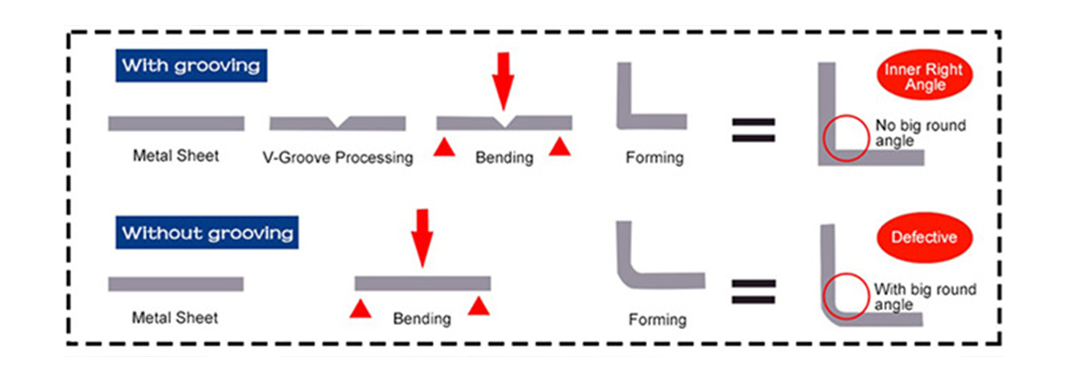

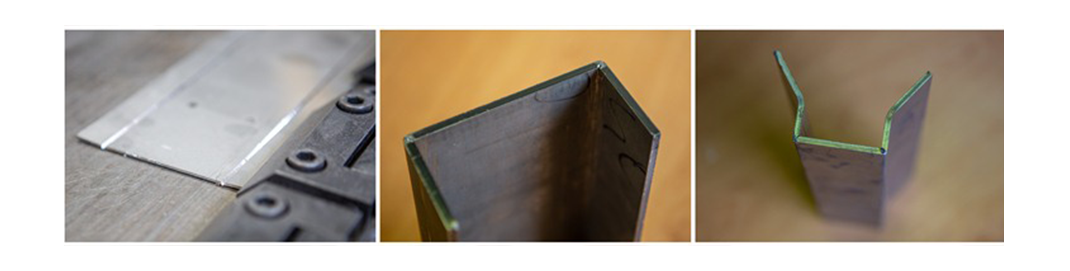

Metal sheet grooving machine can V-groove stainless steel sheet, aluminum sheet, composite aluminum sheet, copper sheet and other metal sheets, making the arc radius of the edge of the bent workpiece extremely small, satisfying the needs of hotels, restaurants, restaurants, commercial buildings , Banks, airports and other places in the high-end decorative special needs.




Components

Brand

PLC Control

Easycat, Taiwan

Touch screen

Qimei, Taiwan

Hold down cylinder

Zhonghui, China

Hydraulic valve

Haimen, JIangsu

Oil pump

Chenjie, Shanghai

Servo motor and drive

Easycat, Taiwan

Electrics

Schneider, France

Linear guide and ball screw

Hiwin, Taiwan



01-Horizontal-V-Grooving-Machine

02-Horizontal-V-Grooving-Machine

03-Horizontal-V-Grooving-Machine


Adopt Taiwan HUST controller

04-Horizontal-V-Grooving-Machine

Tool carrier can hold 3 tools at the same time. The maximum cutting depth is 1mm, which is 5 times of the efficiency of traditional equipment, and the return speed is also 5 times faster.


05-Horizontal-V-Grooving-Machine


Pneumatic feeding clamp
Pneumatic material clamping device

06-Horizontal-V-Grooving-Machine


X, Y and Z axis are equipped with Japan PANASONIC servo motors.

07-Horizontal-V-Grooving-Machine


Taiwan HIWIN linear guide rail


08-Horizontal-V-Grooving-Machine



Taiwan YYC gear-rack drive


09-Horizontal-V-Grooving-Machine




Schneider Electrics

10-Horizontal-V-Grooving-Machine




Taiwan AIRTAC Air Valve

11-Horizontal-V-Grooving-Machine





Taiwan AIRTAC Cylinder

12-Horizontal-V-Grooving-Machine






Front Photoelectric Safety Protection


Parameters

Main specification

PGNK-1250x4000

Machining capacity
(Plate)

Material

SS, MS

Length

4000mm

Width

1250mm

Thickness

0.6-4mm (metal sheet flatness<3mm)

Min. Edge

8mm

CNC Specifics

Control Type

3-axes CNC control (Y1, Y2, Z)

Display

10 inch high definition color display

Memory capacity

20 groups, 112 lines / group (expandable by adding SD card)

Transmission way

Ball screw / linear guide rail / gear and rack

Machining speed

Crossbeam forward cutting(X-axes)

60m/min (adjustable)

Return stroke (X-axes)

55m/min

Cutter holders (Y1&Y2-axes)

20m/min

Cutter holder (Z-axes) up and down

20m/min

Machining precision

Crossbeam (Y-axes) precision

0.01mm

Crossbeam (Y-axes) max travel

1250mm

Cutter holder (Z-axes) precision

0.01mm

Cutter holder (Z-axes) max travel

50mm

Driving way

Crossbeam (X-axes)

4.5kw servo motor

Z-axes

0.85kw servo motor

Cutter holders (Y1&Y2-axes)

0.85kw servo motor

Clamping mechanism

Pneumatic system

0.3-0.6Mpa

Worktable flatness

±0.02mm/m

Outline dimension

Length

6000mm

Width

2380mm

Height

1580mm

Weight

8000kg
