WE67K DA53T CNC Sheet Metal Press Brake

●Touch screen control ●Maximum 4+1 axis control ●Bending angle programming
Availability:
  • WE67K DA53T
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

Overall welding structure, with heat treatment,achieve high stability;

Imported international well-known flat brand electro-hydraulic servo valve and grating scale constitute a closed-loop control mode;

The position feedback accuracy of the slider is high,with perfect synchronization;

Bending accuracy and the repeated positioning accuracy of the slider are high;

Back gauge can adopt the back gauge mechanism with multiple back gauge shafts with more complete functions according to customer needs;

The hydraulic system adopts an integrated control system, which reduces pipeline installation and oil leakage, ensures the working stability of the machine tool, and has a scientific and beautiful appearance;

Crowning table eliminates the influence of the slider deformation on the quality of the work piece;

CNC system automatically adjusts the compensation amount, and the operation is convenient and accurate;

Standard press brake controller using DA53T from Holland.




Machine feature

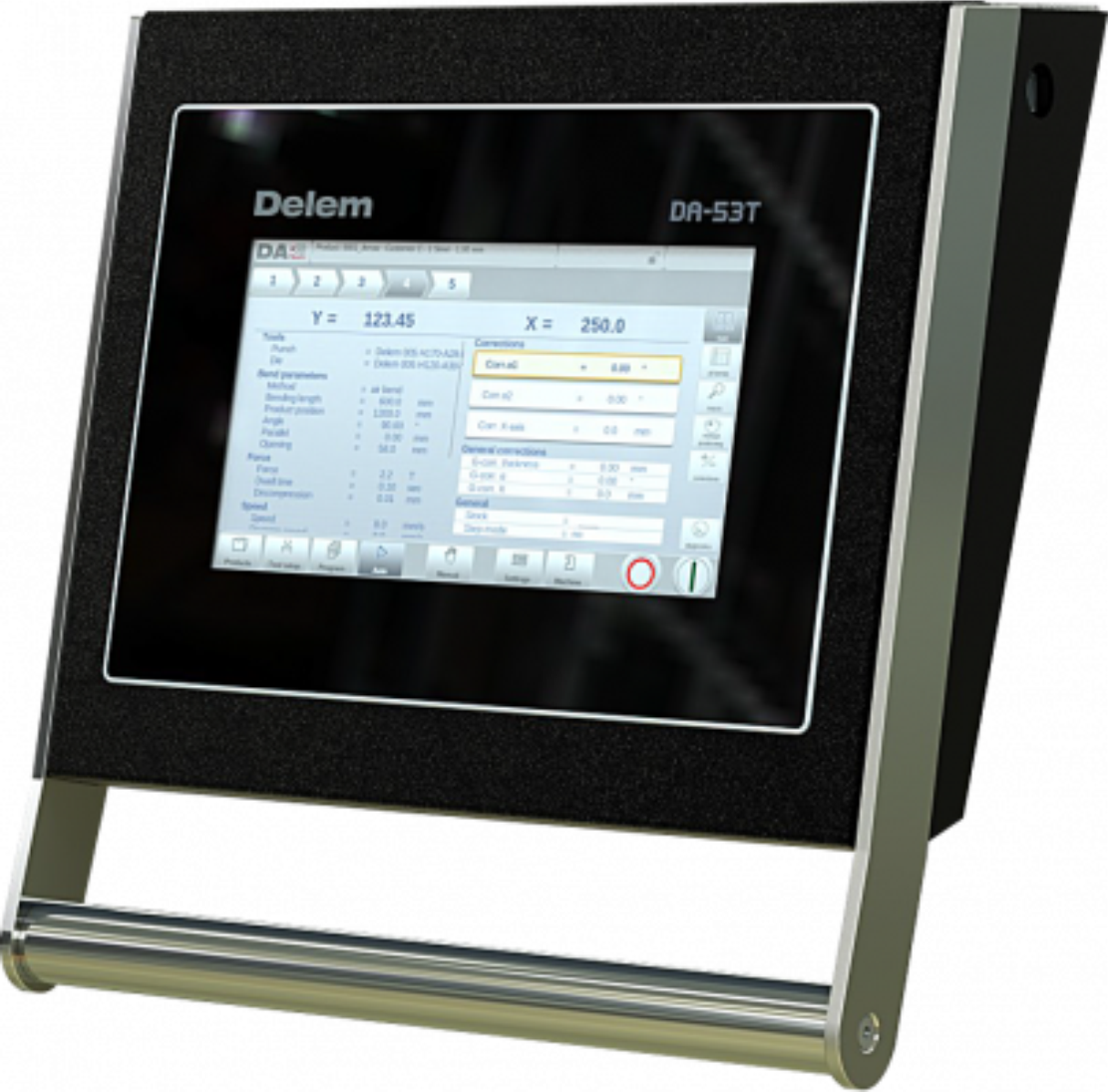

DA53T CNC Controller

DELEM DA53T Controller
10.1" high resolution color TFT
Up to 4 axis (Y1,  Y2+2 aux, axis)
Crowning control
Tool / material / product library
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
TandemLink (option)
USB memory stick interfacing
Profile-53TL offline software



1

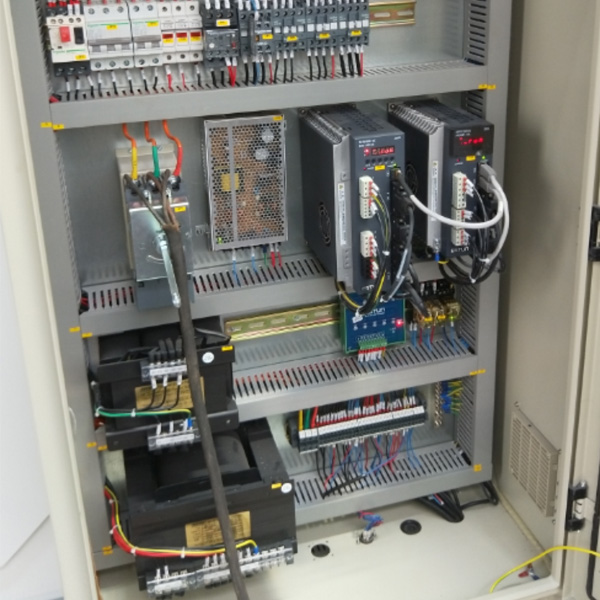

Schneider electrics with servo drive

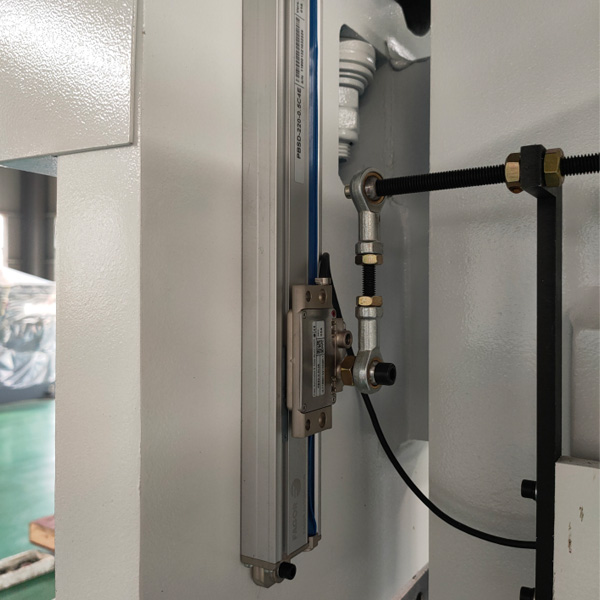

grating ruler

Fager grating ruler

8

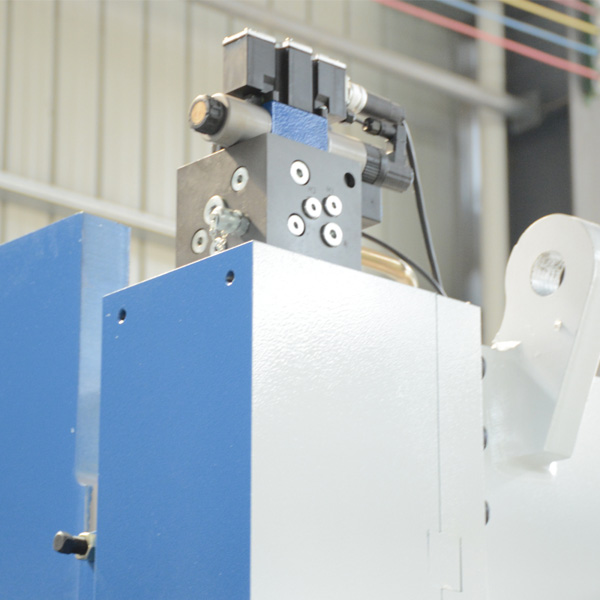

Proportional valves

13

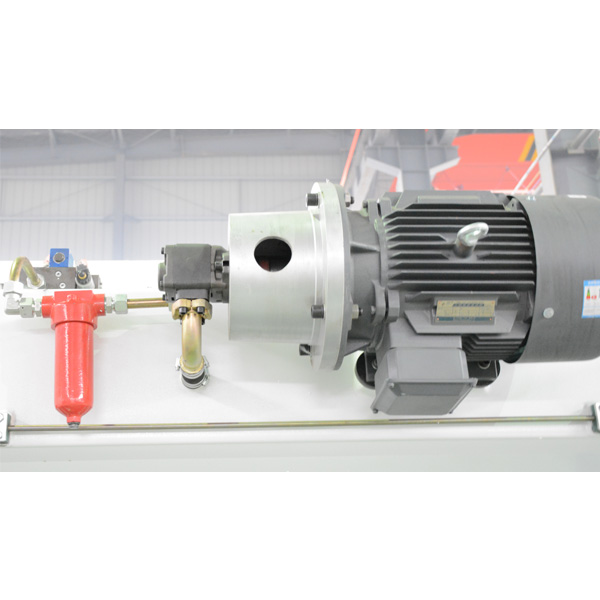

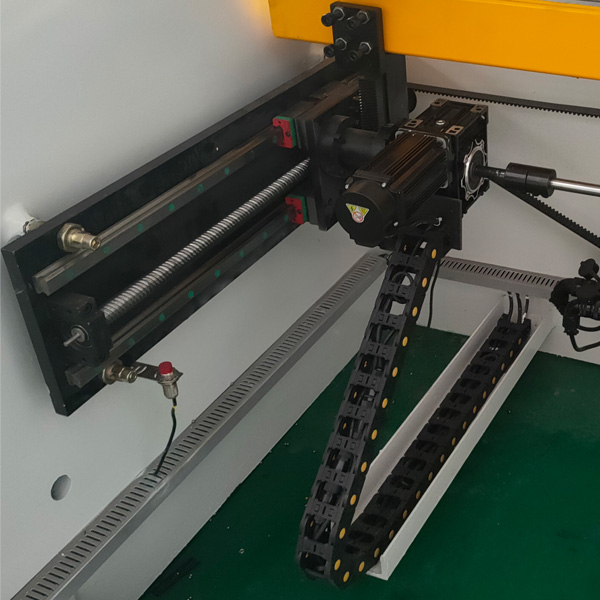

Siemens motor and filting system

6

Back gauge with servo motor

12

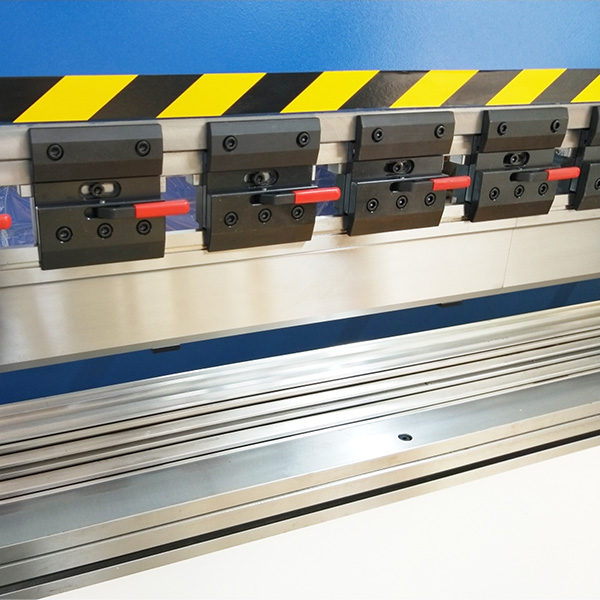

Heav duty fingers with manual

10

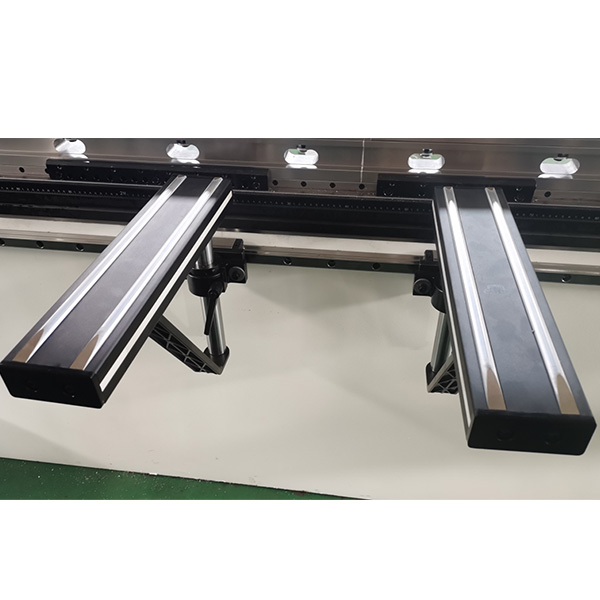

Fast clampings

11

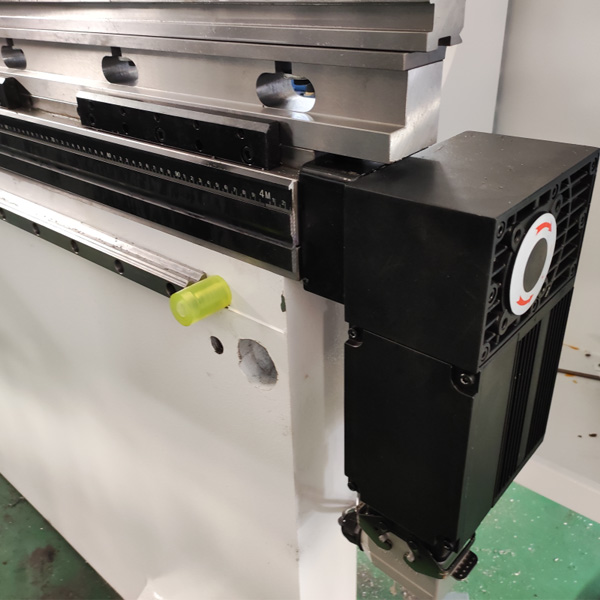

Front support

33

Crowning table

2

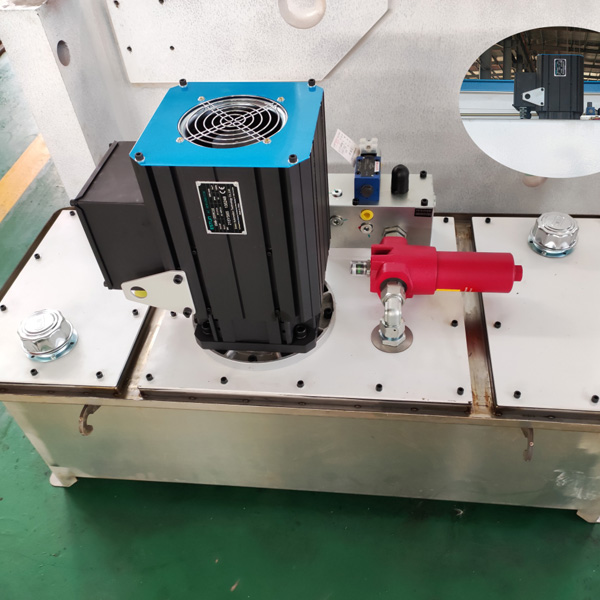

Servo motor and stainless oil tank

14

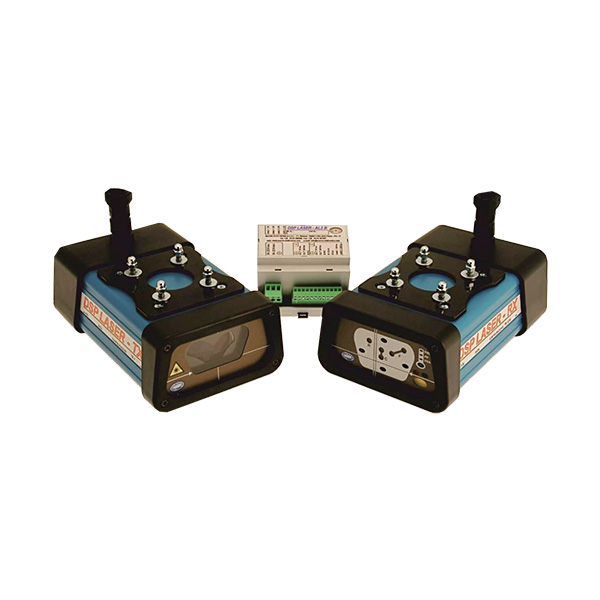

DSP Laser protection

15

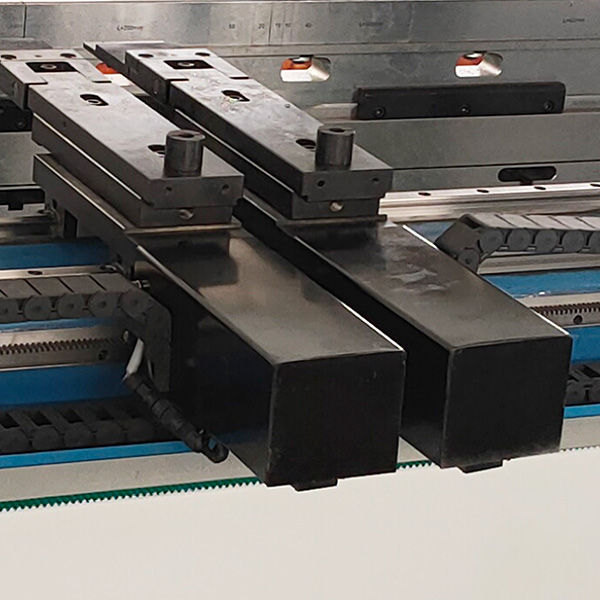

Motorized stop fingers


Video

Optional controller

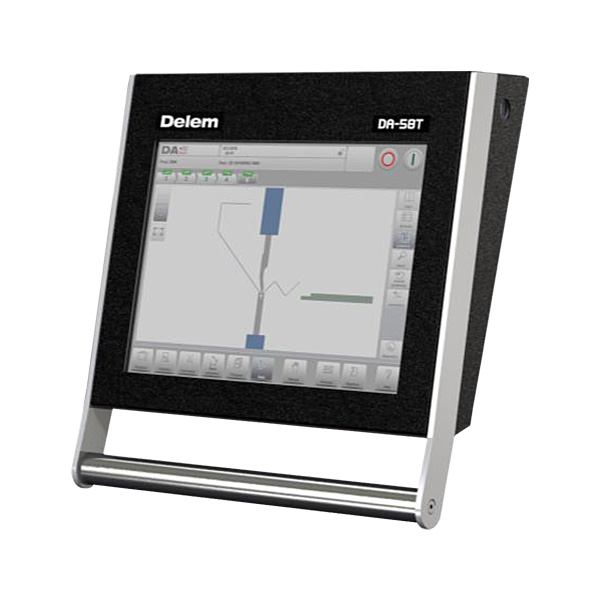

DA58T control

DA58T

DELEM DA58T Color 2D graphical CNC System

15" high resolution colour TFT

2D graphical touch screen programming

Up to 4 axes (Y1,Y2 + 2 aux. axes)

Bend sequence calculation

Advanced Y-axis control algorithms for

closed-loop as well as open-loop valves.

CNC Crowning control

USB, peripheral interfacing

Profile-58TL offline software

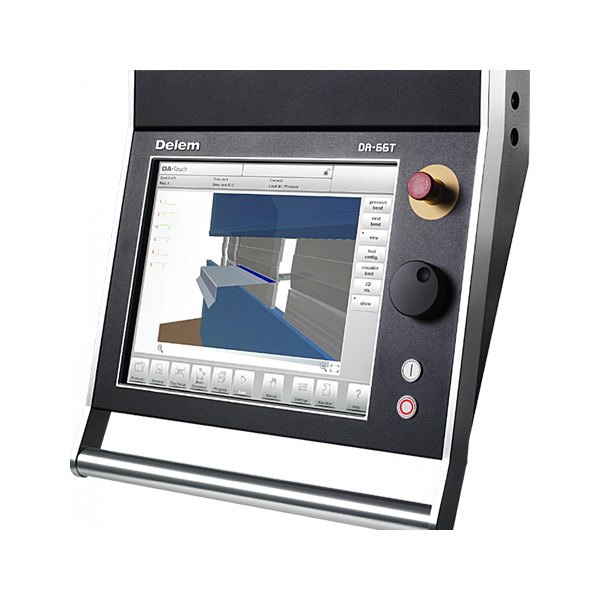

DA66T controller

DA66T

DELEM DA66T Touch 2D Graphical Control

17" high resolution colour TFT

2D graphical touch screen programming mode

3D visualisation in simulation and production

Full Windows application suite

Delem Modusys compatibility (module scalability and adaptivity)

USB, peripheral interfacing

Profile-T2D offline software

Sensor bending & correction interface

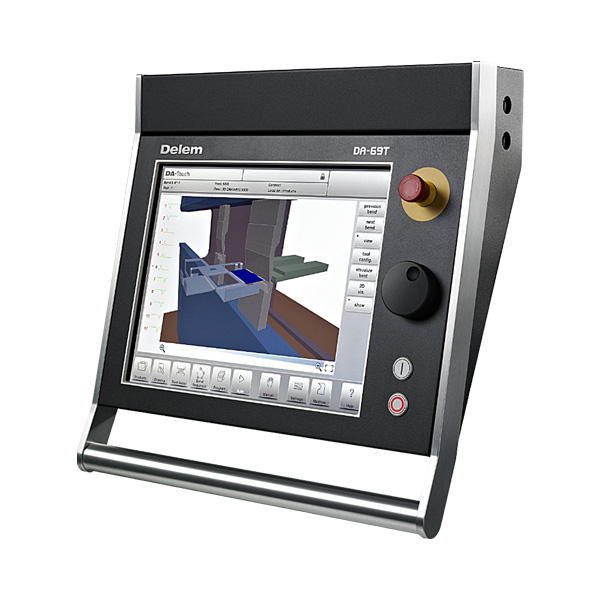

DA69T controller

DA69T

DELEM DA69T Touch 3D Graphical Control

17" high resolution colour TFT

2D and 3D graphical touch screen programming mode

3D visualisation in simulation and production

Full Windows application suite

Delem Modusys compatibility (module scalability and adaptivity)

USB, peripheral interfacing

Profile-T2D offline software

Sensor bending & correction interface

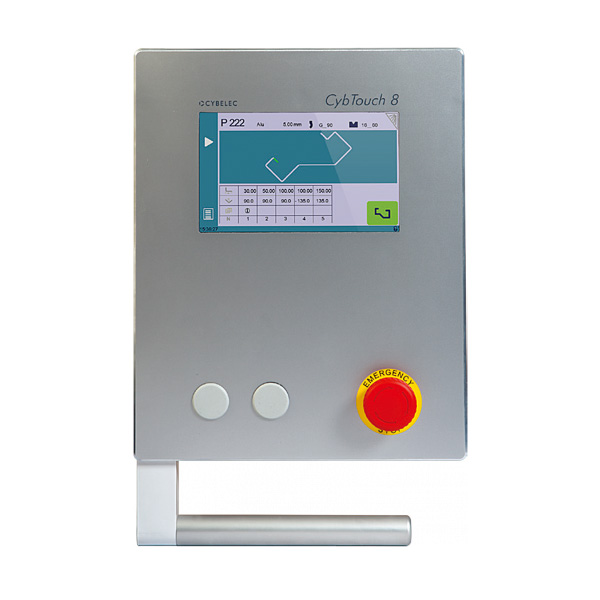

CT8 controller

CT8

CYBELEC CybTouch 8 PS 2D graphic CNC System

7” color graphic CRT screen

2D graphic profile creation with manual sequencing

Up to 4 axes (Y1,Y2 + 2-axes)

Bend allowance calculation.

Pressure – crowning calculation.

CNC Crowning control

Angle and back gauge correction.

Delivered with PC1200 offline software.

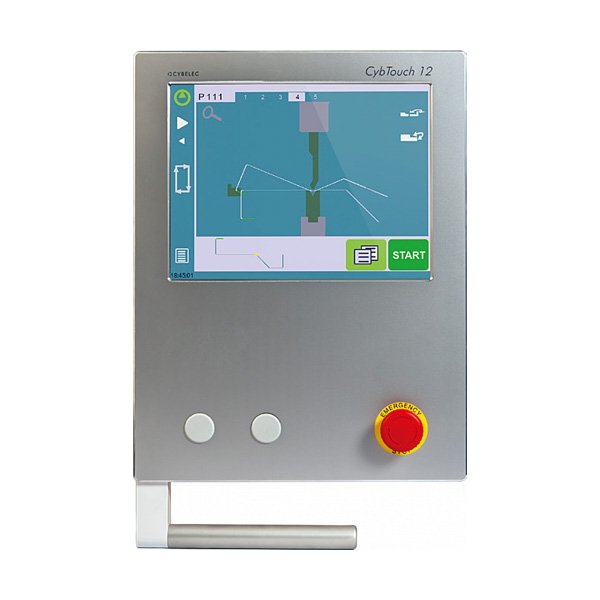

CT12 controller

CT12

CYBELEC CybTouch 12 PS 2D graphic CNC System

12” color graphic with fully touch screen

Touch 2D graphic part creation with manual sequencing

Up to 4 axes (Y1,Y2 , X, R-axes)

Bend allowance calculation.

Pressure – crowning calculation.

Modulable tools for each part or bend.

Angle and back gauge correction.

Delivered with PC-ModEva offline software

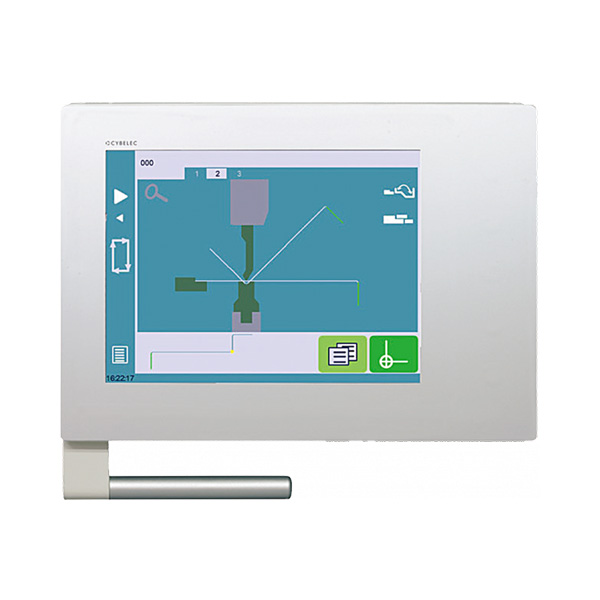

CT15 controller

CT15

CYBELEC CybTouch 15 PS 2D graphic CNC System

15” color graphic with fully touch screen

Touch 2D graphical profile drawing and precise 2D program creation

Up to 6 axes (Y1,Y2 , X, R ,Z1 , Z2-axes)

Automatic bending sequence calculation

Tandem management.

Modulable tools for each part or bend.

Angle and back gauge correction.

VisiTouch 2D or VisiTouch MX offline software.


S630 cnc control

S630

ESA S630 2D Graphical CNC System

10 inch LCD touch screen (Resistive)

Touch 2D graphic part creation with manual sequence

Stander to 4 axis(Y1Y2,X, R)

Automatic bending force, crowning calculation.

Modulable tools for each part or bend.

Direct angle correction, also for the crowning.

Proprotional and pressure valve Amplify intergrated.

Free off-line PC simulation software.

Tandem machine management(option)

Modbus TCP interface for SCADA or MES(option)

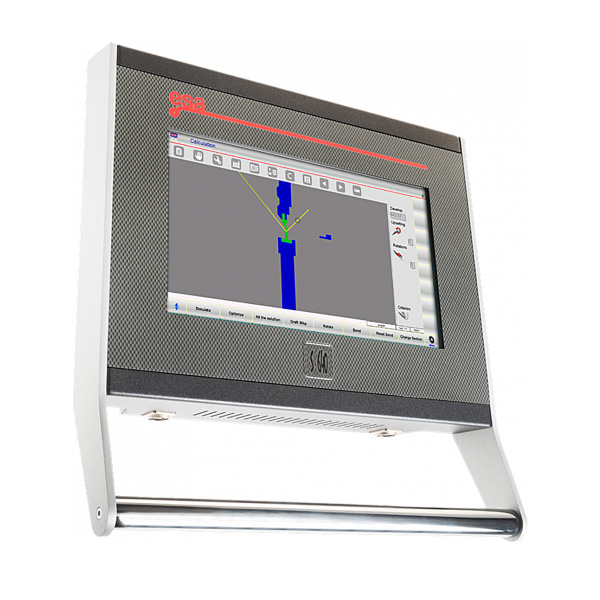

S640 press brake controller

S640

ESA S640 2D Graphical CNC System

15 inch LCD touch screen (Resistive)

Touch 2D graphic part creation with automatic sequence

Stander to 4 axis, can up to 6 axis max.

Automatic bending force, crowning calculation.

Modulable tools for each part or bend.

Direct angle correction, also for the crowning.

Proprotional and pressure valve Amplify intergrated.

Free off-line PC simulation software.

Tandem machine management(option, can up to 4 machines)

Modbus TCP interface for SCADA or MES(option)

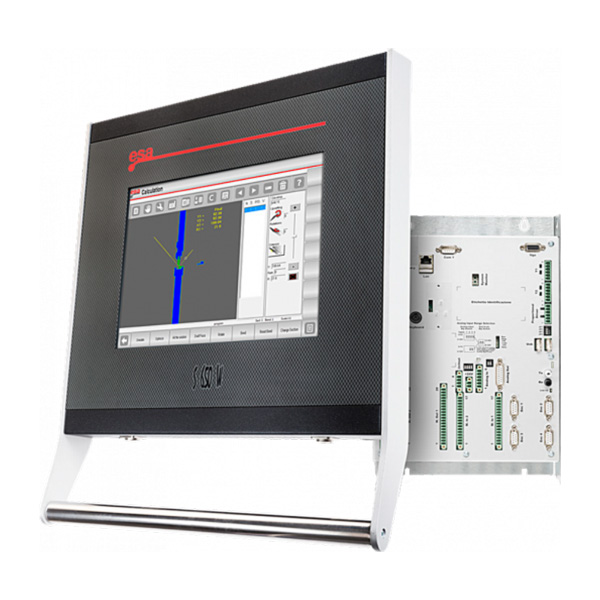

S650 cnc system

S650W

ESA S650W 2D Graphical CNC System

15 inch LCD touch screen (Resistive)

DXF tools import(options)

Touch 2D graphic part creation with automatic sequence

Stander to 4 axis, can up to 32 axis max.

Automatic bending force, crowning calculation.

Modulable tools for each part or bend.

Free off-line PC simulation software.

Tandem machine management(option, can up to 4 machines)

Modbus TCP interface for SCADA or MES(option)

DataM or Iris-Plus angle messurement management(options).

EsaBend-3D software(options)

Metalix, Radan, AutoPol 3d viewer(options)
