Commercial Cardboard Shredder, Single Shaft Shredder for Sale
Home » News and Events » Shredder » Commercial Cardboard Shredder, Single Shaft Shredder for Sale

Commercial Cardboard Shredder, Single Shaft Shredder for Sale

Views:145     Author:Site Editor     Publish Time: 2021-02-03      Origin:Site Inquire

Description


Commercial cardboard shredder, single shaft shredder for sale



commercial cardboard shredder




Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut, and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, metal scrap, and paper, etc.



The cutter head is consists of a basic shaft and pieces of quadrangle cutter. There are four edges that are easy to change. ‘V’ shaped rotary cutters are fixed on the single shaft. The fixed cutter is mounted at an angle adjacent to the rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy, and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also, the knives are very easy to install and remove.




Technical Features



  • The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.

  • The blade material with special alloy steel made, with long life.

  • The main axis is drive by a gearbox. it is running very stably, low noise and strong power.

  • The material push feeding system of single shaft shredder is hydraulic ways. Its running is very stable.

  • A cooler system(optional) can maintain the temperature for continuous operation.

  • PLC program control system, automatically rotating, shut down, safe and reliable running of the machine.

  • Hydraulic system pushes the material automatically to the shredding rotor while working, which is more efficient and can achieve a high capacity. According to material kind, it can adjust the pushing speed to avoid overload.




Advantages



1. Low dust, low noise, and easy to operate.

2. The commercial cardboard shredder with a big feeding mouth can be freely put into the big plastic or rubber product, such as headpiece material, thick-walled large diameter plastic pipe, film roller, cardboard, fiber, and others.

3. The blade can rotate in opposite direction and close automatically if something unexpected happens. It has a very high safety service.

4. The blade base and blade on the rotary roller can be disassembled. It is easy to clean and maintain.

5. The rotary blade uses V shape installation so that the blade can cut material evenly, it can decrease the noise and decrease energy consumption.

6. Each rotary blade with 4 cutting knife-edge. When the rotary blade is worn, it can be rotated to 90 degrees, then the blade can continue to use.

7. Each fixed blade with 2 cutting knife edges. When the fixed blade is worn, it can be rotated to 180 degrees, then the blade can continue to use.

8. All the machinery and electrical devices are protected in accordance with the European CE standard.




Applications



The single shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:

  • Refuse-derived fuel: straw, municipal solid waste;

  • Textile: cloth fiber, nylon;

  • Paper: industrial waste paper, packing paper, cardboard paper;

  • Cable wires: copper core cable, aluminum cable, composite cables;

  • Polypropylene pipe, industrial packaging & plastic films, PP woven bags;

  • Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums.

  • Metal: Lathe shaving swarf scraps.

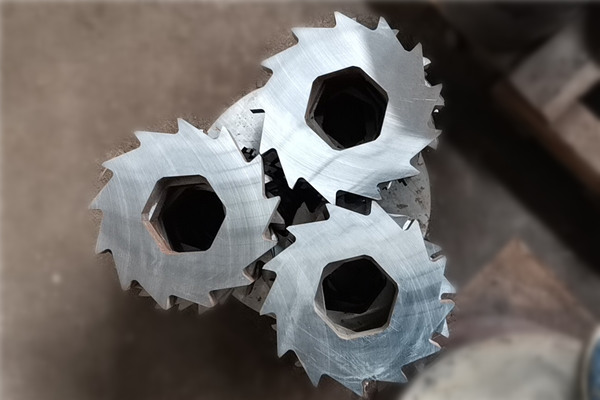

Cutter Blades

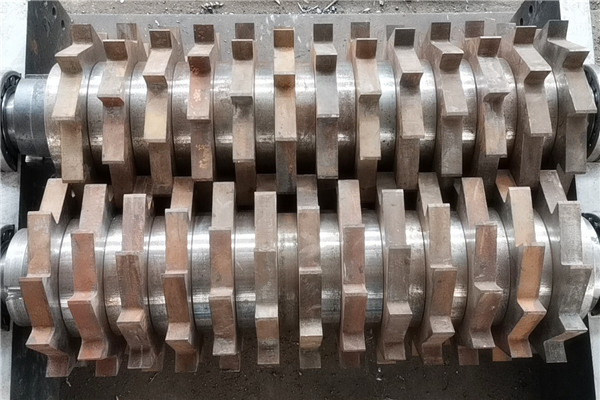

Cutter Shaft
