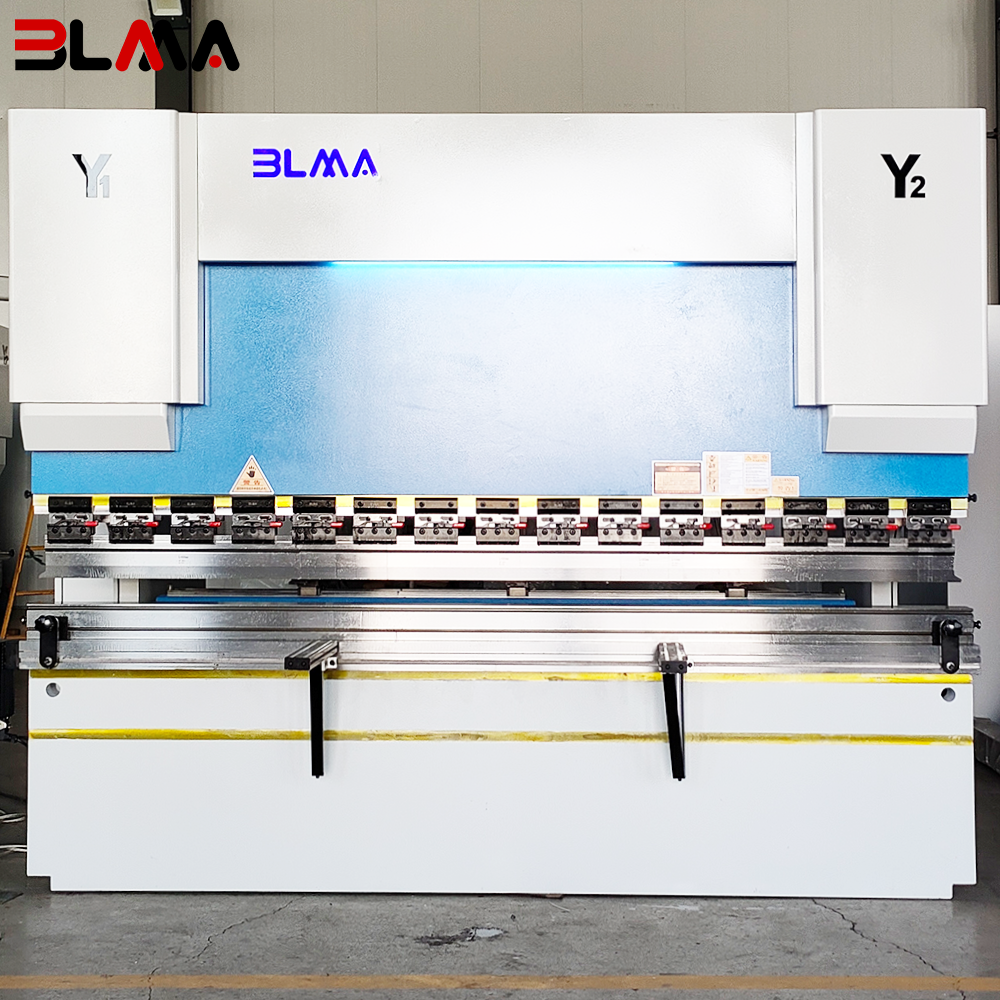

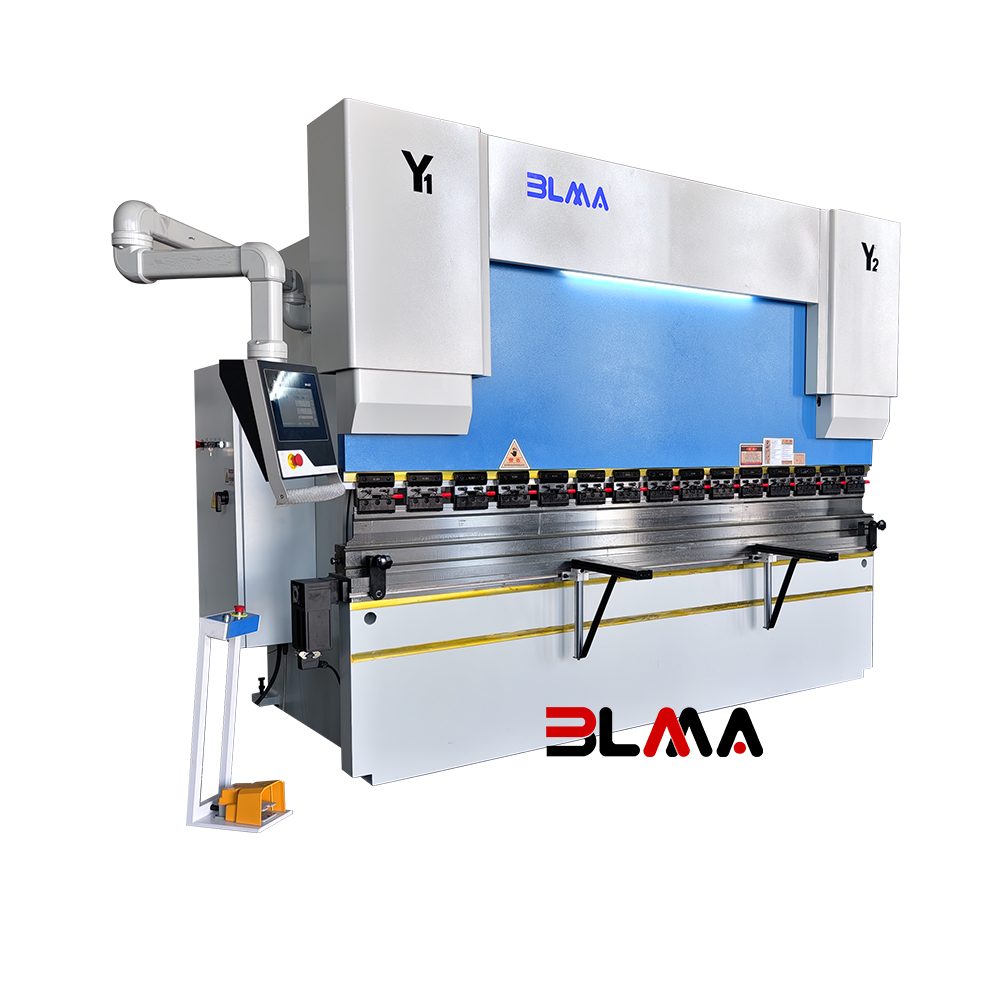

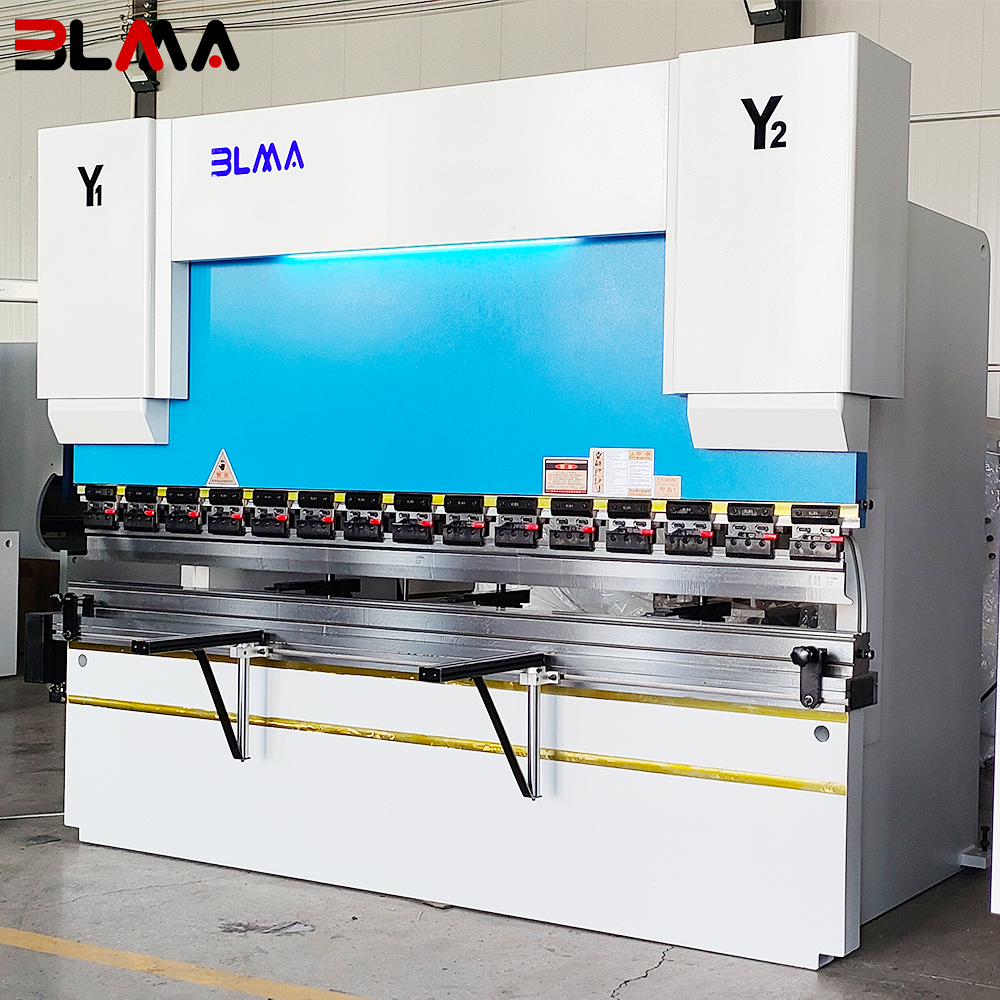

2025-BLMA-WE67K-200T3200 DA53T 4+1 Axis CNC Hydraulic Press Brake

The WE67K-200T3200 DA53T 4+1 Axis CNC Press Brake is a high-precision hydraulic bending machine designed for complex and demanding metal forming tasks. Equipped with the DA53T CNC controller, it provides intuitive programming, angle control, and multi-step bending functions. With 200 tons of bending force and a 3200mm working length, this press brake is ideal for precision sheet metal applications in industries such as automotive, cabinets, machinery, and construction.
Availability:
Inquire

  • WE67K-200T3200 DA53T 4+1 CNC Hydraulic Press Brake

  • BLMA

  • WE67K- DA53T

  • T/T, L/C, D/P, Western Union, MoneyGram

  • Jiangsu, China

  • Can be customized

  • Shanghai

  • 30 days after deposit confirmed

Product Description

博林马详情页20250708折弯机 真1

The WE67K-200T3200 DA53T CNC Press Brake is a high-precision and intelligent bending solution designed for modern sheet metal fabrication. Equipped with the advanced DA53T 4+1 axis CNC controller, this machine enables high-efficiency production with easy programming, multi-step bending, and angle control functions. It supports real-time monitoring and intelligent axis positioning, significantly improving accuracy and consistency.

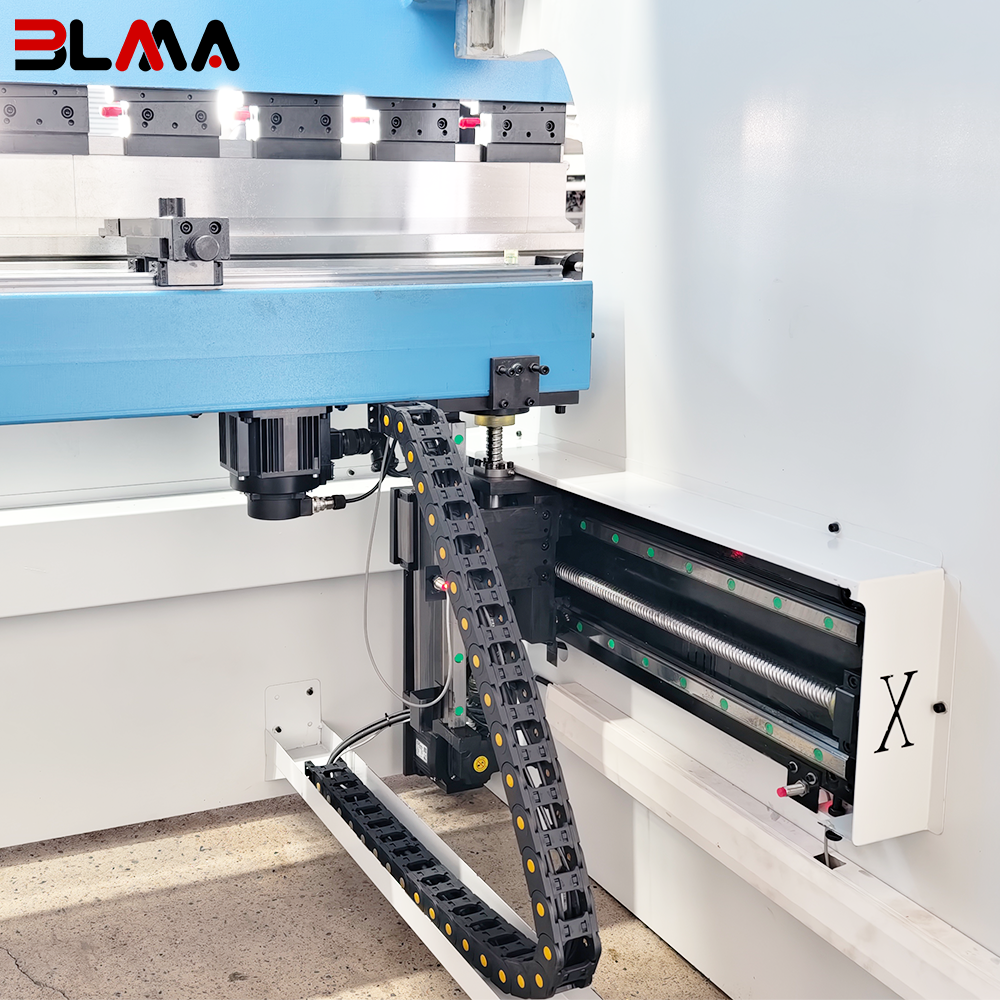

This model adopts a torsion bar synchronized structure, ensuring excellent synchronization of the Y1 and Y2 cylinders. The heavy-duty machine frame provides strong rigidity and stability, even during high-pressure operation. The motorized backgauge and ram stroke are precisely controlled by the DA53T, and the backgauge is equipped with linear guideways and ball screws, enabling fast and accurate positioning.

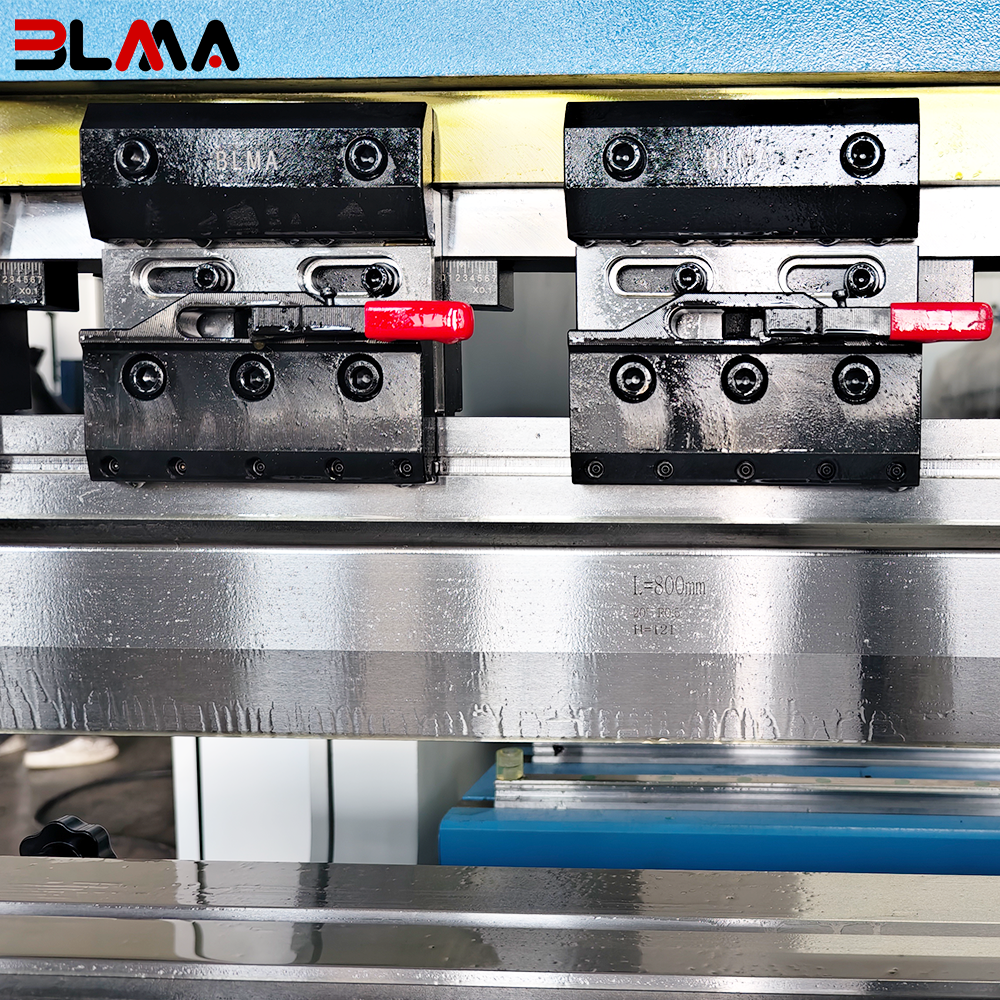

Fast-moving stop fingers mounted on dual linear guides further enhance productivity. A manual crowning table is available as an option for compensating deformation in long sheet bending. Overall, this press brake is ideal for users who seek reliable CNC bending with excellent cost performance.


DA53T CNC controller

  • 4+1 axis control (Y1, Y2, X, R + V-axis crowning)

  • 10.1” high-resolution color display

  • Graphical programming interface for easier bending steps

  • Angle programming, tool & material library

  • Position control for backgauge and block

  • Support for multi-step and complex part processing

  • USB interface for program import/export

  • Inch/mm switching, Chinese/English language support

12


6SVP19

413

31678

联系我们

                                                                         CNC Press Brake Technical Parameters
Model Bending Force Bending Length Column
Distance		 Throat
Depth		 Stroke Daylight Motor Power Weight Dimensions
Unit KN mm mm mm mm mm KW Ton L*W*H mm
40T1300 400 1300 1100 250 150 440 4.0 3.5 1700*1500*2200
40T1600 400 1600 1300 250 150 440 4.0 4 2000*1500*2200
63T1600 630 1600 1300 300 150 440 5.5 4.8 2000*1550*2250
63T2500 630 2500 2050 300 150 440 5.5 5.5 2900*1550*2250
80T/1600 800 1600 1300 300 150 460 7.5 5.9 2000*1600*2500
80T/2500 800 2500 2050 300 150 460 7.5 6.5 2900*1600*2500
110T/2500 1100 2500 2050 400 200 480 11.0 7.5 3100*1800*2750
110T/3200 1100 3200 2700 400 200 480 11.0 8.5 3800*1800*2750
110T/4000 1100 4000 3100 400 200 480 11.0 10.0 4600*1800*2750
135T2500 1350 2500 2050 400 200 480 11.0 8.5 3100*1800*2750
135T/3200 1350 3200 2700 400 200 480 11.0 9.5 3800*1800*2750
135T/4000 1350 4000 3100 400 200 480 11.0 11.0 4600*1800*2750
170T/2500 1700 2500 2050 450 200 480 15.0 10.4 3100*2000*2800
170T/3200 1700 3200 2700 450 200 480 15.0 11.5 3800*2000*2800
170T/4000 1700 4000 3100 450 200 480 15.0 13.0 4600*2000*2800
170T5000 1700 5000 3900 450 200 480 18.5 15.0 5600*2100*2950
170T6000 1700 6000 4900 450 200 480 18.5 18.0 6600*2200*2950
220T/2500 2200 3200 2600 450 200 480 18.5 11.2 3800*2200*2850
220T/3200 2200 3200 2600 450 200 480 18.5 13.5 3800*2200*2850
220T/4000 2200 4000 3100 450 200 480 18.5 15.5 4600*2200*2850
220T/5000 2200 5000 3800 450 200 480 22.0 18 5600*2250*3050
220T6000 1700 6000 4800 450 200 480 22.0 21 6600*2250*3050
                                                                            CNC Press Brake Technical Parameters
Model Bending Force Bending Length Column
Distance		 Throat
Depth		 Stroke Daylight Motor Power Weight Dimensions
Unit KN mm mm mm mm mm KW Ton L*W*H mm
250T/2500 2500 2500 2000 450 250 540 22.0 14 3100*2250*3000
250T/3200 2500 3200 2600 450 250 540 22.0 15.5 3800*2250*3000
250T/4000 2500 4000 3100 450 250 540 22.0 17.8 4600*2250*3000
250T/5000 2500 5000 3800 450 250 540 22.0 21.3 5600*2250*3150
250T/6000 2500 6000 4800 450 250 540 22.0 25 6600*2250*3150
300T/3200 3000 3200 2600 500 250 570 22.0 18.8 3600*2250*3200
300T/4000 3000 4000 3100 500 250 570 22.0 20.3 4600*2250*3200
300T/5000 3000 5000 3800 500 250 570 30.0 27 5600*2250*3400
300T/6000 3000 6000 4800 500 250 570 30.0 30.4 6600*2250*3400
400T/3200 4000 3200 2400 500 300 610 30.0 22.8 3600*2250*3500
400T/4000 4000 4000 3100 500 300 610 30.0 28.3 4600*2250*3500
400T/5000 4000 5000 3800 500 300 610 37.0 31.2 5600*2250*3500
400T/6000 4000 6000 4800 500 300 610 37.0 37.4 6600*2250*3500
400T/8000 4000 6000 6400 500 300 610 37.0 52.8 8600*2700*3500
500T/4000 5000 4000 3100 500 300 610 37.0 35 4300*2700*3500
500T/5000 5000 5000 3800 500 300 610 45.0 39.8 5300*2700*3500
500T/6000 5000 6000 4800 500 300 610 45.0 45.8 6300*2700*3600
600T/3200 6000 3200 2300 600 320 650 45.0 45 4300*3300*3900
600T/4000 6000 4000 3100 600 320 650 45.0 45.8 4300*3300*3900
600T/5000 6000 5000 3800 600 320 650 45.0 50.3 5300*3300*3900
600T/6000 6000 6000 4800 600 320 650 45.0 56.8 6300*3300*3900
600T/7000 6000 7000 5600 600 320 650 45.0 66.8 7300*3300*3900
700T/6000 7000 6000 4900 600 320 700 55.0 66.8 6300*3500*4000
800T/6000 8000 6000 4600 600 320 800 30*2 76.8 6300*3500*4000
800T/7000 8000 7000 5600 600 320 800 30*2 89.0 7300*3500*4200
800T/8000 8000 8000 6600 600 320 800 30*2 103.0 8300*3600*4500
800T/10000 8000 10000 7800 600 320 800 30*2 130.0 10300*3600*4900
