2 Axis vs 3 Axis vs 4 Axis vs 5 Axis Tube Bender Guide

CNC Tube Bending Machine Axis Configurations

BLMA offers a full range of CNC tube bending machines with different axis configurations, from 2-axis to 12-axis, to meet various tube bending requirements. Different axis numbers represent different levels of automation, bending flexibility, and workpiece complexity. From simple 2D bends to complex 3D multi-radius tube components, BLMA provides suitable solutions for a wide range of industries, including automotive, furniture, HVAC, fitness equipment, medical devices, and industrial tube fabrication.

As the number of controlled axes increases, the machine gains greater capability in tube feeding, rotation, bending coordination, multi-radius processing, and complex spatial tube forming. This allows manufacturers to achieve higher precision, better repeatability, and more efficient production when processing demanding tube parts. Whether for standard tube components or advanced multi-bend workpieces, BLMA can recommend the most suitable CNC tube bending machine configuration based on tube size, material, bend radius, and production requirements.

Why Axis Configuration Matters in CNC Tube Bending

The number of axes on a tube bending machine determines not only how the tube moves during bending, but also how efficiently the machine can handle complex tube geometries, multi-radius parts, and precision bending tasks. A lower-axis machine may be sufficient for simple tube parts, while a higher-axis machine is often necessary for 3D tube bending, multi-stack tooling, tight CLR bending, booster bending, and fully automated production. Selecting the right axis configuration helps improve bending accuracy, reduce cycle time, minimize manual operation, and increase long-term production stability.

BLMA can recommend the most suitable CNC tube bending machine axis configuration based on your tube diameter, wall thickness, material, bend radius, part geometry, and production volume. Whether you need a compact 3-axis tube bender for standard workpieces or a high-performance 12-axis CNC tube bending machine for advanced tube fabrication, BLMA provides professional bending solutions tailored to your production needs.

BLMA provides 2-axis to 12-axis CNC tube bending machines to meet different bending applications, from simple tube parts to complex 3D multi-radius workpieces. Different axis configurations offer different levels of automation, bending flexibility, and production capability, helping customers achieve higher precision, better repeatability, and more efficient tube fabrication. Widely used in automotive, furniture, HVAC, medical, and industrial applications, BLMA CNC tube benders can be customized according to tube diameter, material, bend radius, and production needs.

2A Tube Bender Servo Axis Introduction

What Does 2A Mean on a CNC Tube Bending Machine? In a 2A CNC tube bending machine, “2A” refers to 2 servo-controlled axes, which are the key motion units responsible for tube feeding and tube rotation during the bending process. For BLMA 2-axis tube benders, these two servo motors work together to ensure accurate positioning before each bend, making the machine ideal for single-plane bending and basic multi-bend tube forming applications.

Why These 2 Servo Axes Matter

The combination of the B-axis rotation servo motor and Y-axis feeding servo motor forms the foundation of a 2-axis CNC tube bending machine. These two axes directly affect:

Tube feeding accuracy

Tube rotation precision

Bend position consistency

Production efficiency

Repeatability of bent tube parts

For customers producing simple 2D tube bending parts, a 2A tube bender offers a practical balance of automation, cost control, and stable bending accuracy.

3A Tube Bender Servo Axis Introduction

What Does 3A Mean on a CNC Tube Bending Machine?
In a 3A CNC tube bending machine, “3A” refers to 3 servo-controlled axes, which are responsible for tube feeding, tube rotation, and bend angle control during the bending process. Compared with a 2A tube bender, the additional servo axis improves bending automation and angle precision, making the machine suitable for single-plane bending, multi-bend tube parts, and more consistent tube forming applications.

Why These 3 Servo Axes Matter

The combination of the feeding axis, rotation axis, and bend angle control axis gives a 3-axis CNC tube bending machine better control over the bending process. These three axes directly affect:
Tube feeding accuracy
Tube rotation precision
Bend angle consistency
Production efficiency
Repeatability of bent tube parts
For customers producing standard 2D tube parts and multi-bend workpieces, a 3A tube bender offers improved automation, better bending accuracy, and more stable production performance.

4A Tube Bender Servo Axis Introduction

What Does 4A Mean on a CNC Tube Bending Machine?
In a 4A CNC tube bending machine, “4A” refers to 4 servo-controlled axes: Y-axis feeding, B-axis rotation, C-axis bending, and X-axis left-right movement. These four servo motors work together to control tube feeding length, tube rotation angle, bend angle, and lateral positioning during the bending process, making the machine suitable for multi-bend tube parts, different bend radii, and more flexible 2D tube forming applications.

Why These 4 Servo Axes Matter

The combination of the B-axis rotation servomotor, Y-axis feeding servomotor, C-axis bending servomotor, and X-axis left-right servomotor gives a 4-axis CNC tube bending machine stronger control over the bending process. These four axes directly affect:
Tube feeding accuracy
Tube rotation precision
Bend angle consistency
Multi-radius bending flexibility
Repeatability of bent tube parts
For customers producing chair frames, furniture tubes, handrails, and other multi-bend tube components, a 4A tube bender offers a practical balance of automation, bending flexibility, and stable production accuracy.

5A Tube Bender Servo Axis Introduction

What Does 5A Mean on a CNC Tube Bending Machine?
In a 5A CNC tube bending machine, “5A” refers to 5 servo-controlled axes: Y-axis feeding, B-axis rotation, C-axis bending, X-axis left-right movement, and Z-axis up-and-down movement. Compared with a 4A tube bender, the additional Z-axis servomotor provides greater flexibility for different bending heights, more complex bending paths, and improved interference avoidance, making the machine ideal for 3D tube bending and more demanding tube forming applications.

Why These 5 Servo Axes Matter

The combination of the B-axis rotation servomotor, Y-axis feeding servomotor, C-axis bending servomotor, X-axis left-right servomotor, and Z-axis up-and-down servomotor gives a 5-axis CNC tube bending machine more advanced control over tube positioning and bending movements. These five axes directly affect:
Tube feeding accuracy
Tube rotation precision
Bend angle consistency
3D bending flexibility
Interference handling capability
For customers producing complex furniture frames, automotive tubes, irregular metal tube parts, and 3D bent workpieces, a 5A tube bender offers better automation, greater bending flexibility, and more stable high-precision production.

What Does 7A Mean on a CNC Tube Bending Machine?

In a 7A CNC tube bending machine, "7A" refers to seven servo-controlled axes that work together to achieve highly accurate tube positioning, mandrel control, and multi-dimensional bending. The seven servo axes include Y-axis material feeding, B-axis tube rotation, X-axis horizontal feed movement, Z-axis vertical feed movement, W-axis mandrel horizontal movement, V-axis mandrel vertical movement, and the material support servo axis.
Compared with a 5A CNC tube bender, a 7A tube bending machine adds servo-controlled mandrel positioning and material support, providing greater stability during bending, better wrinkle prevention, improved interference avoidance, and higher precision for complex 3D tube bending applications.

Why These 7 Servo Axes Matter

The combination of B-axis rotation, Y-axis feeding, X-axis horizontal positioning, Z-axis vertical positioning, W-axis mandrel positioning, V-axis mandrel height adjustment, and the material support servo motor allows the machine to precisely control every stage of the bending process.
These seven servo axes directly improve:
Tube feeding accuracy
Tube rotation precision
Multi-level bending flexibility
Automatic mandrel positioning
Material support synchronization
Thin-wall tube bending quality
Wrinkle and deformation reduction
3D tube bending consistency
Complex interference avoidance
High-speed automated production

For manufacturers producing automotive exhaust systems, chassis components, roll cages, aerospace tubes, furniture frames, heat exchanger tubes, hydraulic pipelines, bicycle frames, and other complex tubular parts, a 7A CNC tube bender delivers superior automation, greater bending flexibility, excellent repeatability, and outstanding production efficiency.

9A Tube Bender Servo Axis Introduction

What Does 9A Mean on a CNC Tube Bending Machine?
In a 9A CNC tube bending machine, "9A" refers to nine independently servo-controlled axes designed to provide maximum flexibility, precision, and automation for advanced tube bending applications. The nine servo axes include Y-axis material feeding, B-axis tube rotation, C-axis bending, X-axis machine head horizontal movement, Z-axis machine head vertical movement, main clamping die servo, guide die auxiliary push (PDA) servo, mandrel servo, and guide die servo.
Compared with a 7A CNC tube bender, a 9A tube bending machine introduces fully servo-controlled bending, clamping, and guide die movements, allowing complete synchronization throughout the bending process. This significantly improves bending accuracy, surface quality, and production efficiency, especially for complex multi-radius and tight-radius tube bending.

Why These 9 Servo Axes Matter

The combination of feeding, rotation, bending, machine head positioning, clamping, guide die control, auxiliary push assistance, and mandrel positioning enables every movement to be independently controlled and perfectly synchronized.
These nine servo axes directly improve:
Tube feeding accuracy
Tube rotation precision
Servo bending accuracy
Machine head positioning precision
Automatic clamp synchronization
Guide die positioning control
Push bending performance
Thin-wall tube protection
Multi-radius bending flexibility
Tight-radius bending capability
Complex 3D tube forming
Reduced tube deformation
Higher repeatability
Faster production cycles
With fully synchronized servo control, a 9-axis tube bender delivers exceptional bending quality, greater process flexibility, lower setup time, and superior productivity for modern intelligent manufacturing.

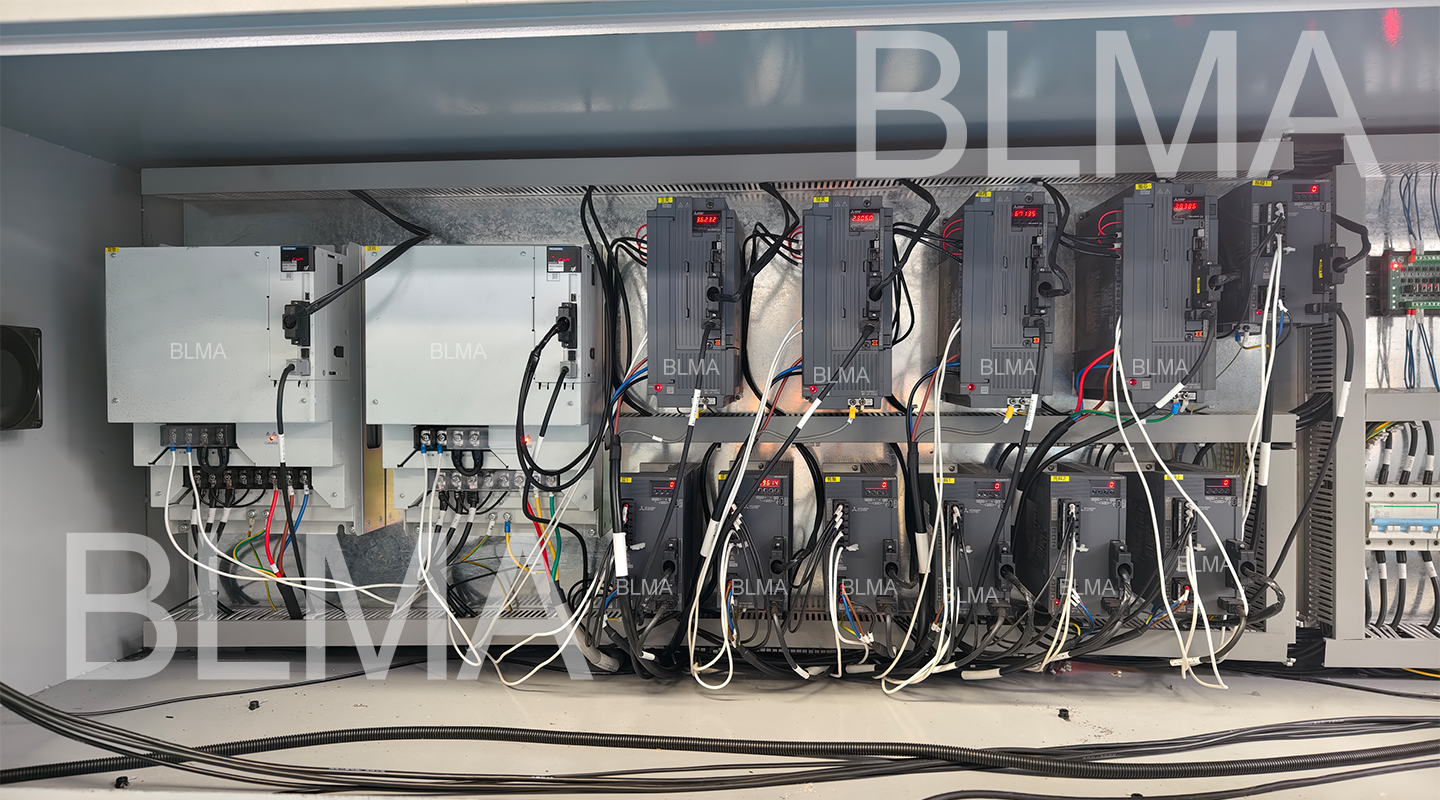

11A Tube Bender Servo Axis Introduction

What Does 11A Mean on a CNC Tube Bending Machine?
An 11A CNC tube bending machine features eleven independently servo-controlled axes, delivering exceptional flexibility, precision, and automation for the most demanding tube bending applications. The 11 servo axes include Y-axis material feeding, B-axis tube rotation, C-axis bending, X-axis horizontal feed positioning, Z-axis vertical feed positioning, W-axis mandrel horizontal movement, V-axis mandrel vertical movement, material support servo, main clamping die servo, guide die clamping servo, and guide die auxiliary push (PDA) servo.
Compared with a 9A CNC tube bender, the 11A tube bending machine adds fully servo-controlled guide die clamping and advanced multi-axis synchronization, providing greater stability during push bending, tighter radius capability, and superior control when forming complex 3D tube geometries.

Why These 11 Servo Axes Matter

The coordinated control of feeding, rotation, bending, horizontal and vertical positioning, mandrel movement, material support, clamping, guide die control, and auxiliary push allows every stage of the bending process to be precisely synchronized.
These eleven servo axes directly improve:
Tube feeding accuracy
Tube rotation precision
Servo bending accuracy
Horizontal and vertical positioning accuracy
Automatic mandrel positioning
Material support synchronization
Main clamp servo control
Guide die clamping precision
Auxiliary push bending performance
Tight-radius bending capability
Thin-wall tube protection
Wrinkle and deformation reduction
Multi-radius bending flexibility
Complex 3D tube forming
High-speed automated production
Excellent repeatability
With eleven synchronized servo axes, an 11-axis CNC tube bender provides outstanding flexibility, superior surface quality, reduced setup time, and reliable performance for advanced industrial tube bending applications.
