2025-BLMA-WE67K-300T3200 DA58T 4+1 Axis CNC Hydraulic Press Brake

✅ Product Introduction – WE67K-300T3200 DA58T 4+1 Axis CNC Press Brake

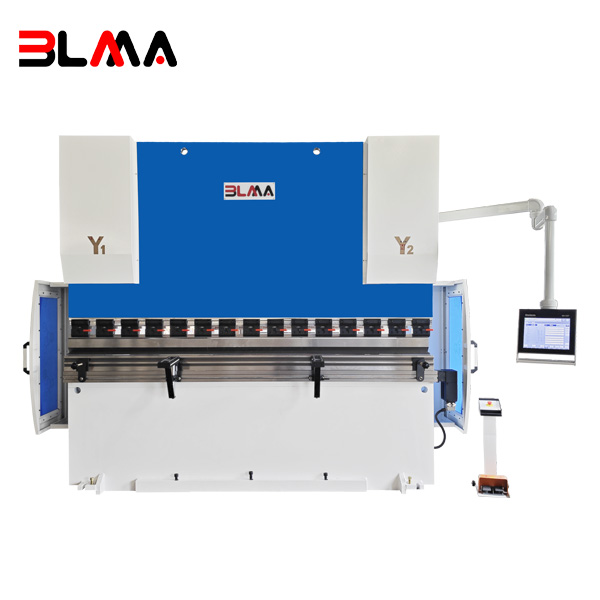

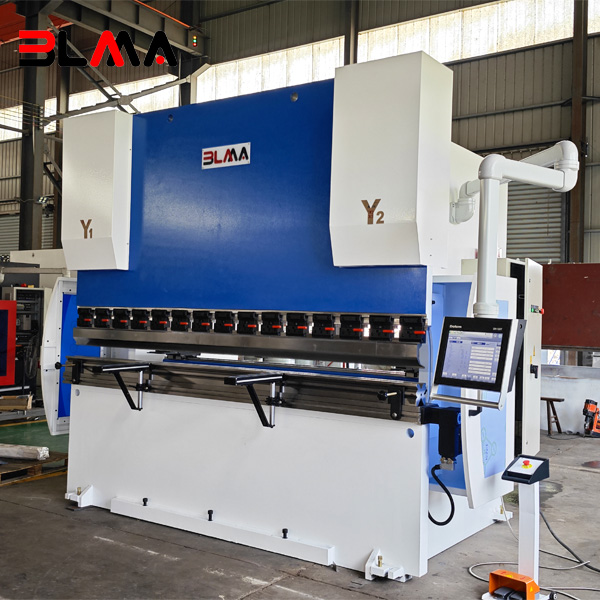

The WE67K-300T3200 DA58T CNC Press Brake is a high-precision and intelligent hydraulic sheet metal bending solution designed for demanding industrial applications. With a bending capacity of 300 tons and a working length of 3200 mm, this model is ideal for forming medium to large-sized metal parts with accuracy and efficiency.

Structural Advantages:

• Torsion bar synchronized mechanism ensures stable parallel movement of the ram (Y1 and Y2 axes), providing reliable and repeatable bending results.

• The robust welded steel frame undergoes stress relief to ensure excellent rigidity and minimal deformation under load.

• Precision-machined ram and worktable ensure long-term bending accuracy and durability.

• High-performance hydraulic system provides smooth and consistent force across the entire bending stroke.

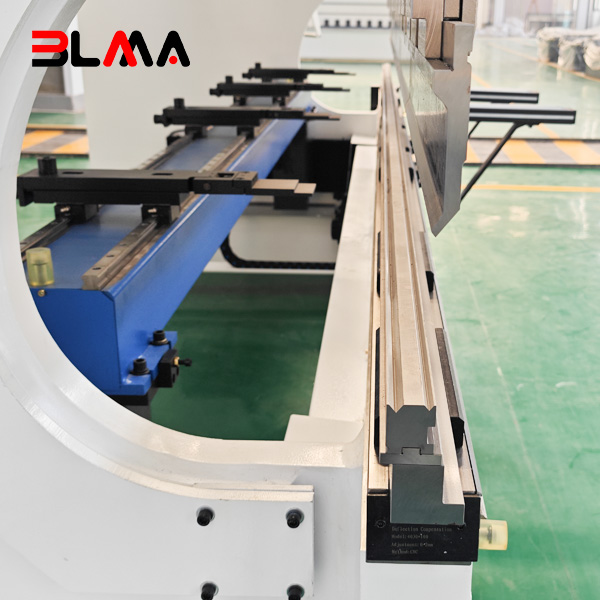

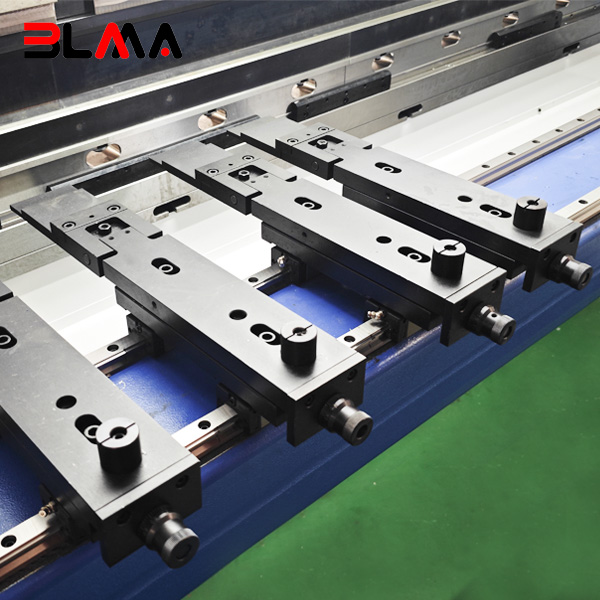

• Equipped with a motorized backgauge featuring ball screws and linear guides for precise positioning on the X and R axes.

• Manual or automatic crowning system (V-axis) compensates for deflection during long part bending.

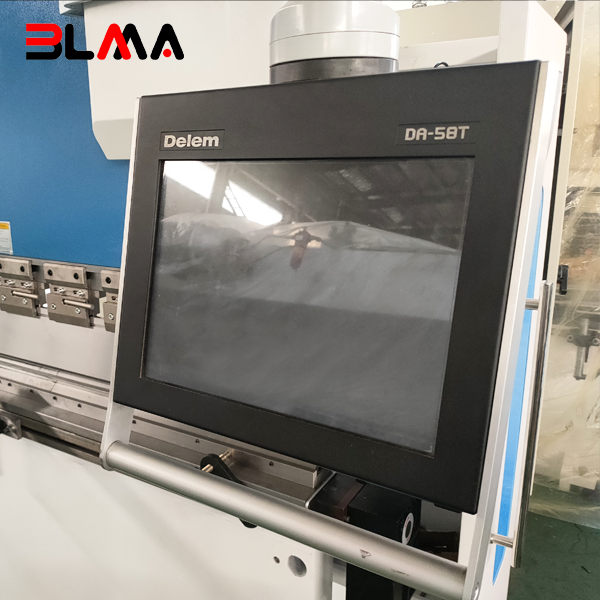

DA58T CNC Controller (ESA):

The machine is equipped with the DA58T CNC system, a powerful and user-friendly solution from ESA, Italy, for controlling complex press brake operations. Its features include:

• 15-inch high-resolution color touchscreen

• 2D graphical programming interface for intuitive setup and simulation

• 4+1 axis control (Y1, Y2, X, R + V crowning axis)

• Angle programming, material/tool libraries, and bending sequence simulation

• Automatic bend calculation and collision detection

• Multi-language interface (English, Chinese, Spanish, etc.)

• USB and Ethernet communication ports for fast data exchange

• Real-time diagnostics and error alerts
