2025-BLMA-WE67K-400T6000 ET18 4+1 Axis CNC Hydraulic Press Brake
Home » Products » Press Brake » Torsion Bar Press Brake » 2025-BLMA-WE67K-400T6000 ET18 4+1 Axis CNC Hydraulic Press Brake

Product Detail

loading

Share to:
sharethis sharing button

2025-BLMA-WE67K-400T6000 ET18 4+1 Axis CNC Hydraulic Press Brake

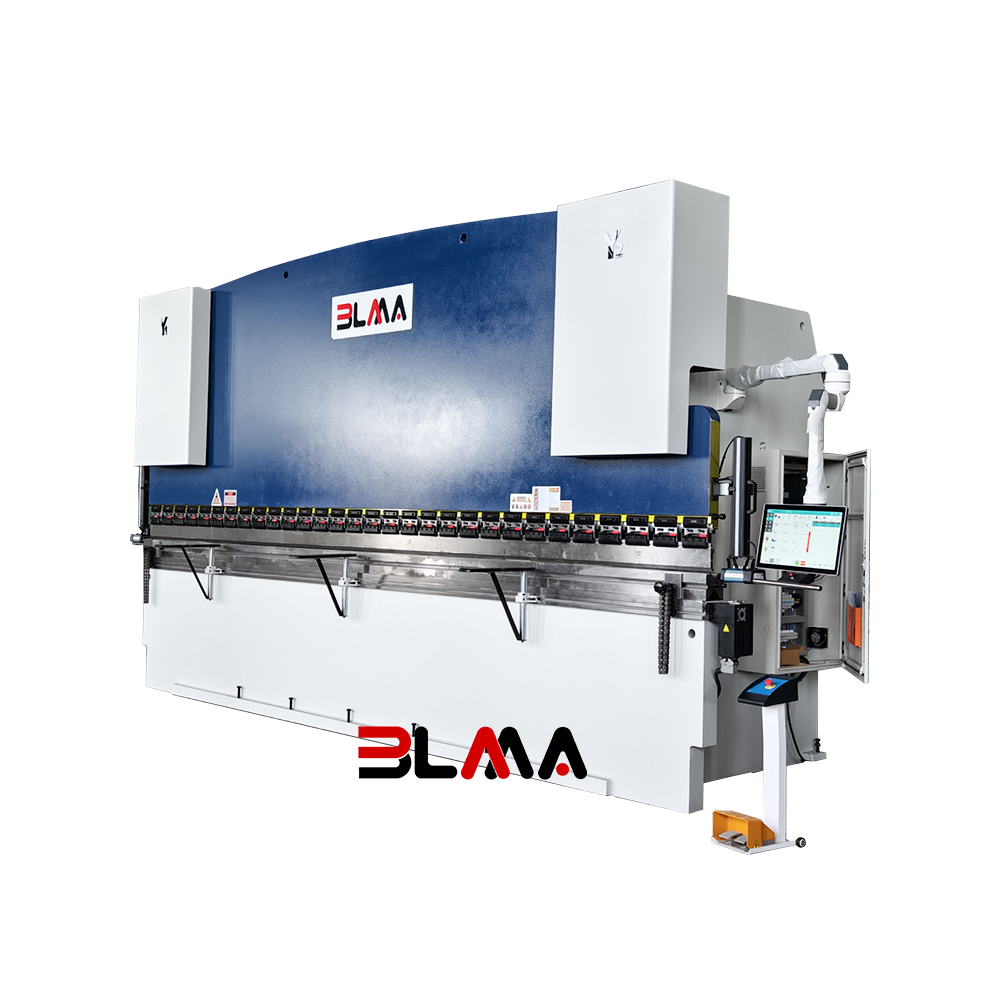

The WE67K-400T6000 ET18 CNC Press Brake is an advanced heavy-duty bending machine designed for large sheet metal processing. With a 400-ton bending capacity and 6000mm working length, it delivers outstanding performance in industries requiring precise forming of long or thick metal sheets.

Built on a rigid welded steel frame, this machine guarantees minimal deflection under high loads. Its 4+1 axis configuration (Y1, Y2, X, R + V crowning) allows complex multi-step bending operations with excellent repeatability.

The ET18 CNC controller, developed by ESA, provides intuitive touch programming, 2D visualization, and automatic bending sequence calculation, ensuring both flexibility and accuracy during production. The motorized backgauge with linear guides and ball screws ensures high-speed positioning and efficient material handling.

This machine is ideal for applications in steel structures, power cabinets, shipbuilding, elevator panels, heavy machinery components, and other industries that require long-length and high-tonnage forming.
Availability:
Inquire

  • WE67K-400T6000 ET18 4+1 CNC Hydraulic Press Brake

  • BLMA

  • WE67K- ET18

  • T/T, L/C, D/P, Western Union, MoneyGram

  • Jiangsu, China

  • Can be customized

  • Shanghai

  • 30 days after deposit confirmed

Product Description

博林马详情页20250708折弯机 真1

✅ ET18 CNC Controller Features

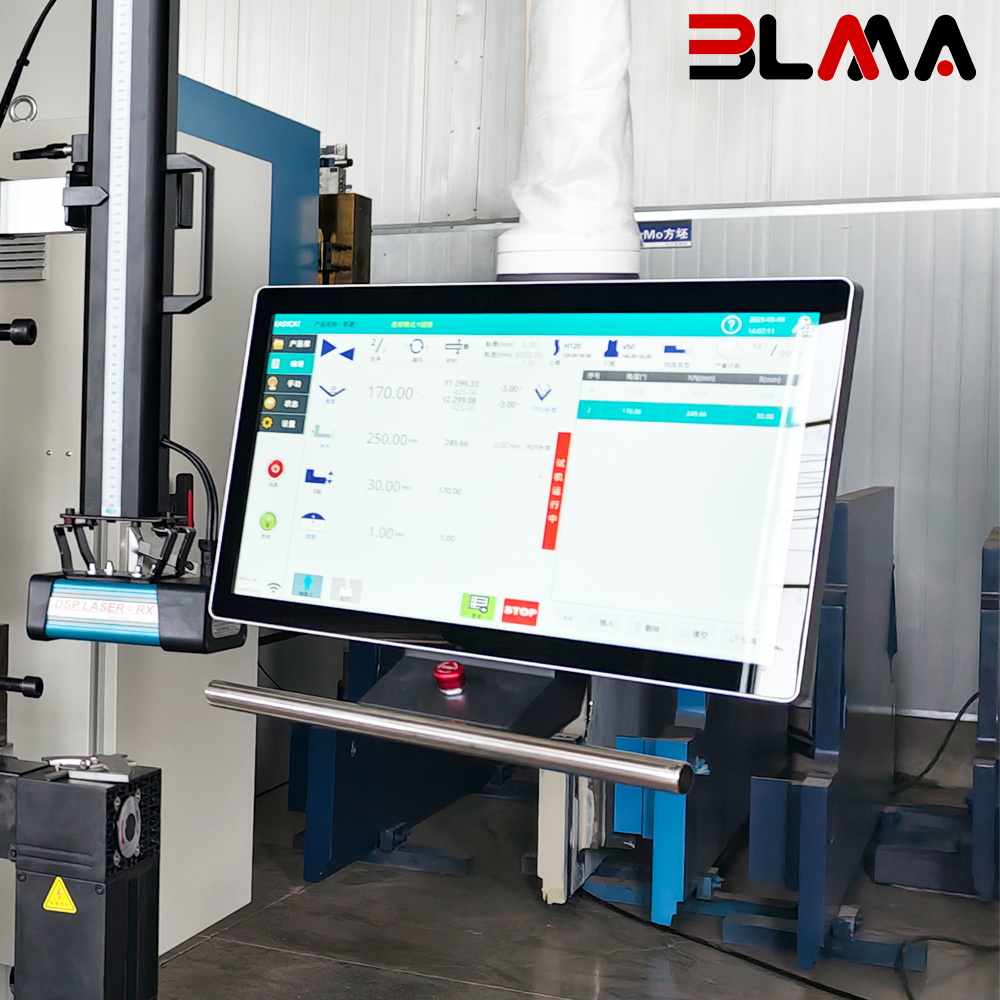

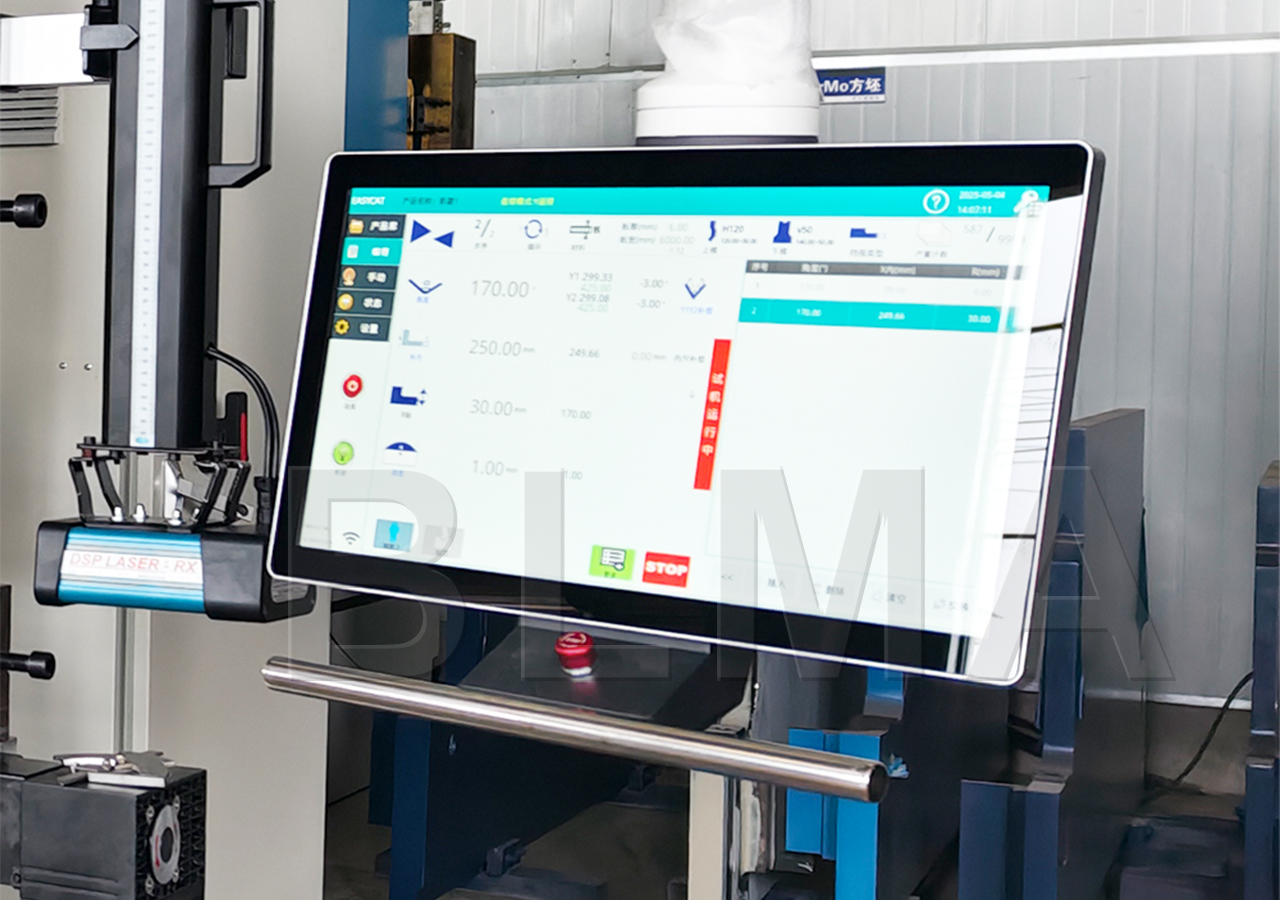

  • 15" color touchscreen with intuitive HMI

  • 2D graphic programming with bend simulation

  • Supports 4+1 axis (Y1, Y2, X, R, and V-axis crowning)

  • Automatic bending sequence calculation and collision avoidance

  • Tool and material library for flexible setup

  • USB, Ethernet, and Industry 4.0-ready

  • Real-time diagnostics and error feedback

  • Multilingual interface (English, Chinese, Spanish, etc.)

✅ Main Machine Features

  • Torsion bar synchronization system ensures high bending accuracy

  • Sturdy welded frame, stress-relieved, anti-deflection

  • Crowning system (manual or automatic) to correct angle deviation

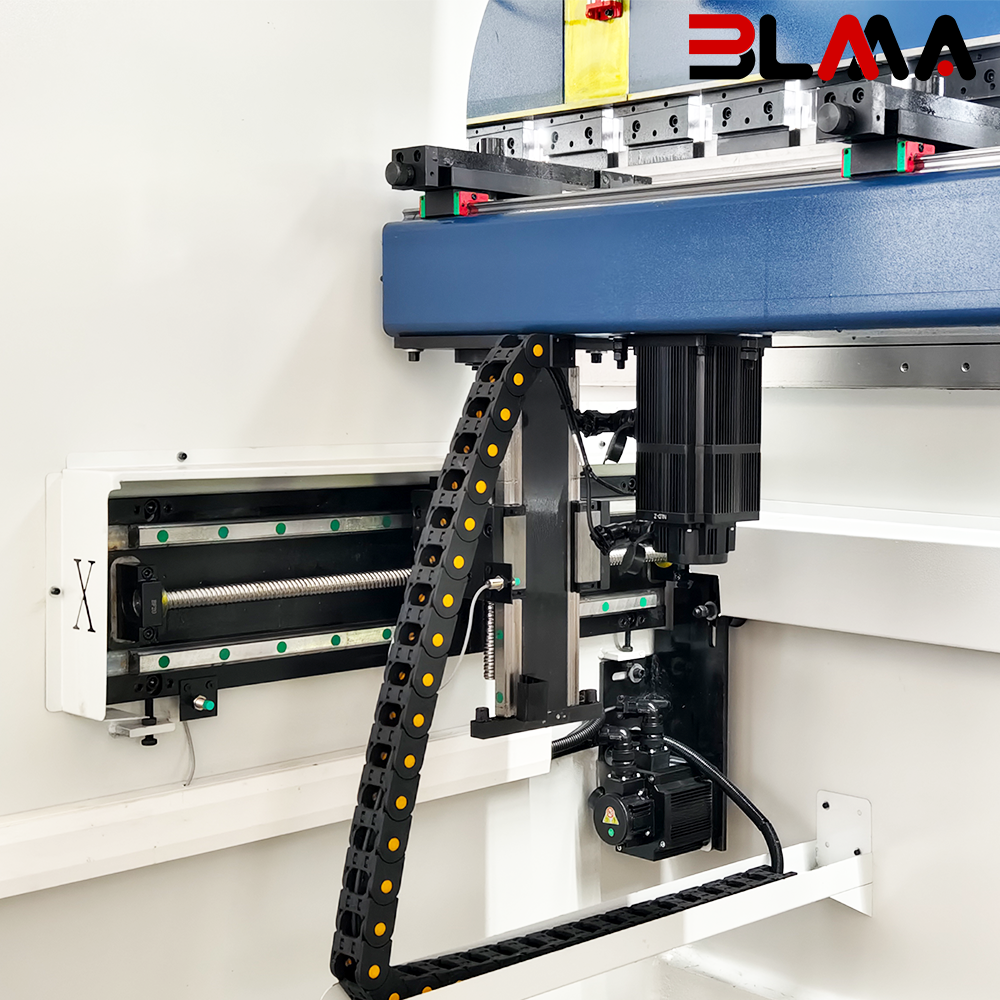

  • High-precision ball screw and linear guide backgauge system高精度滚珠丝杠和线性导轨背规系统

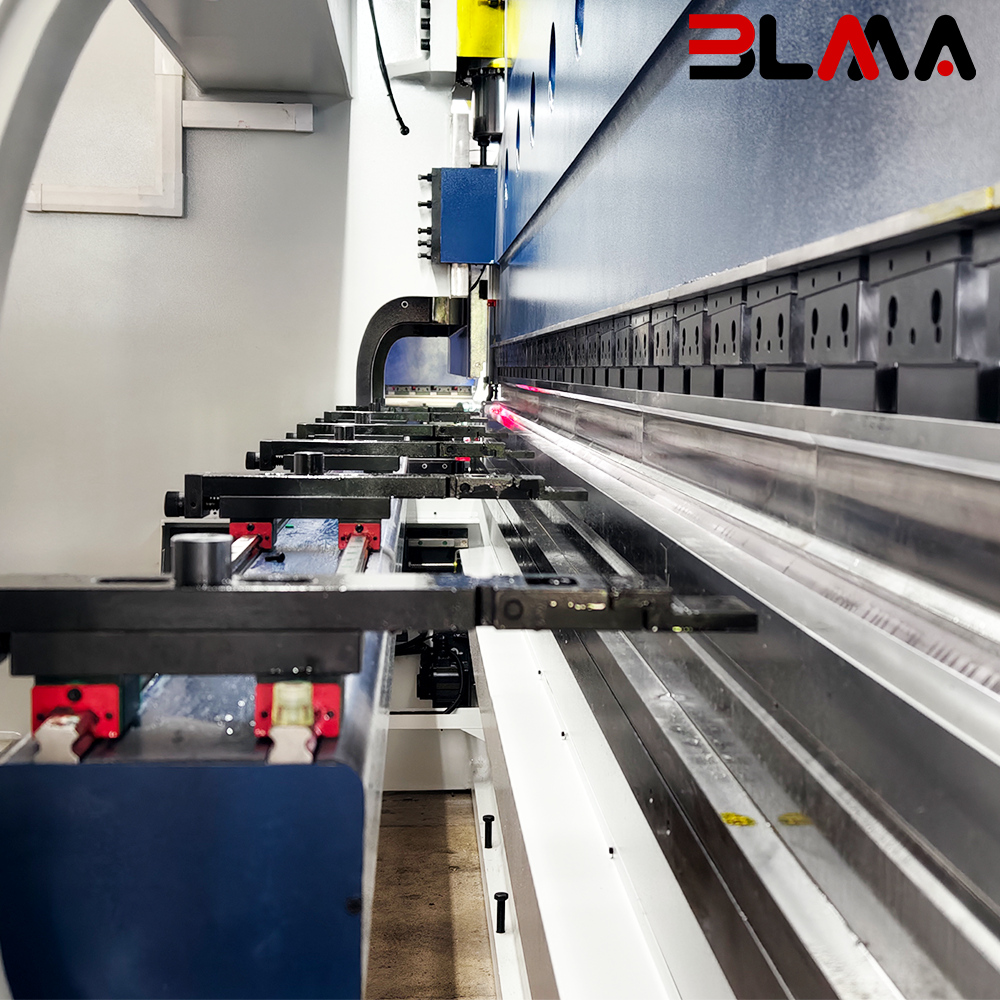

  • Fast-moving stop fingers for efficient part positioning

  • Suitable for large panel bending and complex industrial production

  • Complies with CE and ISO standards

12


未标题-1SVP19

413

31678

联系我们

                                                                         CNC Press Brake Technical Parameters
Model Bending Force Bending Length Column
Distance		 Throat
Depth		 Stroke Daylight Motor Power Weight Dimensions
Unit KN mm mm mm mm mm KW Ton L*W*H mm
40T1300 400 1300 1100 250 150 440 4.0 3.5 1700*1500*2200
40T1600 400 1600 1300 250 150 440 4.0 4 2000*1500*2200
63T1600 630 1600 1300 300 150 440 5.5 4.8 2000*1550*2250
63T2500 630 2500 2050 300 150 440 5.5 5.5 2900*1550*2250
80T/1600 800 1600 1300 300 150 460 7.5 5.9 2000*1600*2500
80T/2500 800 2500 2050 300 150 460 7.5 6.5 2900*1600*2500
110T/2500 1100 2500 2050 400 200 480 11.0 7.5 3100*1800*2750
110T/3200 1100 3200 2700 400 200 480 11.0 8.5 3800*1800*2750
110T/4000 1100 4000 3100 400 200 480 11.0 10.0 4600*1800*2750
135T2500 1350 2500 2050 400 200 480 11.0 8.5 3100*1800*2750
135T/3200 1350 3200 2700 400 200 480 11.0 9.5 3800*1800*2750
135T/4000 1350 4000 3100 400 200 480 11.0 11.0 4600*1800*2750
170T/2500 1700 2500 2050 450 200 480 15.0 10.4 3100*2000*2800
170T/3200 1700 3200 2700 450 200 480 15.0 11.5 3800*2000*2800
170T/4000 1700 4000 3100 450 200 480 15.0 13.0 4600*2000*2800
170T5000 1700 5000 3900 450 200 480 18.5 15.0 5600*2100*2950
170T6000 1700 6000 4900 450 200 480 18.5 18.0 6600*2200*2950
220T/2500 2200 3200 2600 450 200 480 18.5 11.2 3800*2200*2850
220T/3200 2200 3200 2600 450 200 480 18.5 13.5 3800*2200*2850
220T/4000 2200 4000 3100 450 200 480 18.5 15.5 4600*2200*2850
220T/5000 2200 5000 3800 450 200 480 22.0 18 5600*2250*3050
220T6000 1700 6000 4800 450 200 480 22.0 21 6600*2250*3050
                                                                            CNC Press Brake Technical Parameters
Model Bending Force Bending Length Column
Distance		 Throat
Depth		 Stroke Daylight Motor Power Weight Dimensions
Unit KN mm mm mm mm mm KW Ton L*W*H mm
250T/2500 2500 2500 2000 450 250 540 22.0 14 3100*2250*3000
250T/3200 2500 3200 2600 450 250 540 22.0 15.5 3800*2250*3000
250T/4000 2500 4000 3100 450 250 540 22.0 17.8 4600*2250*3000
250T/5000 2500 5000 3800 450 250 540 22.0 21.3 5600*2250*3150
250T/6000 2500 6000 4800 450 250 540 22.0 25 6600*2250*3150
300T/3200 3000 3200 2600 500 250 570 22.0 18.8 3600*2250*3200
300T/4000 3000 4000 3100 500 250 570 22.0 20.3 4600*2250*3200
300T/5000 3000 5000 3800 500 250 570 30.0 27 5600*2250*3400
300T/6000 3000 6000 4800 500 250 570 30.0 30.4 6600*2250*3400
400T/3200 4000 3200 2400 500 300 610 30.0 22.8 3600*2250*3500
400T/4000 4000 4000 3100 500 300 610 30.0 28.3 4600*2250*3500
400T/5000 4000 5000 3800 500 300 610 37.0 31.2 5600*2250*3500
400T/6000 4000 6000 4800 500 300 610 37.0 37.4 6600*2250*3500
400T/8000 4000 6000 6400 500 300 610 37.0 52.8 8600*2700*3500
500T/4000 5000 4000 3100 500 300 610 37.0 35 4300*2700*3500
500T/5000 5000 5000 3800 500 300 610 45.0 39.8 5300*2700*3500
500T/6000 5000 6000 4800 500 300 610 45.0 45.8 6300*2700*3600
600T/3200 6000 3200 2300 600 320 650 45.0 45 4300*3300*3900
600T/4000 6000 4000 3100 600 320 650 45.0 45.8 4300*3300*3900
600T/5000 6000 5000 3800 600 320 650 45.0 50.3 5300*3300*3900
600T/6000 6000 6000 4800 600 320 650 45.0 56.8 6300*3300*3900
600T/7000 6000 7000 5600 600 320 650 45.0 66.8 7300*3300*3900
700T/6000 7000 6000 4900 600 320 700 55.0 66.8 6300*3500*4000
800T/6000 8000 6000 4600 600 320 800 30*2 76.8 6300*3500*4000
800T/7000 8000 7000 5600 600 320 800 30*2 89.0 7300*3500*4200
800T/8000 8000 8000 6600 600 320 800 30*2 103.0 8300*3600*4500
800T/10000 8000 10000 7800 600 320 800 30*2 130.0 10300*3600*4900

联系我们

博林马详情页20250708折弯机 真2

联系我们

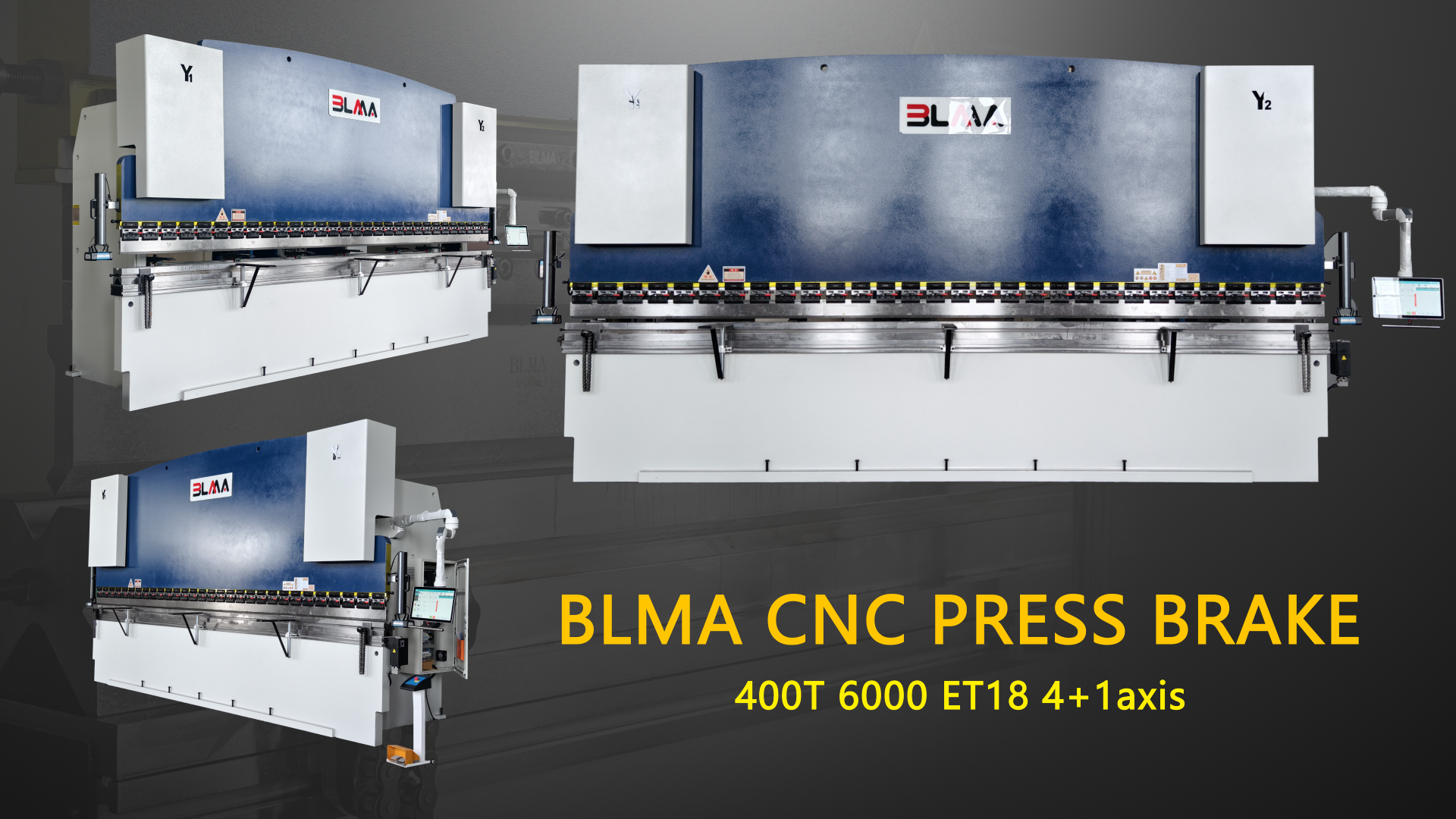

Video

01_00000

Download

BLMA Press Brake Machine Brochure

WE67K CNC press brake 400 ton hydraulic press brake 6000mm press brake ET18 CNC controller 4+1 axis CNC press brake CNC press brake with crowning Heavy-duty sheet metal bending machine Precision CNC press brake Large format hydraulic press brake CNC press brake for metal fabrication
