WE67K-160T4000 DA53T 4+1 CNC Hydraulic Press Brake
BLMA
WE67K- DA53T
T/T, L/C, D/P, Western Union, MoneyGram
Jiangsu, China
Can be customized
Shanghai
30 days after deposit confirmed
Product Description

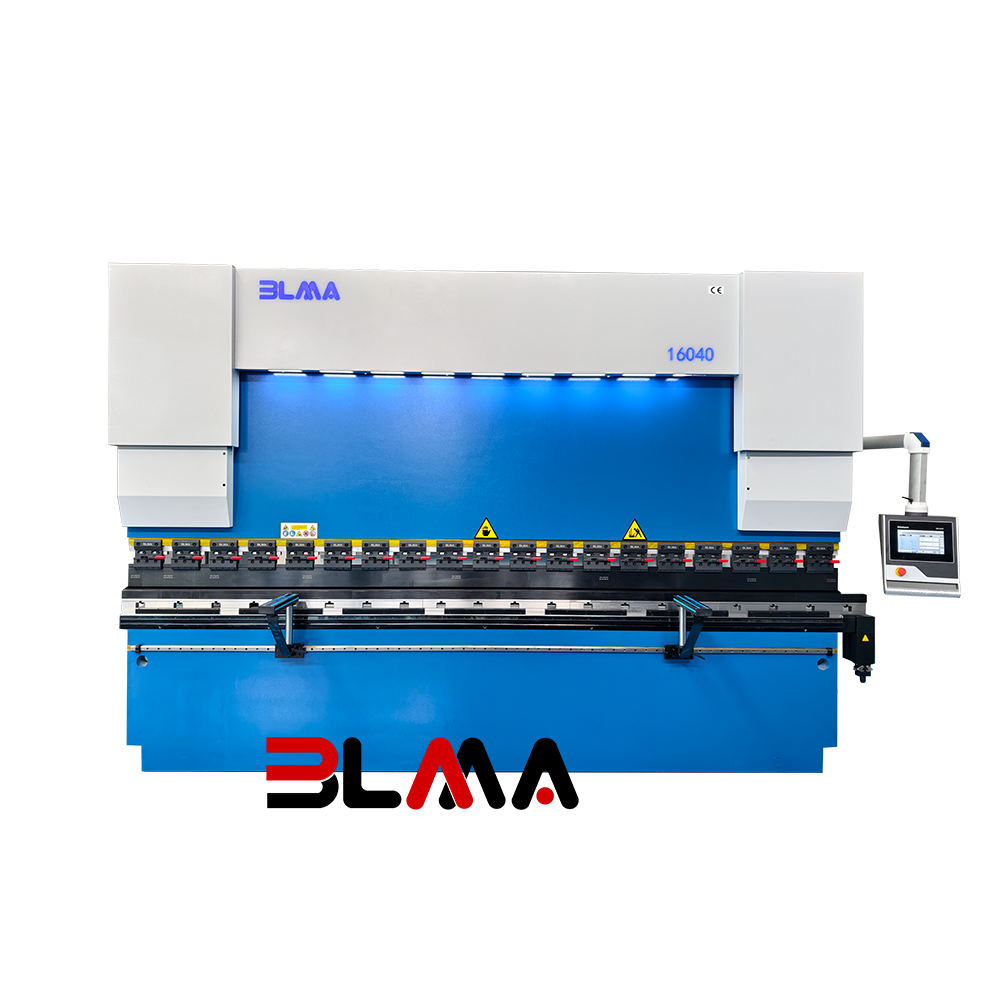

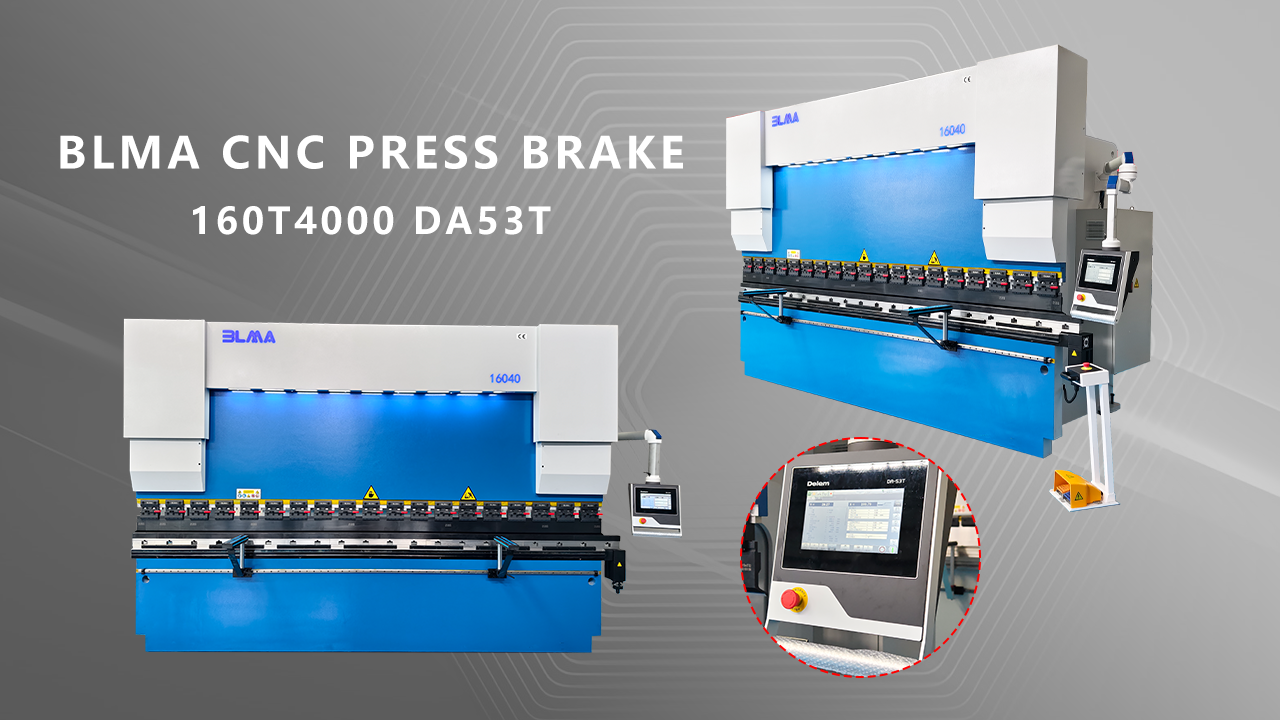

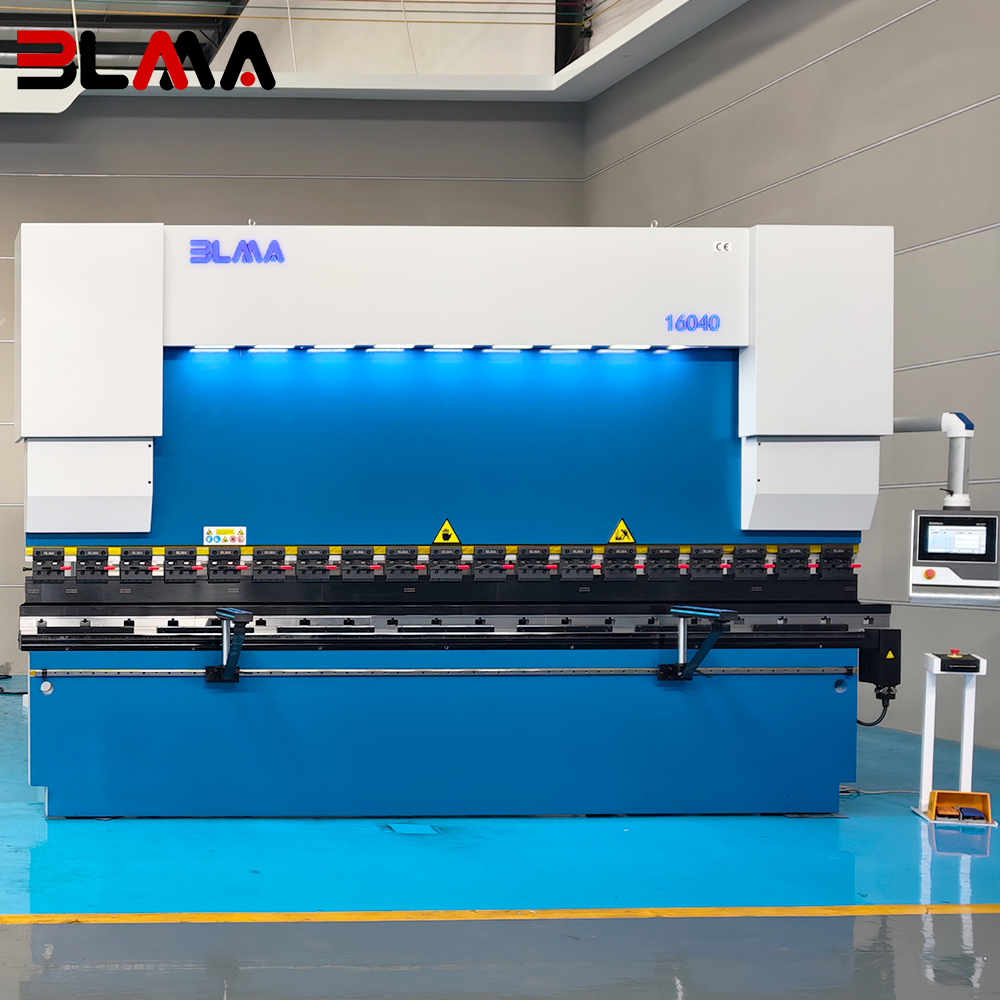

The WE67K-160T4000 CNC press brake features a 160-ton bending capacity and 4000 mm working length, making it ideal for large sheet metal parts and long workpieces.
Equipped with the DA53T CNC controller and 4+1 axis control, the machine offers accurate ram positioning, easy programming and consistent bending angles.
The fully welded steel frame is stress-relieved to ensure long-term stability and precision.
High-quality hydraulic and electrical components guarantee smooth performance, low maintenance and long service life.
This model is widely applied in metal fabrication, electrical cabinets, steel structures, construction machinery, ventilation systems and industrial enclosures.

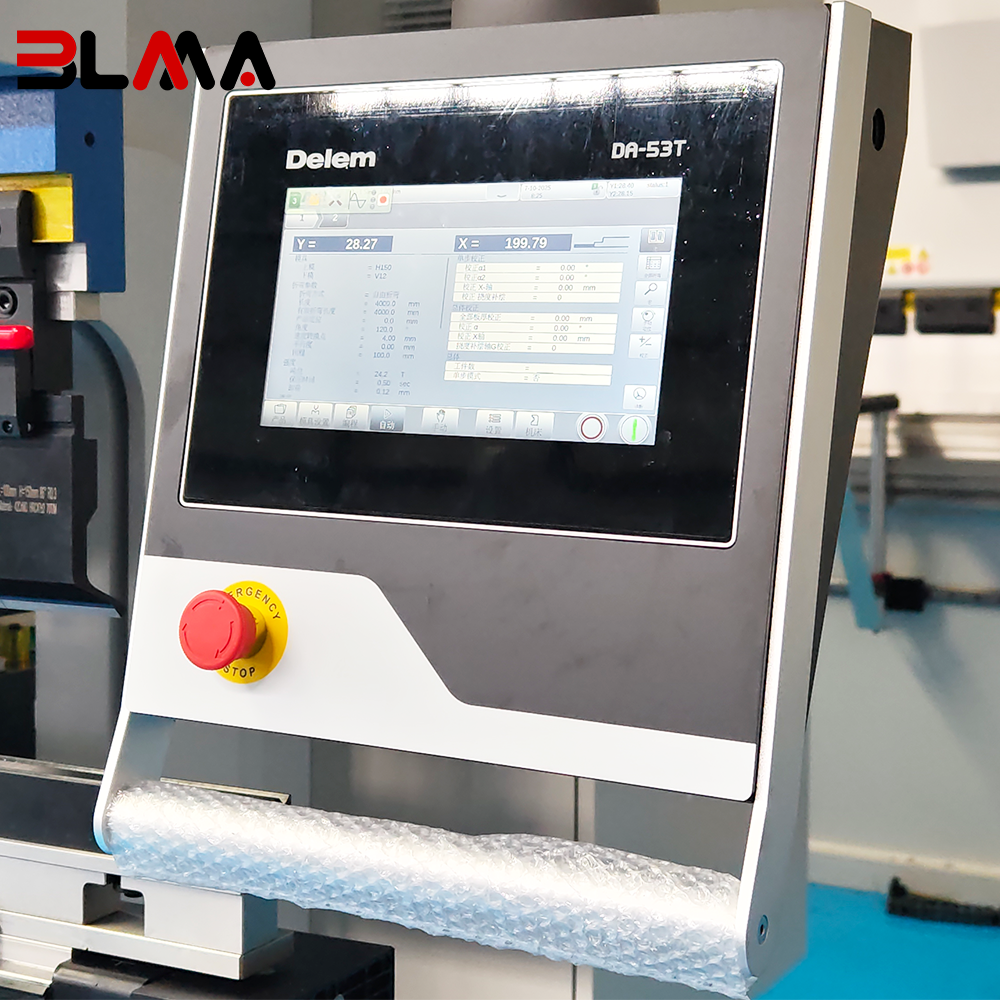

DA53T CNC controller
4+1 axis control (Y1, Y2, X, R + V-axis crowning)
10.1” high-resolution color display
Graphical programming interface for easier bending steps
Angle programming, tool & material library

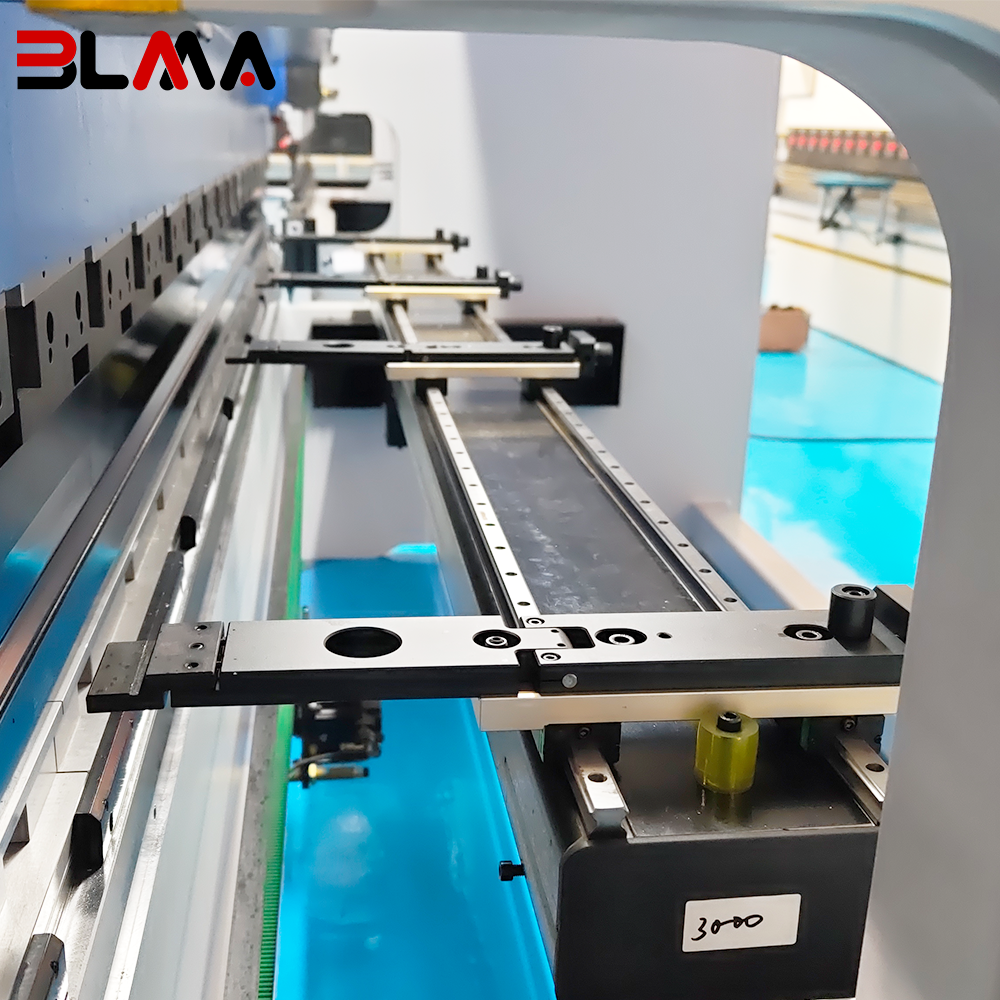

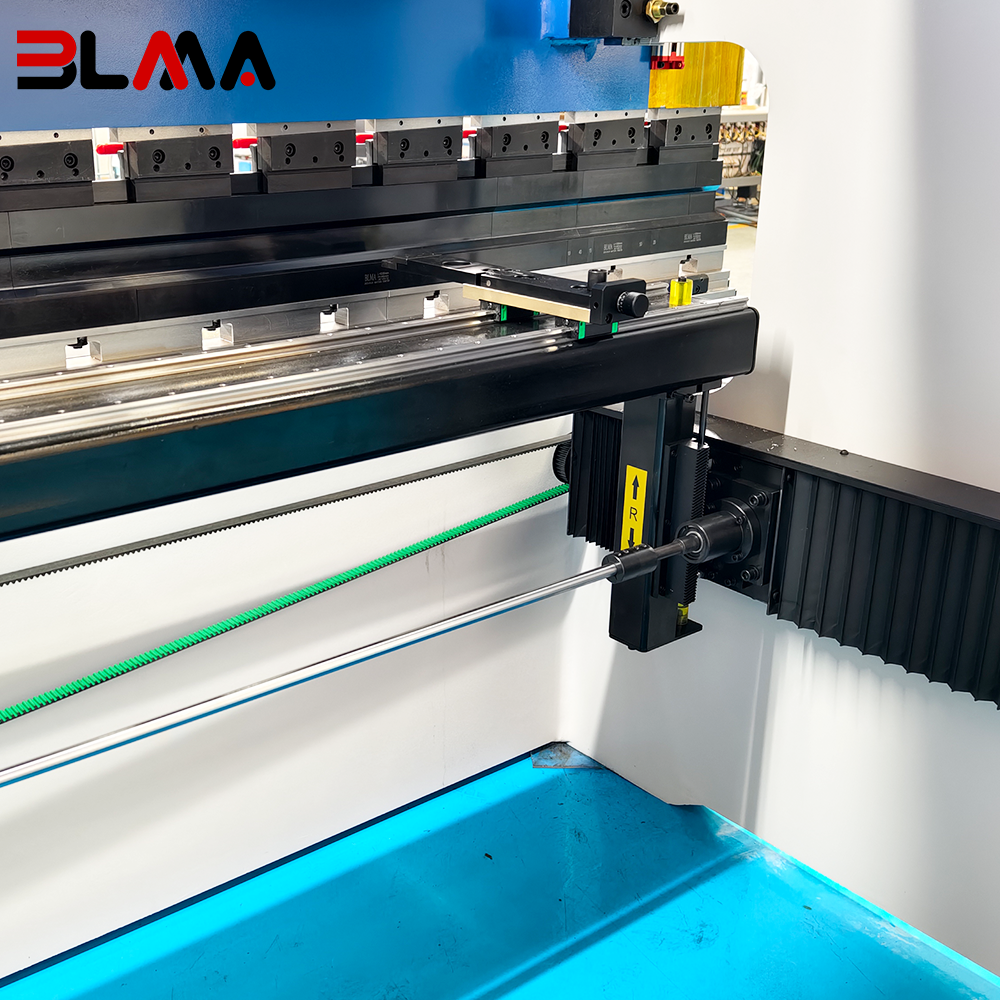

Position control for backgauge and block
Support for multi-step and complex part processing
USB interface for program import/export
Inch/mm switching, Chinese/English language support
| CNC Press Brake Technical Parameters | |||||||||
| Model | Bending Force | Bending Length | Column Distance | Throat Depth | Stroke | Daylight | Motor Power | Weight | Dimensions |
| Unit | KN | mm | mm | mm | mm | mm | KW | Ton | L*W*H mm |
| 40T1300 | 400 | 1300 | 1100 | 250 | 150 | 440 | 4.0 | 3.5 | 1700*1500*2200 |
| 40T1600 | 400 | 1600 | 1300 | 250 | 150 | 440 | 4.0 | 4 | 2000*1500*2200 |
| 63T1600 | 630 | 1600 | 1300 | 300 | 150 | 440 | 5.5 | 4.8 | 2000*1550*2250 |
| 63T2500 | 630 | 2500 | 2050 | 300 | 150 | 440 | 5.5 | 5.5 | 2900*1550*2250 |
| 80T/1600 | 800 | 1600 | 1300 | 300 | 150 | 460 | 7.5 | 5.9 | 2000*1600*2500 |
| 80T/2500 | 800 | 2500 | 2050 | 300 | 150 | 460 | 7.5 | 6.5 | 2900*1600*2500 |
| 110T/2500 | 1100 | 2500 | 2050 | 400 | 200 | 480 | 11.0 | 7.5 | 3100*1800*2750 |
| 110T/3200 | 1100 | 3200 | 2700 | 400 | 200 | 480 | 11.0 | 8.5 | 3800*1800*2750 |
| 110T/4000 | 1100 | 4000 | 3100 | 400 | 200 | 480 | 11.0 | 10.0 | 4600*1800*2750 |
| 135T2500 | 1350 | 2500 | 2050 | 400 | 200 | 480 | 11.0 | 8.5 | 3100*1800*2750 |
| 135T/3200 | 1350 | 3200 | 2700 | 400 | 200 | 480 | 11.0 | 9.5 | 3800*1800*2750 |
| 135T/4000 | 1350 | 4000 | 3100 | 400 | 200 | 480 | 11.0 | 11.0 | 4600*1800*2750 |
| 170T/2500 | 1700 | 2500 | 2050 | 450 | 200 | 480 | 15.0 | 10.4 | 3100*2000*2800 |
| 170T/3200 | 1700 | 3200 | 2700 | 450 | 200 | 480 | 15.0 | 11.5 | 3800*2000*2800 |
| 170T/4000 | 1700 | 4000 | 3100 | 450 | 200 | 480 | 15.0 | 13.0 | 4600*2000*2800 |
| 170T5000 | 1700 | 5000 | 3900 | 450 | 200 | 480 | 18.5 | 15.0 | 5600*2100*2950 |
| 170T6000 | 1700 | 6000 | 4900 | 450 | 200 | 480 | 18.5 | 18.0 | 6600*2200*2950 |
| 220T/2500 | 2200 | 3200 | 2600 | 450 | 200 | 480 | 18.5 | 11.2 | 3800*2200*2850 |
| 220T/3200 | 2200 | 3200 | 2600 | 450 | 200 | 480 | 18.5 | 13.5 | 3800*2200*2850 |
| 220T/4000 | 2200 | 4000 | 3100 | 450 | 200 | 480 | 18.5 | 15.5 | 4600*2200*2850 |
| 220T/5000 | 2200 | 5000 | 3800 | 450 | 200 | 480 | 22.0 | 18 | 5600*2250*3050 |
| 220T6000 | 1700 | 6000 | 4800 | 450 | 200 | 480 | 22.0 | 21 | 6600*2250*3050 |
| CNC Press Brake Technical Parameters | |||||||||
| Model | Bending Force | Bending Length | Column Distance | Throat Depth | Stroke | Daylight | Motor Power | Weight | Dimensions |
| Unit | KN | mm | mm | mm | mm | mm | KW | Ton | L*W*H mm |
| 250T/2500 | 2500 | 2500 | 2000 | 450 | 250 | 540 | 22.0 | 14 | 3100*2250*3000 |
| 250T/3200 | 2500 | 3200 | 2600 | 450 | 250 | 540 | 22.0 | 15.5 | 3800*2250*3000 |
| 250T/4000 | 2500 | 4000 | 3100 | 450 | 250 | 540 | 22.0 | 17.8 | 4600*2250*3000 |
| 250T/5000 | 2500 | 5000 | 3800 | 450 | 250 | 540 | 22.0 | 21.3 | 5600*2250*3150 |
| 250T/6000 | 2500 | 6000 | 4800 | 450 | 250 | 540 | 22.0 | 25 | 6600*2250*3150 |
| 300T/3200 | 3000 | 3200 | 2600 | 500 | 250 | 570 | 22.0 | 18.8 | 3600*2250*3200 |
| 300T/4000 | 3000 | 4000 | 3100 | 500 | 250 | 570 | 22.0 | 20.3 | 4600*2250*3200 |
| 300T/5000 | 3000 | 5000 | 3800 | 500 | 250 | 570 | 30.0 | 27 | 5600*2250*3400 |
| 300T/6000 | 3000 | 6000 | 4800 | 500 | 250 | 570 | 30.0 | 30.4 | 6600*2250*3400 |
| 400T/3200 | 4000 | 3200 | 2400 | 500 | 300 | 610 | 30.0 | 22.8 | 3600*2250*3500 |
| 400T/4000 | 4000 | 4000 | 3100 | 500 | 300 | 610 | 30.0 | 28.3 | 4600*2250*3500 |
| 400T/5000 | 4000 | 5000 | 3800 | 500 | 300 | 610 | 37.0 | 31.2 | 5600*2250*3500 |
| 400T/6000 | 4000 | 6000 | 4800 | 500 | 300 | 610 | 37.0 | 37.4 | 6600*2250*3500 |
| 400T/8000 | 4000 | 6000 | 6400 | 500 | 300 | 610 | 37.0 | 52.8 | 8600*2700*3500 |
| 500T/4000 | 5000 | 4000 | 3100 | 500 | 300 | 610 | 37.0 | 35 | 4300*2700*3500 |
| 500T/5000 | 5000 | 5000 | 3800 | 500 | 300 | 610 | 45.0 | 39.8 | 5300*2700*3500 |
| 500T/6000 | 5000 | 6000 | 4800 | 500 | 300 | 610 | 45.0 | 45.8 | 6300*2700*3600 |
| 600T/3200 | 6000 | 3200 | 2300 | 600 | 320 | 650 | 45.0 | 45 | 4300*3300*3900 |
| 600T/4000 | 6000 | 4000 | 3100 | 600 | 320 | 650 | 45.0 | 45.8 | 4300*3300*3900 |
| 600T/5000 | 6000 | 5000 | 3800 | 600 | 320 | 650 | 45.0 | 50.3 | 5300*3300*3900 |
| 600T/6000 | 6000 | 6000 | 4800 | 600 | 320 | 650 | 45.0 | 56.8 | 6300*3300*3900 |
| 600T/7000 | 6000 | 7000 | 5600 | 600 | 320 | 650 | 45.0 | 66.8 | 7300*3300*3900 |
| 700T/6000 | 7000 | 6000 | 4900 | 600 | 320 | 700 | 55.0 | 66.8 | 6300*3500*4000 |
| 800T/6000 | 8000 | 6000 | 4600 | 600 | 320 | 800 | 30*2 | 76.8 | 6300*3500*4000 |
| 800T/7000 | 8000 | 7000 | 5600 | 600 | 320 | 800 | 30*2 | 89.0 | 7300*3500*4200 |
| 800T/8000 | 8000 | 8000 | 6600 | 600 | 320 | 800 | 30*2 | 103.0 | 8300*3600*4500 |
| 800T/10000 | 8000 | 10000 | 7800 | 600 | 320 | 800 | 30*2 | 130.0 | 10300*3600*4900 |
Large-Scale Manufacturing Facility
BLMA operates a large-scale manufacturing facility with complete production lines, enabling efficient capacity, strict quality control, and reliable delivery for global customers.
Advanced Machining Equipment & In-House Manufacturing
BLMA is equipped with advanced machining equipment for key structural and precision components. From heavy-duty frames to high-accuracy parts, in-house machining ensures strict tolerance control, stable quality, and long-term reliability of every machine.
International Exhibitions & Global Markets
BLMA regularly participates in international exhibitions to showcase our machines to global markets, strengthen overseas partnerships, and support customers worldwide with professional solutions.
Customer Factory Visit & On-Site Inspection
Customers from different countries visit the BLMA factory to inspect our manufacturing facilities, machining equipment, and assembly processes in person. During the visit, machines are demonstrated and tested on-site, allowing customers to clearly understand our production capability, quality control standards, and technical strength before cooperation.
Ready for Shipment
Each machine is carefully inspected and tested before shipment. Standard export procedures and secure packing ensure safe delivery and reliable performance upon arrival.
