4000W Laser Cutting Machine, 4KW Laser Cutting Machine for Sale

Views:139     Author:Site Editor     Publish Time: 2021-04-05      Origin:Site Inquire

4000w laser cutting machine, 4kw laser cutting machine for sale



Description



This machine adopting a high-quality fiber laser and high precision WIRON square rail driver by helical gear. Such a perfect combination guarantees its high speed, precision, efficiency, and low cost. So the 4kw laser cutting machine is a preferred cutting machine for batch processing of metal material.



4kw laser cutter


4KW Laser Cutter Features


  • Create cost-effective laser cutting machine equipment.

  • Highly integrated, long life, laser engraving, and cutting functions.

  • A variety of imported and domestic lasers of different powers are available.

  • Fully intelligent CNC system, human-machine exchange interface.

  • Advanced chuck clamping system, automatic center positioning.

  • Optional automatic loading and unloading system, high efficiency, and energy-saving greatly reduce manufacturing costs.



Technical Parameters


Working Area

1500*3000mm

Laser wavelength

1060-1080 nm

X-Axis travel

1500mm

Y-Axis travel

3000mm

Z-Axis travel

300mm

X, Y Axis Transmission

Hiwin Linear Rail &Rack and pinion

Z Axis Transmission

Hiwin Linear Rail &Ball screw

Effective cutting range

1500×3000mm

Table axial positioning accuracy

≤±0.05mm/m

Table Repeated positioning accuracy

≤±0.03mm/m

Maximum no-load running speed

120m/min

Power rating parameters

Three-phase AC380V 50Hz

Total power protection level

IP54

Machine Weight

6000KGS

Machine Dimensions(L*W*H)

8500*2800*2000mm


4000W Laser Cutting Machine Application



The fiber laser machine for sale is used to cut stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium, etc metal plate and tubular CNC laser cutting metal products.



The 4kw laser cutter is widely used in advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc. industry.



Main Parts of 4kw laser cutting machine for sale



High precision machine bed

1) Fiber laser cutting machine lathe bed part completely independent research and development, by the party welding lathe bed

base, through the large gantry milling machine.

2) For large machine beds, we have many years of experience in processing. Each machine bed will be placed 30 to 45 days after rough machining natural failure. The internal stress release completely again after finishing, ensure the machining accuracy. High strength, stability, ensuring 20 years of use without distortion.



laser cutter lathe bed

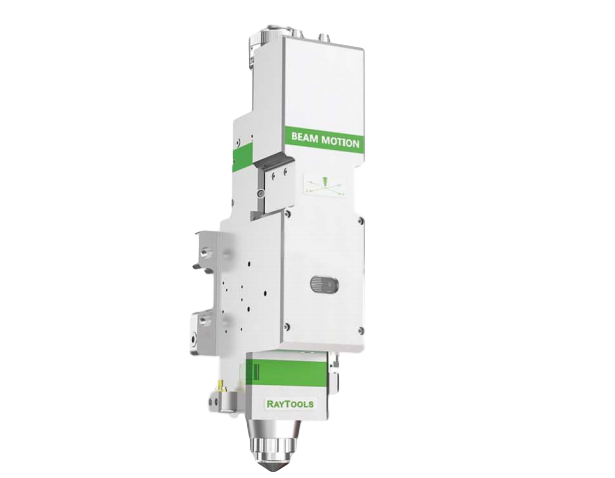

Laser head

1) Optimized design structure: modularization, easy maintenance, and reduced downtime.

2) Multiple protective lenses: 3 protective lenses, efficient protection of collimating focusing lenses.

3) Durable and durable: 2-way optical water cooling, effectively extending continuous working time.

4) Closed-loop step-by-step automatic focusing: A closed-loop stepper motor is used to effectively avoid losing steps. The focusing speed is 100mm/s, and the repeatability is 1μm.

5) Fast piercing High-speed cutting: 16mm low carbon steel, piercing time <6 seconds, cutting speed 0.6m/min.



laser head


Servo motor

Y-axis: Double sets Japanese FUJI servo motors and drivers.

X-axis: Japanese FUJI Servo motor and driver Our X Y axis structure increases machine speed and precision and more stable for machine working.

Z-axis: Japanese Servo motor and driver.


servo motor



Control system

1) Advantech industrial computer, with professional Weihong optical fiber cutting control system, can cut metal plates well. High cutting speed and perfect cutting edge, smooth plane, and exquisite texture.

2) Save the metal cutting parameters of various technologies in the computer before leaving the factory.

control system

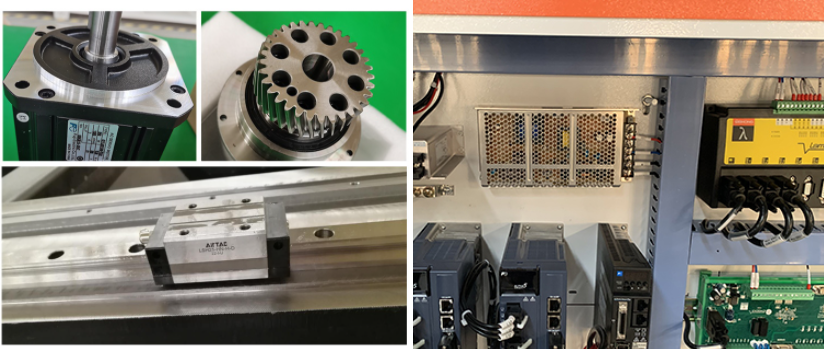

other detail


1
