500W Fiber Laser Cutting Machine for Metal Sheet for Sale

Views: 379     Author: Site Editor     Publish Time: 2020-12-21      Origin: Site

Inquire

500W fiber laser cutting machine, 500 watt laser cutter, Chinese laser cutting machine manufacturer.


Description


In order to meet the increasingly complex needs of consumers, BLMA is targeted at market demand, independently developed 500W pipe and tube fiber laser cutting machine for metal sheet for sale. One machine dual purpose, this machine solves double cutting needs by one time.


500W fiber laser cutting machine is suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, pickle plate, aluminum-plating Zinc plate, metallic copper and other metals. It is specially used for cutting 0.5-30mm carbon steel sheets (pipes), 0.5-15mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20 - 220mm.


500W fiber laser cutting machine for metal sheet for sale


500 Watt Fiber Laser Cutting Machine Technical Parameters


● Model: 500W laser cutting machine for metal sheet

● Laser source: IPG or Raycus fiber laser source

● Fiber laser power: 500W, 750W, 1000W, 1500W, 2000W, 3000W (Optional)

● Working size: 3000*1500mm

● X and Y positioning accuracy: +-0.02mm

● Transmission mode: import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

● Power consumption of whole machine: < 15KW (< 12KW-1 KW)

● Rated voltage and frequency: 380V/50Hz/60Hz/60A


Features of 500 Watt laser cutter


1. The fiber laser has high electrical-to-optical conversion efficiency, with a conversion efficiency of more than 30%. The low-power fiber laser does not need to be equipped with a chiller. The use of air cooling can greatly save power consumption during work, save operating costs, and achieve the highest production effectiveness.


2. When the laser is running, only electric power is needed, no extra gas to generate the laser is required, and it has the lowest operation and maintenance cost.


3. The fiber laser adopts semiconductor modular and redundant design. There is no optical lens in the resonant cavity and no start-up time is required. It has the advantages of adjustment-free, maintenance-free, and high stability, which reduces the cost of accessories and maintenance time. Those are unmatched by traditional lasers.


4. The output wavelength of the fiber laser is 1.064 microns, which is 1/10 of the CO2 wavelength. The output beam quality is high, the power density is high, and it is very conducive to the absorption of metal materials. It has excellent cutting and welding capabilities so that the processing lowest cost.


5. The whole machine is optically transmitted by optical fiber and does not require complicated light guide systems such as mirrors. The optical path is simple, the structure is stable, and the external optical path is maintenance-free.


6. The cutting head contains protective lenses so that the consumption of expensive consumables such as focusing lenses is extremely small.


7. The light is exported through the optical fiber, which makes the design of the mechanical system very simple and easy to integrate with the robot or multi-dimensional workbench.


8. After the laser is added with a shutter, it can be one device and multiple machines, through the optical fiber splitting, divided into multiple channels and multiple units working at the same time, easy to expand the function, easy and simple to upgrade.


9. The fiber laser is small in size, light in weight, movable in working position, and small in footprint.


500W CNC Fiber Laser Cutting Machine Advantages


This stainless steel silver metal tube pipe CNC fiber laser cutting machine has high speed and efficiency.


1. Plate and tube fiber laser cutting combination, one machine dual use.

2. Germany Atlanta double gear and rack fiber laser cutting machine transmission system, high cutting efficiency.

3. Auto clap, fast speed, save strength, no harm to working piece.

4. Precision rotary, rotate angle precious, cutting in coherence.

5. Small focus dot, small cutting gap, save materials.

6. No dregs, cutting edge smooth as silk, no need second processing, save strength.

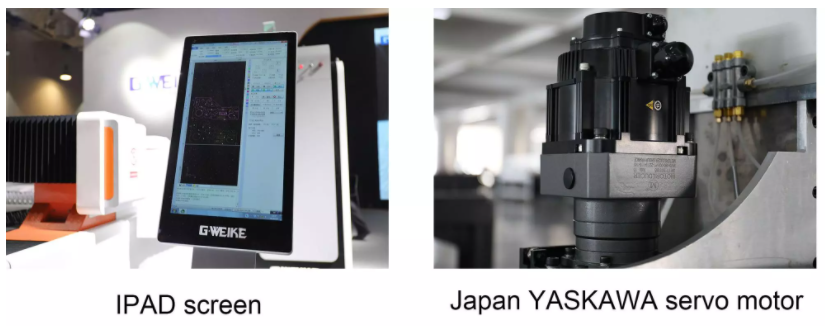

Product Accessory


1. Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.

2. GERMANY IPG fiber laser generator, 500W, 750W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional

3. Japan Yaskawa servo motor system.

4. Taiwan HIWIN linear guide rail.

5. Cypcut controlling system.

6. BEST Germany Atlanta double driver rack gear.

7. Germany Neugart reducer.


3


4


5

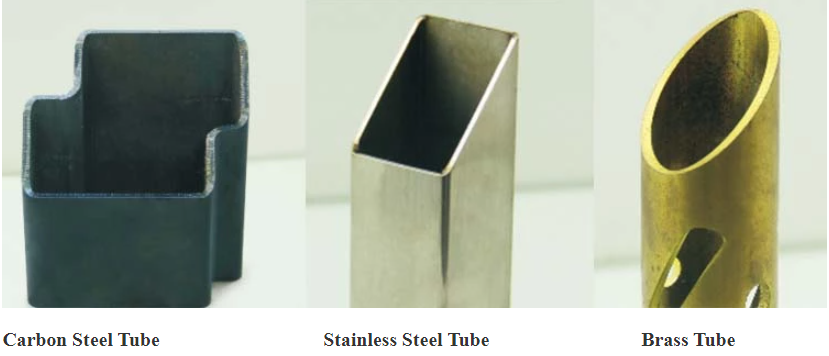

Applications


1


2


67

Carbon Steel Plate                                                                                                           Stainless Steel Plate
