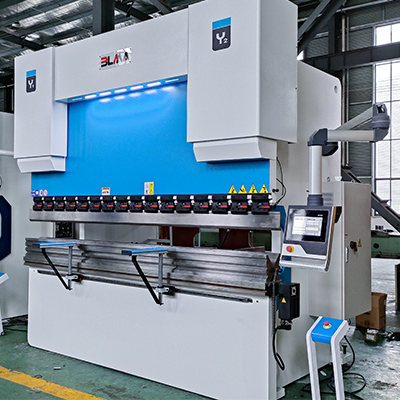

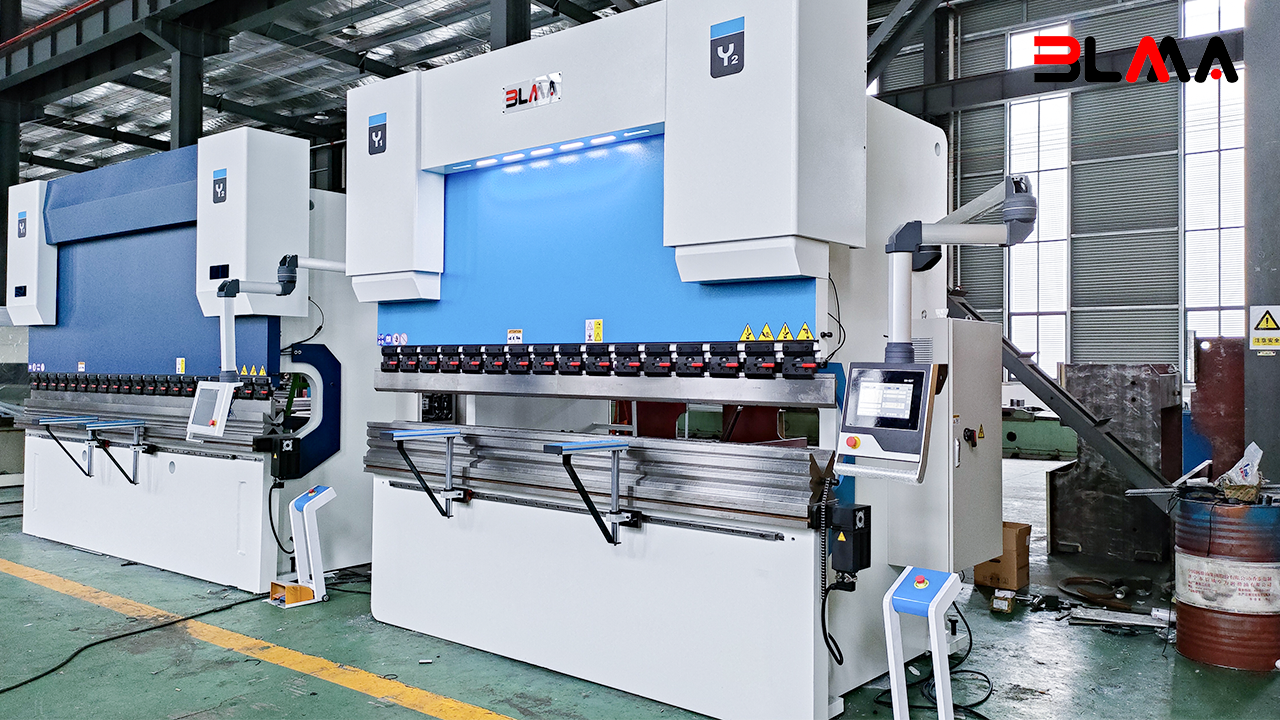

400T3200 DA53T 4+1 Axis CNC Press Brake – 400 Ton 3200mm Heavy Duty CNC Bending Machine

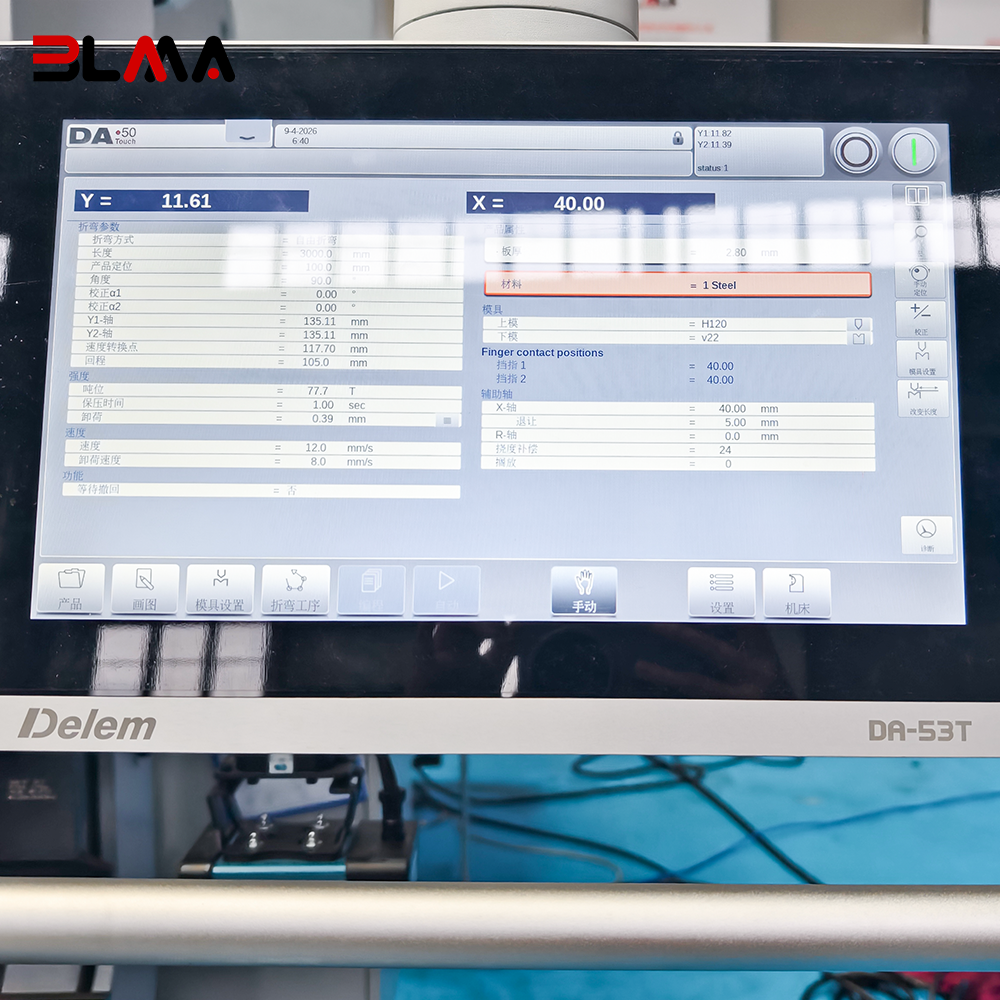

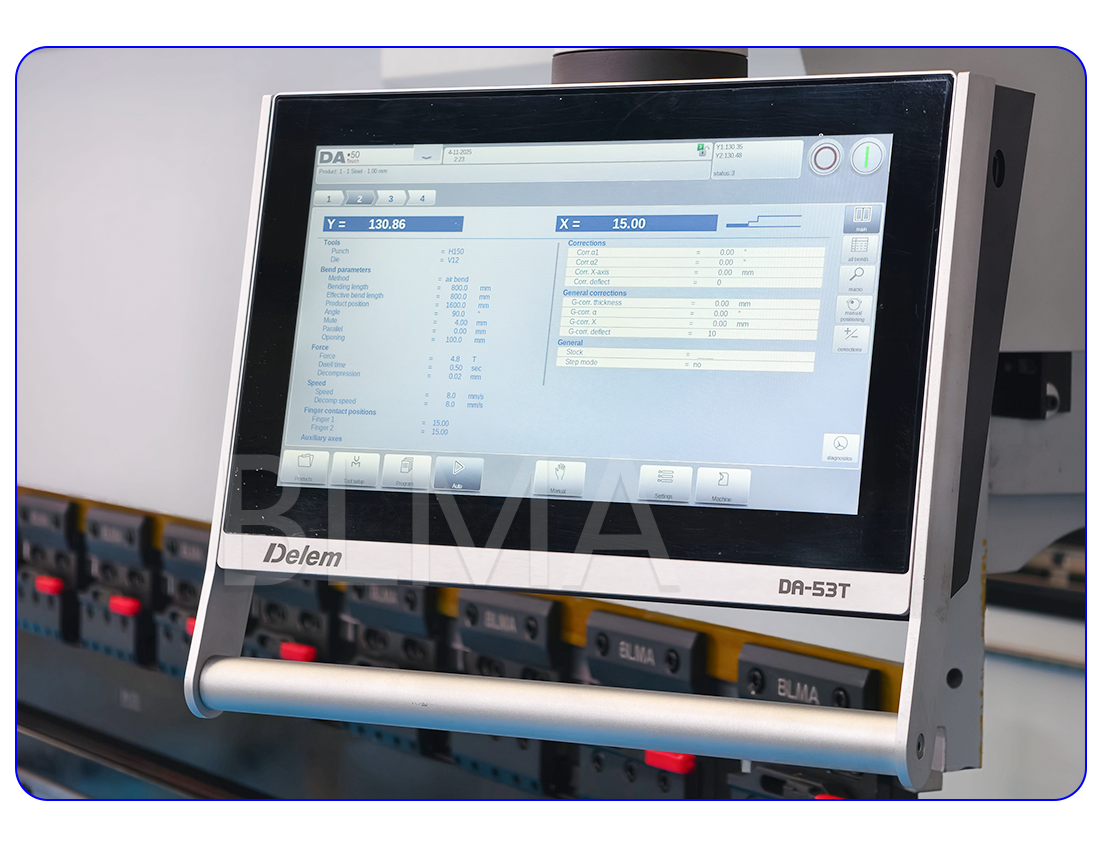

DA53TX CNC Controller

• 2D graphical programming

• 15.6" high resolution color TFT

• Crowning control

• Servo and frequency inverter control

• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

• USB, peripheral interfacing

• Profile-T offline software

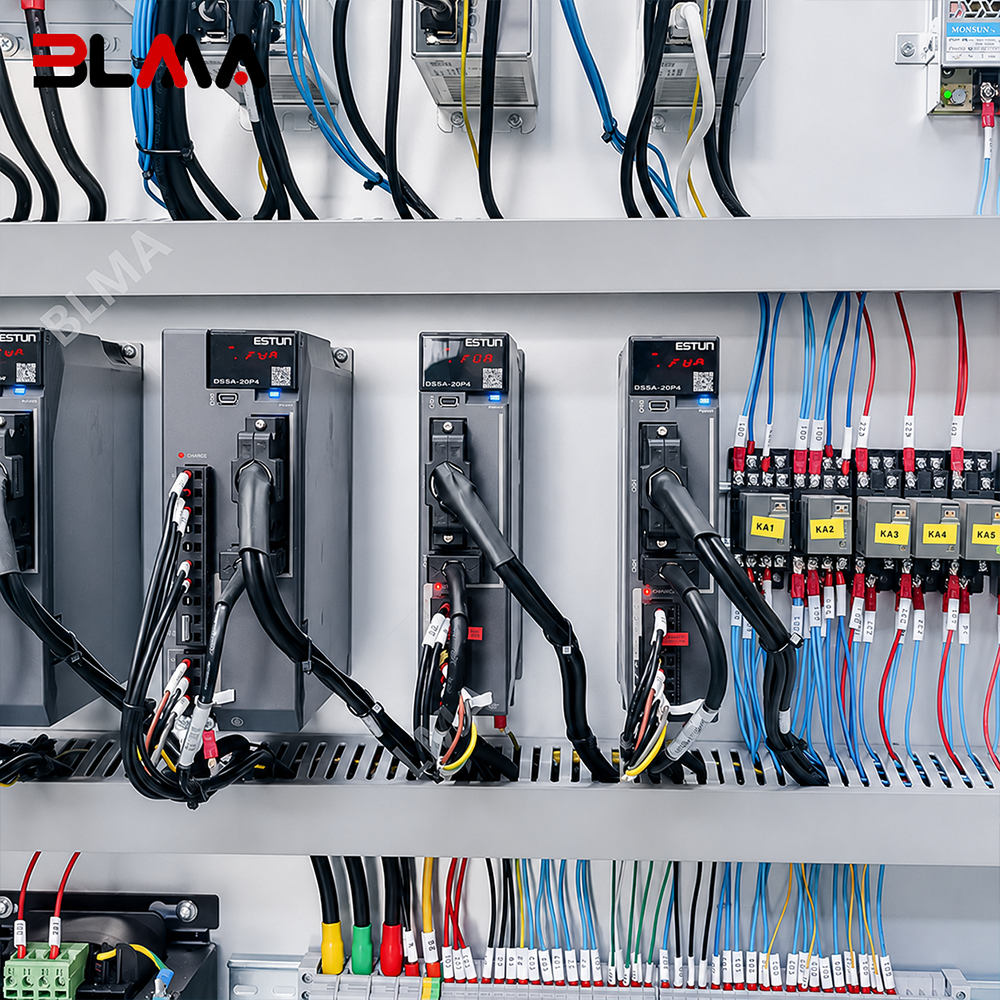

The BLMA CNC press brake electrical cabinet uses reliable industrial electrical components to ensure stable control, fast response, and safe operation during sheet metal bending. It integrates the CNC controller, servo drives, PLC, relays, circuit protection, and communication modules for precise coordination of the hydraulic system, backgauge, crowning system, and safety devices.

The cabinet features a clean internal layout, organized wiring, and efficient heat dissipation, making inspection and maintenance easier while improving long-term machine reliability. It is suitable for standard and heavy-duty CNC press brakes used in continuous industrial production.

Press Brake Quick Clamping System

The BLMA press brake quick clamping system enables fast and accurate upper tooling changes, reducing setup time and improving bending efficiency. Its secure clamping structure keeps the punch firmly positioned during operation, helping maintain consistent bending accuracy and repeatability.

Designed for CNC press brakes and heavy-duty press brakes, the quick clamp is easy to operate, reliable for frequent tool changes, and ideal for flexible sheet metal production.

Movable Front Support Arms

The BLMA movable front support arms provide stable support for sheet metal during bending and can be easily adjusted along the front guide rail to match different workpiece sizes. They help reduce material sagging, improve positioning accuracy, and make large or heavy sheets easier to handle.

Designed for CNC press brakes and heavy-duty press brakes, the movable support system improves bending efficiency, operator convenience, and overall production safety.

Optional---CNC Follow-Up Support System

The BLMA optional CNC follow-up support system automatically follows the sheet during the bending process, providing stable support for large, long, or heavy workpieces. Synchronized with the press brake CNC system, it helps reduce manual handling, prevent sheet sagging, and improve bending accuracy and production efficiency.

It is especially suitable for heavy-duty CNC press brakes, large sheet metal bending, and long-length workpieces.

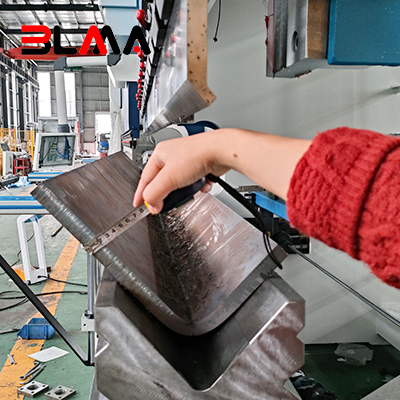

Press Brake Tooling

The BLMA press brake tooling is designed for accurate, stable, and repeatable sheet metal bending. Different punches and dies can be selected according to the material, thickness, bending angle, and workpiece shape.

High-strength tooling provides good wear resistance and long service life, making it suitable for CNC press brakes, heavy-duty press brakes, and various sheet metal fabrication applications.

CNC Crowning System

The BLMA CNC crowning system automatically compensates for machine and tooling deflection during bending, helping maintain a consistent angle across the full bending length. Controlled directly by the CNC system, it improves bending accuracy, repeatability, and overall part quality.

It is especially useful for long workpieces, thick plates, and heavy-duty CNC press brake applications.

Optional---- Laser Safety Protection

The BLMA optional laser safety protection system monitors the bending area in real time and helps protect the operator from accidental contact with the punch and workpiece during press brake operation. It can quickly detect obstacles and trigger a stop signal when necessary.

Designed for CNC press brakes and heavy-duty press brakes, the laser protection system improves operator safety without significantly reducing bending efficiency.

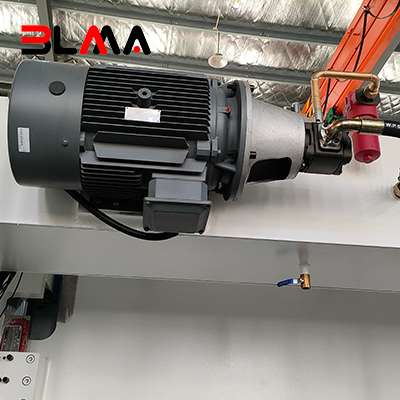

Hydraulic Motor System

The BLMA press brake hydraulic motor system provides stable and powerful driving force for precise sheet metal bending. Designed for reliable continuous operation, it works efficiently with the hydraulic pump and CNC control system to ensure smooth pressure output, fast response, and consistent bending performance.

It is suitable for CNC press brakes, hydraulic press brakes, and heavy-duty press brake applications.

Optional ----Servo Motor System

The BLMA optional servo motor system provides fast response, precise control, and higher energy efficiency for CNC press brake operation. Compared with conventional motor systems, it can reduce energy consumption and noise while improving machine response and bending stability.

It is ideal for high-efficiency CNC press brakes, precision sheet metal bending, and energy-saving production.

Hydraulic Pump

The BLMA press brake hydraulic pump delivers stable oil flow and reliable pressure for smooth and precise bending operations. Designed for continuous industrial use, it works efficiently with the hydraulic motor, valve system, and CNC control to ensure consistent force output, low noise, and dependable machine performance.

It is suitable for CNC press brakes, hydraulic press brakes, and heavy-duty sheet metal bending applications.

Grating Ruler

The BLMA press brake grating ruler provides high-precision position feedback for the Y1 and Y2 axes, allowing the CNC system to monitor and control ram movement in real time. It helps maintain accurate synchronization, improve bending precision, and ensure consistent repeatability during production.

Suitable for CNC press brakes, hydraulic press brakes, and heavy-duty press brake applications.

CNC Backgauge System

The BLMA CNC press brake backgauge system provides fast and accurate positioning of sheet metal during bending. Controlled by the CNC system, it ensures precise movement and repeatable positioning for consistent bending results.

Its rigid structure, high-precision transmission, and adjustable fingers make it suitable for CNC press brakes, heavy-duty press brakes, and high-precision sheet metal bending applications.

Backgauge Fingers

The BLMA press brake backgauge fingers provide accurate and stable positioning of sheet metal before bending. They can be easily adjusted according to different workpiece sizes and bending requirements, helping improve positioning accuracy, repeatability, and production efficiency.

Suitable for CNC press brakes, hydraulic press brakes, and precision sheet metal bending applications.

CNC Press Brake Applications

BLMA CNC press brakes are widely used for precision bending of sheet metal, thick plate, stainless steel, carbon steel, aluminum, and other metal materials. With high bending accuracy, stable CNC control, and flexible tooling options, they can produce a wide range of components for different industries.

Typical applications include electrical cabinets, machine frames, structural steel parts, automotive components, HVAC ducts, metal enclosures, construction machinery, agricultural equipment, shipbuilding parts, energy equipment, and custom fabricated metal products.

Whether for small-batch production or heavy-duty industrial manufacturing, BLMA press brakes provide reliable bending performance, high repeatability, and efficient production for complex metal fabrication requirements.
