DW38 CNC-3A-1S Furniture Steel Bending Machine Pipe Bender For Sale
Home » Products » Tube Bending Machine » CNC Tube Bending Machine » DW38 CNC-3A-1S Furniture Steel Bending Machine Pipe Bender For Sale

Product Detail

DW38 CNC-3A-1S Furniture Steel Bending Machine Pipe Bender For Sale

Share to:

●Fully automatic and CNC pipe bending machine
●Equipped with 3 servo motor programmable axis
●Feeding: servo motor drive; Rotation: servo motor drive
●Bending: hydraulic and encoder control; Servomotor with reducer.
●Imported hydraulic system and PLC(standard) unit or IPC(optional).
●Automatic lubrication system for moving areas.
●Self-diagnostic system, detecting the error immediately.
●Multiple groups pipe-bending information storage.
●Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
●Touch screen and human/machine interface control provide user friendly operations.

  • DW38CNC-3A-1S
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

Name

Brand

PLC

Japan Mitsubishi

Touch screen

Taiwan Winview

Servo motor

Japan Yaskawa/Mitsubishi

Servo driver

Japan Yaskawa/Mitsubishi

Reducer

Taiwan RV/Xingxing

Main electrics

France Schneider

Hydraulic motor

Taiwan Yuanbang

Valves

Taiwan Seven Ocean

Vane pump

Taiwan Kaida

Sealing element

Taiwan Dingji

Rack

Germany Atlanta

Linear guideway

Taiwan Hiwin



01-38CNC-3A-1S


Mitsubishi Servo Motor
It is with 3 axis, which has 3 servo motors. The Bending, feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.

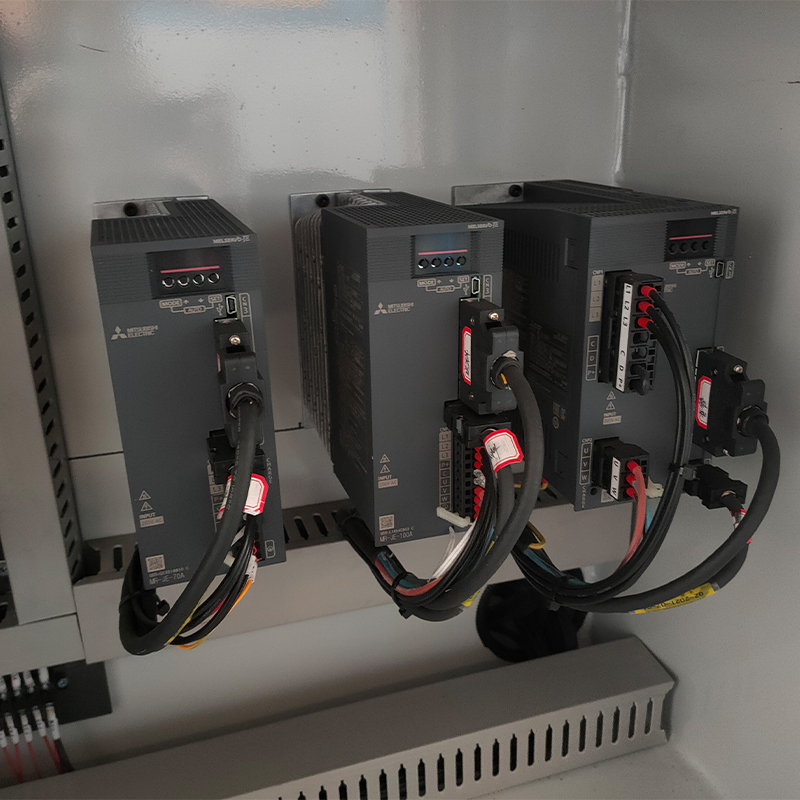

02-38CNC-3A-1S


Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.








03-38CNC-3A-1S


Electrics
Schneider, France brand








04-38CNC-3A-1S


Valve
7 Ocean, Taiwan brand








05-38CNC-3A-1S


Air cooler
Ensure the stability of the machine for a long time








06-38CNC-3A-1S


PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference










CNC pipe and tube bender for sale, cnc tube bending machine for sale, and pipe bending equipment are provided by BLMA - plate rolling machine manufacturers.

Parameters

Main specification

DW38CNC-3A-1S

Max bending capacity

φ38mm x 2mm

Max bending radius (1)

R180mm

Min bending radius

According to pipe diameter

Max bending degree

0-190°

Max feeding length (2)

2200mm

Feeding method

Direct feeding/clamping feeding

Working speed

Bending speed

Max 150°/s

Rotary speed

Max 200°/s

Feeding speed

Max 1000mm/s

Accuracy

Bending speed

0.1°

Rotary speed

0.1°

Feeding speed

0.1mm

Information inputting method

Working value (Y, B, C)

Bending method

Servo

Bending servo motor power

4kw

Rotary servo motor power

0.75kw

Feeding servo motor power

1kw

Max storage unit (3)

1000 groups

Max oil pressure

12Mpa

Machine weight

1500kg

Machine size

3860 x 720 x 1230mm

Note: (1) (2) (3) Extendable
