DW50NC Cheap Price Metel Pipe Bending Machine

DW50 NC tube bender adopts a solenoid valve and integrated circuit to control separately, which can extend the life of the hydraulic parts. The computer system of DW50 NC tube bender can automatically detect shortly malfunctioning point to allow the operator to solve problems. We can supply a wide range of bending machines capable of bending tube O.D. up to 203 mm (8'' diameter). Tube wall thickness up to 10 m/m.

  • DW50NC
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

DW50 NC pipe and tube bending machines are our models which will help you to reach your target with the most economical way on pipe and tube bending works. Flexible pipe and tube bending production range and wide pipe and tube bending products will be pretty easy with the help of PLC / HMI pipe and tube bending machine control, touch screen pipe and tube bending machine control panel, pipe and tube bending program memory, pipe and tube bending angle entry and automatic or manual pipe and tube bending machine working options. You will have low using cost and long using life with our DW50 NC pipe and tube bending machines.


NC (semi-auto) tube bender

  • Based on the tube diameter, wall thickness, and bending radius, the machine operator may select to bending application with or without a mandrel.

  • The bending-die spindle is a solid one, will easily have tooling changing, and provides the minimum bending radius 1-1.5 DR.

  • We can supply a wide range of bending machines capable of bending tube O.D. up to 203 mm (8" diameter).

  • Tube wall thickness up to 10 m/m.

  • Simple to work and user-friendly functions allow non-technician and new operators to joint production force rapidly.


Standard Parts of NC Tube Bender

  • Pressure Die Holder

  • Wiper Die Holder

  • Overhead Tie Bar (Eliminates Die Deflection)

  • Pressure Die Assist

  • Pressure Die Assist Rear Support Roller

  • Mandrel Rod SAE Thread Supplied (1)

  • Mandrel Lubricator

  • Mandrel Extractor

  • Mandrel Early Out Programmable

  • PLC Controller – Mitsubishi FX3U

  • Memory Capacity: 100 job storage, 6 bends per part

  • Touch Screen (Proface America)

  • Tube Piece Counter

  • Clockwise Rotation

  • Dual Stage Pump Hydraulic System


Name

Brand

Hydraulic Motor

Taiwan, Yuanbang

Main electrics

Zhengtai,China/Schneider,France

Values

Taiwan Seven Ocean

Control system

Taiwan JieJun

Vane pump

Taiwan, Kaida

Sealings

Taiwan DZ

Oil tube

Jiangsu Kejia

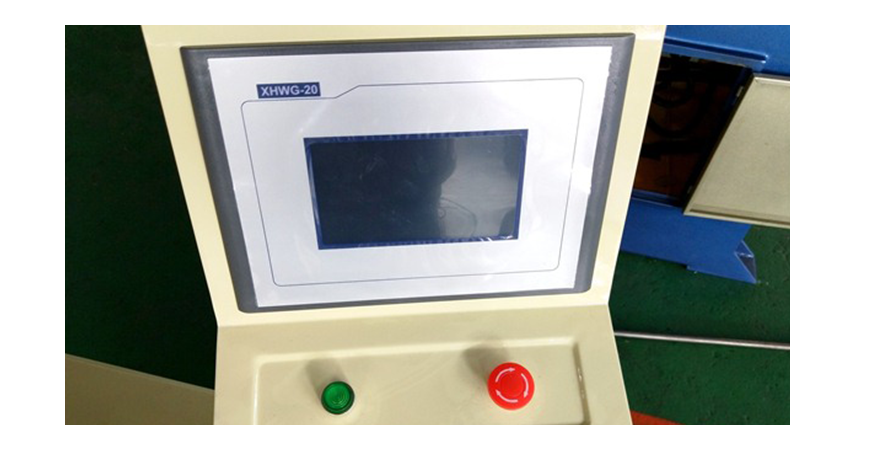

01-50NC


PLC Controller
Easy operating and working fast

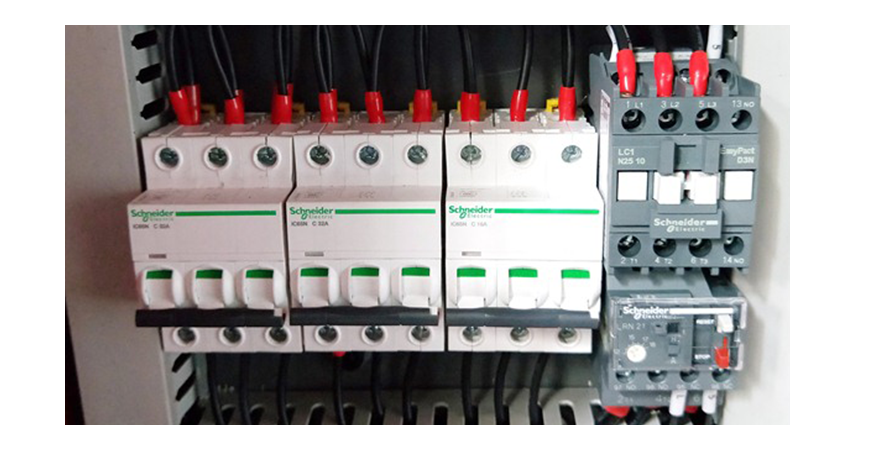

02-50NC


Electrics
Schneider, France brand

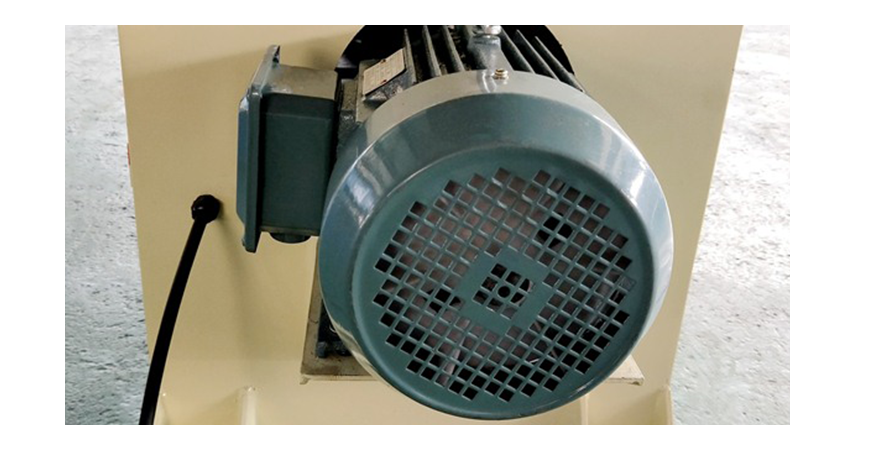

03-50NC


Mortor
Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which can keeps high efficiency and accurate bending angle.

04-50NC


Clamping Hydraulic Oil Tube
Kejia, China famous brand.

05-50NC


Water Cooling System

BLMA is top 10 pipe and tube bending machine manufacturers, providing high quality metal pipe bender and tube bending equipment.

Parameters

Main specification

DW50NC

Max bending capacity

φ50mm x 3mm

Max bending radius

R350mm

 Bending degree

0-190°

Max effective distance of mandrel

2200mm

Motor power

5.5Kw

Max hydraulic pressure

12Mpa

Oil tank capability

150L

Measurement

300 x 70 x 103cm

Weight of machine

1220kg

Video

Download

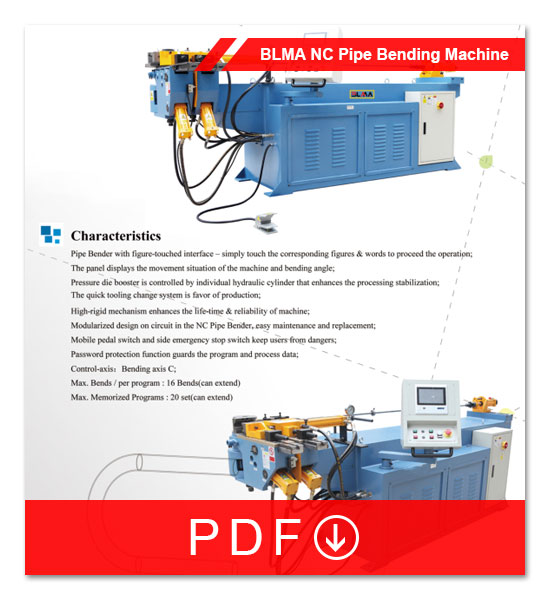

BLMA-NC-pipe-bending-machine
