DW75NC Europe Design Semi Automatic with Measurements Pannels Pipe Bender

The DW75 semi-automatic pipe bending machines are easy to operate, robustly constructed, and achieve excellent bending results. The NC program precisely controls the bend angle (Y-axis) and rotation (Z-axis). The distance between the bends (X-axis) is configured using easily adjustable and very precise mechanical stops. Entering a new bending program is very intuitive with the help of an industrial touch controller and the accurate and user-friendly software. The DW75 semi-automatic pipe bender is by far the most efficient machine in its class to minimize energy consumption.

  • DW75NC
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 20 days after deposit confirmed

Description

BLMA as top 10 tube bending manufacturers offer a wide assortment of 5- Axes NC tube bending machine. The DW75 semi-automatic tube bender is fabricated from the finest quality of raw materials to provide maximum durability and long service life. Used in various industrial uses, these are highly acknowledged for its specific design, precision, and standard performance. Available in a wide range of models, we also undertake customization of these machines.


Features of DW75 semi-automatic pipe bending machines:

  • Low maintenance

  • Trouble-free operation

  • Anti-corrosive body

  • High functionality




Name

Brand

Hydraulic Motor

Taiwan, Yuanbang

Main electrics

Zhengtai,China/Schneider,France

Values

Taiwan Seven Ocean

Control system

Taiwan JieJun

Vane pump

Taiwan, Kaida

Sealings

Taiwan DZ

Oil tube

Jiangsu Kejia



01-75NC


PLC Controller
Easy operating and working fast

02-75NC


Electrics
Schneider, France brand

03-75NC


Mortor
Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which can keeps high efficiency and accurate bending angle.

04-75NC



Clamping Hydraulic Oil Tube
Kejia, China famous brand.

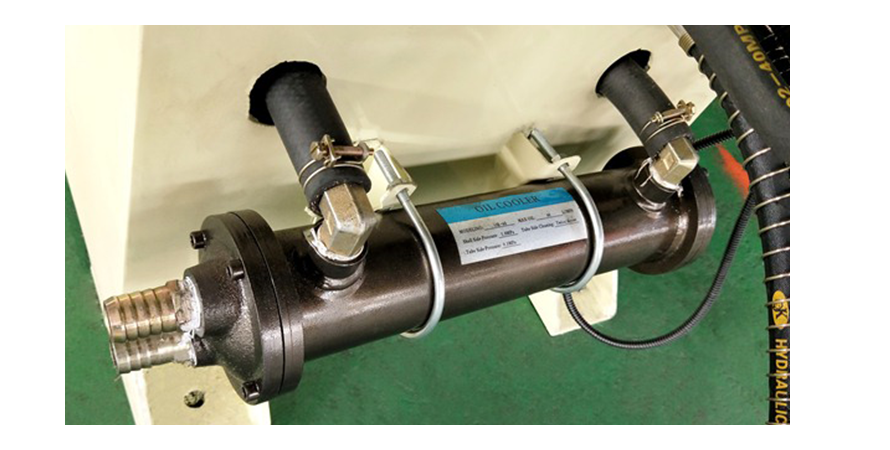

05-75NC



Water Cooling System

Automatic tube and pipe bending machine, automatic pipe bender, and pipe bending equipment are offered by BLMA - top 10 rolling machine manufacturer in China.

Parameters

Main specification

DW75NC

Max bending capacity

φ75mm x 5mm

Max bending radius

R400mm

 Bending degree

0-190°

Max effective distance of mandrel

2800mm

Motor power

7.5Kw

Max hydraulic pressure

12Mpa

Oil tank capability

250L

Measurement

400 x 100 x 110cm

Weight of machine

2000kg

Video

Download

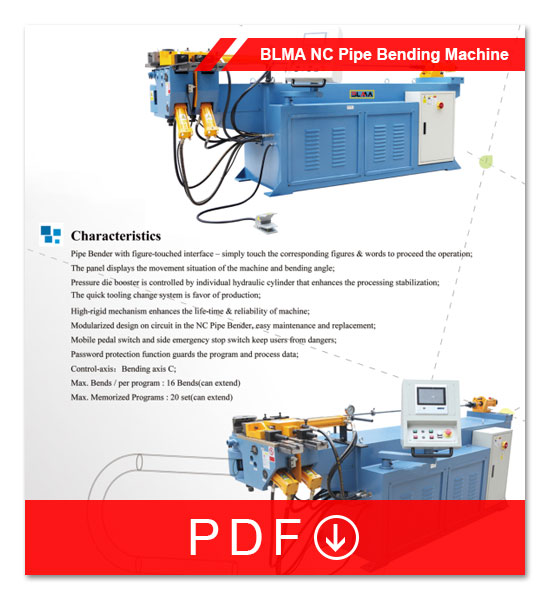

BLMA-NC-pipe-bending-machine
