Metal Tube And Plate Fiber Laser Cutting Machine with Rotary Device

Metal Tube And Plate Fiber Laser Cutting Machine is also called fiber laser metal cutting machine, fiber laser cutting machine, fiber laser cutting system, fiber laser cutting equipment. It is equipped with different powers (from 500W to 8000W) for cutting metal sheets/plates and metal tubes/pipes of stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials with different thicknesses. Our machines are capable of cutting steel, brass, aluminum and stainless steel without fear of back reflections damaging the machine. By using these Metal Tube And Plate Fiber Laser Cutting Machine, you’ll reduce your maintenance requirements and cut your operating costs considerably.

  • BL-3015FC
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Blue-white,can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

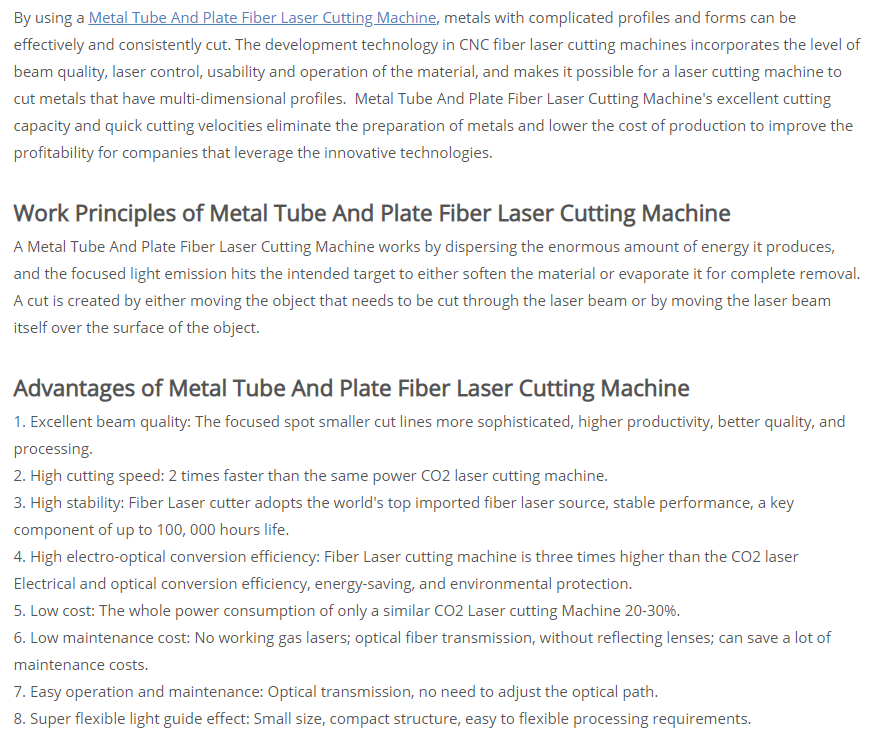

By using a Metal Tube And Plate Fiber Laser Cutting Machine, metals with complicated profiles and forms can be effectively and consistently cut. The development technology in CNC fiber laser cutting machines incorporates the level of beam quality, laser control, usability and operation of the material, and makes it possible for a laser cutting machine to cut metals that have multi-dimensional profiles.  Metal Tube And Plate Fiber Laser Cutting Machine's excellent cutting capacity and quick cutting velocities eliminate the preparation of metals and lower the cost of production to improve the profitability for companies that leverage the innovative technologies.


Work Principles of Metal Tube And Plate Fiber Laser Cutting Machine

A Metal Tube And Plate Fiber Laser Cutting Machine works by dispersing the enormous amount of energy it produces, and the focused light emission hits the intended target to either soften the material or evaporate it for complete removal. A cut is created by either moving the object that needs to be cut through the laser beam or by moving the laser beam itself over the surface of the object.


Advantages of Metal Tube And Plate Fiber Laser Cutting Machine

1. Excellent beam quality: The focused spot smaller cut lines more sophisticated, higher productivity, better quality, and processing.

2. High cutting speed: 2 times faster than the same power CO2 laser cutting machine.

3. High stability: Fiber Laser cutter adopts the world's top imported fiber laser source, stable performance, a key component of up to 100, 000 hours life.

4. High electro-optical conversion efficiency: Fiber Laser cutting machine is three times higher than the CO2 laser Electrical and optical conversion efficiency, energy-saving, and environmental protection.

5. Low cost: The whole power consumption of only a similar CO2 Laser cutting Machine 20-30%.

6. Low maintenance cost: No working gas lasers; optical fiber transmission, without reflecting lenses; can save a lot of maintenance costs.

7. Easy operation and maintenance: Optical transmission, no need to adjust the optical path.

8. Super flexible light guide effect: Small size, compact structure, easy to flexible processing requirements.

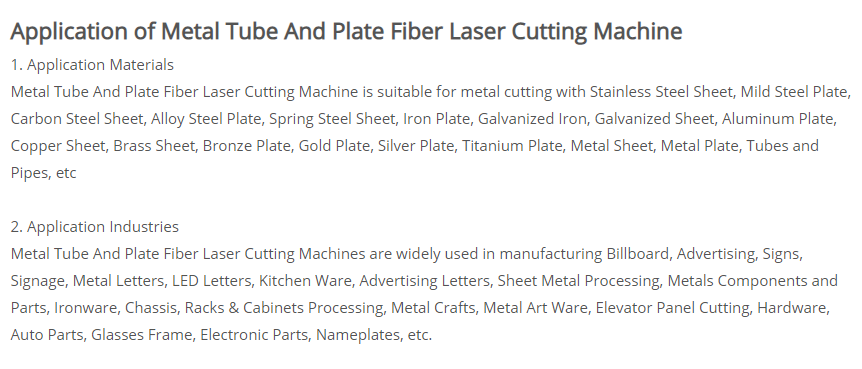

Application of Metal Tube And Plate Fiber Laser Cutting Machine

1. Application Materials

Metal Tube And Plate Fiber Laser Cutting Machine is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc


2. Application Industries

Metal Tube And Plate Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

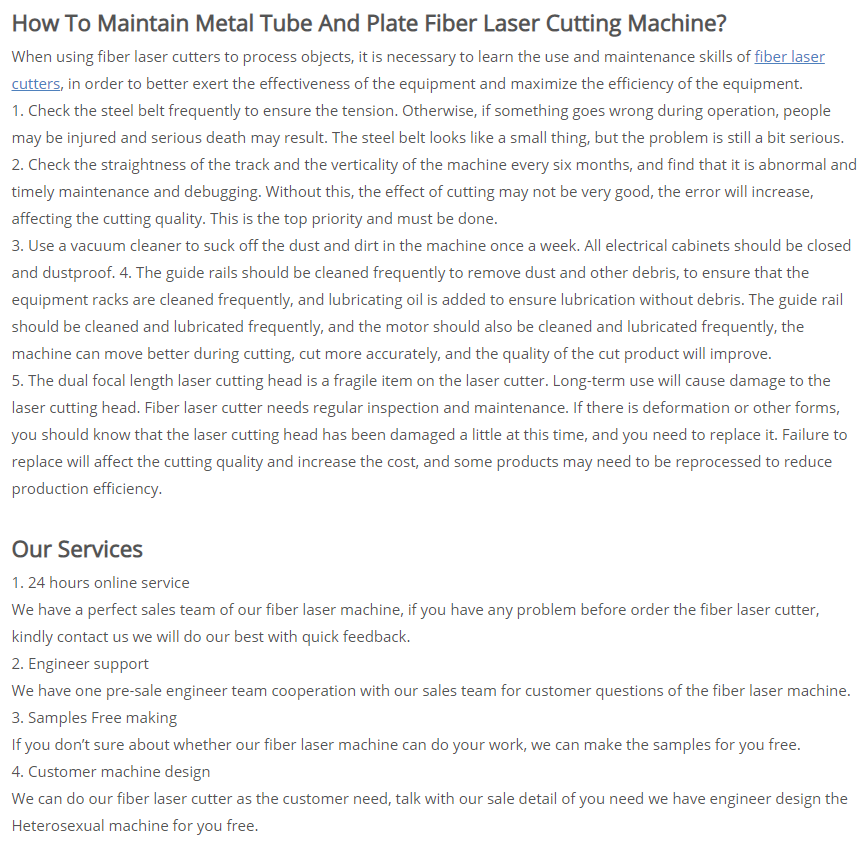

How To Maintain Metal Tube And Plate Fiber Laser Cutting Machine?

When using fiber laser cutters to process objects, it is necessary to learn the use and maintenance skills of fiber laser cutters, in order to better exert the effectiveness of the equipment and maximize the efficiency of the equipment.

1. Check the steel belt frequently to ensure the tension. Otherwise, if something goes wrong during operation, people may be injured and serious death may result. The steel belt looks like a small thing, but the problem is still a bit serious.

2. Check the straightness of the track and the verticality of the machine every six months, and find that it is abnormal and timely maintenance and debugging. Without this, the effect of cutting may not be very good, the error will increase, affecting the cutting quality. This is the top priority and must be done.

3. Use a vacuum cleaner to suck off the dust and dirt in the machine once a week. All electrical cabinets should be closed and dustproof. 4. The guide rails should be cleaned frequently to remove dust and other debris, to ensure that the equipment racks are cleaned frequently, and lubricating oil is added to ensure lubrication without debris. The guide rail should be cleaned and lubricated frequently, and the motor should also be cleaned and lubricated frequently, the machine can move better during cutting, cut more accurately, and the quality of the cut product will improve.

5. The dual focal length laser cutting head is a fragile item on the laser cutter. Long-term use will cause damage to the laser cutting head. Fiber laser cutter needs regular inspection and maintenance. If there is deformation or other forms, you should know that the laser cutting head has been damaged a little at this time, and you need to replace it. Failure to replace will affect the cutting quality and increase the cost, and some products may need to be reprocessed to reduce production efficiency.


Our Services

1. 24 hours online service

We have a perfect sales team of our fiber laser machine, if you have any problem before order the fiber laser cutter, kindly contact us we will do our best with quick feedback.

2. Engineer support

We have one pre-sale engineer team cooperation with our sales team for customer questions of the fiber laser machine.

3. Samples Free making

If you don’t sure about whether our fiber laser machine can do your work, we can make the samples for you free.

4. Customer machine design

We can do our fiber laser cutter as the customer need, talk with our sale detail of you need we have engineer design the Heterosexual machine for you free.


Metal Tube And Plate Fiber Laser Cutting Machine Details


01-BL-3015FC

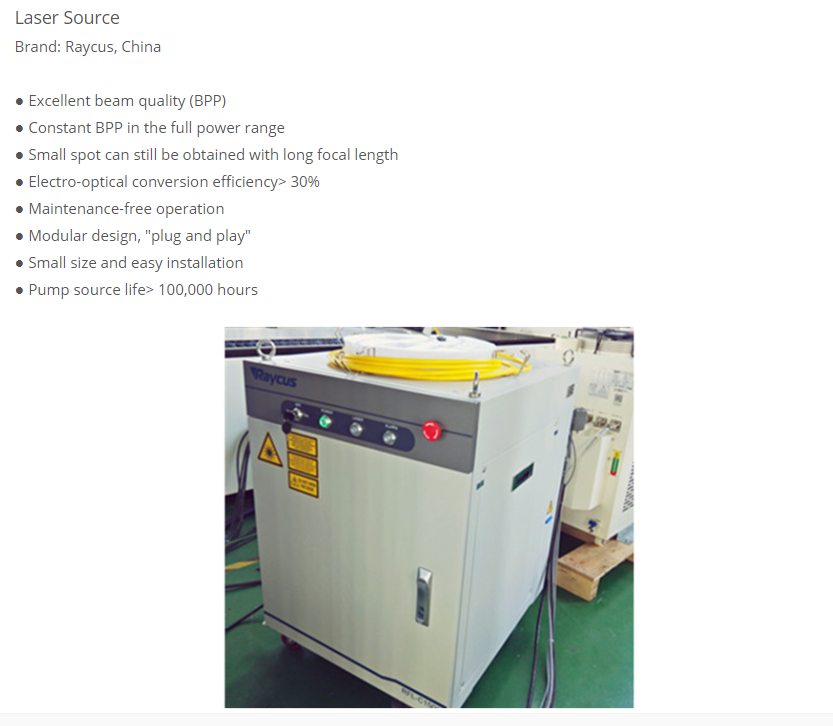

Laser Source

Brand: Raycus, China

* Excellent beam quality (BPP)

* Constant BPP in the full power range

* Small spot can still be obtained with long focal length

* Electro-optical conversion efficiency> 30%

* Maintenance-free operation

* Modular design, "plug and play"

* Small size and easy installation

* Pump source life> 100,000 hours


02-BL-3015FC

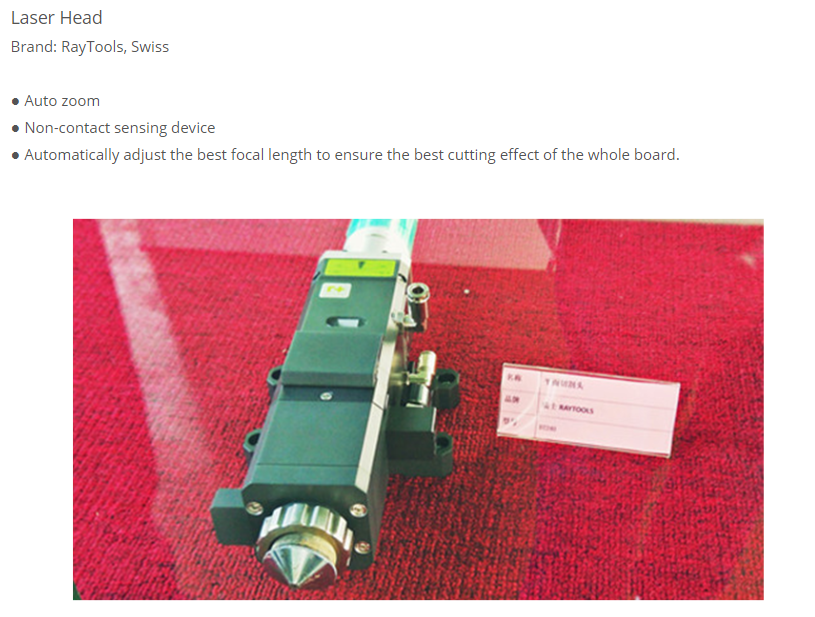

Laser Head

Brand: RayTools, Swiss



* Auto zoom

* Non-contact sensing device

* Automatically adjust the best focal length to ensure the best cutting effect of the whole board.

03-BL-3015FC

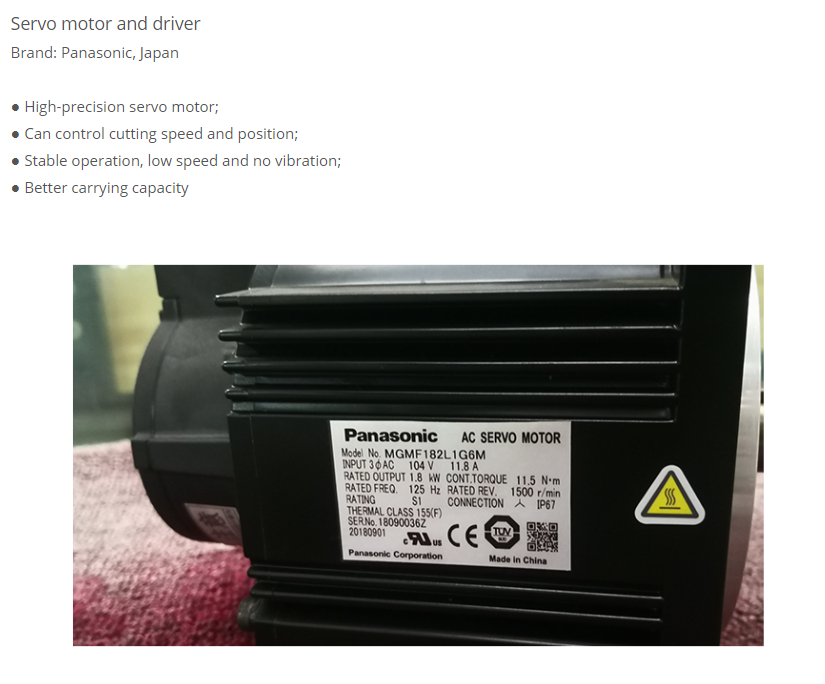

Servo motor and driver

Brand: Panasonic, Japan


* High-precision servo motor;

* Can control cutting speed and position;

* Stable operation, low speed and no vibration;

* Better carrying capacity


04-BL-3015FC

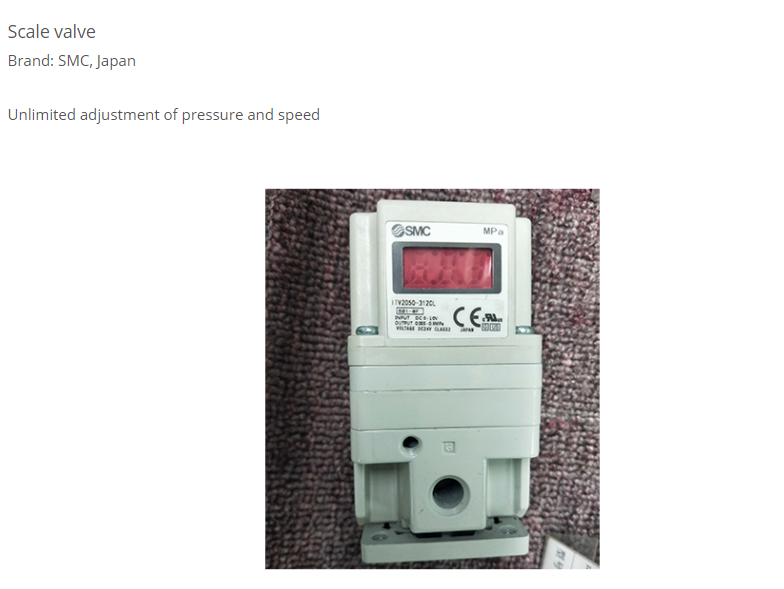

Scale valve

Brand: SMC, Japan


*Unlimited adjustment of pressure and speed

05-BL-3015FC

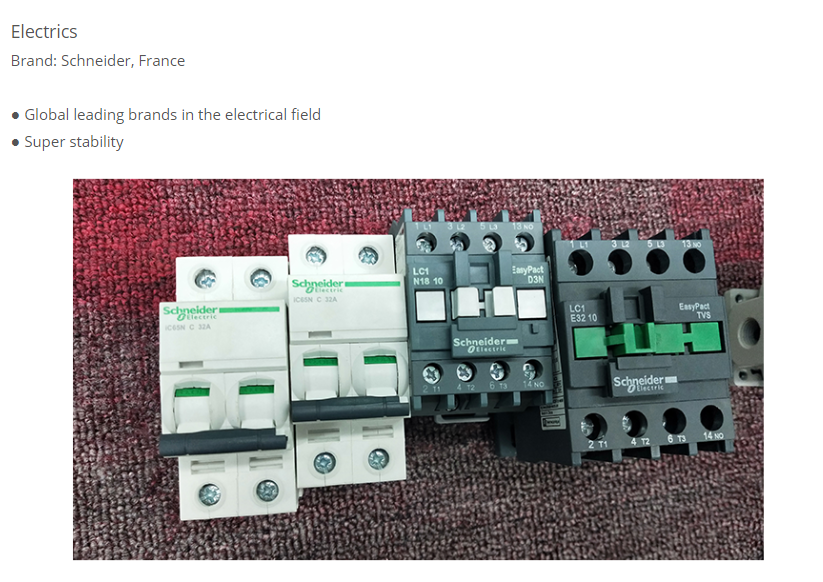

Electrics

Brand: Schneider, France


* Global leading brands in the electrical field

* Super stability

06-BL-3015FC

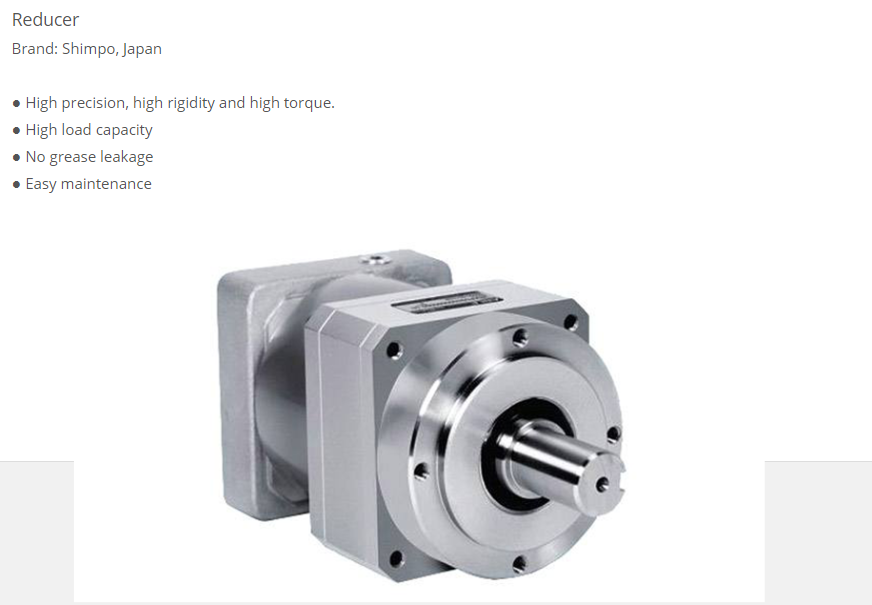

Reducer

Brand: Shimpo, Japan


* High precision, high rigidity and high torque.

* High load capacity

* No grease leakage

* Easy maintenance

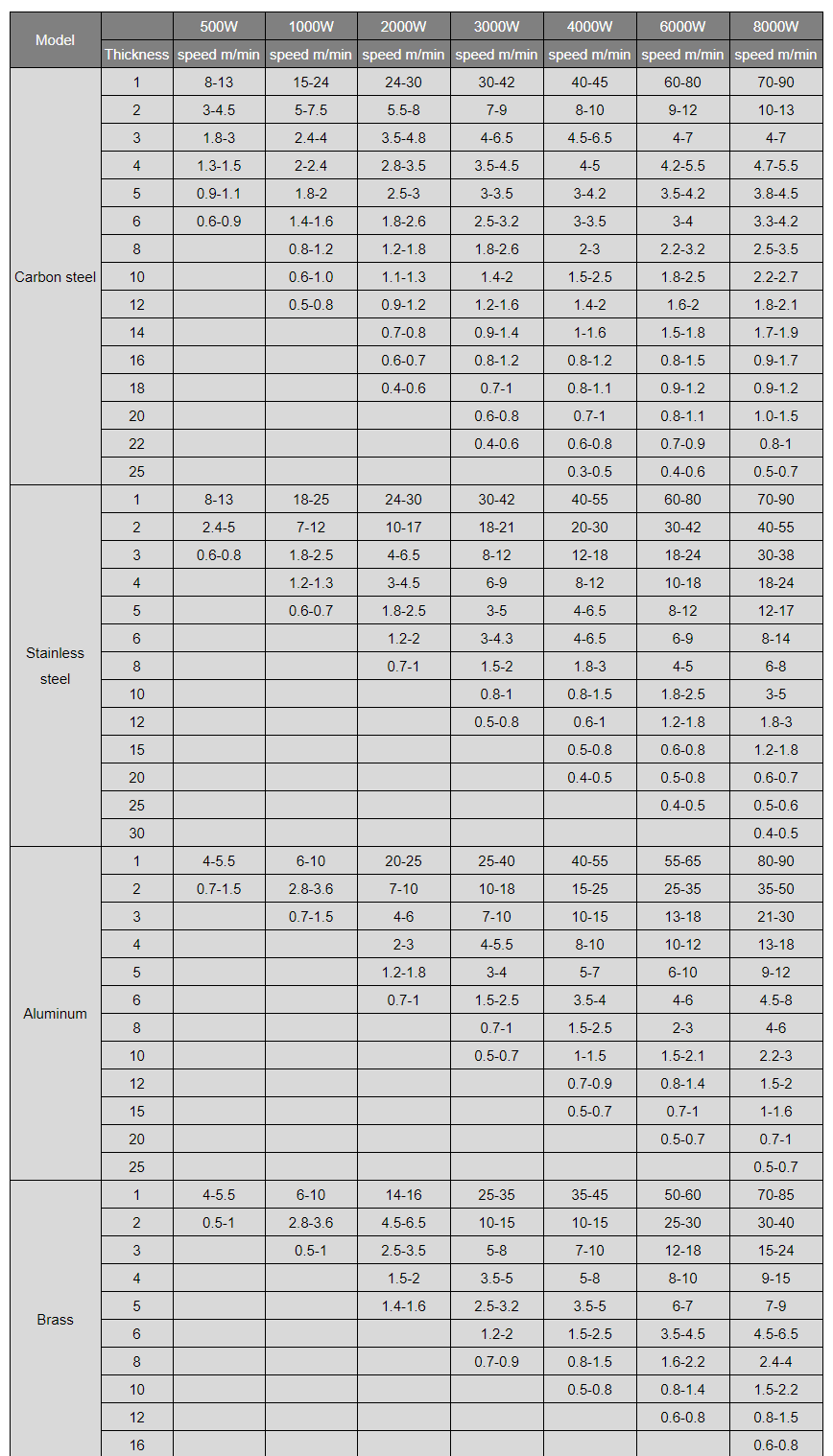

Parameters

Model


500W

1000W

2000W

3000W

4000W

6000W

8000W

Thickness

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

Carbon steel

1

8-13

15-24

24-30

30-42

40-45

60-80

70-90

2

3-4.5

5-7.5

5.5-8

7-9

8-10

9-12

10-13

3

1.8-3

2.4-4

3.5-4.8

4-6.5

4.5-6.5

4-7

4-7

4

1.3-1.5

2-2.4

2.8-3.5

3.5-4.5

4-5

4.2-5.5

4.7-5.5

5

0.9-1.1

1.8-2

2.5-3

3-3.5

3-4.2

3.5-4.2

3.8-4.5

6

0.6-0.9

1.4-1.6

1.8-2.6

2.5-3.2

3-3.5

3-4

3.3-4.2

8


0.8-1.2

1.2-1.8

1.8-2.6

2-3

2.2-3.2

2.5-3.5

10


0.6-1.0

1.1-1.3

1.4-2

1.5-2.5

1.8-2.5

2.2-2.7

12


0.5-0.8

0.9-1.2

1.2-1.6

1.4-2

1.6-2

1.8-2.1

14



0.7-0.8

0.9-1.4

1-1.6

1.5-1.8

1.7-1.9

16



0.6-0.7

0.8-1.2

0.8-1.2

0.8-1.5

0.9-1.7

18



0.4-0.6

0.7-1

0.8-1.1

0.9-1.2

0.9-1.2

20




0.6-0.8

0.7-1

0.8-1.1

1.0-1.5

22




0.4-0.6

0.6-0.8

0.7-0.9

0.8-1

25





0.3-0.5

0.4-0.6

0.5-0.7

Stainless steel

1

8-13

18-25

24-30

30-42

40-55

60-80

70-90

2

2.4-5

7-12

10-17

18-21

20-30

30-42

40-55

3

0.6-0.8

1.8-2.5

4-6.5

8-12

12-18

18-24

30-38

4


1.2-1.3

3-4.5

6-9

8-12

10-18

18-24

5


0.6-0.7

1.8-2.5

3-5

4-6.5

8-12

12-17

6



1.2-2

3-4.3

4-6.5

6-9

8-14

8



0.7-1

1.5-2

1.8-3

4-5

6-8

10




0.8-1

0.8-1.5

1.8-2.5

3-5

12




0.5-0.8

0.6-1

1.2-1.8

1.8-3

15





0.5-0.8

0.6-0.8

1.2-1.8

20





0.4-0.5

0.5-0.8

0.6-0.7

25






0.4-0.5

0.5-0.6

30







0.4-0.5

Aluminum

1

4-5.5

6-10

20-25

25-40

40-55

55-65

80-90

2

0.7-1.5

2.8-3.6

7-10

10-18

15-25

25-35

35-50

3


0.7-1.5

4-6

7-10

10-15

13-18

21-30

4



2-3

4-5.5

8-10

10-12

13-18

5



1.2-1.8

3-4

5-7

6-10

9-12

6



0.7-1

1.5-2.5

3.5-4

4-6

4.5-8

8




0.7-1

1.5-2.5

2-3

4-6

10




0.5-0.7

1-1.5

1.5-2.1

2.2-3

12





0.7-0.9

0.8-1.4

1.5-2

15





0.5-0.7

0.7-1

1-1.6

20






0.5-0.7

0.7-1

25







0.5-0.7

Brass

1

4-5.5

6-10

14-16

25-35

35-45

50-60

70-85

2

0.5-1

2.8-3.6

4.5-6.5

10-15

10-15

25-30

30-40

3


0.5-1

2.5-3.5

5-8

7-10

12-18

15-24

4



1.5-2

3.5-5

5-8

8-10

9-15

5



1.4-1.6

2.5-3.2

3.5-5

6-7

7-9

6




1.2-2

1.5-2.5

3.5-4.5

4.5-6.5

8




0.7-0.9

0.8-1.5

1.6-2.2

2.4-4

10





0.5-0.8

0.8-1.4

1.5-2.2

12






0.6-0.8

0.8-1.5

16







0.6-0.8


Download

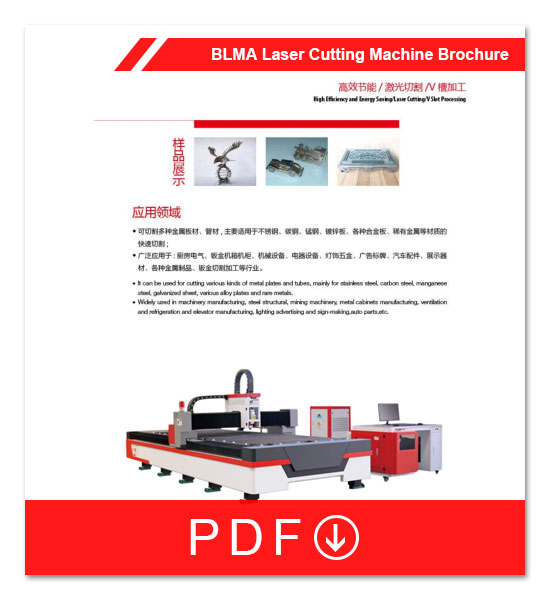

BLMA-Laser-Cutting-Machine-Brochure
