PBCNC Series WE67K DA52S Controller Press Brake Machine

●New EU streamlined design
●The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress
●The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment
●The frame is formed by the imported CNC three-dimensional machining center in one process, which ensures the parallelism and verticality of each mounting surface.
●The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder) to ensure the synchronous movement of the ram
●Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return (the pressure in the hydraulic system is the closed loop control of the servo main motor)

  • WE67K DA52S
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

01-DELEM-DA52S-Controller


DELEM DA52S Controller

1. Quick, one page programming
2. 7'' widescreen colour TFT
3. Up to 4 axes control(Y1 Y2 X R)
4. Crowning control;
5. Tool/material/product library
6. USB, peripheral interfacing
7. Support 24 Languages

02-Germany-Siemens-Motor


Germany Siemens Motor

Using Siemens motor guarantee the machine service life and improve the machine working stability


03-Germany-Voith-Oil-Pump


Germany Voith Oil Pump

Using Germany Voilth oil pump guarantee low sensitivity to oil pollution, assure of long service life and reduce noise during working



04-Bosch-Rexroth-Hydraulic-Valve



Bosch Rexroth Hydraulic Valve

Germany Bosch Rexroth integrated hydraulic valve block, hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid.


05-Frane-Schneider-Electrics



Frane Schneider Electrics

Stable France Schneider electrics, Estun Servo drive to improve the positioning accuracy of X, Y axis


06-Hiwin-Ball-Screw-and-Linear-Guide-Rall



Hiwin Ball Screw and Linear Guide Rall

Using Taiwan Hiwin ball screw and linear guider to improve the machine backguage accurancy

07-Kacon-Pedal-Swith



Kacon Pedal Swith

South Korea Kacon pedal switch, improving the service life and operational sensitivity

08-Germany-EMB-tube



Germany EMB Tube

Using Germany EMB tube and connectors reduce the odds against welding slag jam into the valves and affect oil flowing

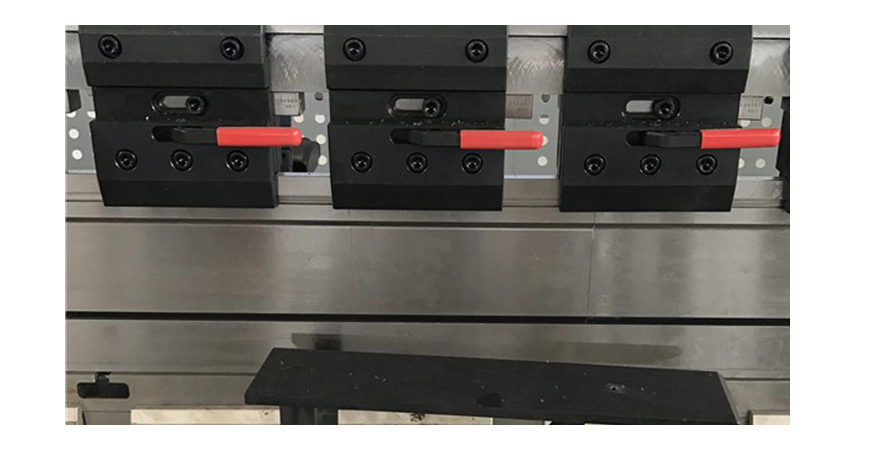

09-Mechanical-Fast-Clamps



Mechanical Fast Clamps

Using mechanical fast clamp for upper dies, changing dies more convenient and safe

10-42Crmo-toolings



42Crmo Toolings

The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42°, ensuring the die service life

11-Front-Plate-Support



Front Plate Support

Movable front material support on Hiwin linear guider, can move left and right by hand very easy.


12-Mechanical-Crowning



Mechanical Crowning

Optional electric mechanical crowing, improving the percision of bending angle and linearity. It can be controlled by DA52S controller (C-axis).







Optional Components

● Back guage up and down

● Hydrualic crowning

● Main motor Servo Motor

● Italy dsp laser protection

● Optional segment die

● Motorized stopper fngers Z1 and Z2


Parameters

Type

Norminal force

Bending length

Poles distance

Throat distance

Slider travel

Height of table

Die loading height

Power

Compensation

Axis

Travel

Speed

Dimension
LxWxH

KN

mm

mm

mm

mm

mm

mm

kw



mm

mm/s

mm

63T/2500

630

2500

1900

350

120

800

380

5.5

2

3+1

500

200

3100x1450x2050

80T/3200

800

3200

2600

350

120

800

380

7.5

3

3+1

500

200

3500x1550x2100

100T/3200

1000

3200

2600

400

150

800

420

7.5

3

3+1

500

200

3500x1580x2400

160T/3200

1600

3200

2600

400

170

800

420

11

3

3+1

500

200

3500x1650x2500

200T/3200

2000

3200

2540

400

200

800

420

15

3

3+1

500

200

3500x1680x2550

250T/3200

2500

3200

2540

400

200

800

420

15

3

3+1

500

200

3500x1700x2600

320T/3200

3200

3200

2700

400

200

800

420

15

3

3+1

500

200

3500x1880x2730

400T/4000

4000

4000

3500

400

200

800

420

18.5

4

3+1

500

200

4300x2080x2730

500T/5000

5000

5000

3900

500

320

800

600

22.5

5

3+1

500

200

5400x2525x4600

500T/6000

5000

6000

4900

500

320

800

600

37

6

3+1

500

200

6500x2525x4200

500T/7000

5000

7000

5900

500

320

800

600

37

6

3+1

500

200

7500x2525x4900

600T/5000

6000

5000

3900

500

320

800

600

37

5

3+1

500

200

5500x2450x4500

600T/6000

6000

6000

4900

500

320

800

600

45

6

3+1

500

200

6500x2450x5100

600T/7000

6000

7000

5900

500

320

800

600

45

7

3+1

500

200

7500x2450x5200

800T/6000

8000

6000

4900

600

420

800

600

45

3

3

800

200

6500x2750x5300

800T/7000

8000

7000

5900

600

420

800

600

74

3

3

800

200

7500x2750x5500

800T/8000

8000

8000

5900

600

420

800

600

74

3

3

800

200

8500x2750x5900

1000T/6000

10000

6000

5900

600

420

800

600

74

3

3

800

200

6500x2800x5600

1000T/7000

10000

7000

5900

600

420

800

600

90

3

3

800

200

6500x2800x5800

1000T/8000

10000

8000

6900

600

420

800

600

90

3

3

800

200

6500x2800x6100

1200T/6000

12000

6000

4900

600

420

800

600

90

3

3

800

200

6500x3100x5850

1200T/7000

12000

7000

5900

600

420

800

600

90

3

3

800

200

6500x3100x6550

1200T/8000

12000

8000

6900

600

420

800

600

90

3

3

800

200

8500x3100x7150

1600T/6000

16000

6000

4900

500

320

800

600

110

3

3

800

500

6500x3300x6500

1600T/7000

16000

7000

5900

500

320

800

600

110

3

3

800

500

7500x3300x7000

1600T/8000

16000

8000

6900

500

320

800

600

110

3

3

800

500

8500x3300x8000
