QC11K Hydraulic CNC Guillotine Sheet Metal Shear Cutting Machine

●Quick cutting length adjustment
●Optional CNC front feeding table
●Optional rear pneumatic sheet supporter
●Cutting angle and blade gap with Electric control
●E21S with backguage sequence repeat and distance control
●Upper and lower Guillotine shear blades with four-side cutting edges

  • QC11K E21S
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Blue-white,can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

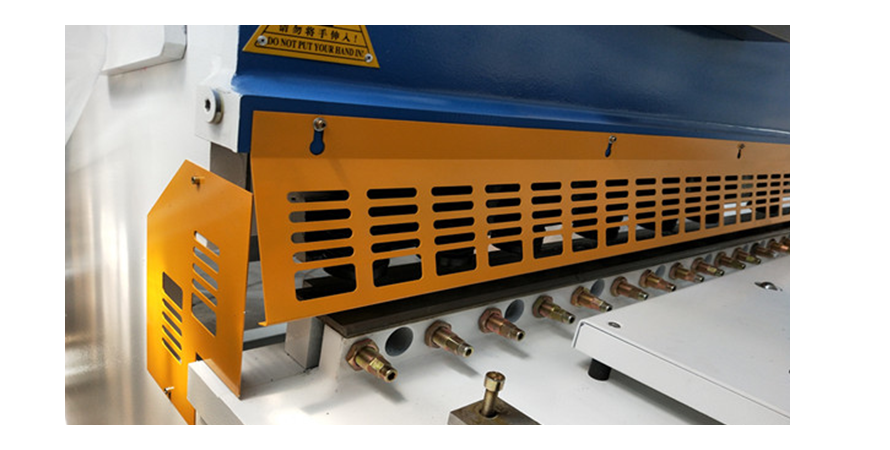

01-E21S


Satety fence
Left and right protective guard guarantee operation satety

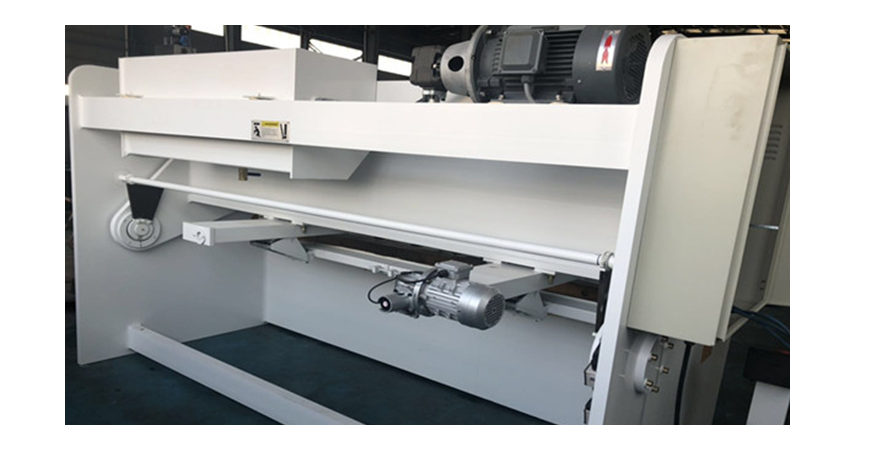

02-E21S


Overall welding
Integral welding front workbench and machine body guarantee that there are no seam between front workbench vertical plate and bilateral vertical plates

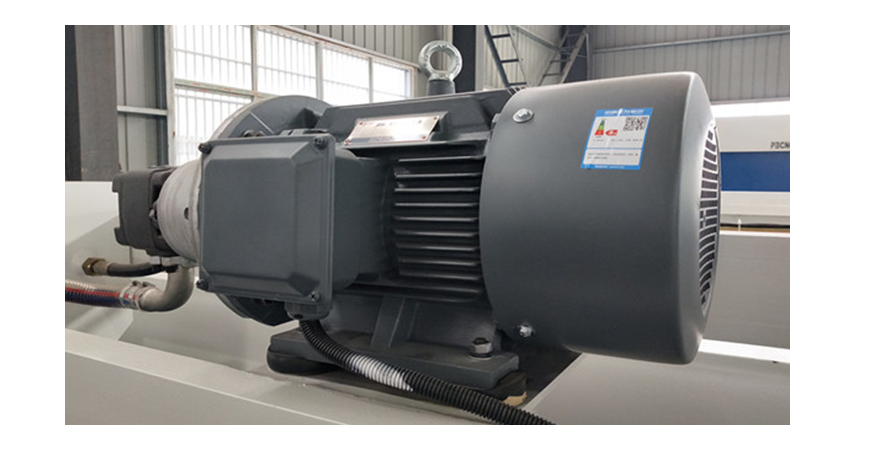

03-E21S


Siemens motor
Using Siemens Morto guarantee the machine service life,and reduce the noise when working

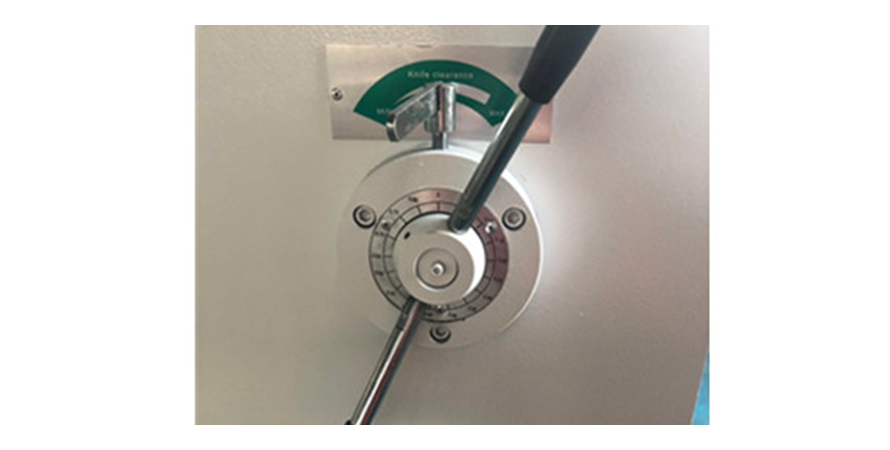

04-E21S


Blade clearance adjustment
Ajust the cutting blade gap by motor according to the thickness of plate,which can get better cutting performance

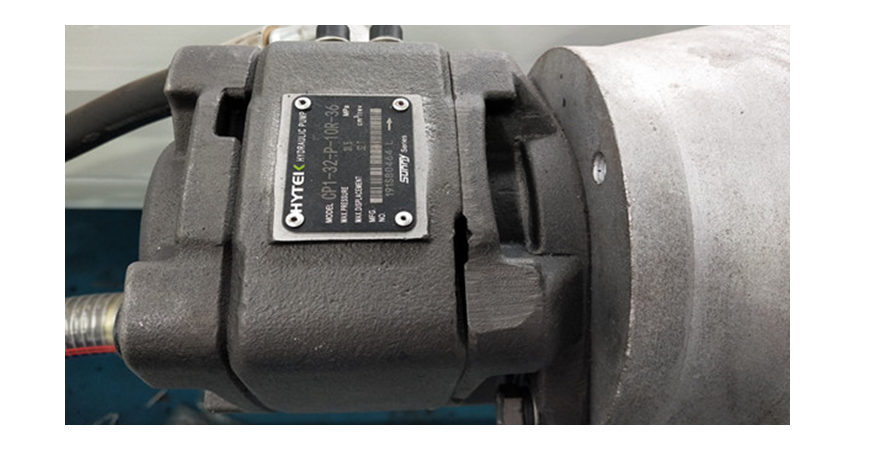

05-E21S


American Sunny oil pump
Using USA Sunny oil pump guarantee the oil service life,and reduce the noise when working,provides great power for the hydraulic system

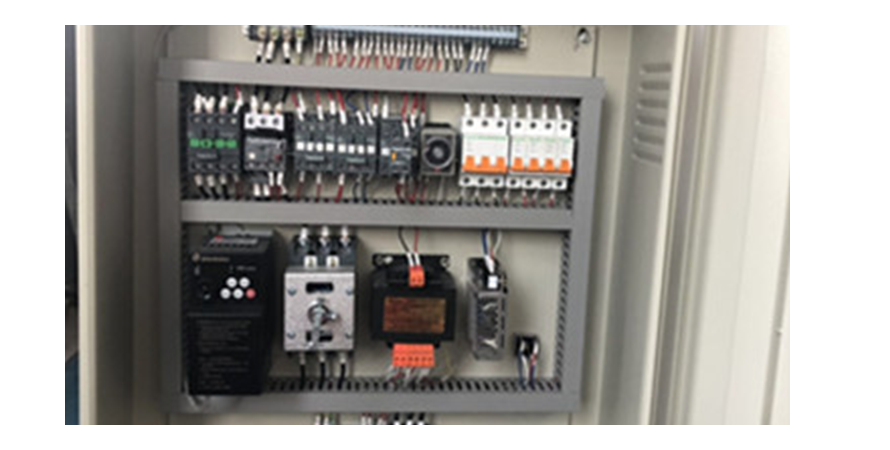

06-E21S



France Schneider electrics&Taiwan Schihlin inverter
Stable France Scheider electrics,keep the machine performace good;
The motor for backguage stroke controlled by inverter,which can achieve high positioning accuracy of backgauge

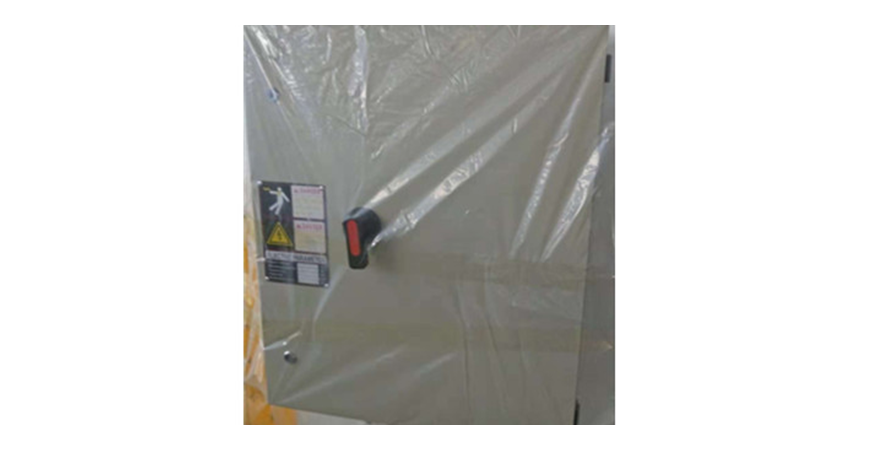

07-E21S



Open door power off
Electrical cabinet with function of opening door to cut off power

08-E21S



Taiwan Hiwin ball screw
High precise backgauge is equipped with Taiwan Hiwin Ball Screw and polished rod

09-E21S



South Korea Kacon pedal switch
South Korea Kacon pedal switch,lengthened the service life and improved operational sensitivity

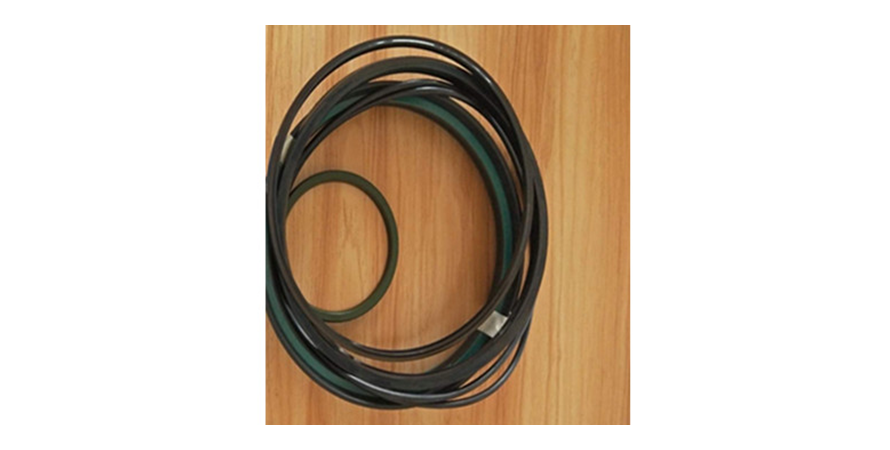

10-E21S



USA PARKER/NOK Sealing Ring
NOK Sealing Ring improving the service life of oil cylinder,guaranteeing long-term use with leakage

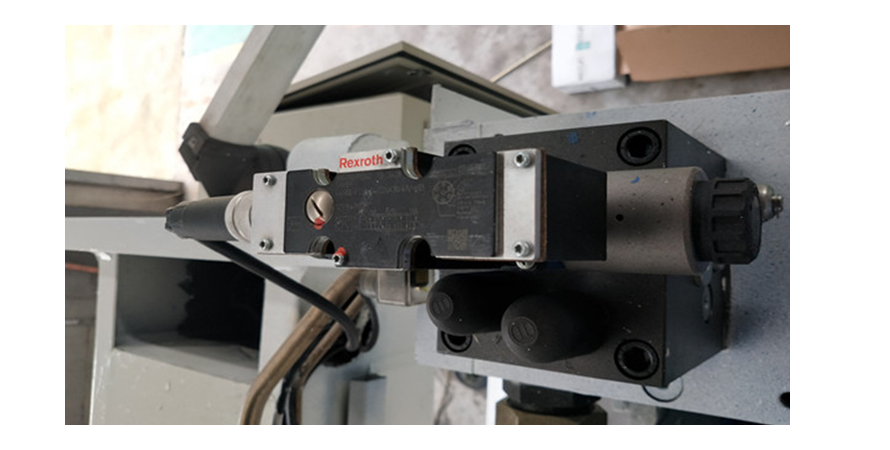

11-E21S



Bosch Rexroch hydraulic valve
Germany Bosch Rexroch integrated hydraulic valve block,hydraulic transmission with high reliability,integrated hydraulic system can effectively alleviated problems caused by leakage of hydraulic fluid

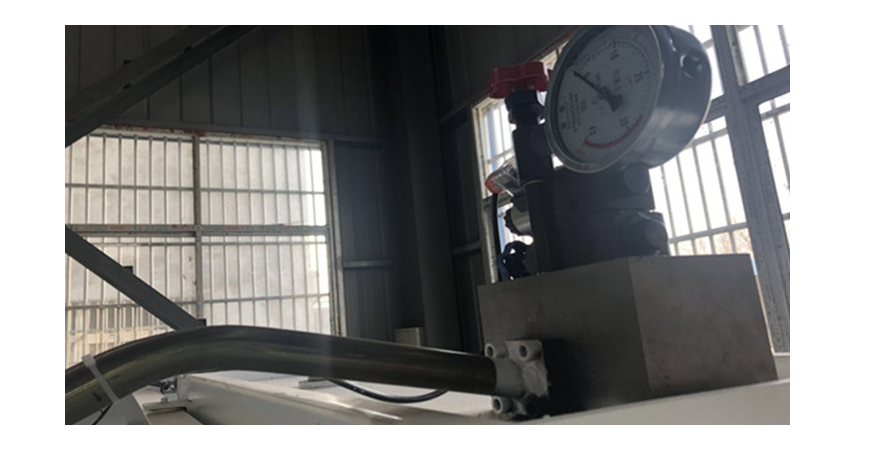

12-E21S



Germany EMB Tube
Using Germany EMB casing tube and connectors to reduce the odds against welding slag jamming the valves of affect oil flowing

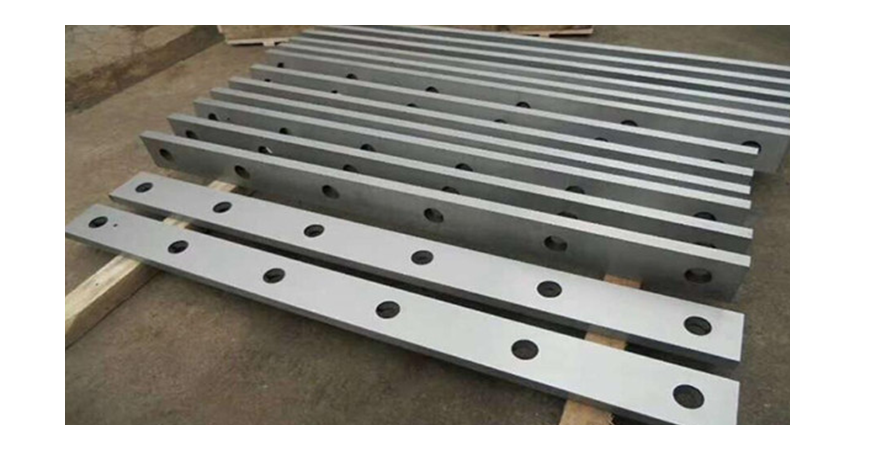

13-E21S



Cutting blade
Upper blade with four cutting edges,bottom blade with four cutting edges




Parameters

Type

Cutting thickness

Cutting length

Cutting angle

Throat Depth

Back-gauge range

Travel times

Power

Dimension LxWxH

mm

mm

°

mm

mm

cycle/min

kw

mm

6x2500

6

2500

0.5-1.5

100

10-900

14

7.5

3100x1700x1950

6x3200

6

3200

0.5-1.5

100

10-900

12

7.5

3800x1700x1950

6x4000

6

4000

0.5-1.5

100

10-900

10

7.5

4600x1700x1950

6x5000

6

5000

0.5-1.5

100

10-900

8

11

5700x1850x2150

6x6000

6

6000

0.5-1.5

100

10-900

6

11

6700x1900x2350

8x2500

8

2500

0.5-2

100

10-900

14

7.5

3100x1800x2050

8x3200

8

3200

0.5-2

100

10-900

12

7.5

3800x1800x2050

8x4000

8

4000

0.5-2

100

10-900

10

7.5

4600x1800x2050

8x5000

8

5000

0.5-2

100

10-900

7

11

5700x1900x2250

8x6000

8

6000

0.5-2

120

10-900

6

11

6700x1900x2250

10x2500

10

2500

0.5-2

120

10-900

10

11

3100x1850x2100

10x3200

10

3200

0.5-2

120

10-900

8

11

3800x1850x2100

10x4000

10

4000

0.5-2

120

10-900

6

18.5

4600x1850x2100

10x5000

10

5000

0.5-2

120

10-900

5

18.5

5700x2000x2500

10x6000

10

6000

0.5-2

120

10-900

4

18.5

6700x2000x2600

12x2500

12

2500

0.5-2.5

120

10-900

10

18.5

3100x2000x2200

12x3200

12

3200

0.5-2.5

120

10-900

8

18.5

3800x2000x2200

12x4000

12

4000

0.5-2.5

120

10-900

6

18.5

4600x2000x2250

12x5000

12

5000

0.5-2.5

120

10-900

5

22

5700x2100x2700

12x6000

12

6000

0.5-2.5

120

10-900

4

22

6700x2100x3000

16x2500

16

2500

0.5-2.5

120

10-900

8

18.5

3100x2100x2300

16x3200

16

3200

0.5-2.5

120

10-900

7

18.5

3800x2100x2400

16x4000

16

4000

0.5-2.5

120

10-900

6

22

4600x2100x2500

16x5000

16

5000

0.5-2.5

120

10-900

5

30

5700x2150x2700

16x6000

16

6000

0.5-2.5

120

10-900

4

37

6700x2150x2900

20x2500

20

2500

0.5-3

120

10-900

6

22

3100x2050x2400

20x3200

20

3200

0.5-3

120

10-900

5

22

3800x2150x2400

20x4000

20

4000

0.5-3

120

10-900

4

30

4600x2200x2800

20x5000

20

5000

0.5-3

120

10-900

4

37

5700x2300x2900

20x6000

20

6000

0.5-3

120

10-900

3

37

6700x2300x3100

25x2500

25

2500

0.5-3

120

10-900

5

37

3500x2250x2550

25x3200

25

3200

0.5-3

120

10-900

5

37

4000x2250x2550

25x4000

25

4000

0.5-3.5

120

10-900

3

37

4900x2300x3000

25x5000

25

5000

0.5-3.5

120

10-900

3

45

6100x2500x3100

25x6000

25

6000

0.5-3.5

120

10-900

3

45

7200x2600x3300

30x2500

30

2500

0.5-3.5

120

10-900

4

30

3400x2500x3000

30x3200

30

3200

0.5-3.5

120

10-900

3

37

4000x2600x3200

30x4000

30

4000

0.5-3.5

120

10-900

3

45

4600x2600x3400
