QC12K/Y NC Hydraulic Metal Cutting Shear Shearing Machine Manufacturers
Home » Products » Shearing Machine » QC12K » QC12K/Y NC Hydraulic Metal Cutting Shear Shearing Machine Manufacturers

Product Detail

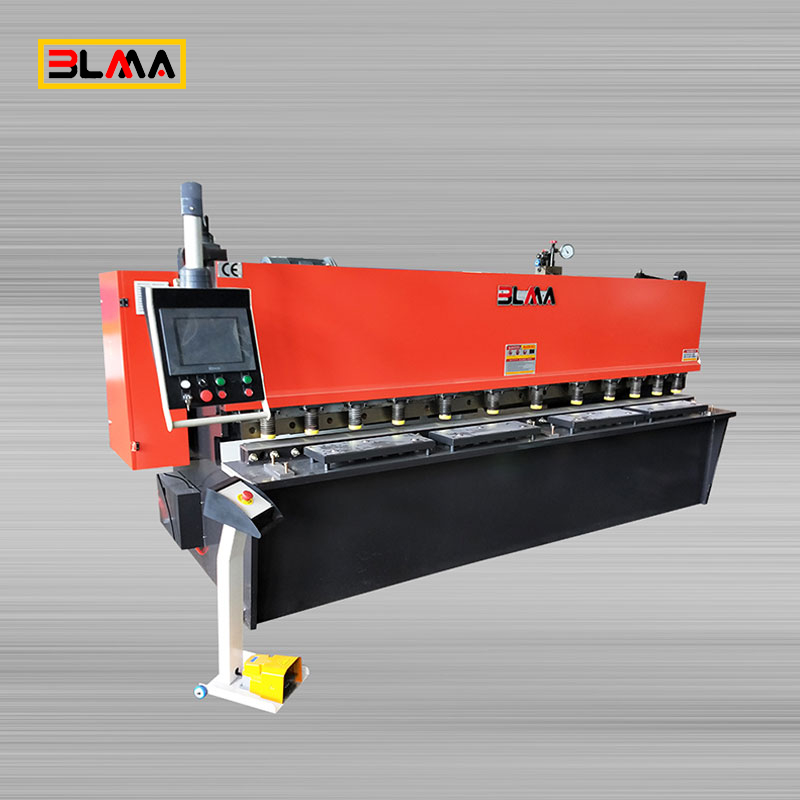

QC12K/Y NC Hydraulic Metal Cutting Shear Shearing Machine Manufacturers

Share to:

●Accurate backgauge positioning up to 0.01mm
●Swing beam shear with Backgauge retraction function
●E21S NC controller with sequence repeat function
●Quick blade clearance adjustment with manual handle shank
●High quality blades for cutting mild steel,aluminum,stainless steel

  • QC12K DAC310
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Blue-white,can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

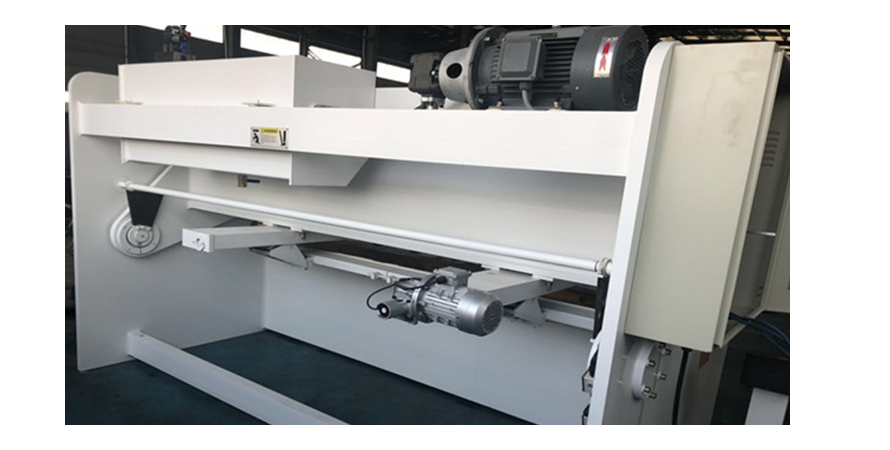

01-DAC310


Overall welding


Integral welding front workbench and machine body guarantee that there are no seam between front workbench vertical plate and bilateral vertical plates

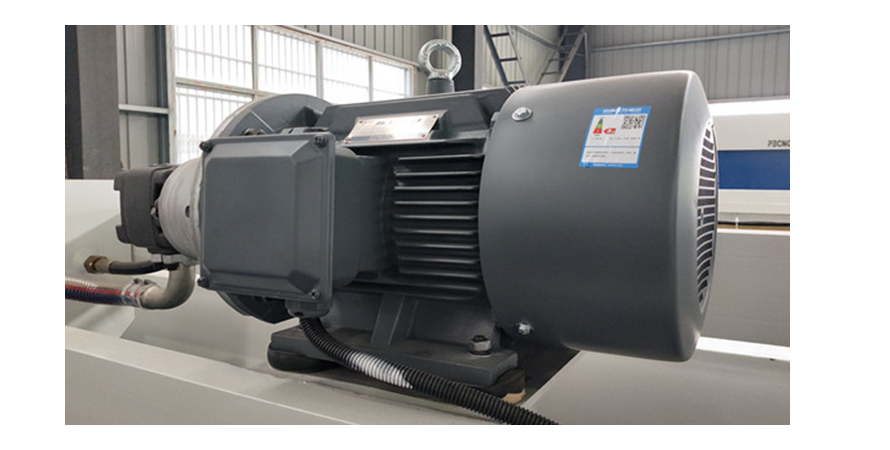

02-DAC310


Siemens motor

Using Siemens Morto guarantee the machine service life,and reduce the noise when working

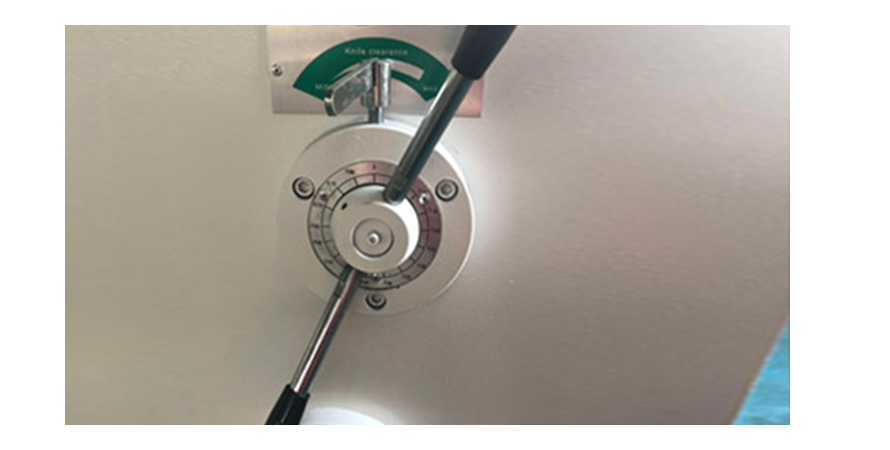

03-DAC310


Blade clearance adjustment

Ajust the cutting blade gap by motor according to the thickness of plate,which can get better cutting performance






04-DAC310


American Sunny oil pump

Using USA Sunny oil pump guarantee the oil service life,and reduce the noise when working,provides great power for the hydraulic system

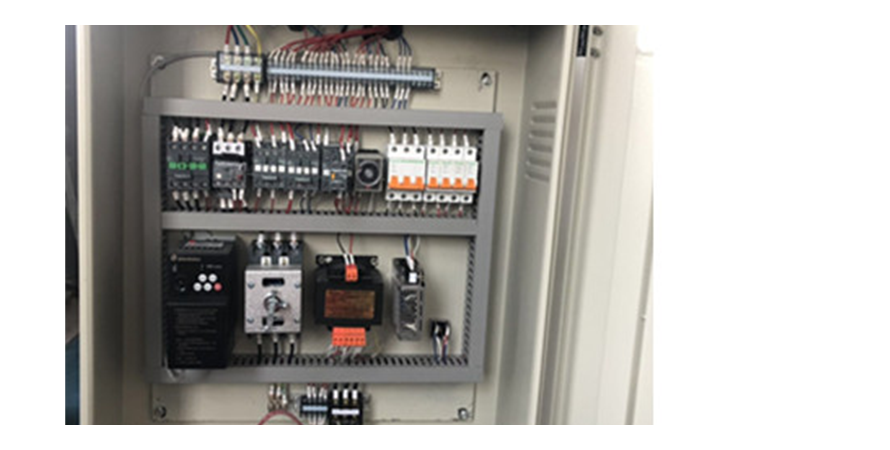

05-DAC310



France Schneider electrics&Taiwan Schihlin inverter

Stable France Scheider electrics,keep the machine performace good;
The motor for backguage stroke controlled by inverter,which can achieve high positioning accuracy of backgauge

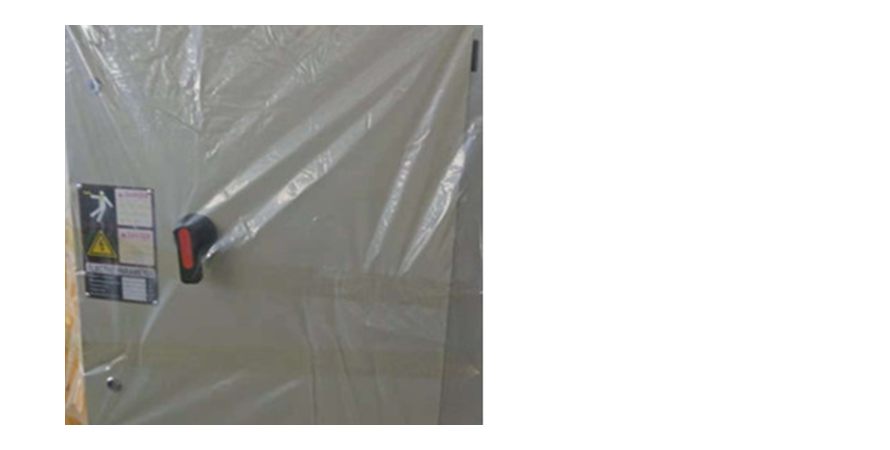

06-DAC310



Open door power off

Electrical cabinet with function of opening door to cut off power

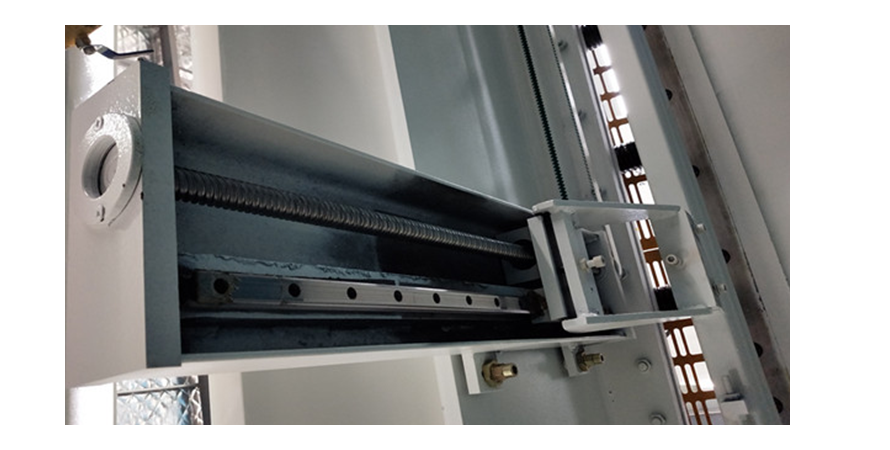

07-DAC310



Taiwan Hiwin ball screw

High precise backgauge is equipped with Taiwan Hiwin Ball Screw and polished rod






08-DAC310



South Korea Kacon pedal switch

South Korea Kacon pedal switch,lengthened the service life and improved operational sensitivity

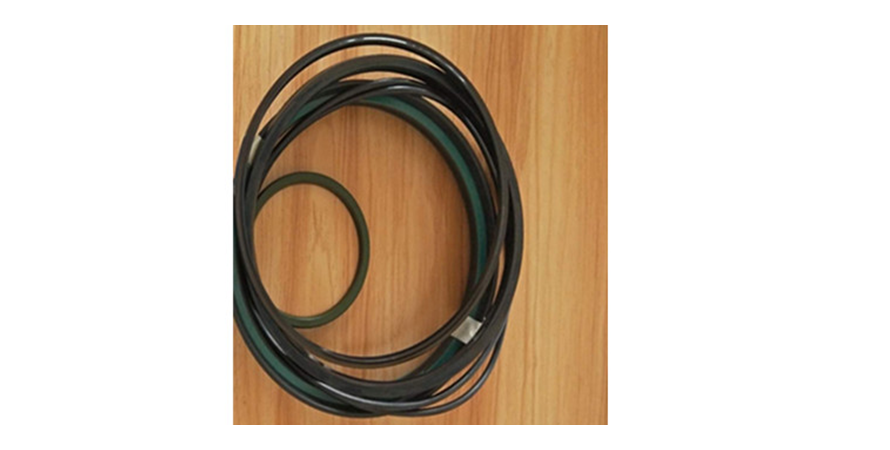

09-DAC310



USA PARKER/NOK Sealing Ring

NOK Sealing Ring improving the service life of oil cylinder,guaranteeing long-term use with leakage






10-DAC310



Bosch Rexroch hydraulic valve

Germany Bosch Rexroch integrated hydraulic valve block,hydraulic transmission with high reliability,integrated hydraulic system can effectively alleviated problems caused by leakage of hydraulic fluid





11-DAC310



Germany EMB Tube

Using Germany EMB casing tube and connectors to reduce the odds against welding slag jamming the valves of affect oil flowing

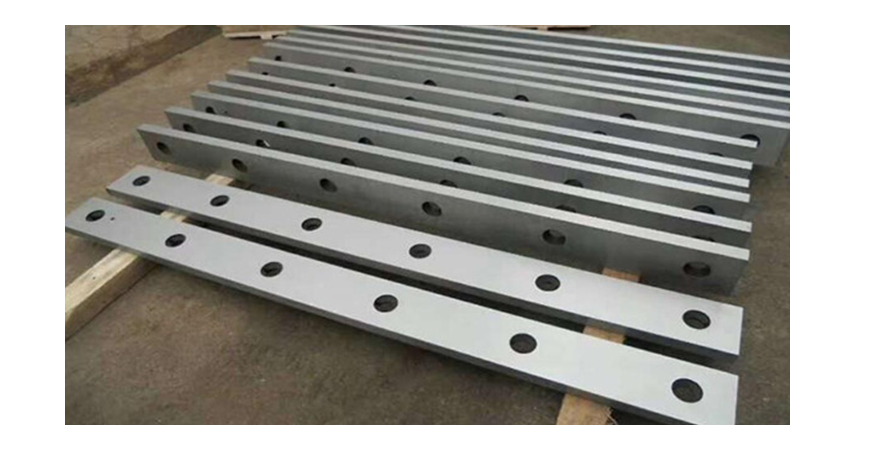

12-DAC310



Cutting blade

Upper blade with four cutting edges,bottom blade with four cutting edges








Parameters

Model

Cutting Thickness

Cutting Length

Cutting Angle

Throat Depth

Back Gauge Range

Strokes

Main motor

Weight

Dimension
LxWxH

mm

mm

°

mm

mm

cycle/min

kw

ton

mm

4x2500

4

2500

1.5

100

200-600

18

5.5

3.4

3200x1600x1600

4x3200

4

3200

1.5

100

200-600

19

5.5

5

3900x1600x1600

4x4000

4

4000

1.5

100

200-600

14

7.5

6.2

4700x1600x1600

4x5000

4

5000

1.5

100

200-600

12

11

10.6

5800x1750x1850

4x6000

4

6000

1.5

100

200-600

8

11

13.5

6800x1750x1850

6x2500

6

2500

1.5

100

200-600

17

7.5

5.2

3200x1650x1800

6x3200

6

3200

1.5

100

200-600

15

7.5

6.2

3900x1650x1800

6x4000

6

4000

1.5

100

200-600

12

7.5

7.3

4700x1650x1800

6x5000

6

5000

1.5

100

200-600

10

11

10.8

5800x1800x1950

6x6000

6

6000

2

100

200-600

8

11

14.5

6800x1800x1950

8x2500

8

2500

2

100

200-600

16

7.5

5.8

3200x1700x1850

8x3200

8

3200

2

100

200-600

14

7.5

6.9

3900x1700x1850

8x4000

8

4000

2

100

200-600

11

7.5

8.0

4700x1700x1850

8x5000

8

5000

2

100

200-600

10

11

12.0

5800x1900x2100

8x6000

8

6000

2

120

200-600

8

11

19.0

6800x1900x2200

10x2500

10

2500

2

120

200-600

12

11

6.9

3200x1850x1900

10x3200

10

3200

2

120

200-600

10

11

7.8

3900x1850x1900

10x4000

10

4000

2

120

200-600

8

18.5

10.1

4700x1850x1900

10x5000

10

5000

2

120

200-600

7

18.5

15.0

5800x2000x2500

10x6000

10

6000

2

120

200-600

6

18.5

21.5

6800x2000x2500

12x2500

12

2500

2.5

120

200-600

11

18.5

8.9

3200x2050x2150

12x3200

12

3200

2.5

120

200-600

10

18.5

10.0

3900x2050x2150

12x4000

12

4000

2.5

120

200-600

8

18.5

13.0

4700x2050x2150

12x5000

12

5000

2.5

120

200-600

7

22

19.0

5800x2200x2200

12x6000

12

6000

2.5

120

200-600

6

22

26.0

6800x2400x2600

16x2500

16

2500

2.5

120

200-600

10

18.5

9.3

3200x2150x2250

16x3200

16

3200

2.5

120

200-600

9

18.5

11.0

3900x2150x2250

16x4000

16

4000

2.5

120

200-600

8

22

14.9

4700x2150x2250

16x5000

16

5000

2.5

120

200-600

6

30

21.3

5800x2500x2500

16x6000

16

6000

2.5

120

200-600

6

37

33.0

6800x2500x2700

20x2500

20

2500

3

120

200-600

8

22

15.0

3200x2250x2350

20x3200

20

3200

3

120

200-600

7

22

17.2

3900x2250x2350

20x4000

20

4000

3

120

200-600

6

30

19.8

4700x2350x2350

20x5000

20

5000

3

120

200-600

5

37

27.0

5800x2600x2700

20x6000

20

6000

3

120

200-600

4

37

44.0

6800x2600x2900

25x2500

25

2500

3

120

200-600

6

37

18.0

3200x2300x2500

25x3200

25

3200

3

120

200-600

5

37

22.0

3900x2300x2500

25x4000

25

4000

3.5

120

200-600

5

37

26.0

4700x2500x2600

25x5000

25

5000

3.5

120

200-600

4

45

34

5800x2700x2800

25x6000

25

6000

3.5

120

200-600

4

45

45

6800x2700x2900

Download

BLMA-Shearing-Machine-Brochure
