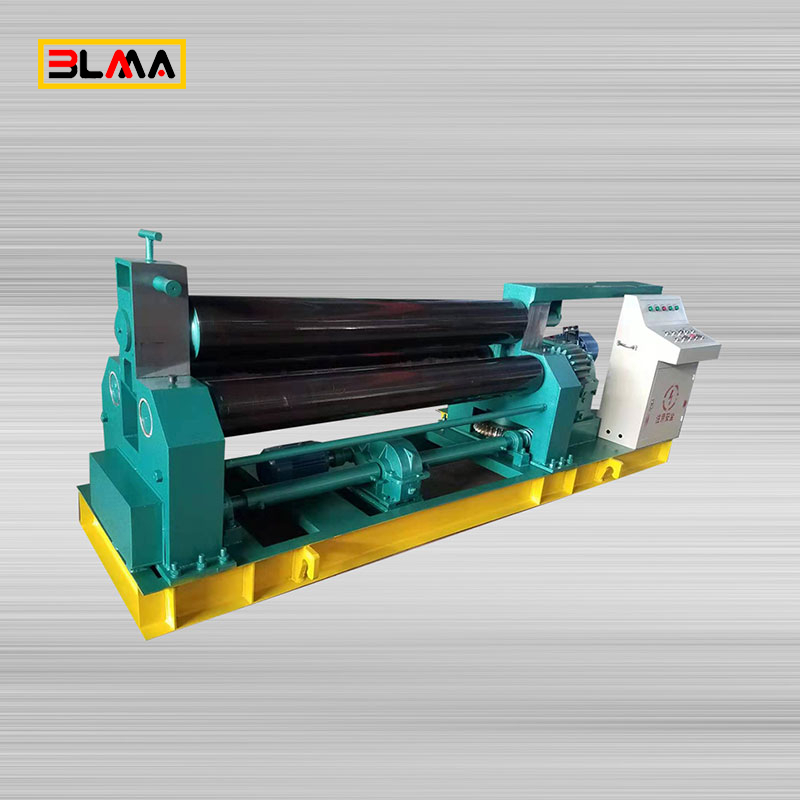

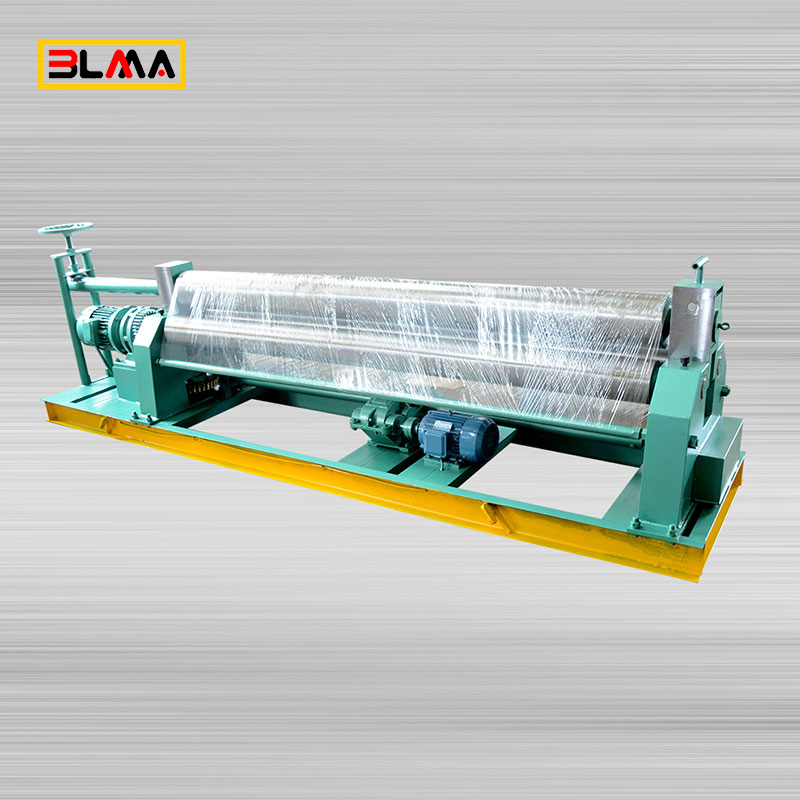

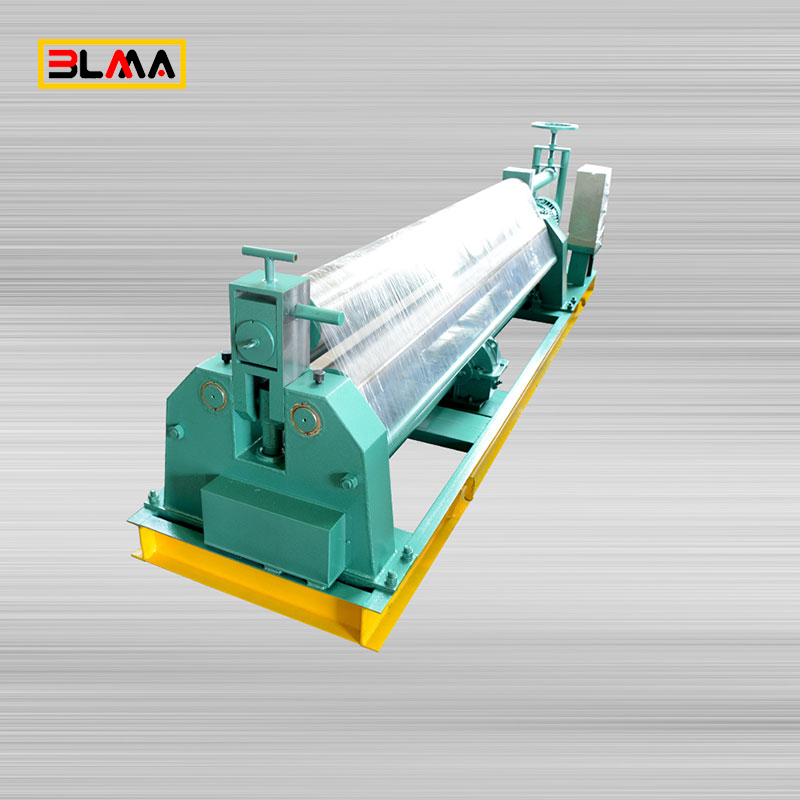

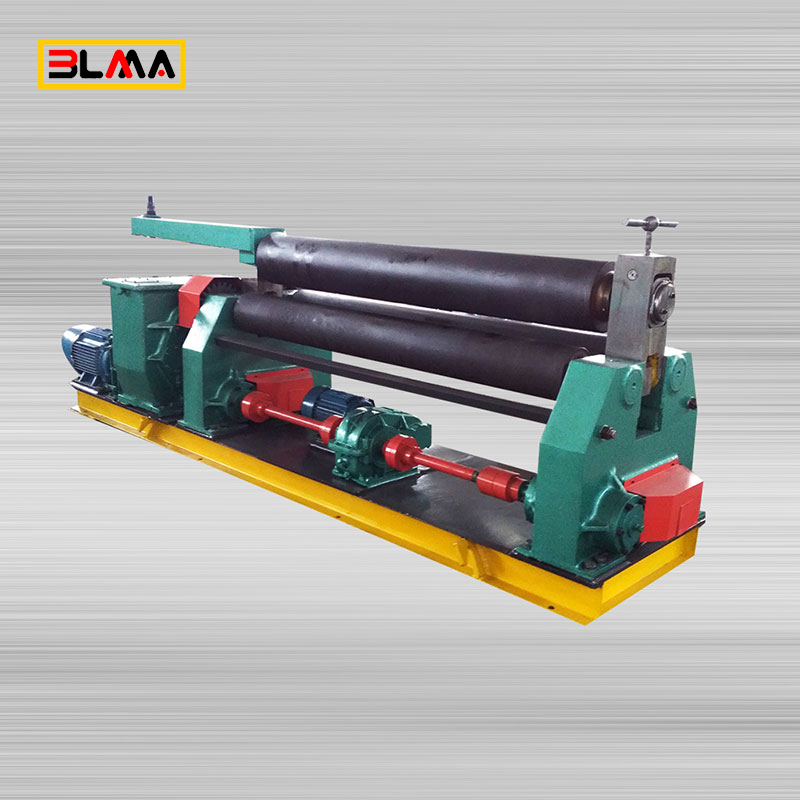

W11 Manual Metal Steel Plate Rolling Machine

●The structure style of this machine is 3 roller symmetrical.
●They rotate by the meshing between the output gear of the gearbox and the bottom roller and supply the torque for bending plate.
●It’s compact easy operate and maintain.
●Extended shaft for profile bending.

  • W11
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Green-black,can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

01-W11


Standard

Safety standards(2006/42/EC)

Open the electrical cabinet door to power off
Domestic pedal switch(safety grade 4)
Body metal safety rail conforms to CE standards
Safety relay monitors the pedal switch,safety protection





02-W11


Roller
The top roller do the movement of elevation in the central position of the two botton rolls.
It is tranmitted by screw nut and worm gear two bottom rolls are main drive rolls.
Safety

03-W11


Release device
The offloading device is used after the round cylinder have been finished.Before leaving the left bearing sear,raised the upper roller to standard height,and make the upper roller stop with balance pull rod at the bottom of upper roller.
The draw out pin shaft on the tilting bearing sear,overturn the tilting bearing seat,then the
coiled product can emerge from one end of the upper roller.

04-W11


Cone bending device
Making the cone shape

05-W11


Main motor
The transmission part consists with the main motor,gearbox motor and other accessories

06-W11


Movable control panel

Steel sheet rolling machine, hydraulic plate rolling machine, and hydraulic sheet plate bending machine for sale are provided by BLMA - plate rolling machine manufacturers.

Parameters

Type

Maximum crimp thickness

Maximum crimp width

Plate yield limit

Crimp speed

Loaded with minimum diameter

the upper roller diameter

Roll diameter

The two lower rollers center distance

Power

Dimension

mm

mm

MPa

m/min

mm

mm

mm

mm

Kw

L x W x H (mm)

W11-4x1500

4

1500

245

6.5

300

150

140

185

4

3110x950x1030

W11-6x1500

6

1500

245

5.5

380

170

150

210

5.5

3310x1050x1330

W11-6x2000

6

2000

245

5.5

380

180

160

220

5.5

3810x1050x1330

W11-6x2500

6

2500

245

5.7

500

190

170

260

7.5

4310x1050x1330

W11-6x3200

6

3200

245

5.5

500

240

200

310

11

5250x1350x1610

W11-8x2000

8

2000

245

5.6

450

190

170

260

7.5

3810x1050x1330

W11-8x2500

8

2500

245

5.5

500

240

200

310

11

4500x1350x1610

W11-12x2000

12

2000

245

5.5

500

240

200

310

11

4050x1350x1610

W11-12x2500

12

2500

245

5.8

650

260

220

340

11

1550x1350x1610

W11-12x3000

12

3000

245

6

750

280

220

360

15

5550x1400x1700

W11-16x2000

16

2000

245

5.8

650

260

220

340

11

4050x1350x1610

W11-16x2500

16

2500

245

6

750

280

220

360

15

5050x1400x1700

W11-16x3200

16

3200

245

5

900

340

280

440

30

5800x1600x1900

W11-20x2000

20

2000

245

5

750

280

220

360

15

4550x1400x1700

W11-20x2500

20

2500

245

5

850

340

280

440

30

5100x1600x1900

W11-25x2000

25

2000

245

5

850

340

280

440

30

4500x1600x1900

W11-25x2500

25

2500

245

5

900

360

290

460

37

5300x1700x1900

W11-30x2000

30

2000

245

4.5

900

360

290

460

37

4800x1700x1900

W11-30x2500

30

2500

245

4.5

1100

420

360

550

45

5800x2100x2500

W11-30x3000

30

3000

245

4.5

1200

460

380

600

45

6500x2300x2600

W11-40x2000

40

2000

245

4.5

1200

460

380

600

45

6500x2300x2600

W11-40x2500

40

2500

245

4.5

1400

480

400

600

45

6500x2300x2800

W11-40x3000

40

3000

245

4

1600

500

425

650

55

7600x2300x2400

W11-50x2000

50

2000

245

4

1800

500

425

650

55

6500x2400x2600

W11-50x3200

50

3200

245

3.5

2000

580

480

750

55

7000x2500x2600

W11-60x3000

60

3000

245

3.5

2000

700

560

800

90

8000x2500x2700


Download

BLMA-Rolling-Machine-Brochure

Send us your inquiry now!

Product Inquire
