W12NC Pre Bending 4 Roller Hydraulic Plate Bending Cold Rolling Machine
Home » Products » Plate Rolling Machine » W12NC Pre Bending 4 Roller Hydraulic Plate Bending Cold Rolling Machine

Product Detail

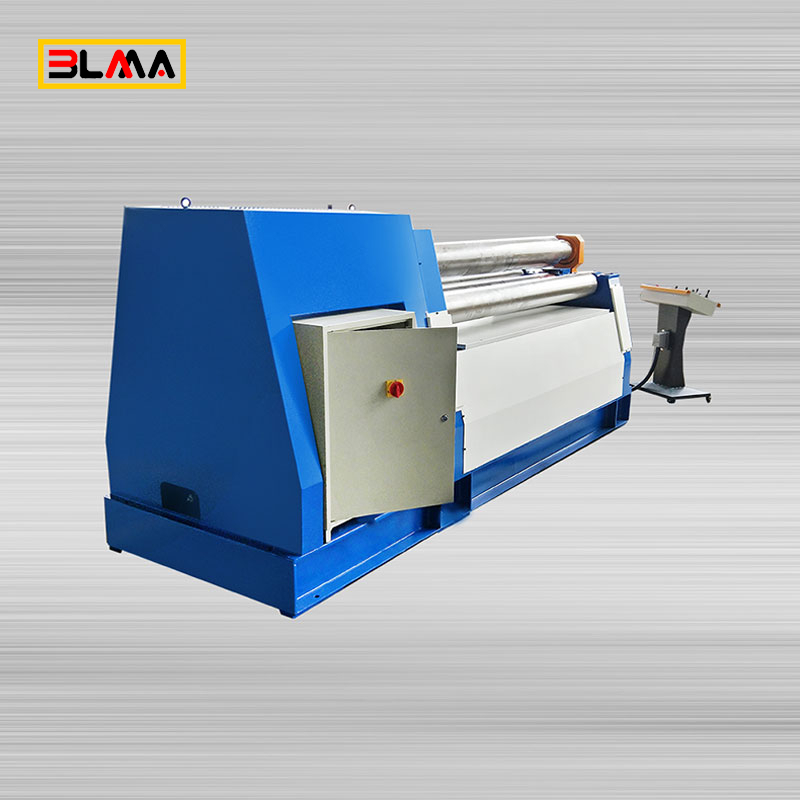

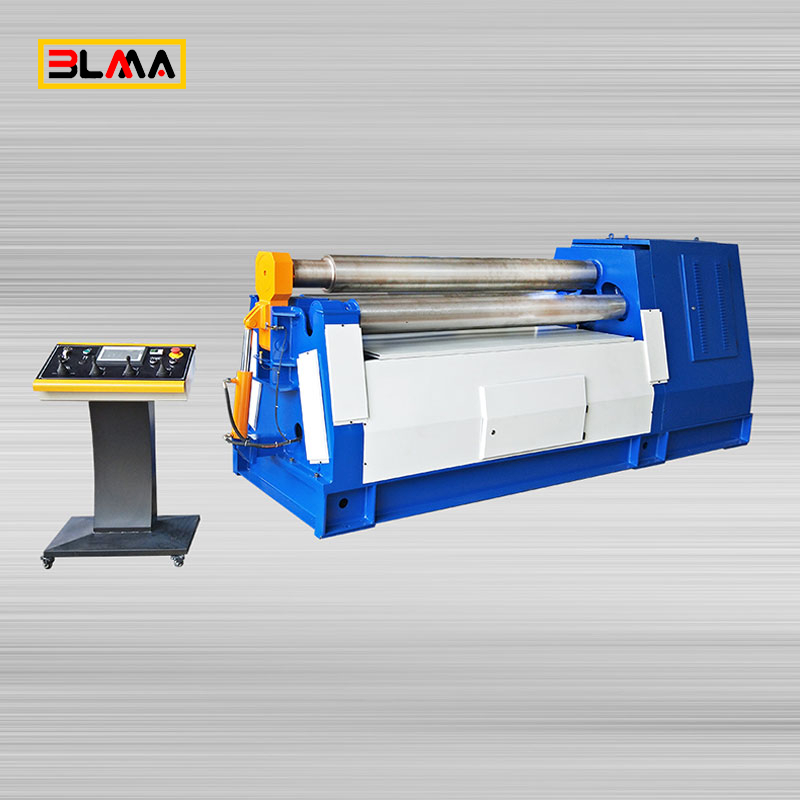

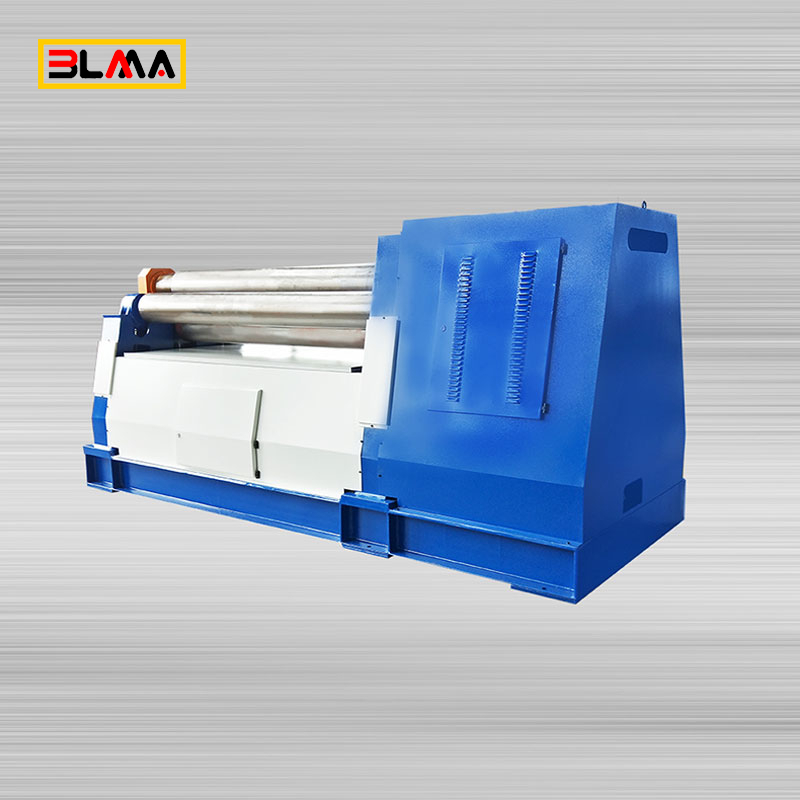

W12NC Pre Bending 4 Roller Hydraulic Plate Bending Cold Rolling Machine

Share to:

●Special bending aircraft,numerical control.
●HMI(human machine interface),intelligent operation.
●Self-compensating,single operate,high efficiency,safe and convenient.
●Many models for choice,economic numerical control model,TC computerized numerical control.

  • W12NC
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Blue-white,can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

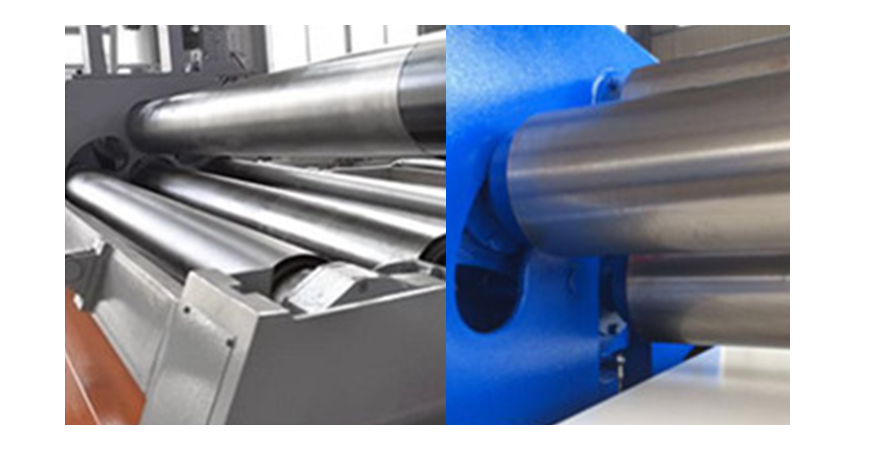

01-W12NC


42CrMo Heat Treated Steel


Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.

Bottom roller and lateral roller driven by hydraulic oil tank.

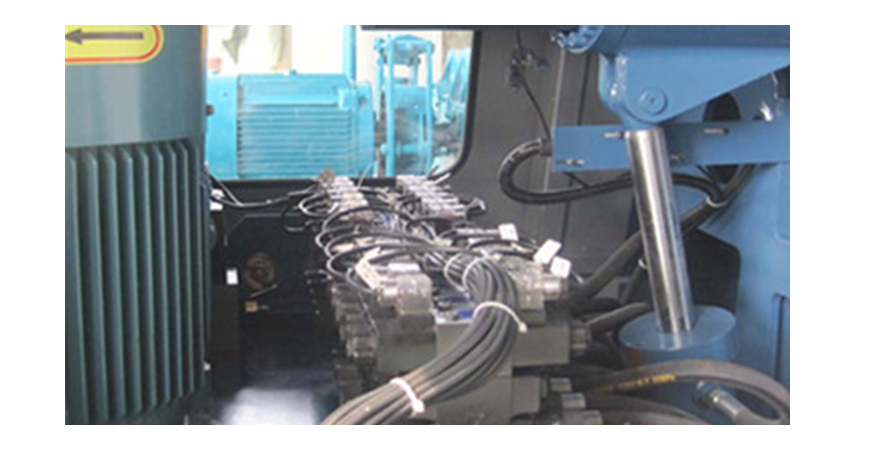

02-W12NC


Hydraulic system

Through exclusive technology,it can develop cones as easily as competitive machines can develop cylinders.

It eliminates scarring on the surface of shell or roll and also eliminates,in most cases,the need for grinding the lamination(bullnosing) on the minor diameter edge.

Yuken valve made in Japan

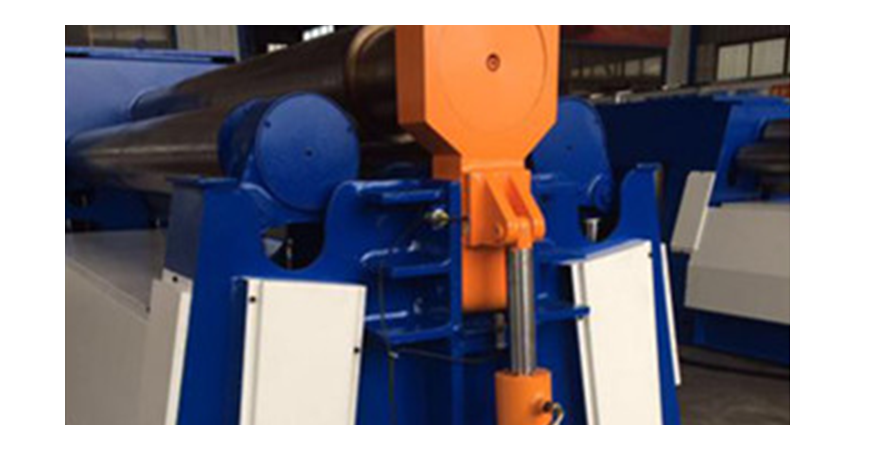

03-W12NC


Release device

Hydraulic drop-end for easy removal finished ferrule

Hydraulic oil pump control discharge

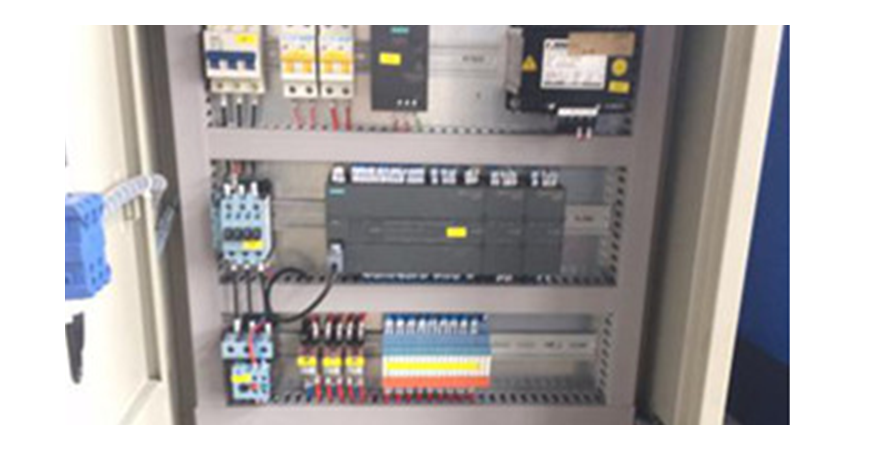

04-W12NC


Motor

Main electronice:Siemens made in Germany

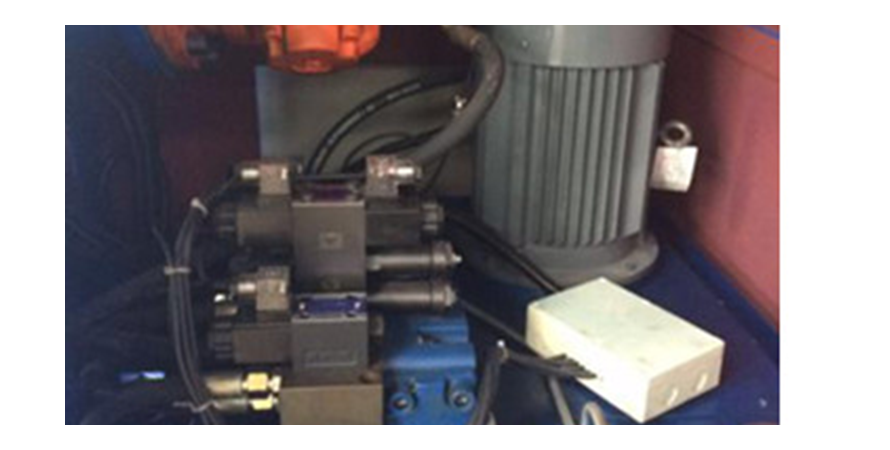

05-W12NC


Rexroth Valve
Siemens Motor
American Sunny Oil Pump

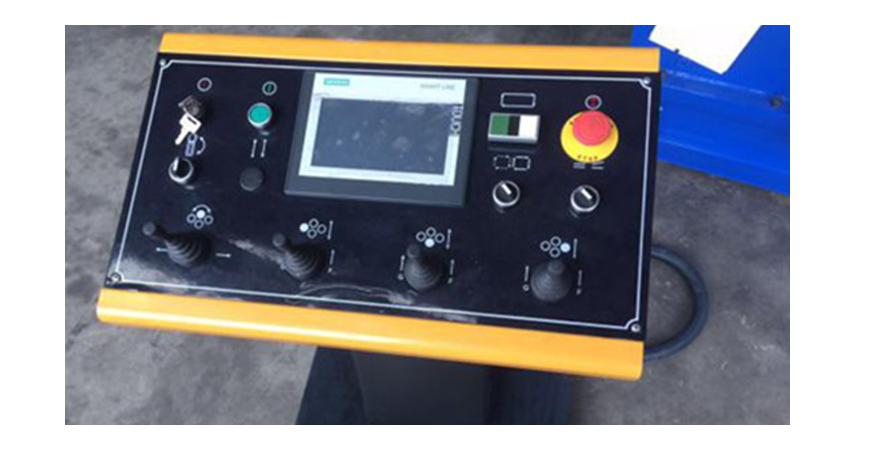

06-W12NC


Omron CNC PLC Control System

HMI(human machine interface),intelligent operation.Self-compensating,single operate,high efficiency,safe and convenient.

Many models

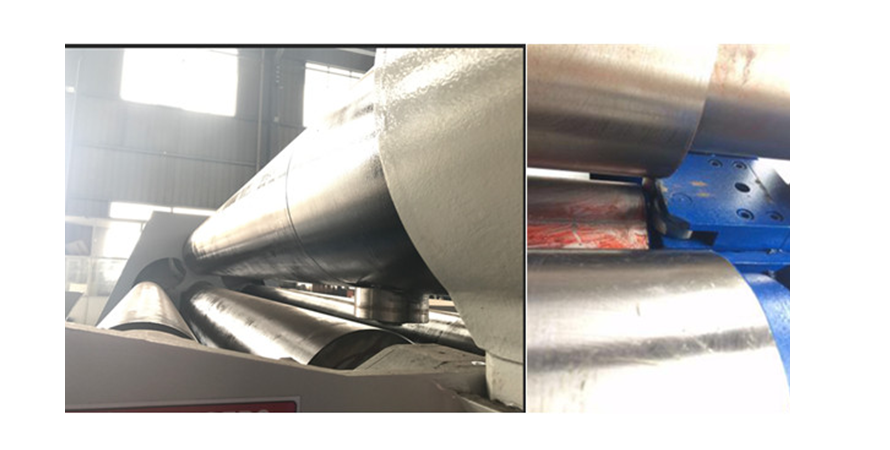

07-W12NC


Cone device















High quality steel sheet rolling/bending machine, steel plate roller, and low plate bending machine price are offered by BLMA - top 10 rolling machine manufacturer in China.

Parameters

Model

Maximum crimp thickness

Maximum crimp width

Plate yield limit

Rolling speed

Pre-curved plate thickness

Loaded with minimum diameter

The upper roller diameter

Roll diameter

Side of the shaft diameter

Main motor power

Dimension

mm

mm

MPa

m/min

mm

mm

mm

mm

mm

Kw

L x W x H (mm)

W12NC-12x2000

12

2000

245

5.45

10

700

260

260

200

18.5

5600x2000x2070

W12NC-12x2500

12

2500

245

5.5

10

750

300

300

220

18.5

6300x2000x1200

W12NC-12x4000

12

4000

245

4

10

850

410

360

280

30

7600x2000x1800

W12NC-16x2000

16

2000

245

5.5

12

750

300

300

220

18.5

5800x2000x1800

W12NC-16x2500

16

2500

245

6.5

12

850

330

330

260

22

6810x2000x1870

W12NC-20x2000

20

2000

245

6.5

16

850

330

330

260

22

6000x2000x1850

W12NC-20x2500

20

2500

245

6.5

16

1000

360

360

280

30

6850x2000x2070

W12NC-20x3000

20

3000

245

4.5

16

1100

410

400

320

37

7310x2100x2200

W12NC-25x2000

25

2000

245

6.5

22

1000

360

360

280

30

6300x2300x2070

W12NC-25x2500

25

2500

245

5

22

1100

410

400

320

37

8000x2600x2100

W12NC-25x3000

25

3000

245

5

22

1150

480

480

400

37

9000x3200x2500

W12NC-25x4000

25

4000

245

4

22

1200

560

520

420

45

10100x3500x2900

W12NC-30x2000

30

2000

245

5

25

1100

410

400

320

37

7500x2600x2500

W12NC-30x2500

30

2500

245

4.5

25

1150

480

480

400

37

8400x2590x2600

W12NC-30x3000

30

3000

245

4

25

1300

560

520

420

45

9200x3500x2900

W12NC-30x4000

30

4000

245

4

25

1500

650

580

480

55

10200x3500x2900

W12NC-40x2000

40

2000

245

4.5

36

1200

480

480

400

37

8200x3000x2500

W12NC-40x2500

40

2500

245

4

36

1300

560

520

420

45

8700x3500x2900

W12NC-40x3000

40

3000

245

4

36

1500

650

580

480

55

9200x3600x3000

W12NC-50x2000

50

2000

245

4

45

1500

560

460

420

55

8500x3500x3000

W12NC-50x2500

50

2500

245

4.5

45

1550

650

600

500

55

9000x4000x3300

W12NC-50x3000

50

3000

245

4

45

1800

700

650

520

55

9800x4300x3500

W12NC-60x2500

60

2500

245

4

50

1800

720

650

520

55

9500x4500x3700

W12NC-60x3000

60

3000

245

4.5

50

1800

750

710

560

75

10000x4500x3800

W12NC-70x3000

70

3000

245

3.5

60

2500

750

720

600

75

13000x3500x3800

W12NC-80x3200

80

3200

245

3

70

2500

800

780

620

75

13500x3500x3800

W12NC-90x4000

90

4000

245

3

80

2500

900

880

700

90

15000x3800x4200

Download

BLMA-Rolling-Machine-Brochure
