Description

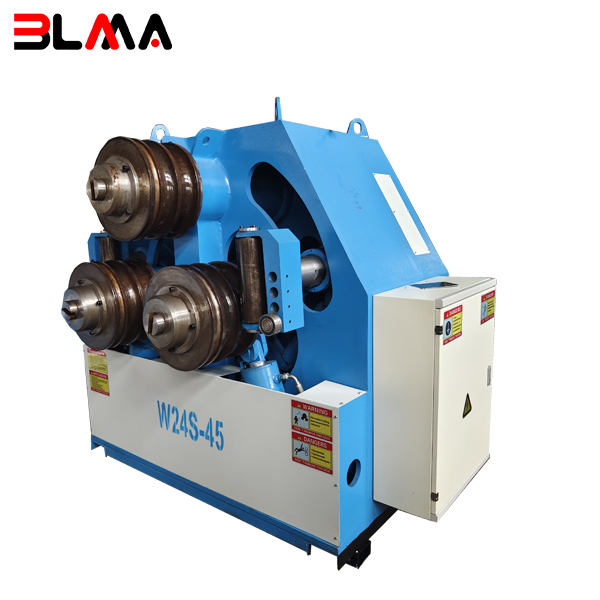

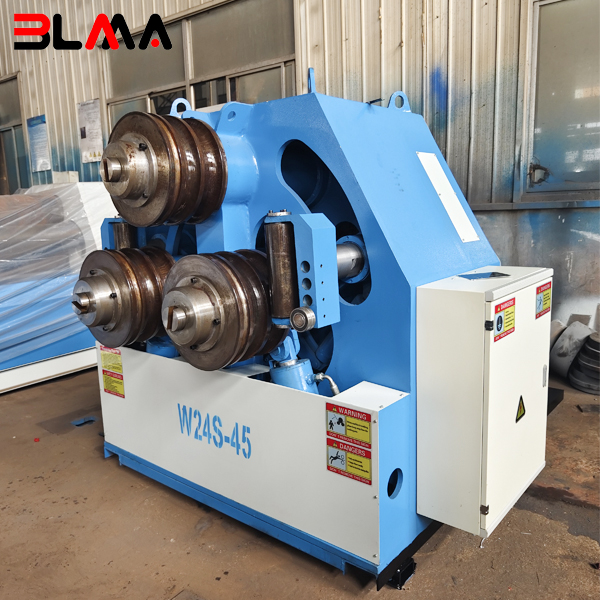

W24S Full Hydraulic Profile Bending Machine
The W24S series full hydraulic profile bending machine is a high-performance solution for bending various steel profiles, including angles, channels, beams, pipes, and bars. With powerful hydraulic drive and precise control, it ensures accurate forming, smooth operation, and minimal material deformation, making it ideal for construction, shipbuilding, and steel structure industries.

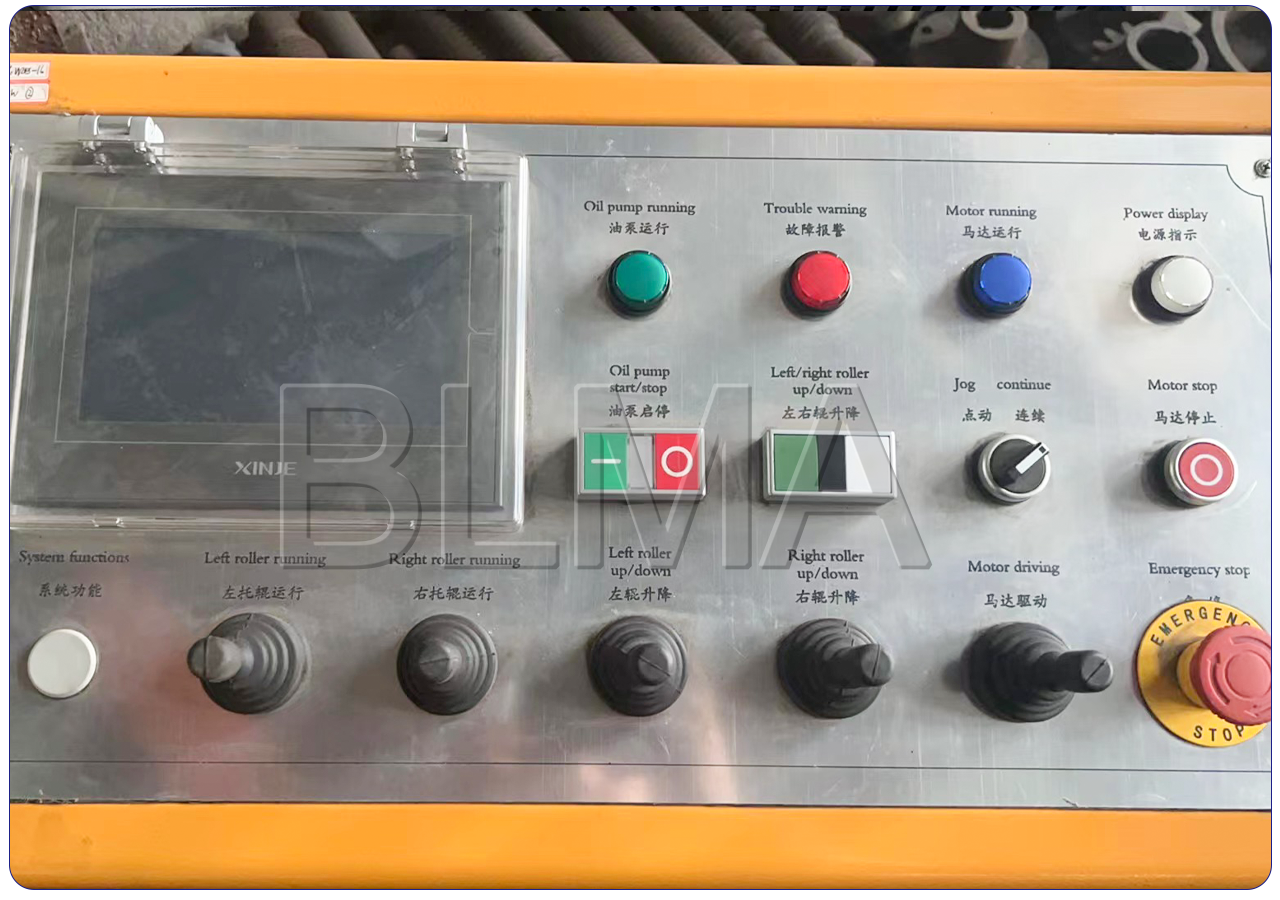

Controller
The W24S profile bending machine is equipped with a reliable electrical control panel. It allows easy operation of the hydraulic system, precise adjustment of rollers, and flexible control of bending directions. The simple design ensures safe, stable, and efficient operation for different profile bending tasks.

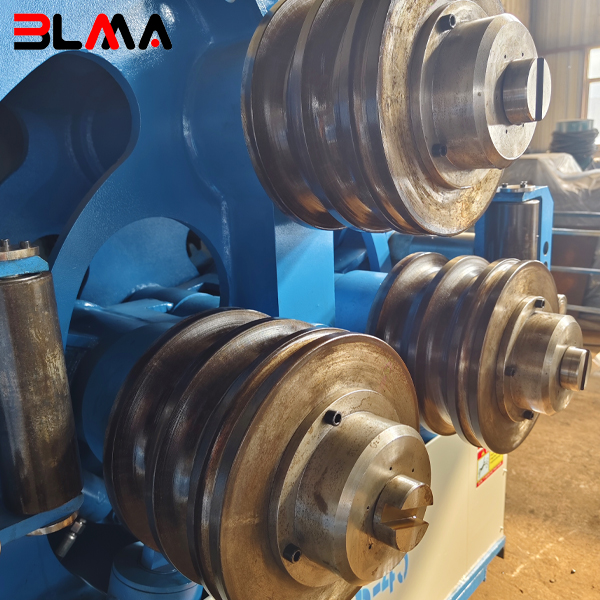

Rollers
The W24S profile bending machine is equipped with high-strength alloy steel rollers, which are precision-machined and heat-treated for excellent hardness and wear resistance. The rollers ensure smooth feeding, accurate bending, and long service life, making them suitable for handling various profiles such as angles, channels, beams, and pipes.

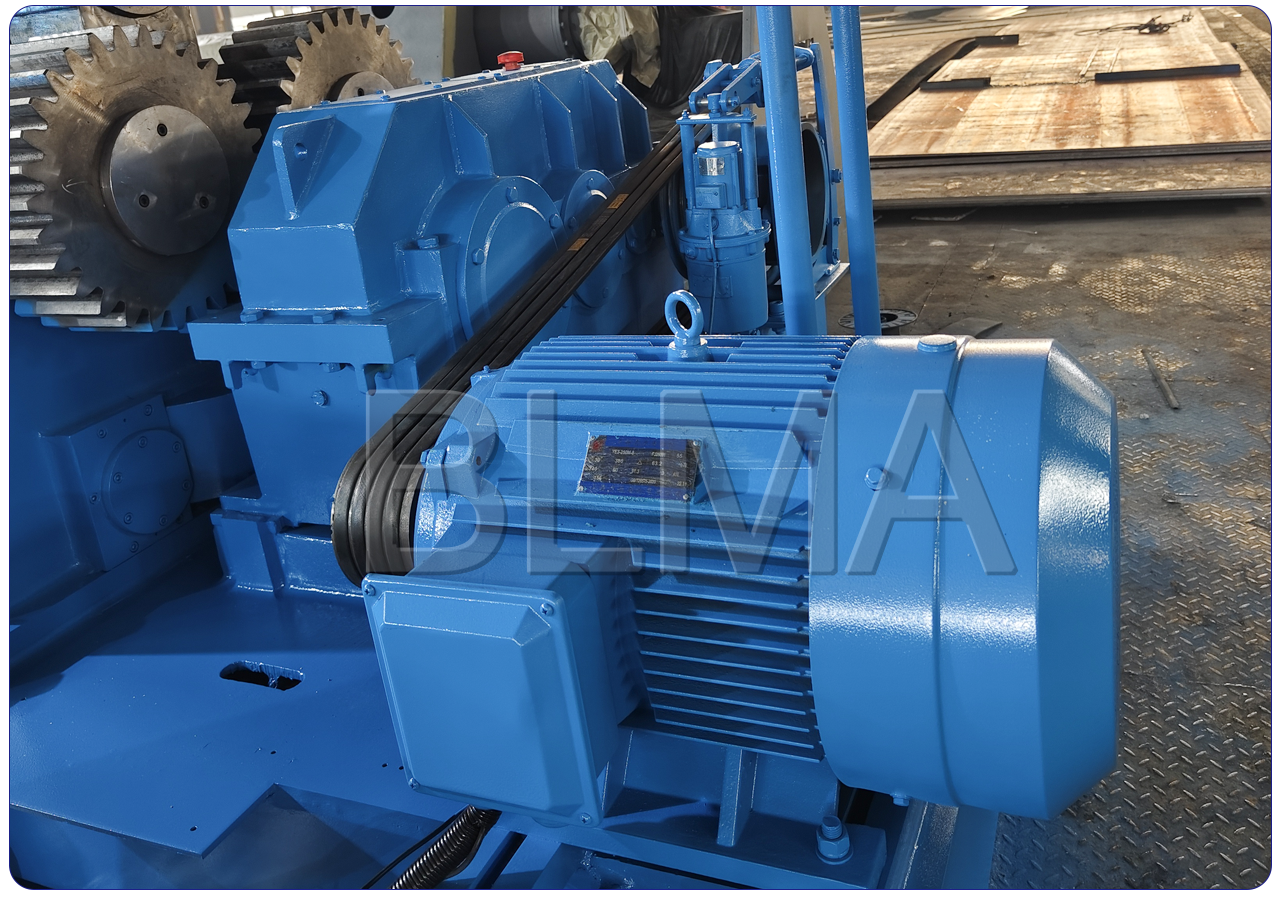

Hydraulic Motor
The plate rolling machine is equipped with a powerful hydraulic motor, providing stable torque and smooth operation. It ensures reliable performance, precise rolling, and long service life with low maintenance needs.

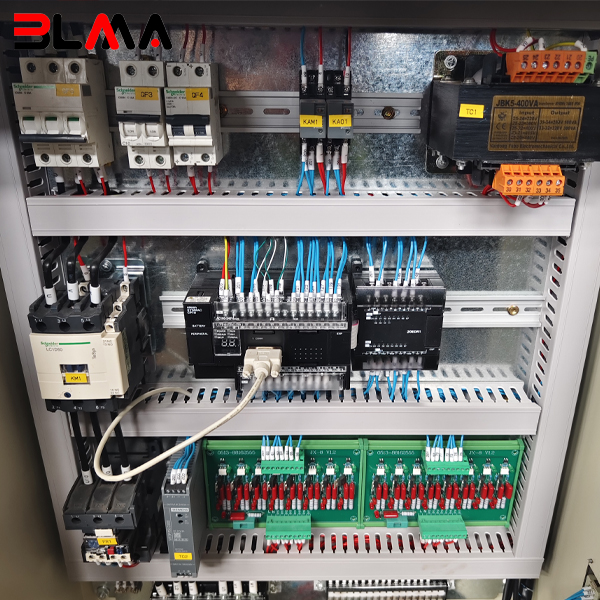

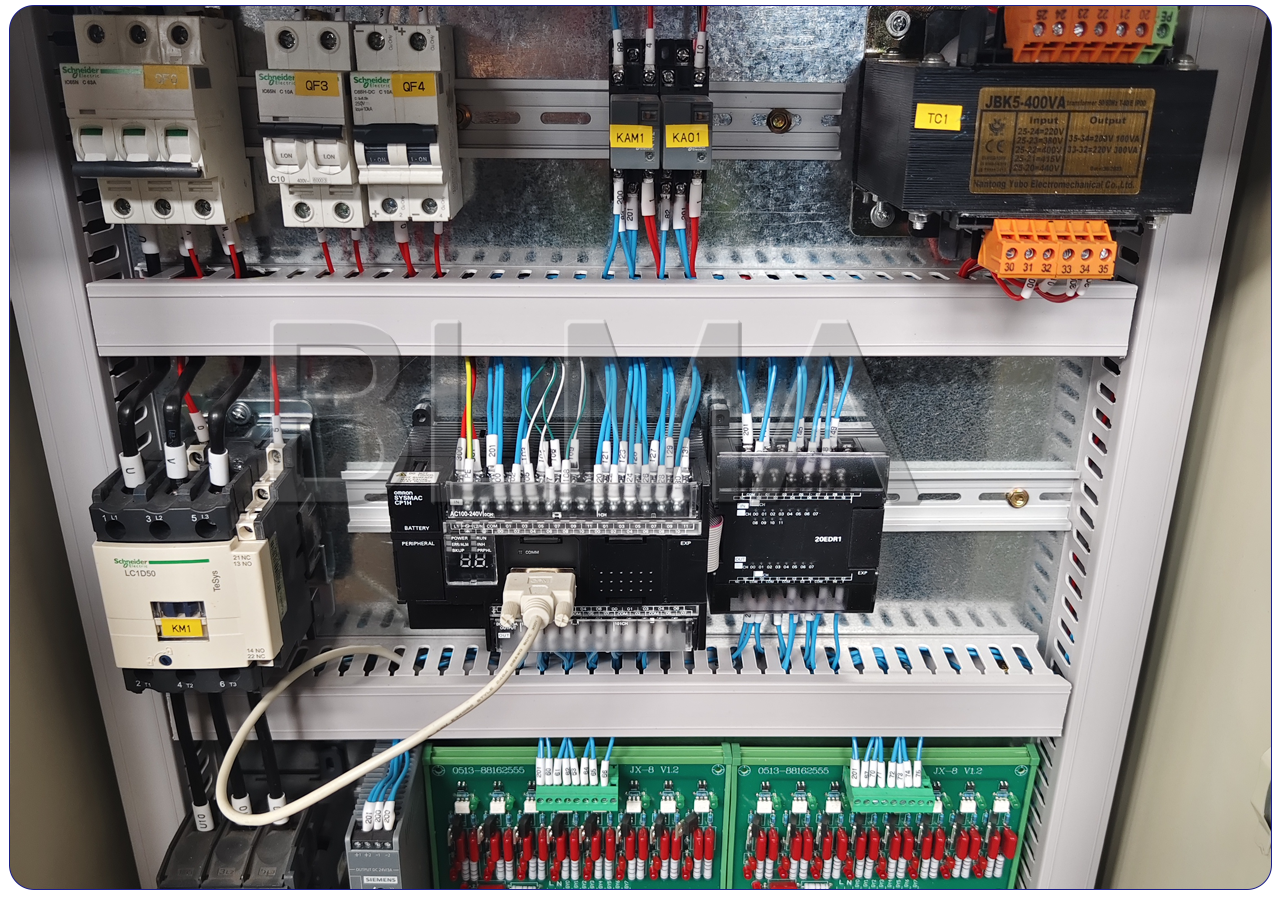

Control Cabinet
The plate rolling machine is equipped with an independent control cabinet, featuring a user-friendly interface and reliable electrical components. It allows easy operation, precise parameter adjustment, and ensures safe and stable machine performance.

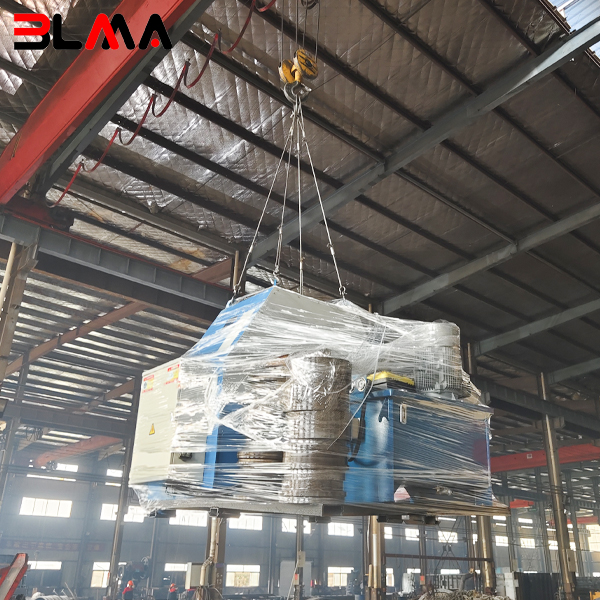

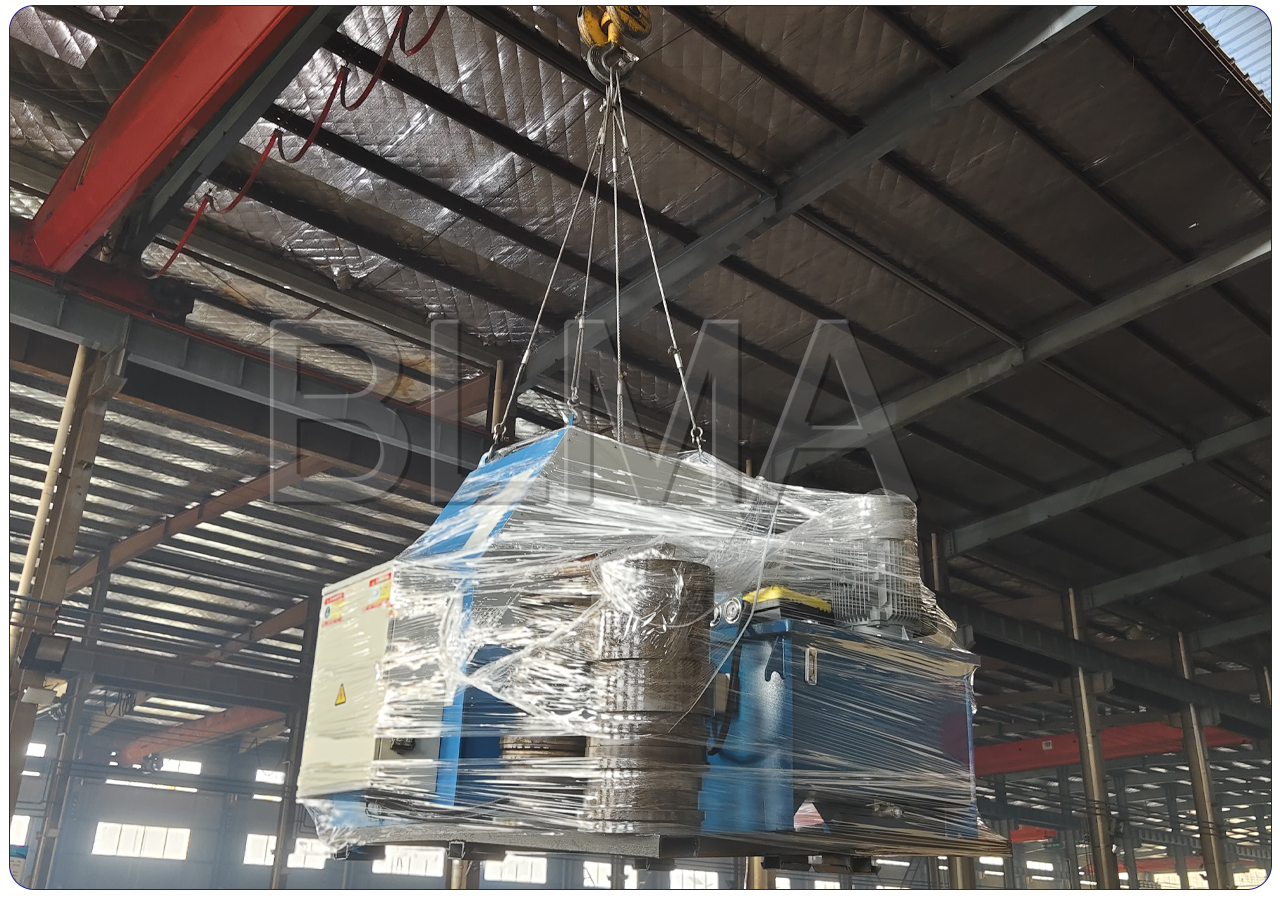

Delivery
All machines are carefully packed with protective materials to ensure safe transportation. Standard delivery is made in strong export wooden cases or directly in containers for large equipment. Each shipment includes detailed operation manuals and necessary accessories, ensuring the machine is ready for use upon arrival.
High quality steel sheet rolling/bending machine, steel plate roller, and low plate bending machine price are offered by BLMA - top 10 rolling machine manufacturer in China.
Parameters
| W24S Full Hydraulics Profile Bending Machine Technical Parameters | ||||||||||||||
| Technical data | W24S(WY24-) | |||||||||||||
| Max.bending resistant modulus | 6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 | ||
| Bending speed(m/min) | 6 | 5 | 4 | |||||||||||
| Yield limit(mpa) | S=250 | |||||||||||||
  | Angle, inner bending | Max.section size | 40x5 | 70x8 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 | 150x16 | 160x16 | 180x14 | 200x18 | 200x20 |
| Angle, outer bending | Max.section size | 50x5 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 | 150x16 | 160x16 | 180x14 | 200x18 | 200x24 | 250x25 |
| Channel, outer bending | Channel size | 8 | 12 | 16 | 20 | 25 | 25 | 30 | 32 | 36 | 40 | 45 | 50 |
| Channel, inner bending | Channel size | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 | 50 |
| Plate, flat bending | Max.section size | 100x18 | 150x25 | 180x25 | 200x30 | 220x40 | 250x40 | 280x50 | 300x50 | 330x50 | 360x60 | 400x75 | 500x76 |
| Plate, vertical bending | Max.section size | 50x12 | 75x16 | 90x20 | 100x25 | 110x40 | 120x40 | 150x40 | 180x30 | 190x40 | 190x50 | 200x50 | 200x60 |
| Tube bending | Max.section size | 42x4 | 76x4.5 | 89x5 | 89x8 | 114x5 | 159x5 | 168x6 | 168x8 | 219x8 | 245x8 | 273x8 | 323x10 |
| Rod bending | Max.section size | 38 | 52 | 62 | 75 | 85 | 90 | 100 | 110 | 120 | 135 | 150 | 160 |
| Square bending | Max.section size | 45x3 | 60x4 | 70x4 | 80x6 | 90x8 | 100x10 | 125x10 | 140x10 | 150x10 | 165x10 | 180x12 | 200x12 |
