WC67K E300 Controller Sheet Metal Press Brake Machine

●Maximum 4+1 axis control (X, Y, R, C Axis)
●LCD TFT display
●Automatic calculation of Y axis block position
●Bending angle programming
Availability:
  • WC67K E300
  • T/T, L/C, D/P, Western Union, MoneyGram
  • Jiangsu, China
  • Can be customized
  • Shanghai
  • 30 days after deposit confirmed

Description

1. Stable structure with heat treatment for machine body,high rigidity;

2. Equipped with top brand Smart CNC controller E300(P)

3. Integrated hydraulic system ensure stable and smooth bending;

4. Back gauge and cylinder stroke adjusting by servo motor;

5. Automatic calculation of bending angle;

6. Back guage beam with double linear guide for fast moving stoppers;

7. Fast clamping for easily change moulds;

8. Movable support greatly reduces labor intensity;

9. Motorized crowing table is available;

10.Optional laser safty meat European standard;

Machine features

4

E300(P) Smart NC Controller



4 Axes are supported,X,Y,R,C Axis;

Automatic angle calculation;

Programs and tooling information storage;

Calculation of processing quantity;

Angle correction is available.

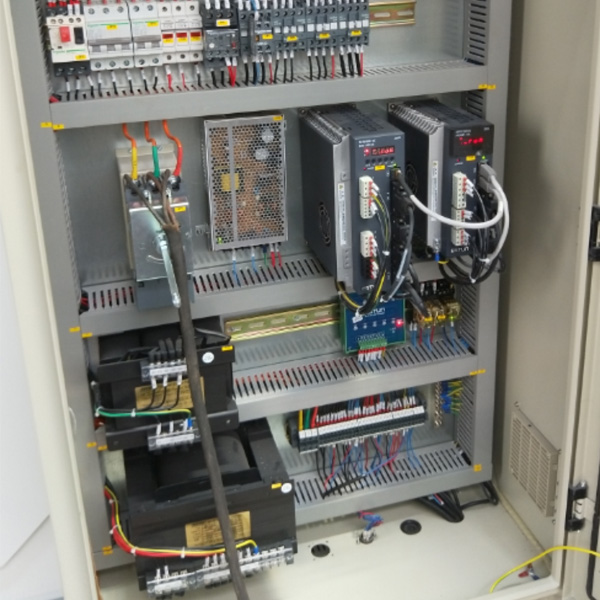

electrics of pressbrakes

Schneider electrics and servo drive

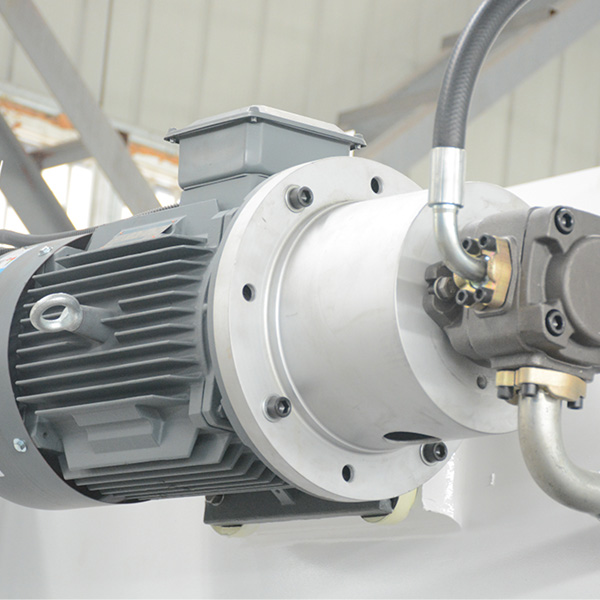

bending machine motor

Siemens motor and Sunny pump

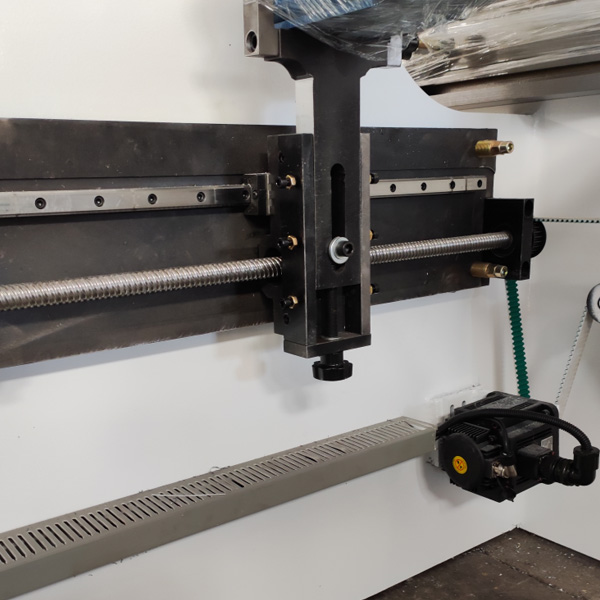

press brake backgauge

Servo motor driven back gauge


4 - 副本

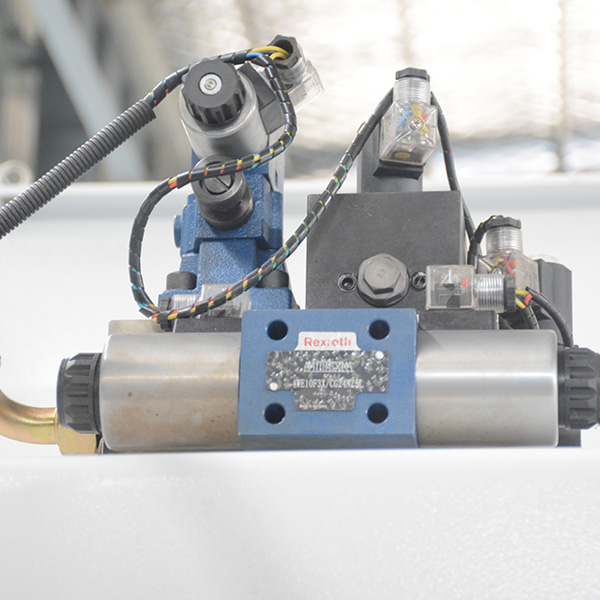

Intergrated Rexroth valves

5

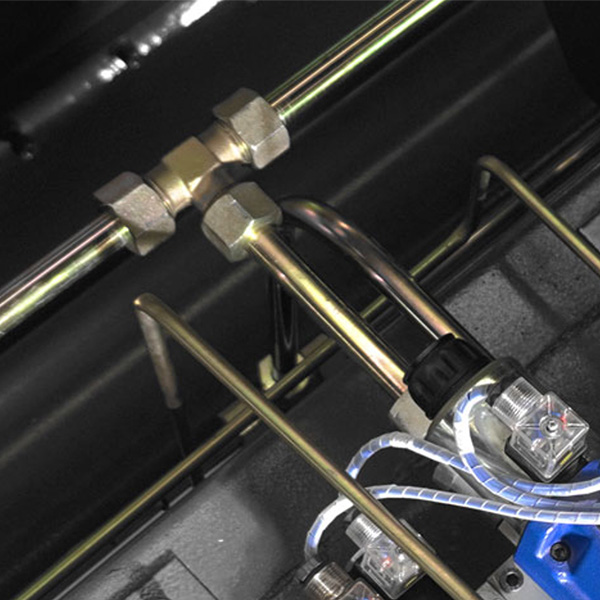

EMB Oil tube connector

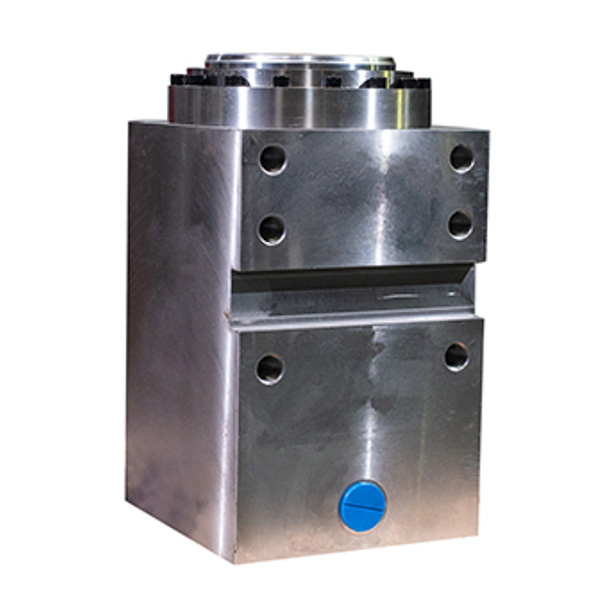

bending machine cylinder

Top brand high quality cylinder

9

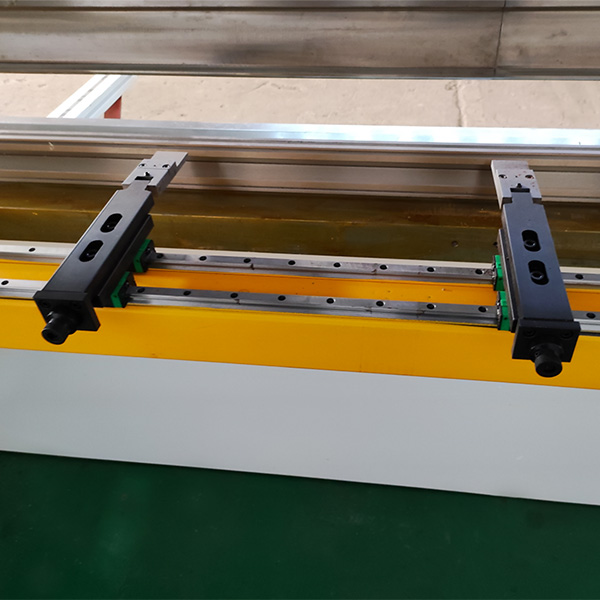

Stop fingers with double linear guide

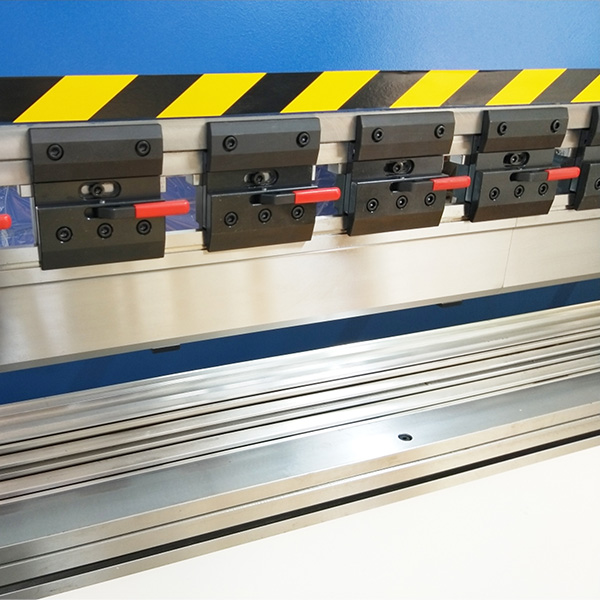

press brake machine fast clamping

Quick moulds release

11

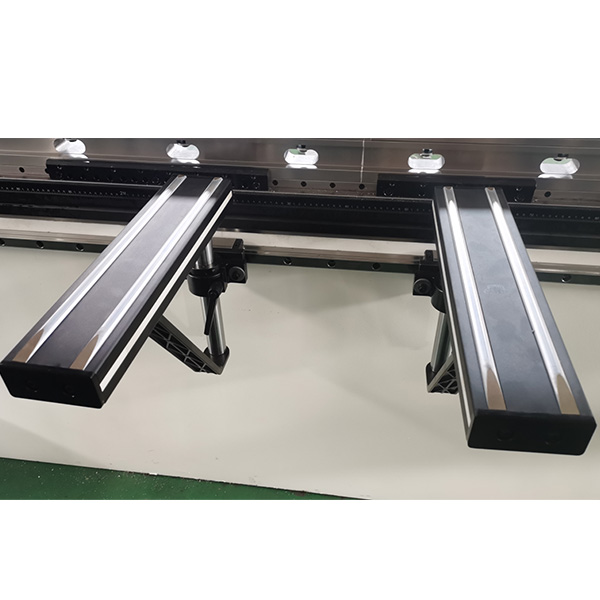

Front support



Parameters

Type

Norminal force

Worktable length

Poles distance

Throat distance

Back-GaugeRange

Ram Strokes

Max open

Power

Dimension
LxWxH

KN

mm

mm

mm

mm

mm

mm

kw

mm

30T/1600

300

1600

1340

180

200-600

80

250

3

1800x1050x1700

40T/1600

400

1600

1330

220

200-600

120

320

5.5

1800x1340x2000

40T/2200

400

2200

1800

220

200-600

120

320

5.5

2400x1340x2000

40T/2500

400

2500

2000

220

200-600

120

320

5.5

2700x1340x2000

63T/2500

630

2500

2000

160

200-600

120

370

5.5

2700x1380x2250

63T/3200

630

3200

2500

260

200-600

120

370

5.5

3400x1380x2250

80T/2500

800

2500

2000

320

200-600

120

380

7.5

2700x1450x2250

80T/3200

800

3200

2500

320

200-600

120

380

7.5

3400x1450x2250

80T/4000

800

4000

3100

320

200-600

120

380

7.5

4200x1450x2250

100T/2500

1000

2500

2000

320

200-600

120

380

7.5

2700x1500x2420

100T/3200

1000

3200

2500

320

200-600

120

380

7.5

3400x1500x2420

100T/4000

1000

4000

3060

320

200-600

120

380

7.5

4200x1500x2420

100T/5000

1000

5000

4000

320

200-600

120

380

7.5

5200x1600x2500

125T/2500

1250

2500

2000

320

200-600

120

380

7.5

2700x1550x2450

125T/3200

1250

3200

2500

320

200-600

120

380

7.5

3400x1550x2450

125T/4000

1250

4000

3055

320

200-600

120

380

7.5

4200x1550x2450

125T/5000

1250

5000

4000

320

200-600

120

380

11

5200x1650x2550

125T/6000

1250

6000

5000

320

200-600

120

380

11

6200x1650x2550

160T/3200

1600

3200

2500

350

200-600

180

470

11

3400x1700x2520

160T/4000

1600

4000

3100

350

200-600

180

470

11

4200x1700x2520

160T/5000

1600

5000

4000

350

200-600

180

470

11

5200x1800x2800

160T/6000

1600

6000

5000

350

200-600

180

470

11

6200x1800x2900

200T/3200

2000

3200

2500

350

200-600

250

480

15

3400x1800x2550

200T/4000

2000

4000

3100

350

200-600

250

480

15

4200x1800x2550

200T/5000

2000

5000

4000

350

200-600

250

480

15

5200x1900x2900

200T/6000

2000

6000

4600

350

200-600

250

480

15

6200x1900x3100

250T/3200

2500

3200

2500

400

200-600

250

540

18.5

3400x1950x2800

250T/4000

2500

4000

3100

400

200-600

250

540

18.5

4200x1950x2800

250T/5000

2500

5000

4000

400

200-600

250

540

18.5

5200x2000x3000

250T/6000

2500

6000

4600

400

200-600

250

540

18.5

6200x2000x3150

300T/3200

3000

3200

2500

400

200-600

250

560

18.5

3400x2000x3200

300T/4000

3000

4000

3100

400

200-600

250

560

18.5

4200x2000x3200

300T/5000

3000

5000

4000

400

200-600

250

560

22

5200x2200x3300

300T/6000

3000

6000

4500

400

200-600

250

560

22

6200x2300x3400

400T/4000

4000

4000

3100

400

200-600

300

600

30

4200x2500x3400

400T/5000

5000

5000

4000

400

200-600

300

600

30

5200x2500x3500

400T/6000

6000

6000

5000

400

200-600

300

600

30

6200x2500x3600

500T/4000

4000

4000

3100

400

200-600

320

630

37

4200x2700x3700

500T/5000

5000

5000

4000

400

200-600

320

630

37

5200x2700x3800

500T/6000

6000

6000

4500

400

200-600

320

630

37

6200x2700x4000

600T/4000

4000

4000

3100

400

200-600

320

630

45

4200x2900x4300

600T/5000

5000

5000

4000

400

200-600

320

630

45

5200x3000x4700

600T/6000

6000

6000

4500

400

200-600

320

630

45

6200x3000x5000
