China 500-ton Press Brake with 4 Way Press Brake Die

Views:106     Author:Site Editor     Publish Time: 2021-06-22      Origin:Site Inquire

China 500-ton Press Brake with 4 Way Press Brake Die



Description



China 500-ton press brake with 4 way press brake die can bend thick plates (as well as sheet metal) across the whole machine. Whether your application requires bending simple shapes or complex parts, it can match your needs and your budget.



The China 500-ton press brake with 4 way press brake die typically has an upper and lower section.  The upper holds a piece of tooling known as a punch which has a general v shape to it, the lower has a matching shape and is known as the die. The two sections of the press brake are moved together forcing the sheet metal between them to bend.



China 500-ton press brake


Our 500-ton press brakes take sheet metal bending to a whole new level, offering outstanding efficiency and precision. With a chassis of welded, stabilized and machined steel, an external design featuring stripped-down lines for a solid appearance, and improved structural calculations, the China 500-ton press brake sets itself up as the new cornerstone for the sheet metalwork industry.



Whether you need to shear, bend, punch, or even straighten, the different tooling possibilities for the China 500-ton press brake with 4 way press brake die are endless and custom tooling is available upon request.



With its various tool solutions, the BLMA press brake bending machine is very versatile.






Performance characteristics of China 500-ton press brake




1. Electro-hydraulic proportional servo synchronization ensures the accuracy of repeated operation. It can be controlled at any point in the stroke, and the repeat precision is up to 100% ± 01, and the parallelism is 0. 02.



2. The deflection compensation mechanism is used in the lower working joint or the deflection compensation mechanism is equipped in the upper die. Equipped with the Netherlands Delem CNC system, grating ruler, little hydraulic system, valve group servo motor, and other well-known brand accessories, with good performance.



3. Slide stroke (Y1, Y2), backstop material (x, R, z) have computer automatic control, backstop material use ball screw linear guide, high repetition accuracy.



4. China 500-ton press brake with 4 way press brake die can control multi-axis synchronous CNC machines or sheet metal flexible machining centers.



China 500-ton press brake with 4 way press brake die




Standard configuration of China 500-ton press brake with 4 way press brake die



Standard Configuration

1.

CNC Controller

Delem From Holand.ESA From Italy .Cybelec From Switzerland

2.

Hydraulic System

Bosch Rexroth From Germany

Hydraulic system:

--Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch -

Rexroth,Germany.

--All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

--Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read

or seendirectly.

--The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).

3.

Main Motor

Siemens From Germany

4.

Main Electrics

SCHNEIDER from France

Electrical system and the safety interlock:

--Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti

interference capability

--Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy

 to operate

--Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

5.

Seal Ring

NOK From Japan

6.

Pipe Connector

EMB From Germany

7.

Ball Srew

Hiwin From Taiwan

8.

Limit Switch

SCHNEIDER from France

9.

Pump

Bosch Rexroth From Germany

10.

Foot Switch

Karcon From South Korea



Details of China 500-ton press brake with 4 way press brake die

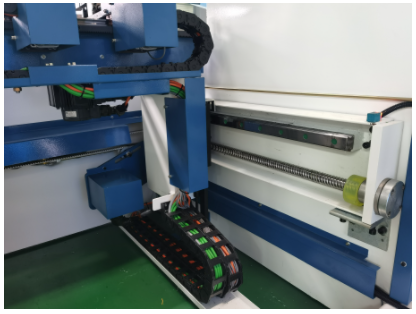

  • Ball screw linear guide: less wearable



Ball screw linear guide


  • R axis: CNC control up and down



R axis

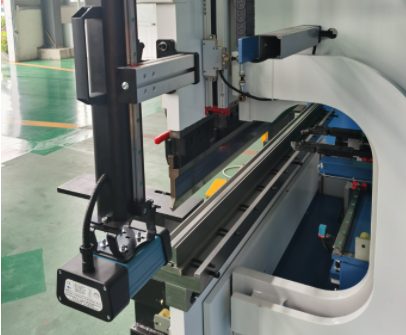

  • Italy laser light curtain protection



Italy laser light curtain protection


  • Cooling fan



Cooling fan

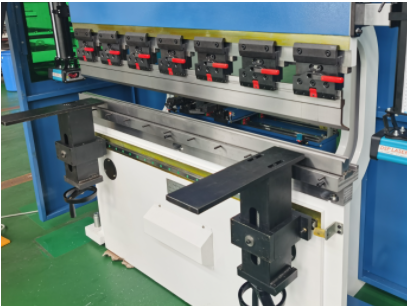

  • Quick change clamp and support



Quick change clamp and support


  • Beam guide and finger



Beam guide and finger

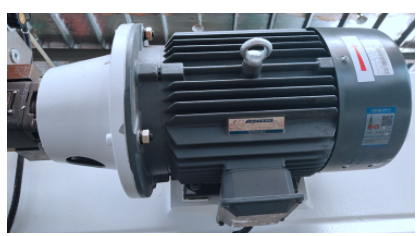

  • Hydraulic system motor: Siemens motor with reliable capacity



hydraulic system motor

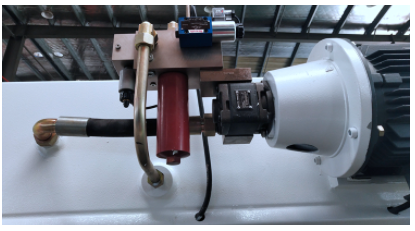

  • Oil pump: American sunny oil pump



 Oil pump


FAQ


1. Q: Can you do OEM service?

A: Sure. your design or other requirements are accepted, your own logo can be affected on the machine.



2. Q: What is the average lead time?

A: For stocks, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective upon deposit receipt.

If our lead times do not work with your deadline, We could arrange special urgent production so to catch our deadline. In all cases, we will try to accommodate your needs. In most cases, we are able to manage quick delivery.



3. Q: Can you supply the relevant shipping documentation?

A: Yes, we can provide most documents including

Bill of lading; Certificates of Analysis /Conformance; CE certificate, COC certificate; Insurance; Country of Origin; Commercial invoice; Packing list and other export documents whatever required.



4. Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T, LC payment is also acceptable.
