WC67Y Hydraulic Press Brake, China 300/400 Ton Press Brake

Views: 171     Author: Site Editor     Publish Time: 2021-06-08      Origin: Site

Inquire

WC67Y Hydraulic Press Brake, China 300/400 Ton Press Brake



Description




WC67Y 300/400-ton hydraulic press brake is a kind of hydraulic-driven sheet metal bending machine. It comes with a motorized back gauge and foot pedal to control two basic actions of press brake, to get the machine with much more function.



WC67Y hydraulic press brakes are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates, and heavy-duty usage, bringing adaptability and versatility without the hefty price tag.

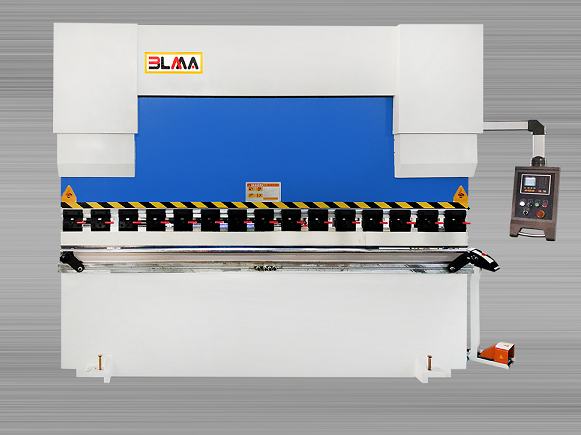

China 300400 Ton Press Brake


Main features


  • A special numeric-control system is fitted with the mainframe of the China 300/400-ton press brake.

  • The multi-work-step programming function is able to achieve an automatic operation and continuous positioning of multi-step procedures, as well as an automatic precision adjustment for the position of the rear stopper and gliding block.

  • The WC67Y hydraulic press brake is provided with a bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters.

  • Imported ball bearing lead screw and linear guide rail are used for the rear stopper, to ensure the positioning precision of the rear stopper, for processing precision of the CNC hydraulic press brake to be higher.



Details


1. CNC Backgauge


BLMA WC67Y 300/400-ton hydraulic press brake is equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.




BGA

X

R

Z1

Z2

X2

Stroke(mm)

750

150

UNDER REQUEST

UNDER REQUEST

190

Speed(mm/s)

500

170

2000

2000

200

Precision(mm)

+0,02

+0,05

+0,05

+0,05

+0,02

Type of motor

BRUS HLESS

BRUS HLESS

BRUS HLESS

BRUS HLESS

BRUS HLESS

Mechanical system

SCREW

SCREW

RACR

RACR

SCREW

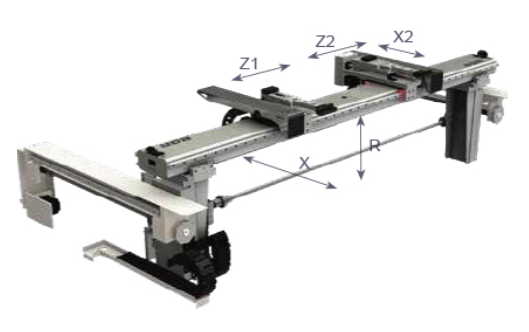

CNC Backgauge


2. Lasersafe Optical Safety Guards


  • Performance without compromise.

  • BLMA Luse LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Serice, the Lazersafe is category 4 compliant and meets the world’s most demanding

  • International safety standards(CE Certified Category 4 Safety Controller with integrated).

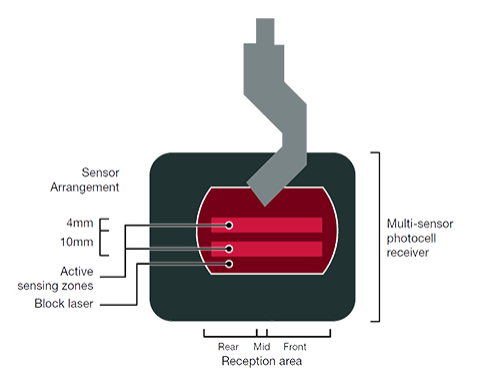

Lasersafe Optical Safety Guards


3. Quick Clamp System


• Safe and fast tool change

• Substantial improvement in time consumption and related costs

• Secure against tool falling down

• Available in manual, pneumatic, and hydraulic models.

• Mounting: Simply from the bottom into the housing, tighten-DONE!

• Easy to mount on your press brake. Modify the cation of the press brake is not necessary.

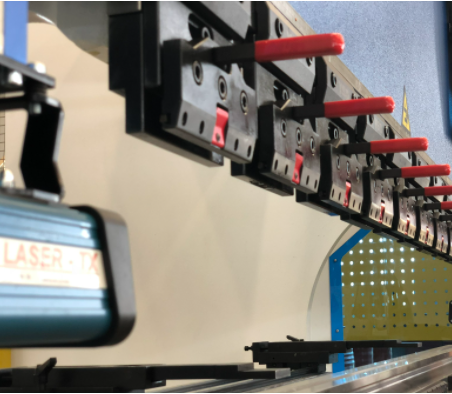

Quick Clamp System


Why choose us?



BLMA is the top 10 press brake manufacturer in the world market. Its brand has been the leading brand for many years in the field of international metal sheet equipment. Our group devotes ourselves to product development, production and sales.



We are using advanced technology from German, Japan, and Italy. We can produce large hydraulic press and press brake more than 16000 ton & 16m. We are with the professional R&D team, and we have World-class design and manufacturing capabilities.
