Q35Y series multi-functional hydraulic combined punching and shearing machine can cut and punch various section steels such as plate, square steel, round steel, channel steel, angle steel, I-beam, etc. It is the preferred machine tool for mass blanking of various section steels. And it can bend sheets with a length of 500mm or less. Each part of the machine meets higher quality requirements in terms of safety, function, maintenance, and performance.

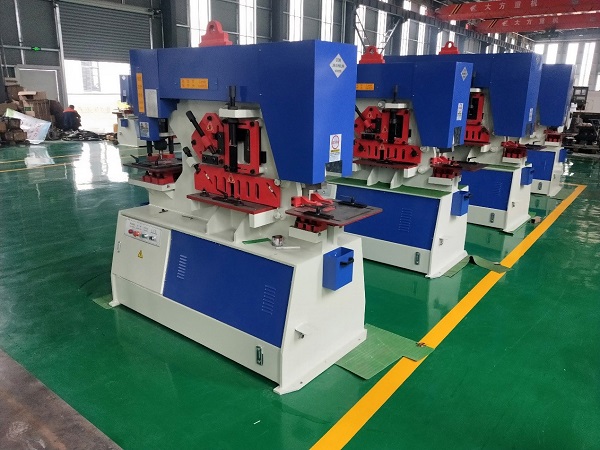

The combined punching and shearing machine is a sheet metal and profile processing equipment that integrates multiple functions. Hydraulic ironworker machines are widely used in steel structure processing, storage shelves, high-voltage wire towers, telecommunications towers, street lamps, advertising signs, elevators, ventilation ducts, and other civil facilities manufacturing enterprises.
1. The main machine adopts the scissor frame to swing back and forth to realize five-station work. It is a new domestic hydraulic combined punching and shearing machine. The overall structure of this machine is reasonable, lightweight, low noise, light, and reliable.
2. The tool holder adopts an integral type, with five stations for punching, cutting angle steel, round steel, square steel, flat steel, and steel plate. It can also cut channel steel and I-beam. And configure the corresponding blocking device.
3. The pressing device adopts helical gear transmission for adjustment and pressing, which is convenient and fast.

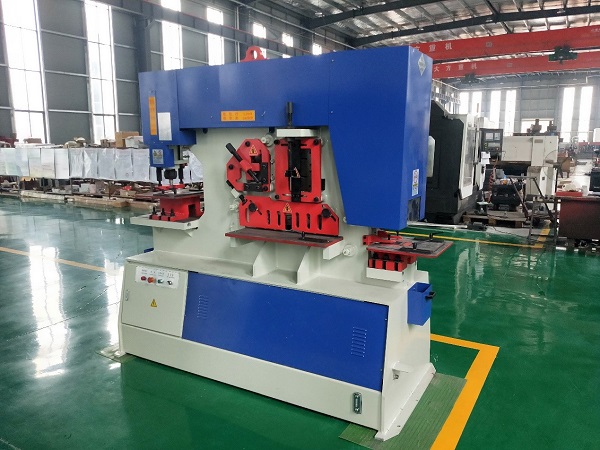

1. The Q35Y hydraulic ironworker machine uses hydraulic transmission, the whole machine has a reasonable structure, lightweight, low noise, lightness, reliability, and overload performance.
2. The combined punching and shearing machine is equipped with a punching station, channel steel and angle steel shearing station, thick plate shearing station, round steel, and square steel shearing station, and angle cutting station as standard. Accessories such as punching large holes, sheet bending, channel steel punching, blinds, and pipe cutting corners can be purchased.
3. The machine standard equipped with five stations and dual hydraulic workstations and can work independently at the same time. The Q35Y ironworker machine does not need any horizontal adjustment and can be used after it is placed in place. Optional CNC control system increases automatic punching and cutting efficiency.
4. The hydraulic combined punching and shearing machine adopts European top processing technology, and the whole frame is welded. After high-temperature quenching treatment, the frame has high rigidity and high strength. The cutter is treated with a special vacuum at high temperature to extend its service life.
5. It is equipped with a pipe cutting die. The pipe can be cut and beveled, with high efficiency, cost-saving, and beautiful cutting surface.
1. Wide application
Q35Y series multifunctional hydraulic combined punching and shearing machine is a sheet metal and profile processing equipment that integrates multiple functions. It is widely used in steel structure processing and production, high-voltage wire towers, telecommunication towers, street lights, advertising, shelves, elevators, ventilation It can also be used in the production and construction of large steel bridges, military industry, aerospace and other high-demand, high-precision production and construction of pipelines and other civil facilities. The machine adopts hydraulic transmission. It is the latest domestic combined punching and shearing machine. Steel, round steel, angle steel, channel steel, and I-beam are cut, punched, die-cut, and equipped with shear stop devices.
Specially designed stripping board, good and safe design, easy to punching operation. The quick mold replacement system can greatly save the time of replacing the punch and maintain its accuracy. A variety of punching molds are available to the removable stripper baffle which can meet various needs and is suitable for punching of various sizes. The lower blade has a four-sided shearing surface that can be replaced. The machine does not need to be adjusted horizontally, after placing it in place Ready to use. The optional CNC control system increases automatic punching and cutting efficiency.
3. Excellent working effect
Butt cutting can be done on the edge of the flat iron, two-piece working plate, attached with scale and positioning block, easy to work. The Q35Y hydraulic machine adopts European top processing technology, the whole frame is welded, and it is quenched at high temperature. The treatment to make the frame have high rigidity and high strength, through special vacuum high-temperature treatment, to extend its service life. The special curve design on the knife plate minimizes the distortion of the shearing parts. It is the best for flat plates and angle irons. It is convenient for butting and shearing. It is equipped with a safety cover for electrical interlocking, which is safe and easy to use. The workstation can be replaced with a special one to cut channel steel, h-shaped steel, and various types of steel.
4. Safety guard
The pressing device of the hydraulic combined punching and shearing machine is mainly composed of a set of pressing cylinders. Before the tool post goes down, the plunger of the pressing cylinder overcomes the action of the spring to press down to compress the sheet. And after the shearing is completed, it is reset under the action of the spring. The Q35Y hydraulic ironworker machine is equipped with a protective grille for protection. For the replacement of punching upper and lower dies of the combined punching and shearing machine, the replacement of punches uses a hook wrench to loosen the lock nut, and then the punch can be removed. After installing the new punch, tighten the nut (for punches of various sizes). The mounting dimensions of the head and the tail are the same so the exchange is quick.
From the economical stand, the benefits of Q35Y ironworker make them ideal for both small factories with a few workers as well as busy factories that need every productivity advantage they can get. The hydraulic ironworkers can also save money as a result of their smaller space requirement, faster operation speeds, and waste saving benefits. In the long term, an ironworker machine can be a valuable asset for an investor.
