Tube Bending Tooling Guide: Understanding Bending Die, Mandrel, Pressure Die and Wiper Die

In CNC tube bending, tooling plays a critical role in determining bending accuracy, surface quality, and production efficiency. Even with an advanced CNC tube bending machine, improper tooling setup can lead to wrinkles, flattening, or deformation.

Understanding tube bending tooling components helps manufacturers improve production quality and efficiency.

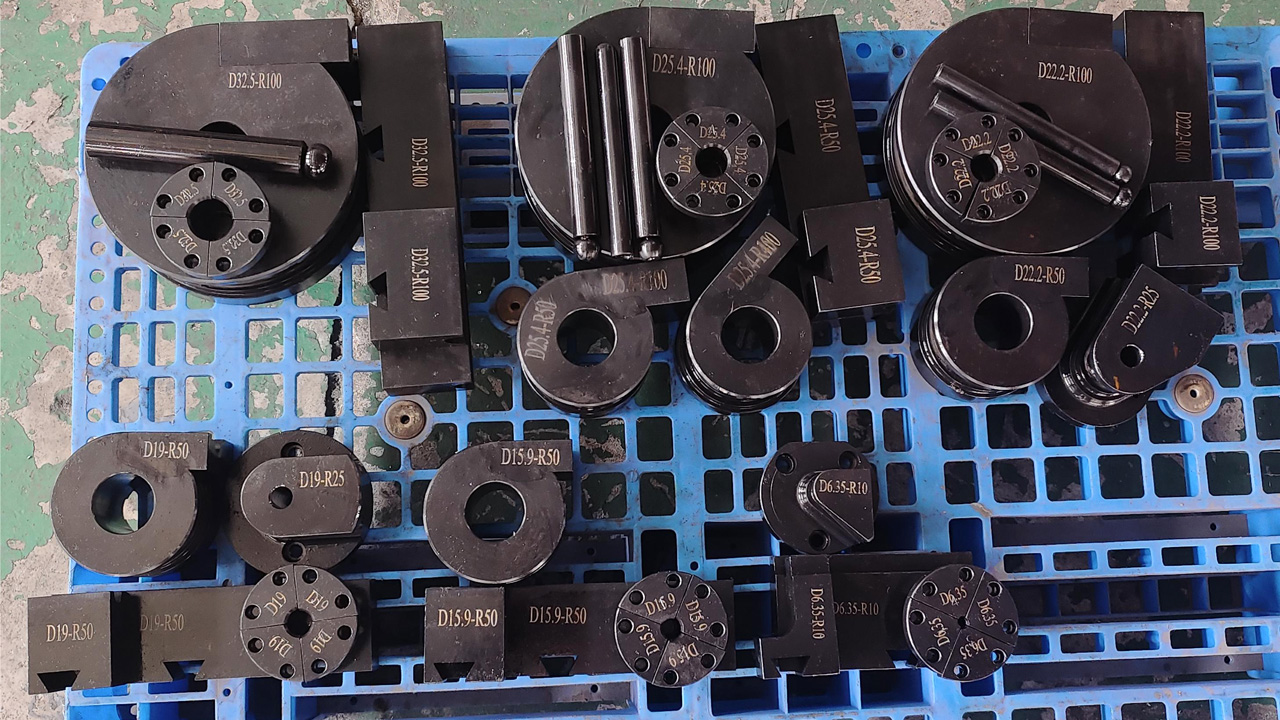

Main Tube Bending Tooling Components

A standard CNC tube bending tooling setup includes:

• Bending Die

• Clamping Die

• Pressure Die

• Mandrel

• Wiper Die

• Collet Clamp

Each component plays an important role in achieving high-quality tube bending.

Bending Die

The bending die determines the bending radius and controls the shape of the tube.

Functions:

• Controls bending radius

• Maintains tube shape

• Ensures bending accuracy

High precision bending dies improve repeatability and reduce deformation.

Clamping Die

The clamping die holds the tube tightly against the bending die.

Functions:

• Prevent tube slipping

• Maintain positioning

• Improve bending accuracy

Proper clamping force is important to prevent surface damage.

Pressure Die

The pressure die supports the tube during bending.

Functions:

• Support tube

• Maintain roundness

• Reduce deformation

Pressure die assist is important for small radius bending and thin-wall tubes.

Mandrel

The mandrel supports the tube internally.

This is critical for:

• Thin wall tubes

• Small radius bending

• Stainless steel tubes

Mandrels prevent tube collapse and improve bending quality.

Wiper Die

The wiper die prevents wrinkles on the inside radius.

Benefits:

• Reduce wrinkles

• Improve surface finish

• Improve bending quality

The wiper die is especially important for thin-wall tubes.

Single Layer vs Multi Layer Tooling

Modern CNC tube bending machines support:

Single Layer Tooling

• Easy setup

• Lower cost

• Suitable for simple parts

• https://youtu.be/B9lQvzuTFoc?si=WEoozIhOFlNDdW1_

Multi Layer Tooling

• Faster production

• Reduce tool change time

• Improve efficiency

https://youtu.be/M6JleE3aWlM?si=zIEwqMvBTOILXna-

Conclusion

Tube bending tooling is essential for achieving high-quality bending results. Proper tooling design improves efficiency, accuracy, and production consistency.

Understanding tooling components helps manufacturers select the right tube bending solution.
