RV Reducer Bending Head Technology: How BLMA Achieves <0.01° Repeatability in CNC Tube Bending
Precision is the single factor that separates a reliable CNC tube bending machine from one that causes downstream assembly problems. As manufacturers push toward tighter tolerances — especially in automotive, aerospace, and medical tube fabrication — the bending head itself has become the most critical component in the entire machine. This article explains how RV reducer bending head technology works, why it eliminates a long-standing accuracy problem in tube bending machines, and what it means for manufacturers evaluating new equipment.
The Problem: Backlash in Traditional Transmission Systems

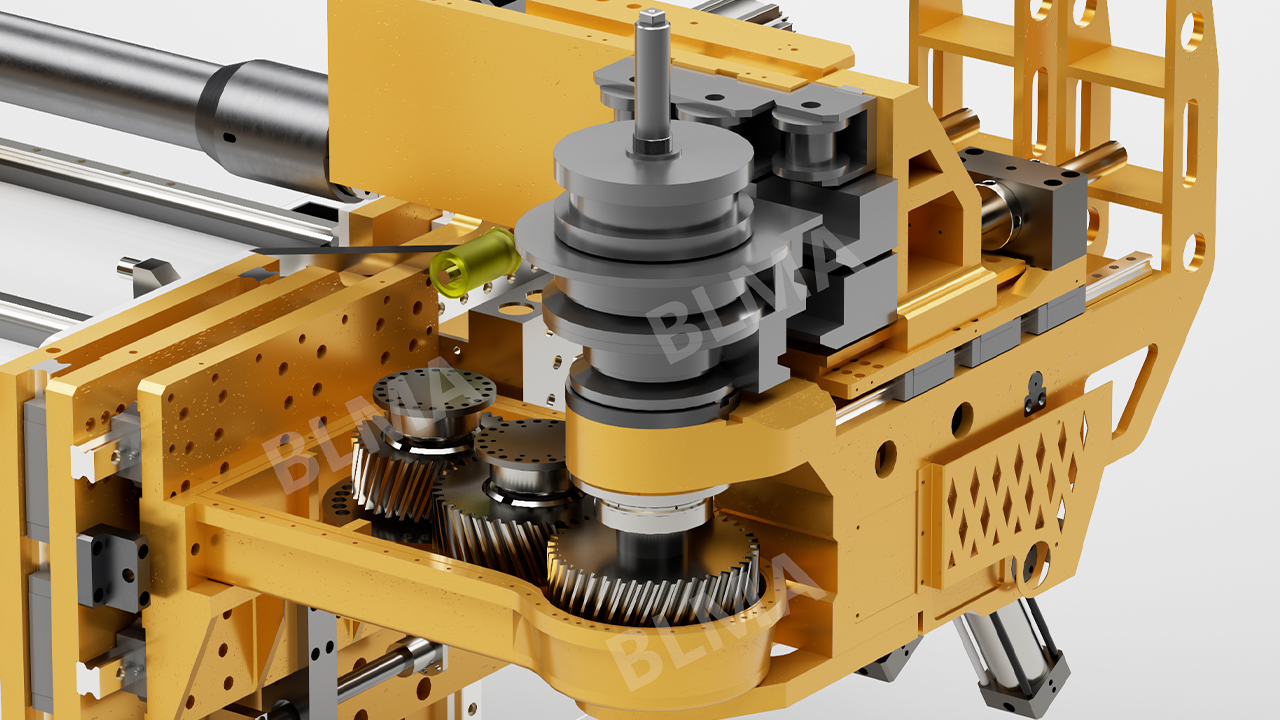

Most conventional CNC tube bending machine heads rely on a multi-stage mechanical transmission — typically a combination of gears, belts, or worm-gear systems — to transfer motor torque into rotational bending force.
This layered transmission design has an inherent weakness: backlash, the small amount of "play" or lost motion that occurs whenever a mechanical drivetrain changes direction. Every additional gear stage introduces its own tolerance gap. Over time, as components wear, this gap widens further.
In tube bending, backlash translates directly into:
Inconsistent bend angles across a production run
Reduced repeatability on multi-bend, multi-plane parts
Accumulated positioning error on complex tube geometries
Increased scrap rate and rework on tight-tolerance components
For simple, single-plane bends, this may not be noticeable. But for complex tube assemblies — automotive exhaust systems, aerospace hydraulic lines, medical device tubing — even a fraction of a degree of error can cause a part to fail final assembly.
The Solution: RV Reducer + Precision Single-Stage Gear Drive
A new generation of CNC tube bending machine heads addresses this problem at its source by replacing the traditional multi-stage transmission chain — worm gears, chains, belts, and multiple intermediate gear stages — with a servo motor coupled to an RV reducer (Rotary Vector reducer), which in turn drives a single large-diameter precision-machined gear connected directly to the bending arm.
How the RV Reducer Bending Head Works

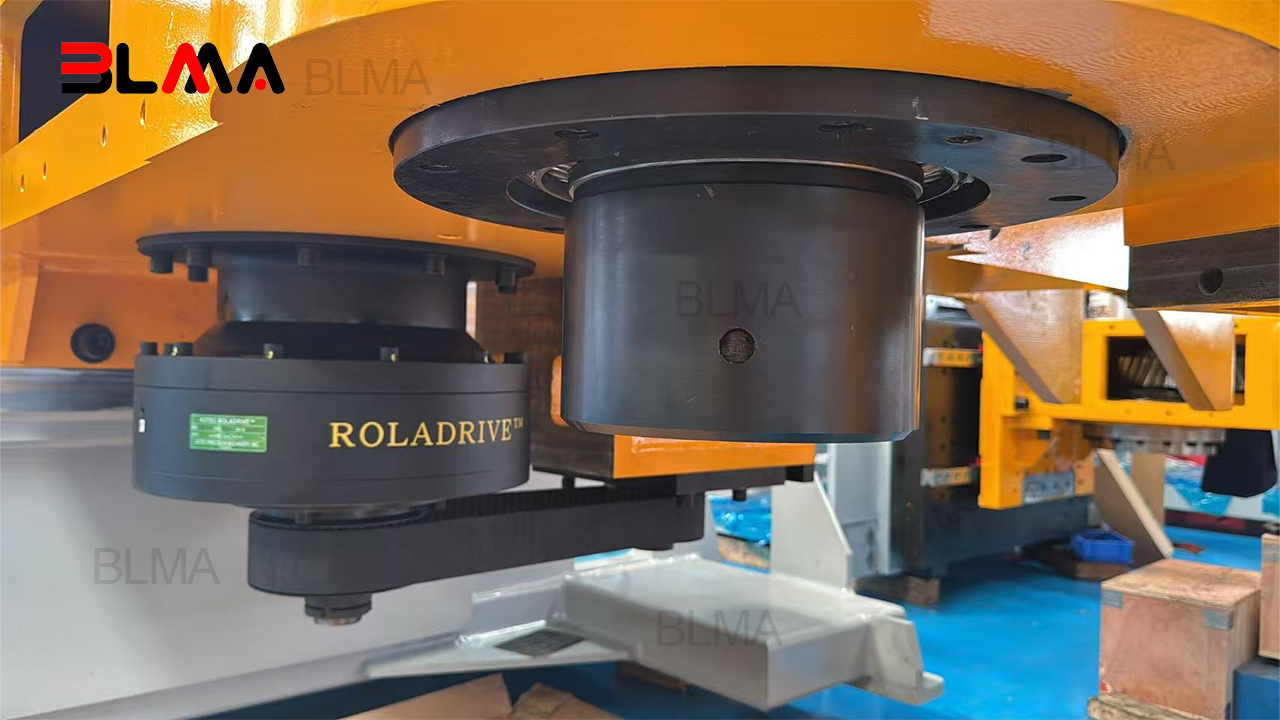

An RV reducer is a two-stage precision reduction unit — combining a planetary gear stage with a cycloidal disc stage — engineered specifically for near-zero backlash applications. The servo motor connects directly to the RV reducer, and the reducer's output drives a single precision-machined ring gear that is mounted on the bending main shaft — the structural core that carries the bending arm and transmits rotational force directly into the bend.
Because the RV reducer itself is inherently near-zero backlash, and the design reduces the transmission path to one precision gear stage instead of the multiple stages found in traditional systems, this configuration delivers three structural advantages:
Minimal backlash accumulation — with only one precision gear stage after the RV reducer, there are far fewer tolerance gaps for backlash to accumulate compared to traditional multi-stage gear trains
High torsional rigidity — the large-diameter output gear, precision bending main shaft, and compact reducer coupling resist deflection under heavy bending loads, maintaining accuracy even on thick-wall, large-diameter tube
Stable long-term accuracy — fewer wear-prone components in the drive path mean less accuracy degradation over the machine's operating life compared to traditional worm-gear and chain-driven heads
The result is a mechanical repeatability of less than 0.01° — a level of positioning accuracy that traditional multi-stage gear-driven bending heads cannot consistently achieve, particularly as the machine accumulates operating hours.
RV Reducer Direct-Drive vs. Traditional Transmission
Factor
Traditional Multi-Stage Transmission
RV Reducer + Precision Single-Stage Gear
Transmission path
Multiple gear stages, chains, and/or belts
Servo motor → RV reducer → one precision gear stage
The practical impact of eliminating backlash becomes most visible on complex, multi-bend tube components — parts that require multiple bends across different planes, tight centerline radii, or repeat production of identical geometry across thousands of units.
With RV reducer direct-drive:
Bend angle accuracy remains consistent from the first part to the ten-thousandth part
Multi-plane and multi-radius parts hold tolerance without cumulative drift
Tooling and mandrel wear is reduced, since the bending head itself introduces less mechanical inconsistency
Manufacturers can hold tighter tolerances without adding secondary correction or inspection steps
For industries where tube geometry directly affects fit, function, or safety — automotive fuel and brake lines, HVAC refrigerant tubing, medical device components, aerospace hydraulic systems — this level of mechanical stability is not a convenience. It is a production requirement.
Frequently Asked Questions
What is an RV reducer? An RV (Rotary Vector) reducer is a precision speed-reduction device that combines a planetary gear stage with a cycloidal disc stage. It is widely used in robotics and precision machinery because of its near-zero backlash and high torsional rigidity.
How does an RV reducer bending head improve tube bending accuracy? The servo motor drives an RV reducer, which in turn rotates a single large-diameter precision gear mounted on the bending main shaft — the component that directly carries the bending arm. Because the RV reducer itself has near-zero backlash and the transmission path is reduced to one precision gear stage — instead of the multiple worm gear, chain, and belt stages found in traditional systems — mechanical play is minimized, resulting in repeatable positioning accuracy of less than 0.01°.
What repeatability can a modern CNC tube bending machine achieve with RV reducer technology? Mechanical repeatability of under 0.01° is achievable with an RV reducer bending head, compared to typical figures of ±0.05° to ±0.1° on traditional multi-stage gear-driven systems.
Does an RV reducer bending head require more maintenance than traditional transmission systems? No — RV reducers are sealed, precision-manufactured units that require significantly less adjustment than traditional multi-stage gear trains, which need periodic backlash compensation as components wear.
Which industries benefit most from this level of bending precision? Industries producing complex, multi-bend, or tight-tolerance tube components benefit most, including automotive (exhaust, fuel, brake lines), aerospace (hydraulic tubing), medical device manufacturing, and HVAC refrigerant line production.
Conclusion
RV reducer bending head technology represents a structural shift in how CNC tube bending machine heads are engineered — moving away from multi-stage transmissions prone to backlash, toward an RV reducer paired with a single precision gear stage built for long-term accuracy. For manufacturers producing complex tube parts at scale, this translates into fewer rejected parts, more consistent quality across production runs, and a bending head that holds its accuracy over the life of the machine.
Looking for a CNC tube bending machine built around this technology? Contact BLMA's engineering team with your tube specifications and bending requirements for a tailored recommendation.
